KWS-2301C Multifunction USB Digital Tester - Voltage and Current Meter

KWS-2301C Multifunction USB Digital Tester - Voltage and Current Meter

KWS-2301C Multifunction USB Digital Tester - Voltage and Current Meter, USB Multifunction Tester The KWS-2301C is a compact and advanced device designed to monitor and analyze the charging performance of electronic devices. This handy device can measure a variety of important parameters, such as current, voltage, and power.
You can switch between display modes using the button on the back. Pressing and holding the button resets the tester and restarts the measurement period.

Features

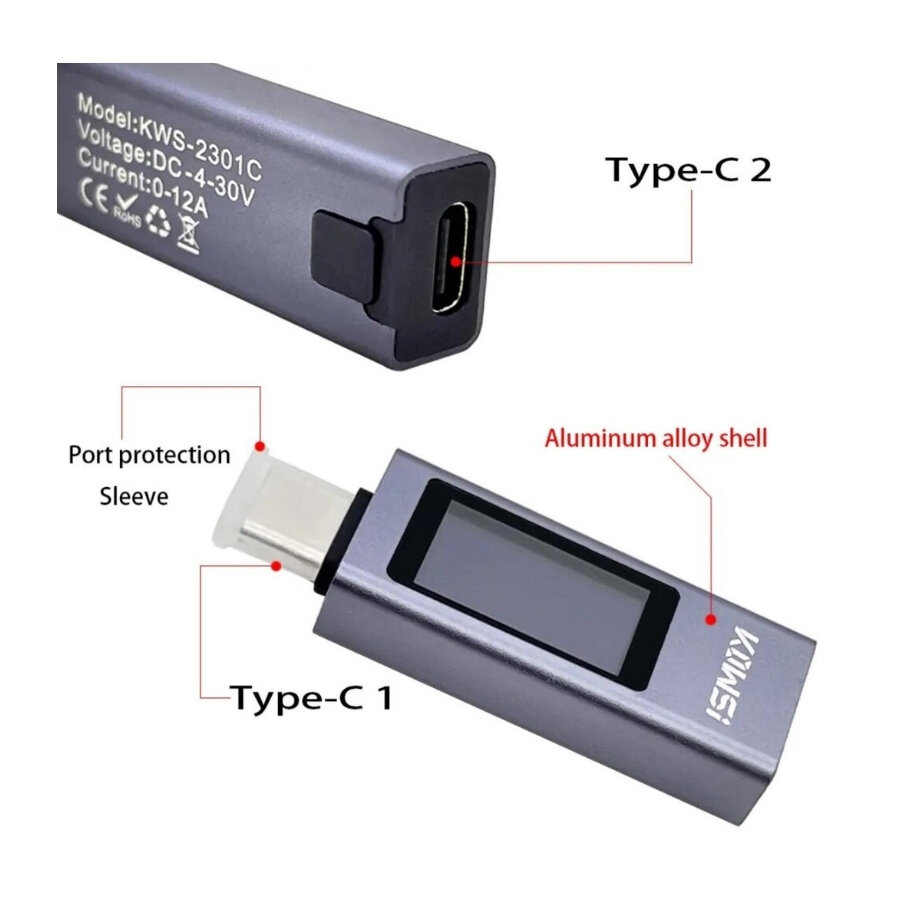

• Durable Design: CNC metal housing provides robust protection against dust and drop damage.

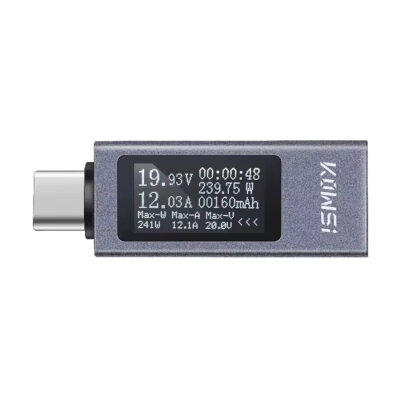

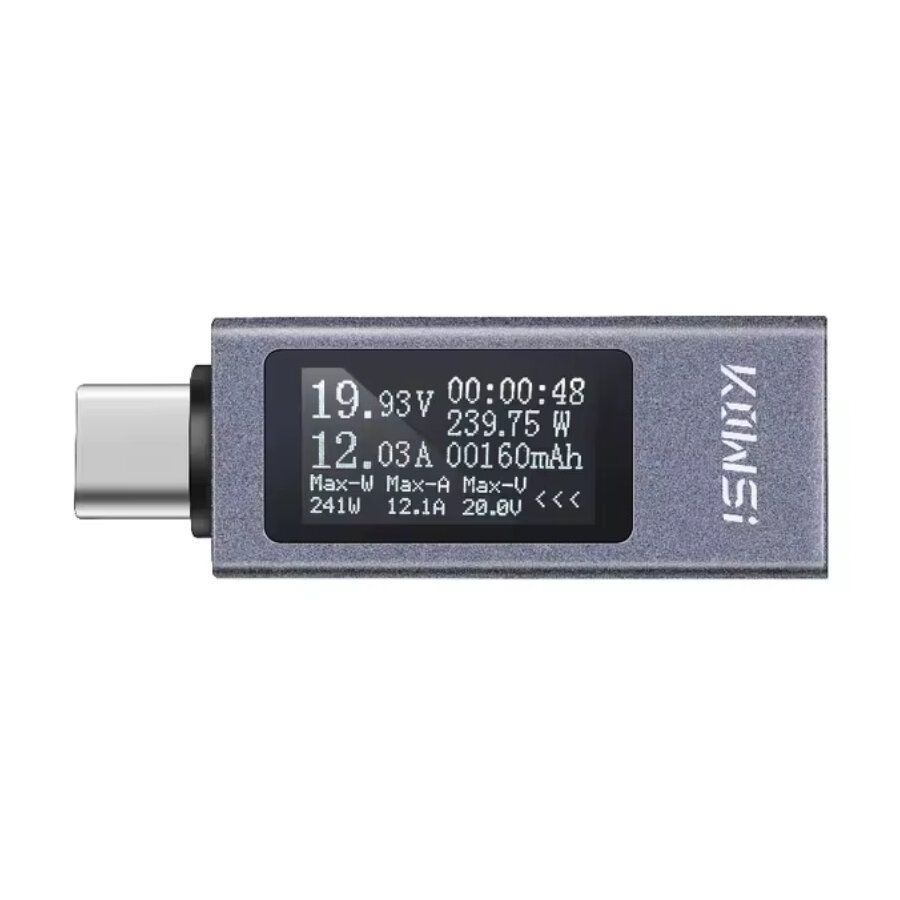

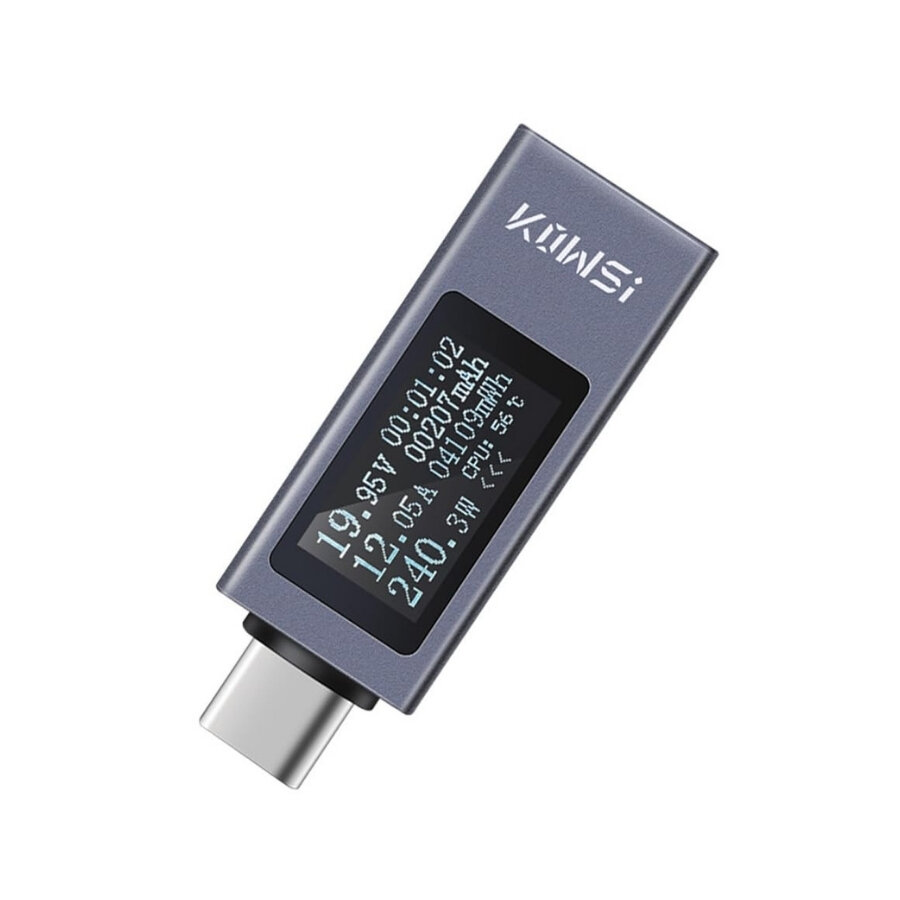

• Bright Display: 0.77-inch OLED HD display provides clear data display even at high currents up to 12A.
• Compatibility: Full interface compatibility and bi-directional current test function support the evaluation of fast charging technologies.
• Real-Time Monitoring: The ability to detect the state of charge of electrical devices in real time, including voltage and current monitoring.

Technical Specifications

• Voltage Range: 4-30V
• Current: 0-12A
• Power Range: 0-360W
• Capacity: 0-99999mAh
• Energy Range: 0-99999Wh
• Dimensions: 41x16x9mm
