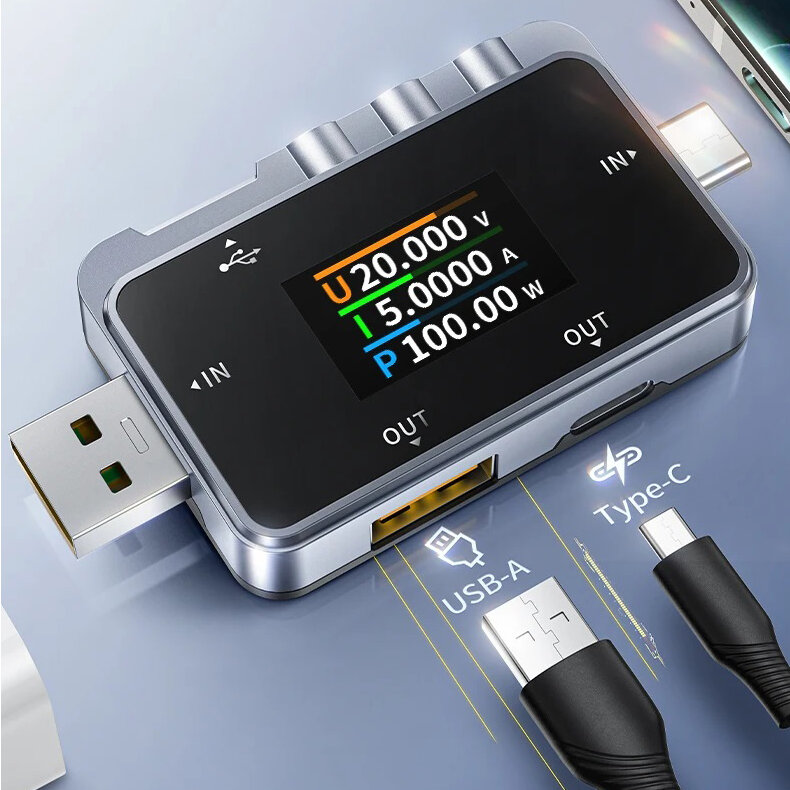

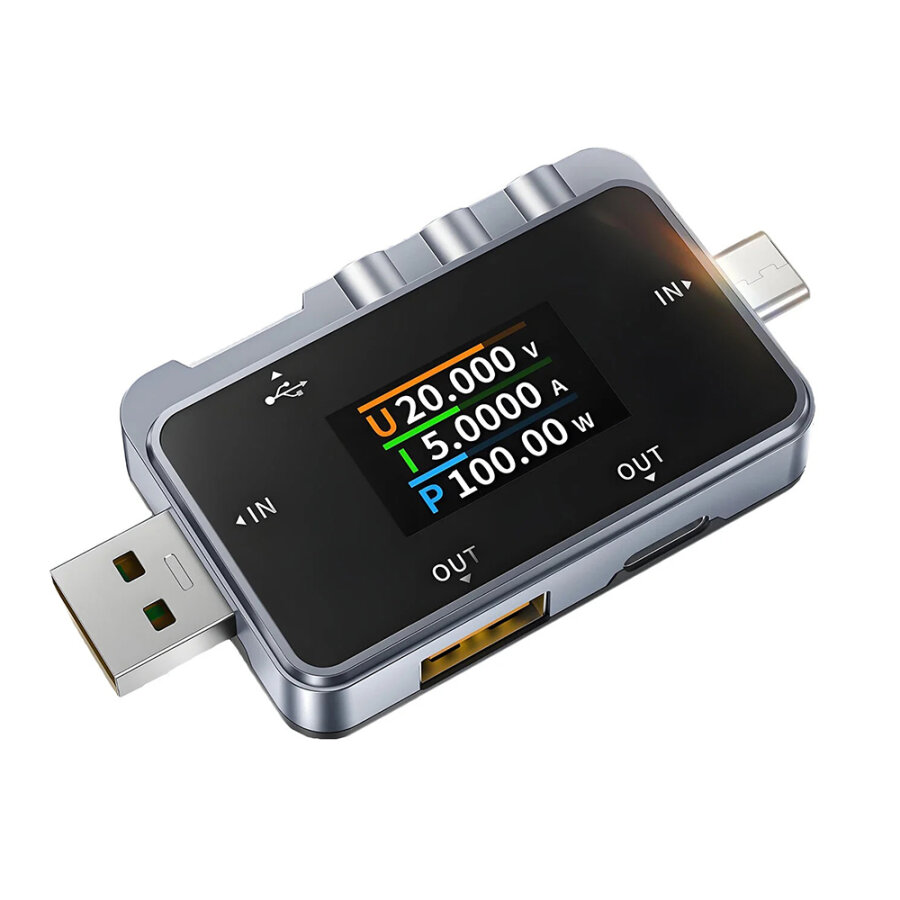

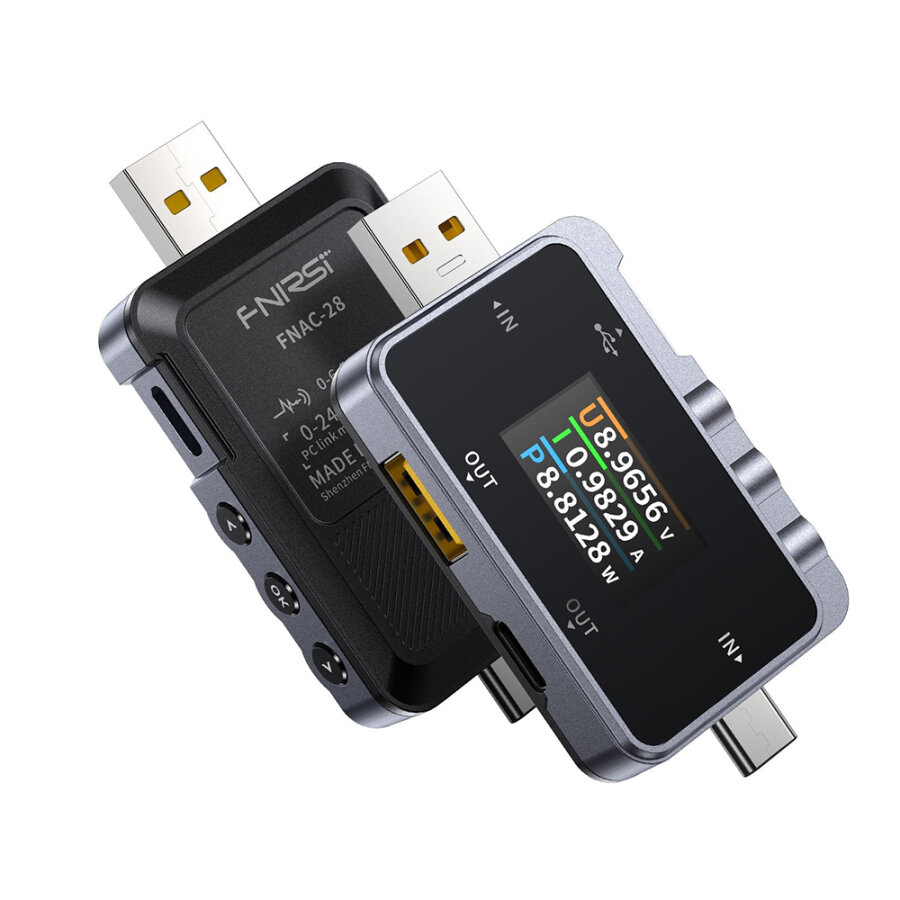

FNAC-28 2-in-1 Type-C+USB Tester
The FNAC-28 2-in-1 Type-C+USB Tester is a multifunctional USB voltage and current meter and fast charge trigger for mobile communication terminals.
Features

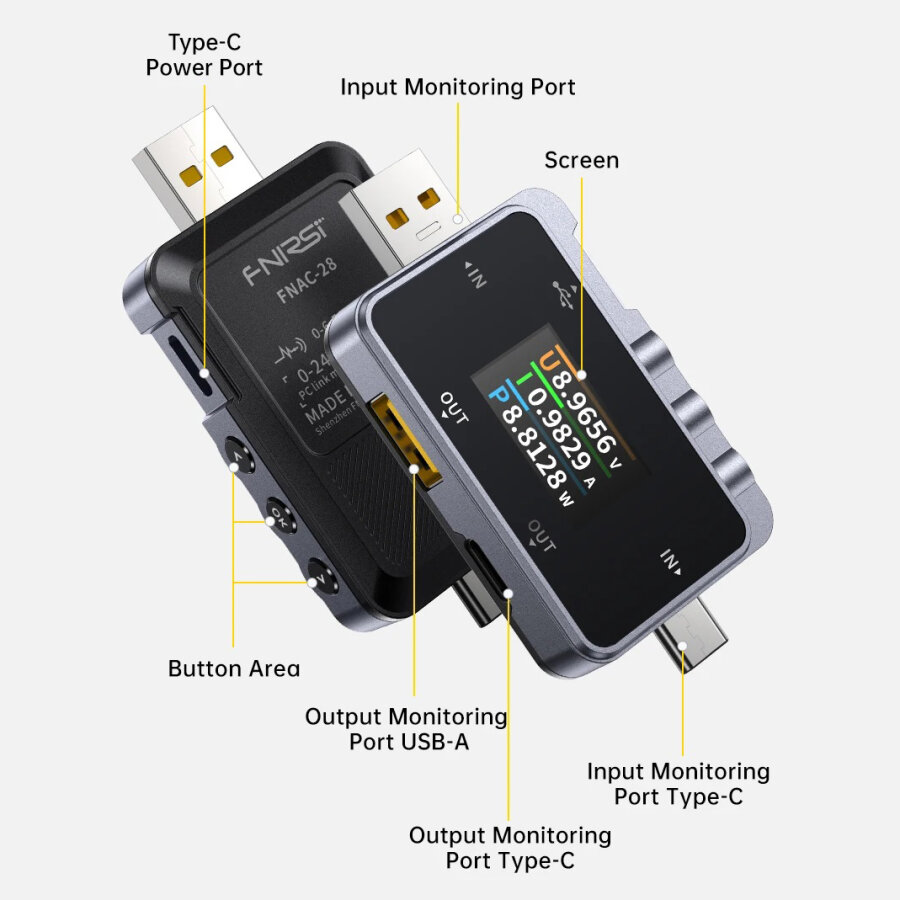

- Featured in a full-color, ultra-wide viewing angle TFT LCD display, the device integrates multiple interfaces, including USB-A and Type-C male and female connectors, ensuring broad compatibility.
- Using an external 16-bit ADC chip, it offers high measurement accuracy.
- This device can measure the power supply or consumption of USB interfaces, phone chargers, USB drives, and other products.
- It can also measure phone charging power and input and output conditions of portable chargers, and test fast charge protocols for chargers. can be realized.
Technical Specifications
- Brand: FNIRSI
- Model. FNAC-28
- Display: 1.06-inch color display
- Monitored Voltage: 4~24V
- Monitored Current: 0~6.5A
- Monitored Power: 0~156W
- Dimensions: 73×36×12 mm
- Protocol Detection
- ① QC2.0: 5V/9V/12V/20V
- ② QC3.0: 3.4-20V
- ③ FCP: 9V/12V/20V
- ④ SCP: 5.5-6.0V
- ⑤ AFC: 9V/12V
- ⑥VOOC/WARP: 20V
- ⑦ SVOOC 1.0: Supported
- ⑧ SVOOC 2.0: Supported
