AUA-600 400x Fiber Optic Inspection Microscope
50.732,50
TL
+
VAT
60.879,00
TL
Notify Me When It Arrives
Notify Me When It Arrives

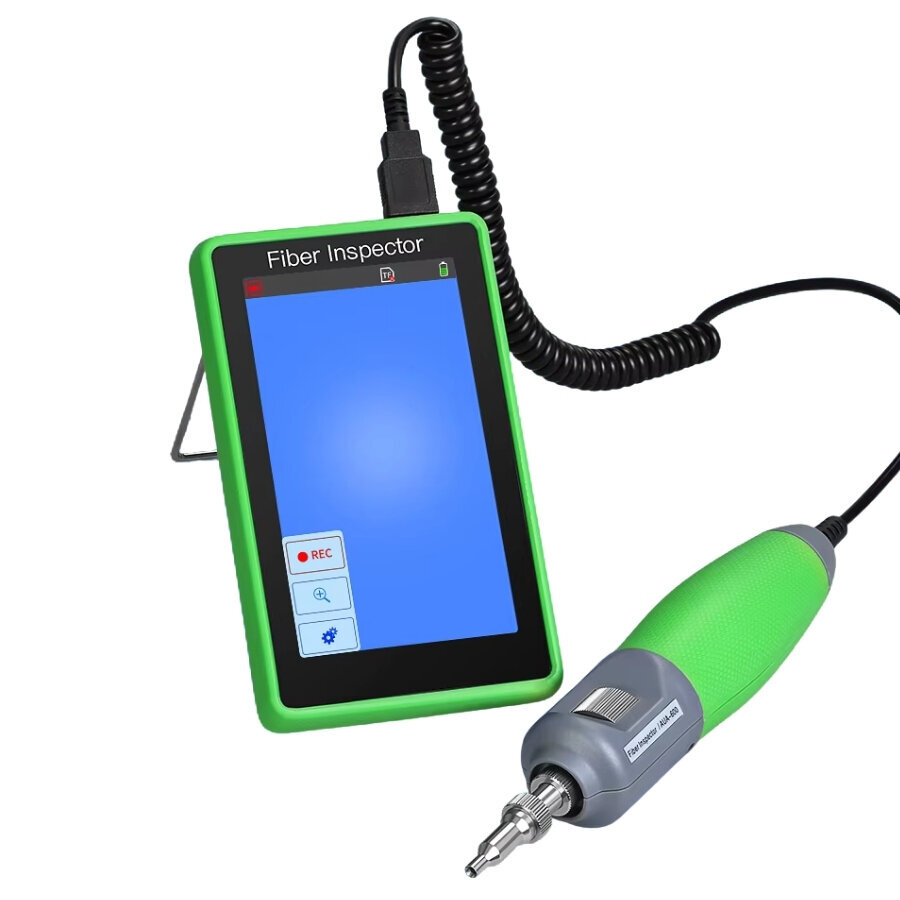

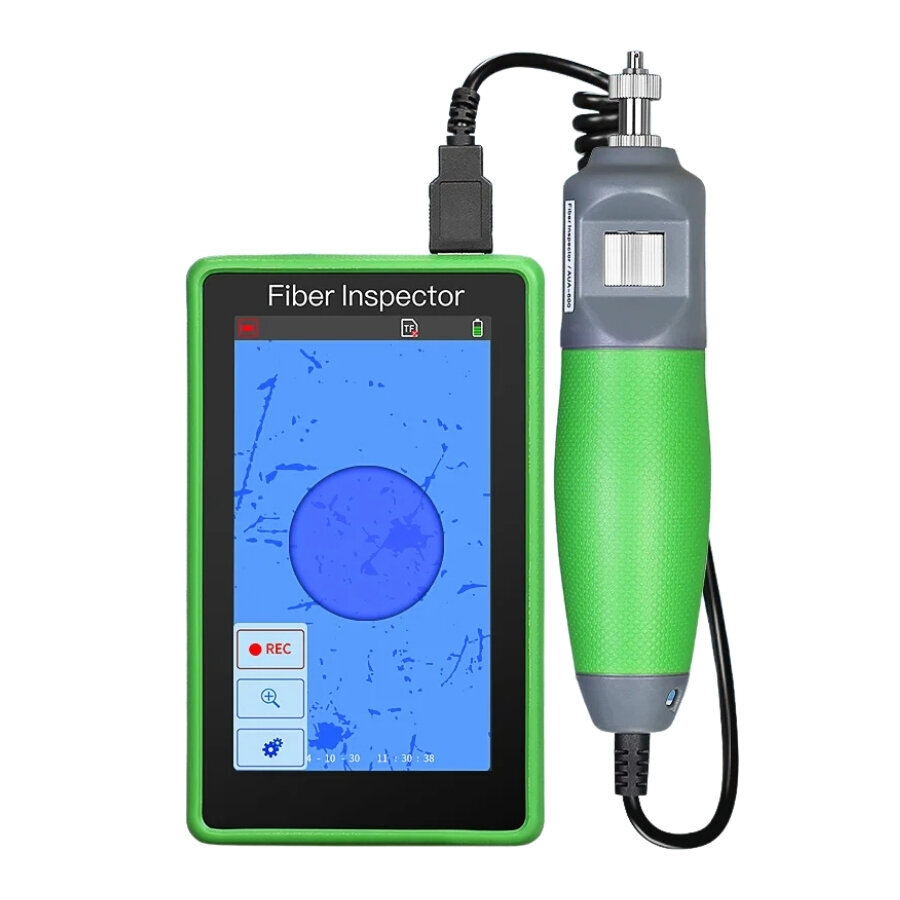

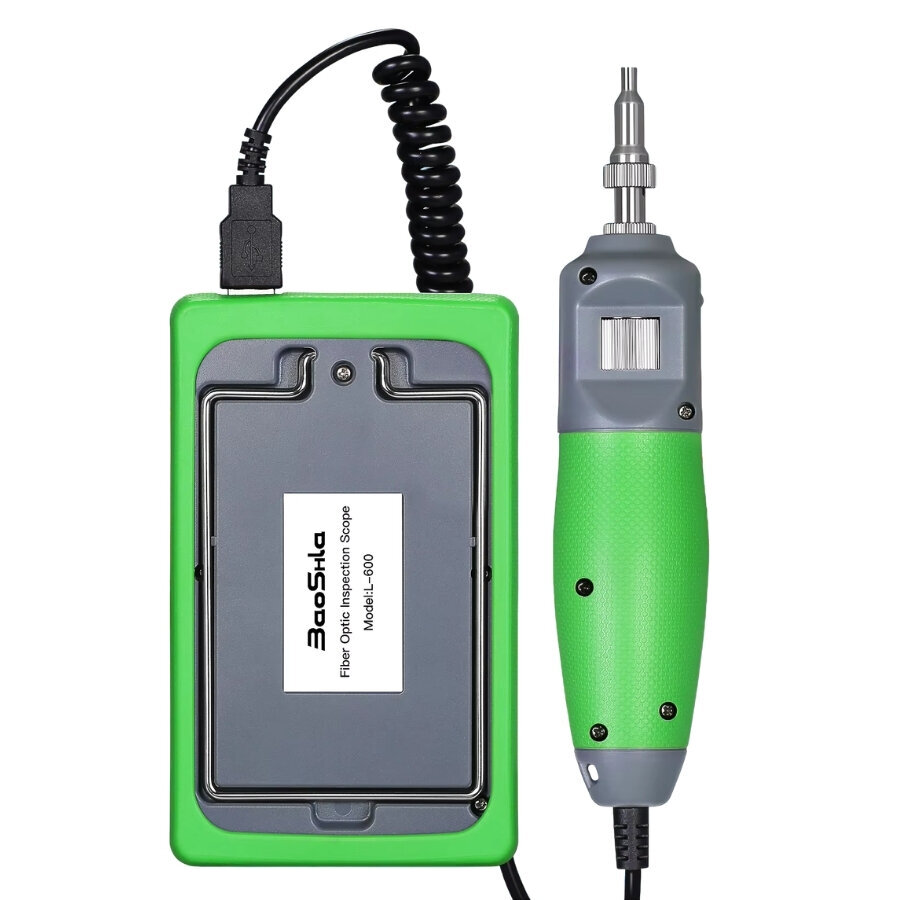

AUA-600 400x Fiber Optic Inspection Microscope
The AUA-600 400x Fiber Optic Inspection Microscope allows you to analyze connector end surfaces in detail, detecting dirt, scratches, and damage. This ensures maximum efficiency and minimum signal loss during installation and maintenance.
It supports 6 different connector interfaces: SC, FC, ST, LC, SC Female, and LC Female.
It has a 5-inch touchscreen. It can connect to a computer and display images via computer. It supports TF cards and transfers recorded data to the TF card.
It has a 4000 mAh lithium battery and charges via Type-C.
5-inch LCD Screen Specifications
- Image;
- Image Size (mm): 22
- Pixels: 854 x 480
- Video;
- Frequency: 25FPS
- LCD Screen: 960x240 LCD
- Video Output Mode: NTSC/PAL
- Playback Format: AVI
- User Interface;
- Compatible Storage Card: TF
- Capacity: 8GB
- USB: 1.1/2.0
- Hard Disk Format: FAT32
- Power Supply;
- Adapter: 5V 2A
- Built-in Battery: 4000 mAh Lithium Battery
Detector Specifications
- Magnification Factor: 200X/400X (Default 200X)
- Resolution (um): 854x480
- Visual Range (um): 0.316x0.285
- Dimensions: 160x38x38mm
- Visual Sensor: 1/3 480
- Storage Temperature: -18 ~ 35°C
- Weight: 185g
