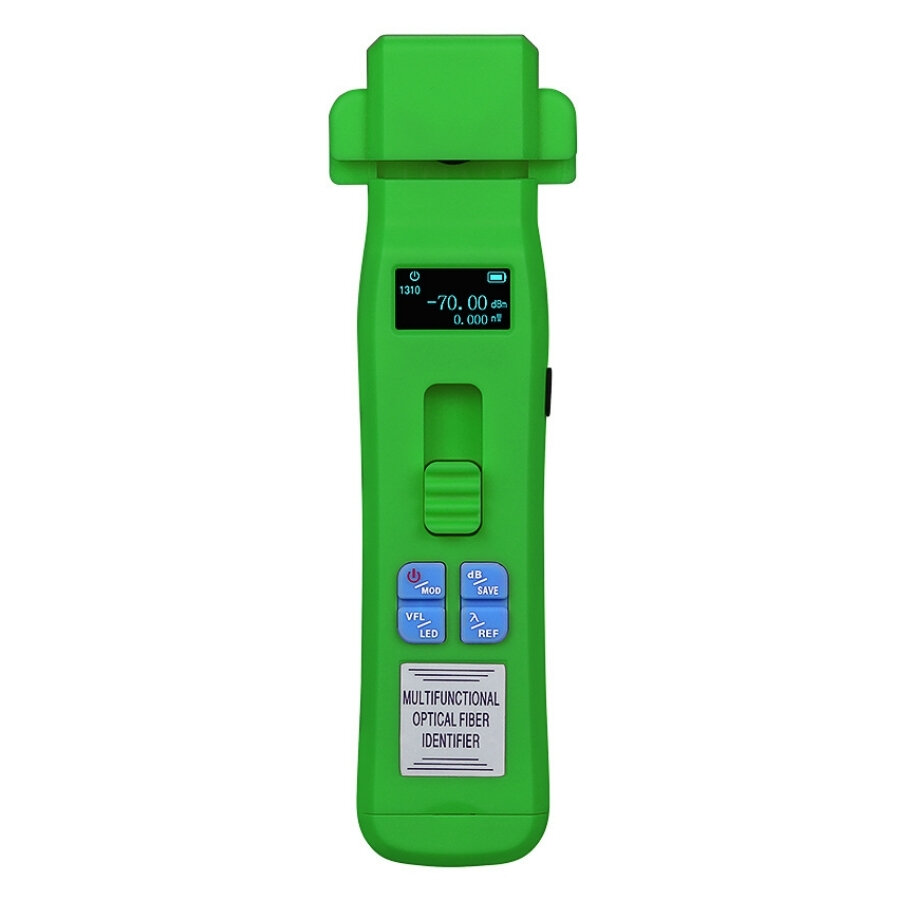

AUA-C607 Rechargeable Fiber Optic Identifier

AUA-C607 Rechargeable Fiber Optic Identifier

The AUA-C607 Rechargeable Fiber Optic Identifier is a 4-in-1 fiber tester with OFI, OPM, 30mW VFL, and LED features. It can be used for both SM and MM fibers (800-1700nm). It provides precise live fiber detection, optical power measurement, and fault location. It is perfect for fiber optic testing and maintenance.

It is suitable for SC, FC, and ST fibers with its 2.5mm universal interface. It has a 650mAh battery. It can be charged via Type-C.

Technical Specifications

• Wavelength Range: 800-1700nm
• Function: OFI + OPM + 30mW VFL + LED
• Signal Identification Type: CW, 270Hz+5%, 1kHz+5%, 2kHz+5%
• Detector Type: Ø 1mm InGaAs 2pcs

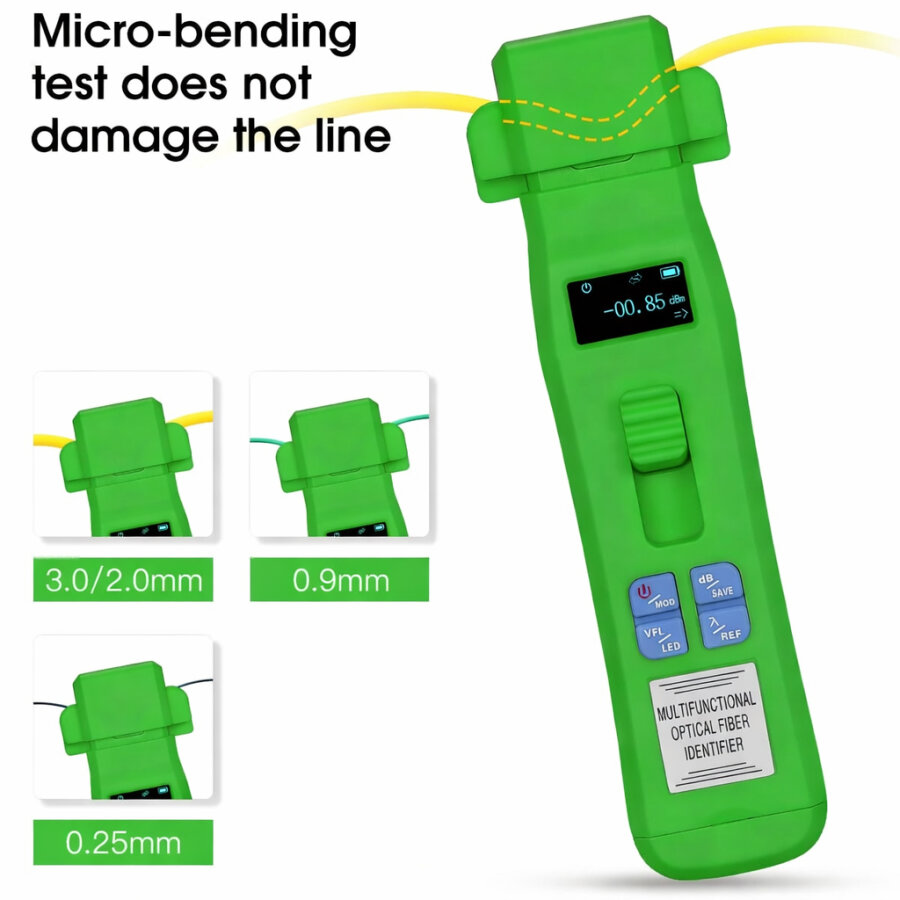

• Compatible Fiber Types: Ø0.25 / Ø0.9 (bare fiber), Ø2.0, Ø3.0 fiber optics
• Signal Frequency Range: 270Hz, 1kHz, 2kHz
• Optical Power Measurement Range: -70 ~ +10dBm Probe Type: InGaAs Battery: 3.7V 650mAh Wavelength Range: 850 ~ 1650nm Standard Wavelengths: 850, 980, 1270, 1300, 1310, 1490, 1550, 1577, 1625, 1650 Image Resolution;
  • Linear: 0.1%
  • Logarithmic: 0.01dBm
• Operating Temperature Range: -10 ~ +60°C
• Automatic Shutdown Time: 10 minutes
• Red Light Output Optical Power: > 10-30mW
• Red Light Output Wavelength: 650nm
