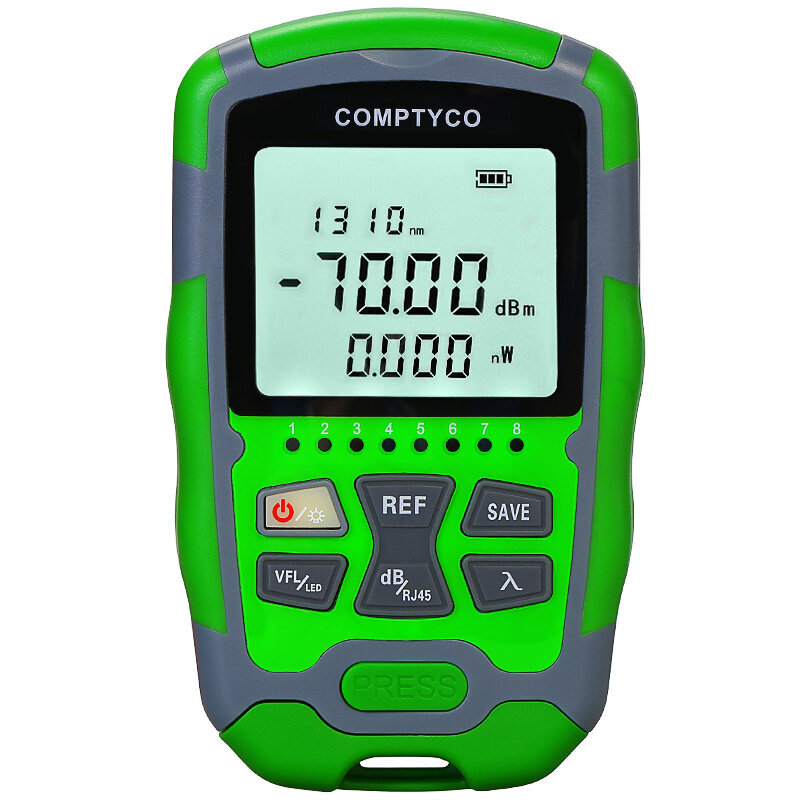

AUA-MC70 10mW Rechargeable Fiber Optic Power Meter

AUA-MC70 10mW Rechargeable Fiber Optic Power Meter

With the AUA-MC70 10mW Rechargeable Fiber Optic Power Meter, you can perform operations such as optical power measurement, fault detection, and network cable testing with a single device. Thanks to its compact and portable structure, this device offers the possibility of quick intervention in the field and facilitates both installation and maintenance processes in fiber optic infrastructures.

It can test 10 different wavelengths. It has a 600mAH internal battery. It supports SC, FC, and ST interfaces.

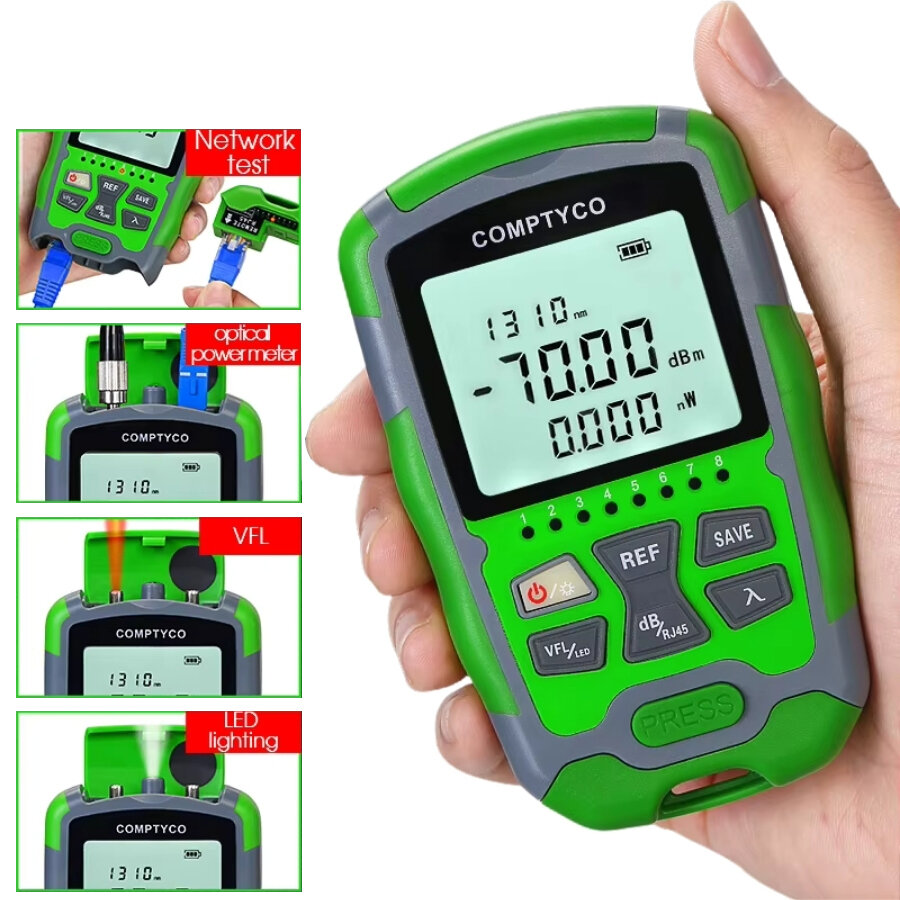

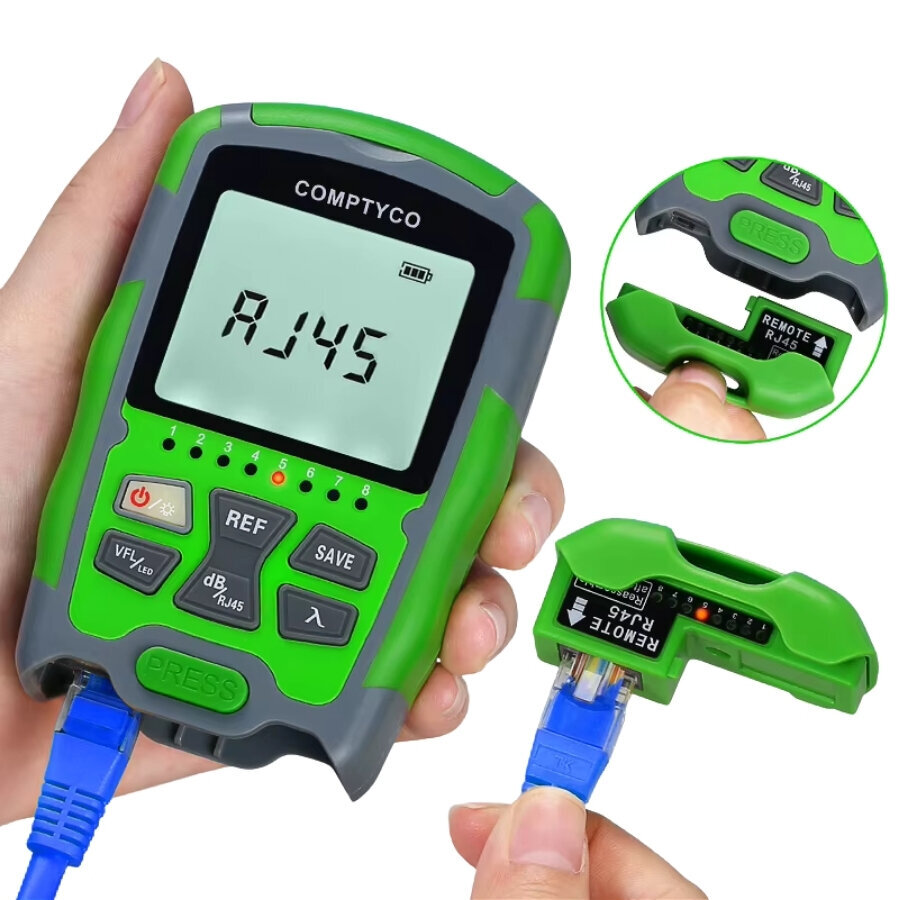

OPM+VFL+LED+RJ45 test functions are available.

Technical Specifications

• Power Measurement Range: -70 ~ +10dbm
• Probe Type: InGaAs
• Supported Fiber Optic Cables: SC, FC, ST
• Wavelength Range: 800 ~ 1700nm
• Standard Wavelengths: 850, 980, 1270, 1300, 1310, 1490, 1550, 1577, 1625, 1650
• Image Resolution:
  • Linear: 0.1%
  • Logarithmic: 0.01 dbm
• Operating Temperature Range: -10 ~ +60°C
• Automatic Shutdown Time: 10 minutes
• Output Optical Power: 10mW
• Output Wavelength: 650nm
• Dimensions: 111x69x30mm
