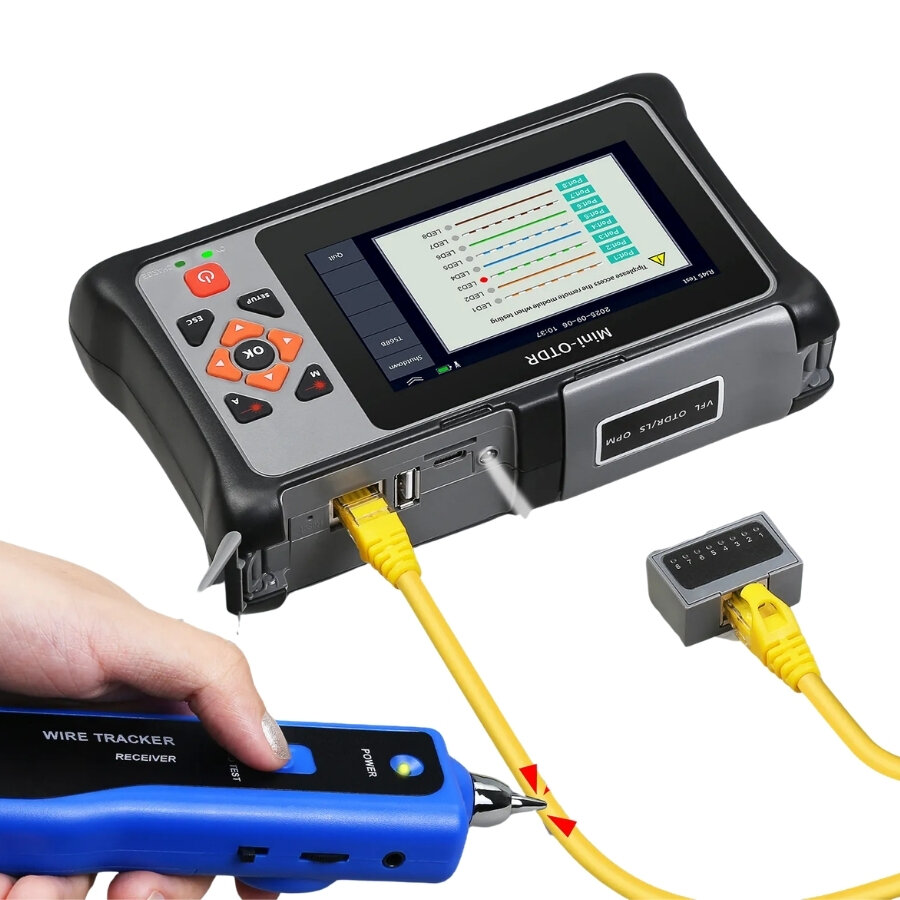

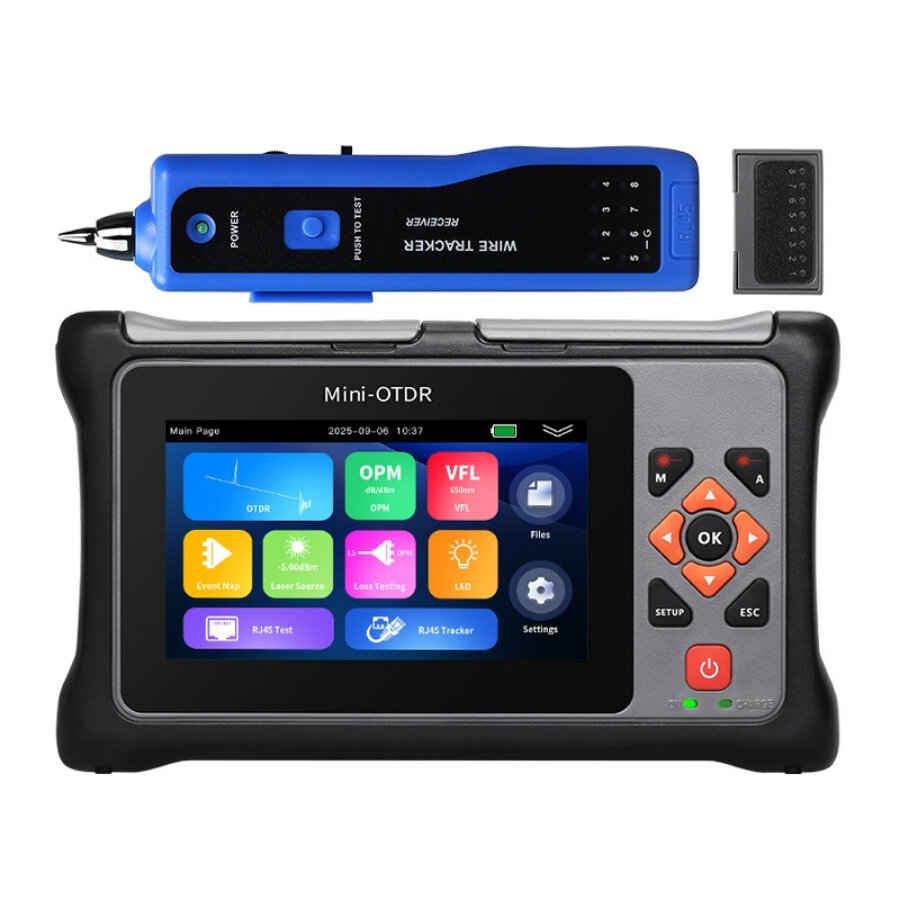

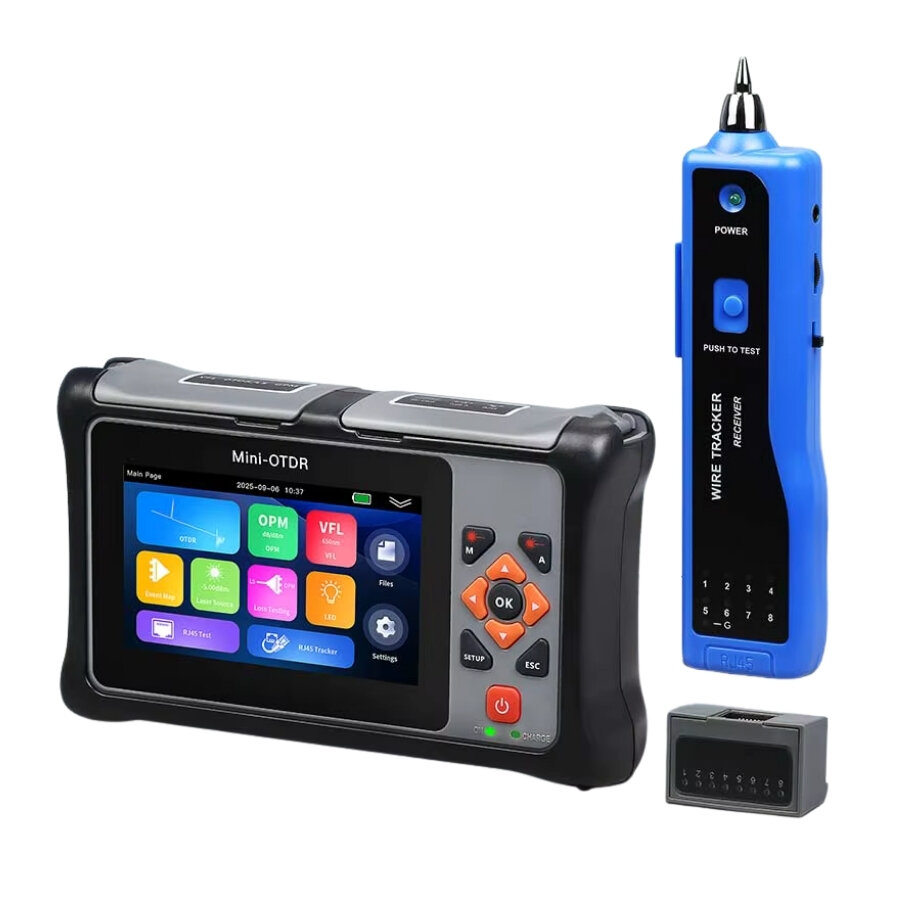

AUA-KP800 SC-APC OTDR Fiber Optic Tester

AUA-KP800 SC-APC OTDR Fiber Optic Tester

The AUA-KP800 SC-APC OTDR Fiber Optic Tester provides fast, accurate, and professional measurements in the analysis of fiber optic lines. It is a compact and powerful test device developed for field teams and technical experts.

It is the ideal solution for analyzing line quality, detecting faults, and performing performance measurements in FTTH, FTTX, and telecommunications infrastructures.

Thanks to advanced measurement technology, it allows you to quickly identify problems by analyzing breaks, attenuation, and connection losses on the fiber optic line in detail.

Technical Specifications

• Model: KP800
• Wavelength: 1310/1550±20nm (Cannot test active fiber optic cables)
• Dynamic Range: 24/22dB
• Fiber Type: G.652D

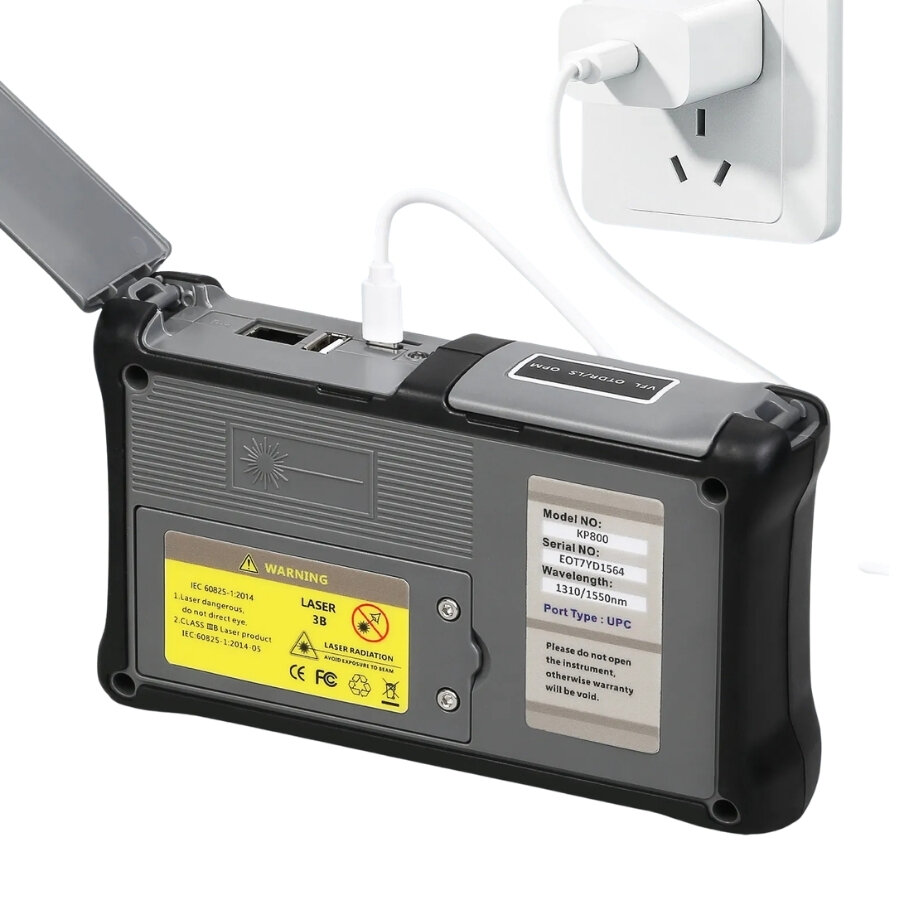

• Battery: 5200mAh (Charged via Type-C)
• Event Blind Area: 1.5m
• Attenuation Blind Zone: 7m
• Measurement Range: 100km
• Pulse Range: 10us
• Measurement Accuracy: ± ((1 m + sampling interval + %0.005 X measurement interval))
• Sampling Point Count: Maximum 20000 points
• Sampling Resolution: 20cm ~ 8m
• Loss Resolution: 0.001dB
• Range Resolution: 0.001m
• Refractive Index: 1.0000~2.0000
• Reflection Accuracy: ± 3dB
• File Type: Standard SOR file format
• Laser Safety Level: Class 3B
• Environmental Temperature/Humidity;
  • Operating environment temperature: -10°C~50°C
  • Storage environment temperature: -40°C~+70°C
  • Humidity: 0~90% Non-condensing
• Dimensions: 183x107x45mm
• Weight: 480g (Including battery)
