Brushless - Brushless PWM Motor Driver 6-30V

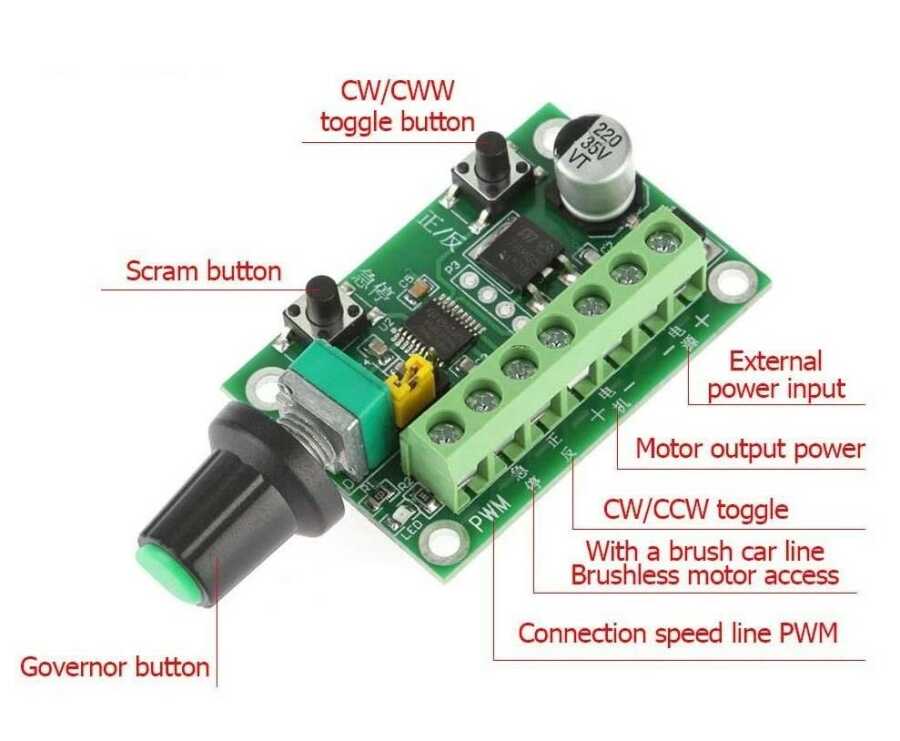

This speed governor is for 3 phase brushless motor with internal drive which can adjust the speed and reverse and position switch Suitable for 3-phase brushless motor PWM speed adjustment, brushless fan speed adjustment, etc. It is suitable for The frequency has 2 gears, the default shipping frequency can switch between 2KH and 20kHz, which is 20K gear.



This product is not compatible with Drone Motors. Fan motors are suitable for use with brushless motors such as 37GB3525, which have certain positive, negative and pwm terminals.

Frequency switching:The default position is 20 kHz (i.e. 2 headers next to the terminal port)

Functions: positive and negative switching, infinitely variable speed, braking (requires the motor to have a brake function).



Warning: The speed control board does not have the FG signal speed measurement function. Please leave the FG signal speed measurement line on one side when wiring and do not connect it to the speed regulator.
