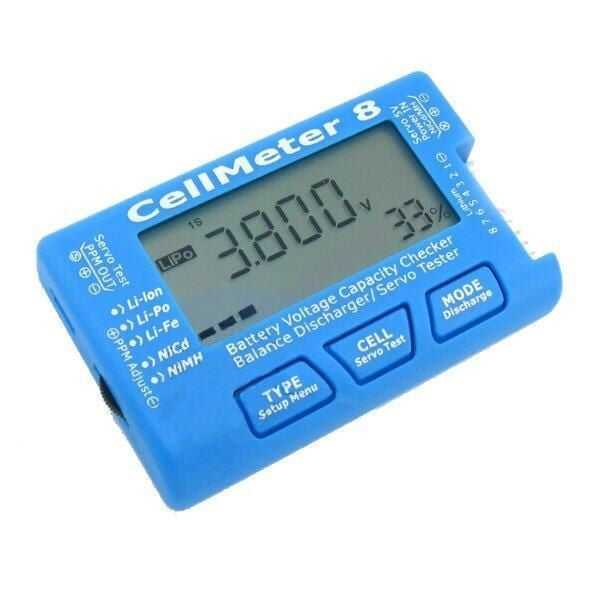

Cellmeter 8 Multifunction Digital Power Servo Tester

Checking your cell voltages before installing a LiPO battery (or most other RC battery types) before you start It's important to ensure you have a fully balanced pack as well as fully charging it first. The Cellmeter 8 Multi-Functional Digital Power Servo Tester is an essential piece of equipment for any hobbyist using LiPo batteries.

Cellmeter 8 battery capacity checker is specifically designed to check the overall and individual cell voltage of LiPo batteries. It also has features such as Servo Tester, Discharge Function.

The cell checker is powered directly from the balance port and it only takes a few seconds to check the status of your battery. The application of this cell meter is not only limited to Lithium Polymer batteries, but also Nickel Cadmium ( NiCd), Nickel Metal Hydride (NiMH), Lithium Iron Phosphate (LiFe), Lithium-Ion Battery capacities. Measure the voltage of both individual cells and the full battery voltage, and also measure the highest voltage cell, lowest voltage cell, remaining It can show the percentage of battery capacity.

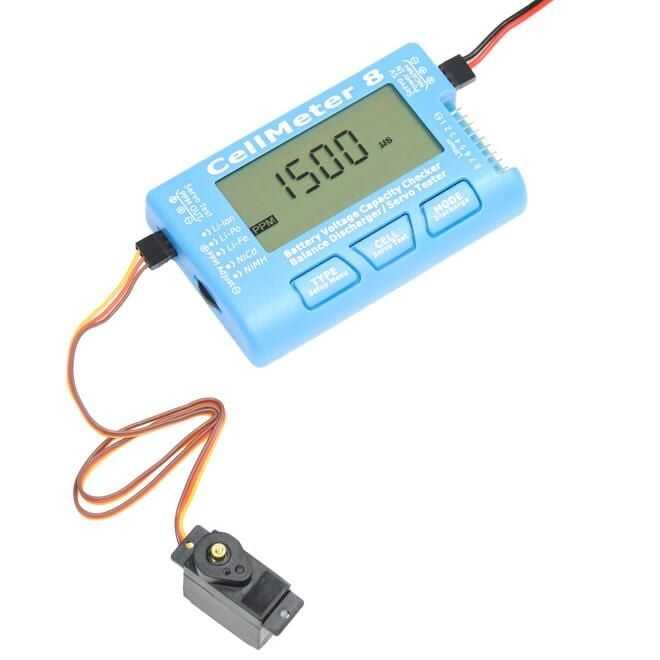

You can use the Servo Tester to check the rotation direction of your motors without having to use a FC or receiver. For those on airplanes, you can use it to control servo throws and adjust the neutral point.

Technical Specifications

High visibility LCD display

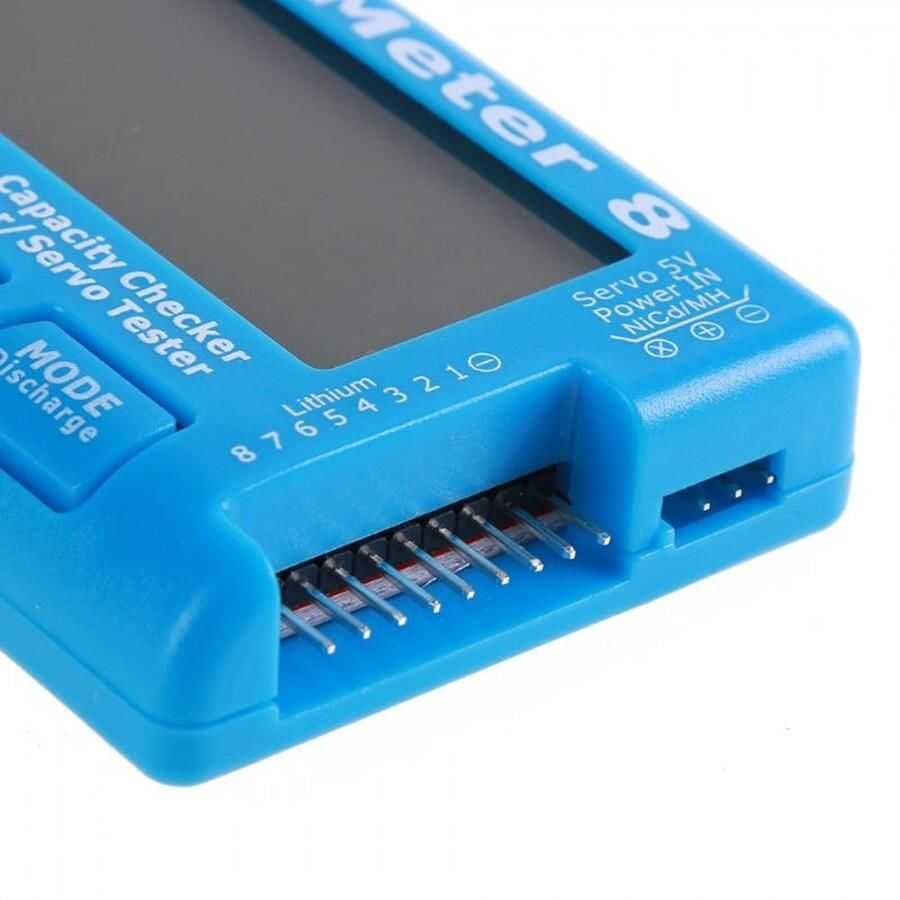

Balancing up to 8 cells port for plug for Lipo, LiFe or Li-Ion batteries
Can be used as a Servo tester to test standard and narrow servos
Measure voltage of both individual cells and the full battery< BR>
Balance Discharge Current: 90mA × 8 Cell (Max @ Cell Voltage 4.2v)
Servo Test Frequency: 50Hz, 60Hz, 100Hz, 125Hz, 200Hz, 250Hz, 300Hz
Battery Voltage Test Sensitivity: 0.001V
Can test Li-Po, Li-Ion, Li-Fe (2-8S), NiCd, NiMH (4-8S) battery< /LI>
