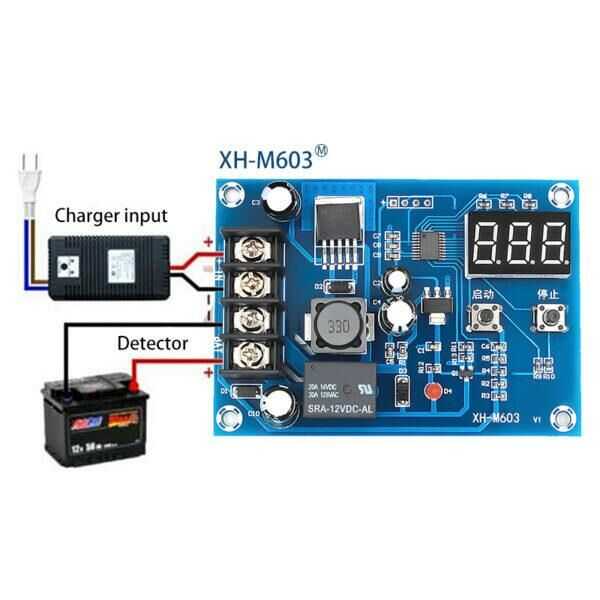

Charge Control Circuit 12-24V Battery and Lithium Battery Compatible
XH-M603, lithium batteries, Lead acid, nickel-cadmium, nickel-metal hydride, It is a charge control module used to charge lithium-ion and polymer. The module can also be used for solar panels. It is a shielded charging protection circuit that gives output in accordance with the input voltage.
Technical Specifications:
- Input Voltage: DC 10- 30V
- Display Sensitivity: 0.1V
- Control sensitivity: 0.1V
- Output type: direct output
- Voltage Tolerance: ± 0.1V
- Application Areas: 12-24V battery (Solar cells, new energy batteries, Lead-acid battery, nickel-cadmium battery, nickel-metal hydride battery, lithium-ion battery, polymer battery, Battery, electric vehicle battery)
Usage:
1. Set Starting Voltage: in the normal display voltage state, pressing the button will show the charging voltage, holding for 3 seconds the digital display will flash: you can start or stop the button to set the starting charging voltage value.
< DIV>2. Set Stop Voltage (Normal Voltage Setting): in the normal display voltage state, press the button to stop charging voltage, long press the button for 3 seconds the digital display will flash, you can start or stop the button to set the stop charging voltage.
< DIV>
3. Factory Reset: in the power on state, press the start/stop button at the same time, the digital display will show 888, indicating factory reset settings.
