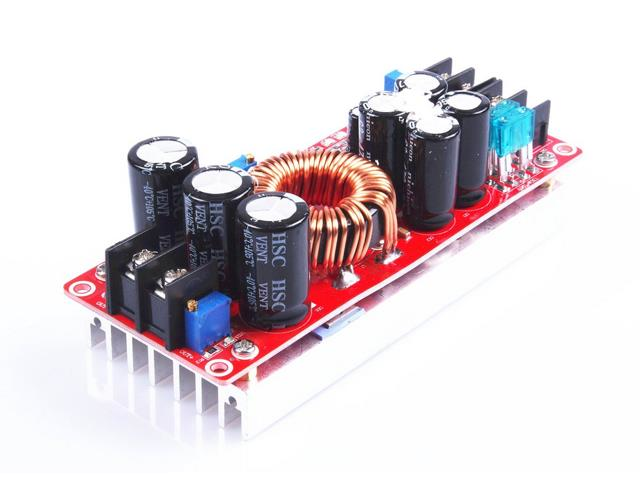

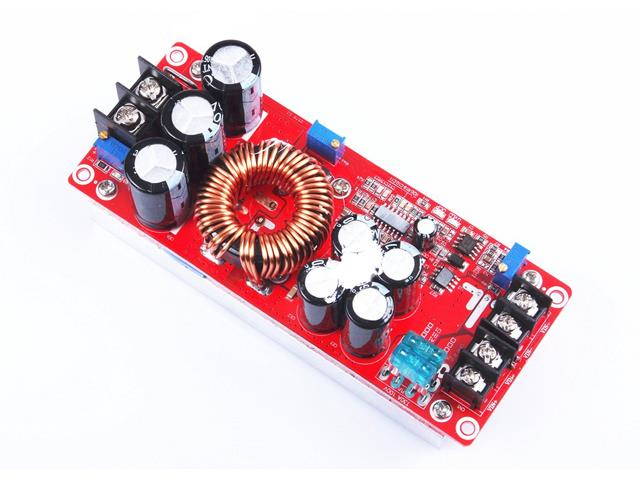

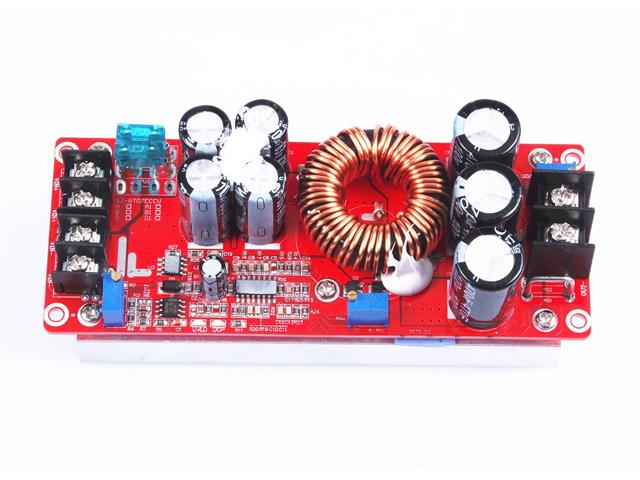

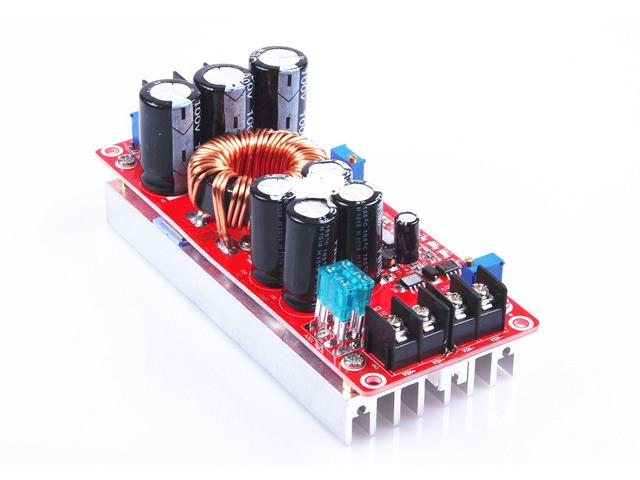

DC-DC 1200W Voltage Amplifier Boost Module
With this booster module, which can input a maximum of 20A between 8-60V, you can output up to 80V. It has a power resistance of up to 1200 watts. The product has overcurrent and short circuit protection, but there is no reverse voltage protection.
Product Features:
- Input voltage: 8-60V
- Input current: 20A
- No-load power consumed: 15mA
- Output voltage : 12-80V
- Output current 15-20A (20A is the maximum value, feed the cooler with a fan at these powers)
- Constant current range: 0.5-20A
- Operating temperature: -40 ° ~ 85 °
- Operating frequency: 150 Khz
- Conversion efficiency 95%
- Dimensions: 130x52x46mm
- Overcurrent protection.
- There is short circuit protection.
- There is no reverse voltage protection.
