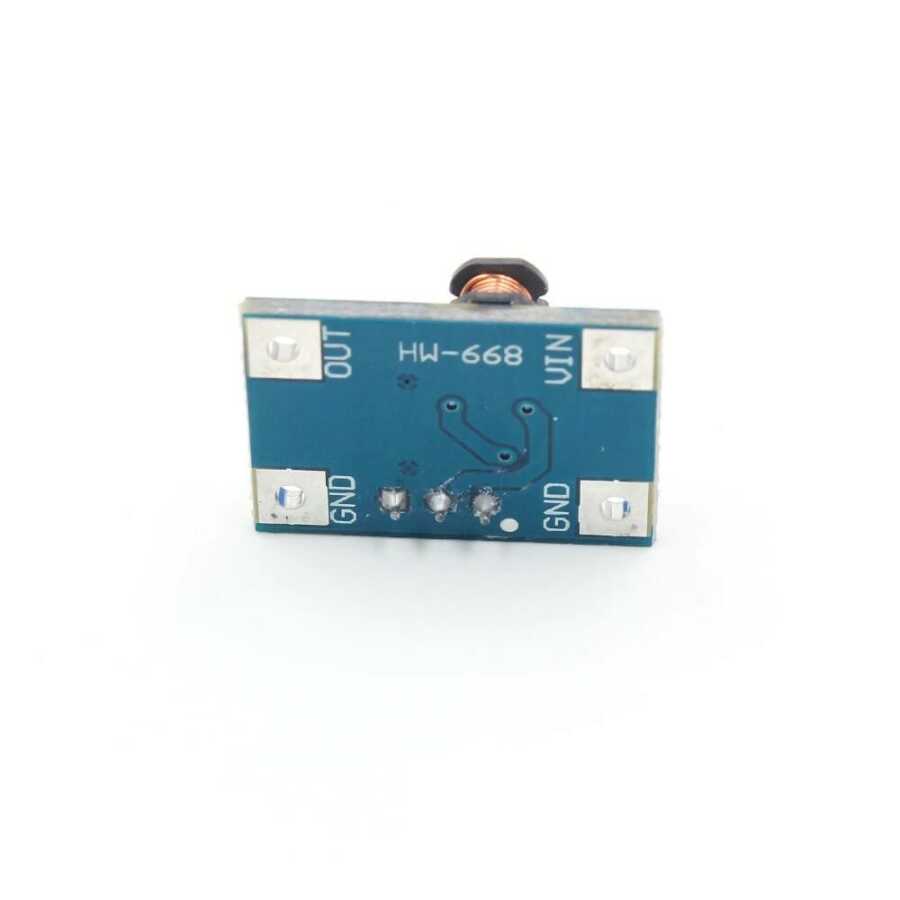

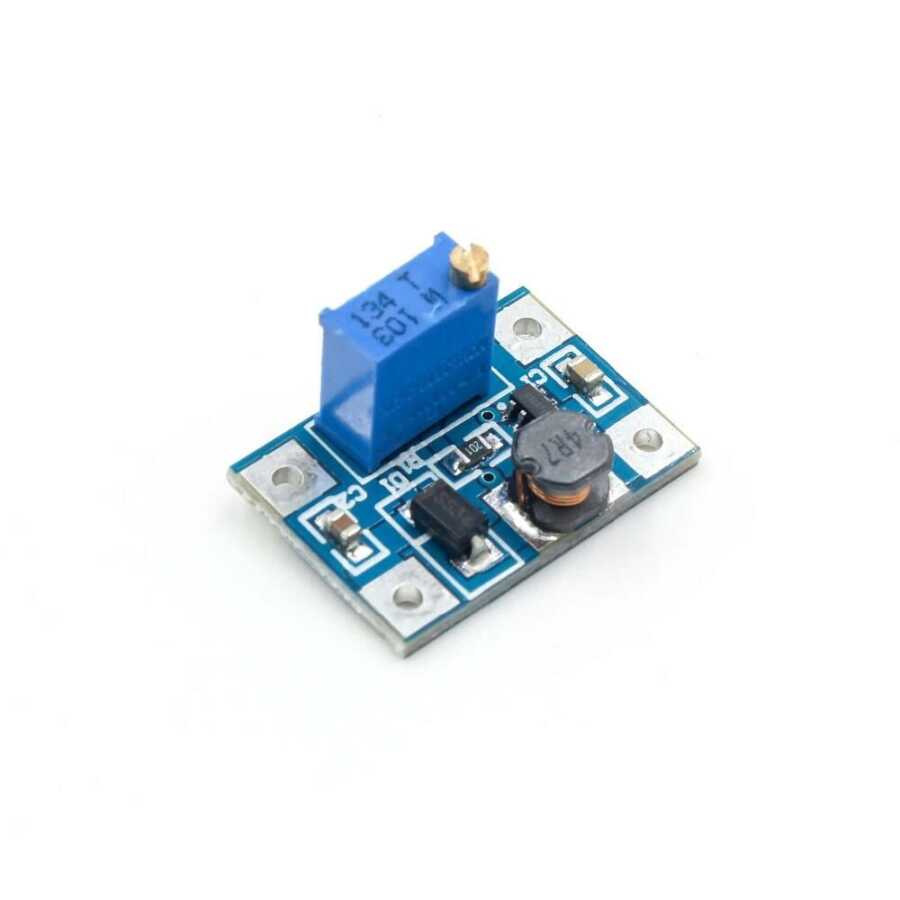

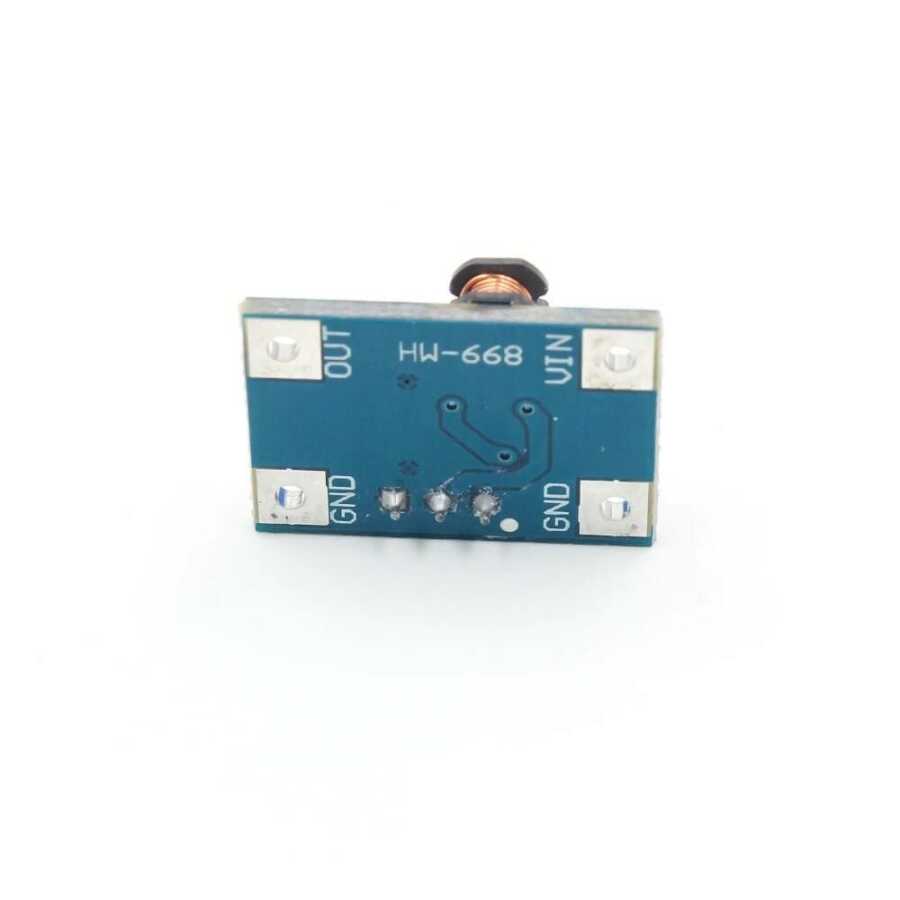

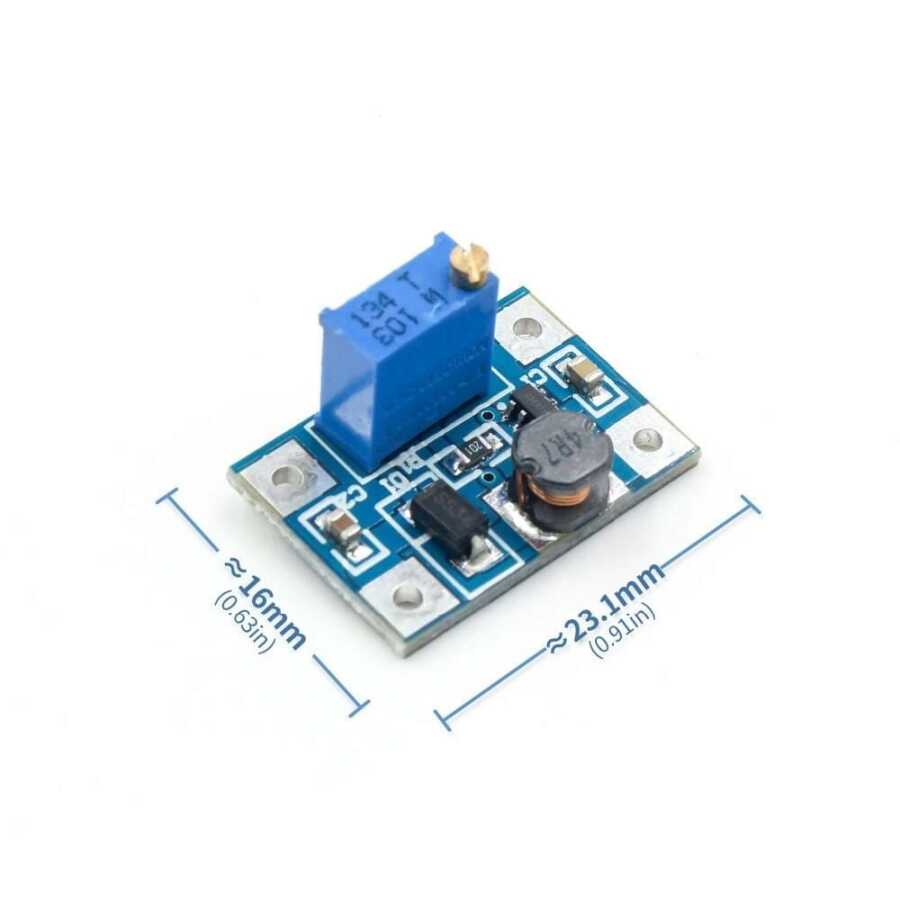

SX1308 DC 2A Voltage Booster Boost Module
Sx1308 is a DC-DC 2A voltage booster circuit board. It can increase the input voltage between 2-24v to an output voltage between 2-28v. Voltage adjustment can be made with the trimpot on it.
Technical Specifications:
- Frequency: 1.2 MHz
< LI>Efficiency: 95%- Short circuit protection
- Overheat protection
- Input voltage: DC 2-24 V
- Output voltage : DC 2-28 V
- Maximum current output: 2A
