MP3429 5V/9V/12V/15V Adjustable 35W Voltage Booster Module

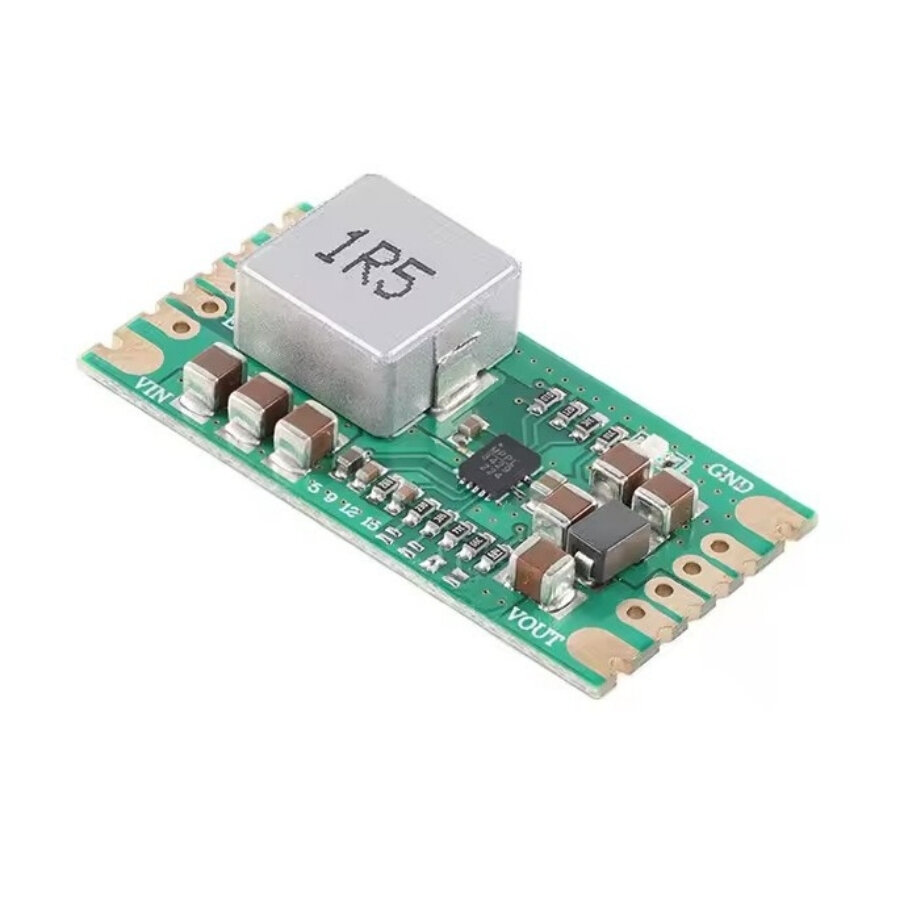

The MP3429 5V/9V/12V/15V Adjustable 35W Voltage Booster Module has various voltage outputs (5V, 9V, 12V, 15V) configured on the board by default and can be converted to the corresponding voltage output by simply welding the corresponding jumper. The optimal theoretical conversion rate can reach 97%. It features overheating protection, a boost switch enable pin, and convenient and practical power output. The MP3429 used in the module is a 600kHz fixed frequency, wide input range, and highly integrated boost converter. Starting voltage is as low as 2.7V, a single battery power supply can support load power up to 30W, and a low open impedance power MOSFET is integrated.

Features

Input Voltage: 2.7-13VDC
Input Current: 23.5A (Max)
Output Voltage (Adjustable): 5/9/12/15VDC
Output Power: 35W
Conversion Efficiency: 97%
Operating Temperature Range: -25 ~ 125°C
Weight: 10g

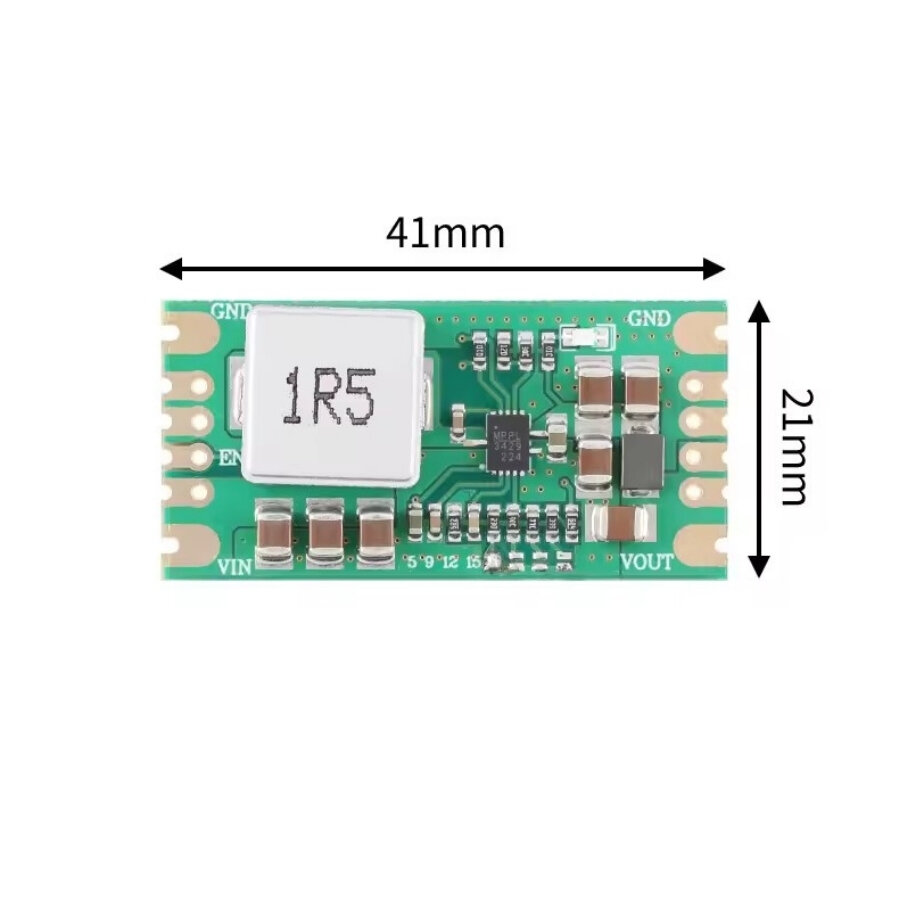

Dimensions: 40.64x20.32x7.5mm

mp3429-connection
