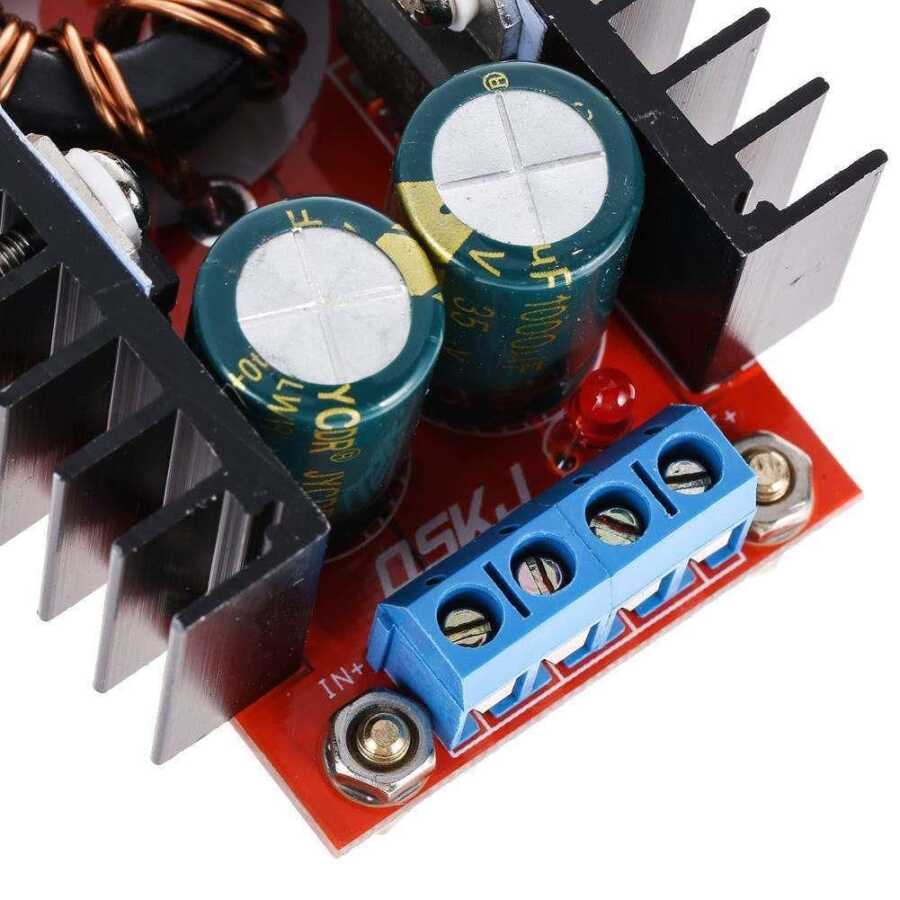

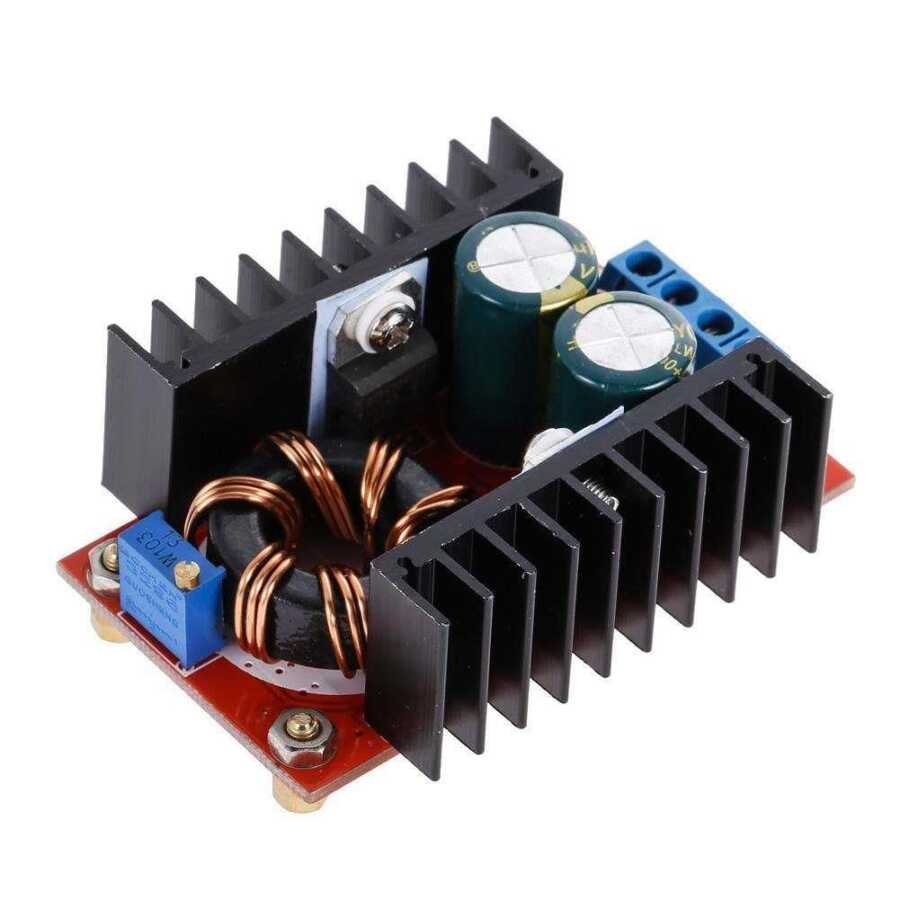

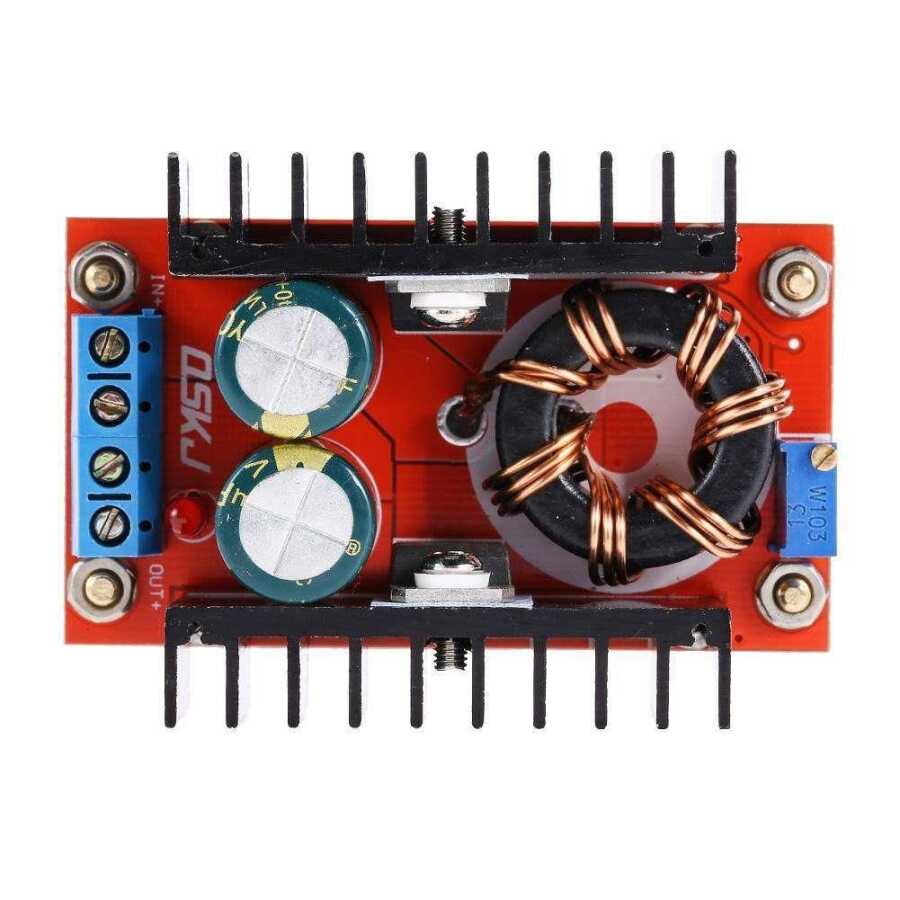

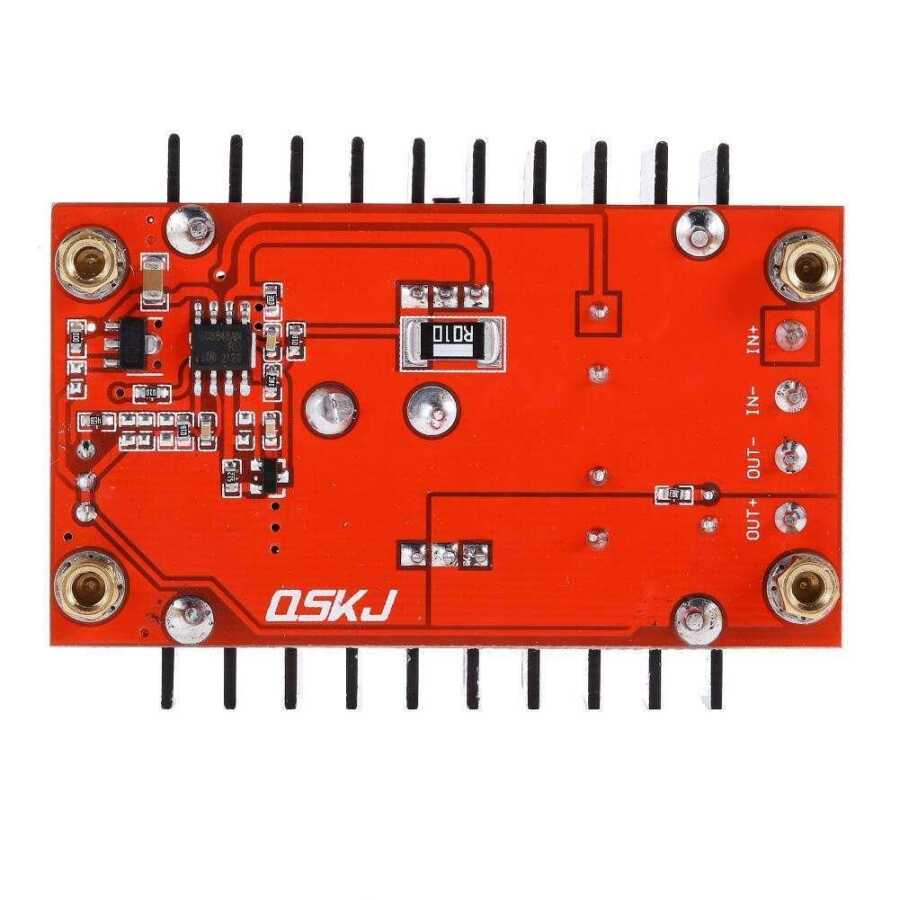

DC-DC Amplifier Voltage Regulator (150W)

DC-DC power supply / converter module, any voltage from 10V to 32V at 150W output power and 6A current amplifies an input voltage to any output voltage between 12V and 35V. For other applications, it is particularly useful for 12V automotive applications that need to be stepped up to 18V or 24V.

Please note there is no reverse polarity protection. Diode is recommended. It may not be sufficient for high loads; Pay attention to input polarity.

Adjust the output voltage to the desired level using a voltmeter before connecting it to your equipment or load.

Short circuit protection: None, please be careful to protect the module from overcurrent.

Technical Specifications

Input voltage: 10-32V
Output voltage: 12-35V(adjustable)
Output Current: (MAX ) 6A
Input Current: 10A (MAX) (if more than 10A)
Output power: 150W (MAX)with cooling fan
Conversion efficiency: 94% (measured at input 16V, output 19V 2.5A)
Output Ripple: 2% (MAX) 20M-bandwidth
Operating Temperature: Industrial (-40°C to +85°C )
Full load temperature rise: 45 ° C
No-load current: 25mA
Voltage regulation: ± 0.5%
Dynamic response rate: 5% 200US
