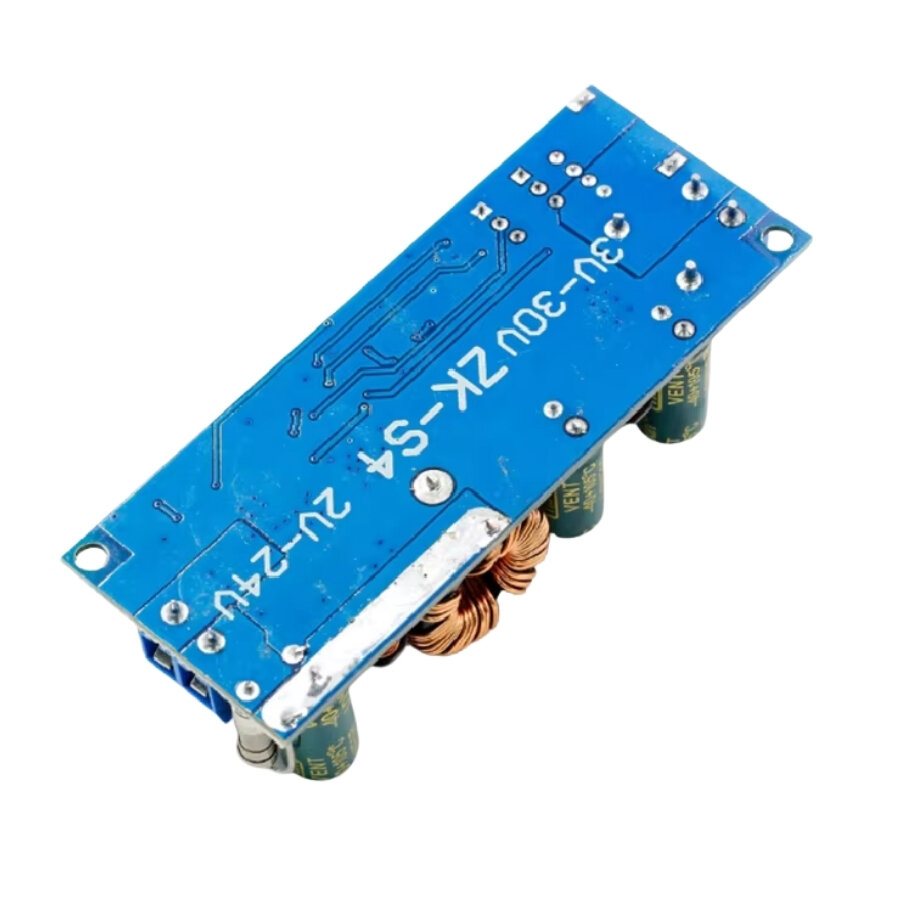

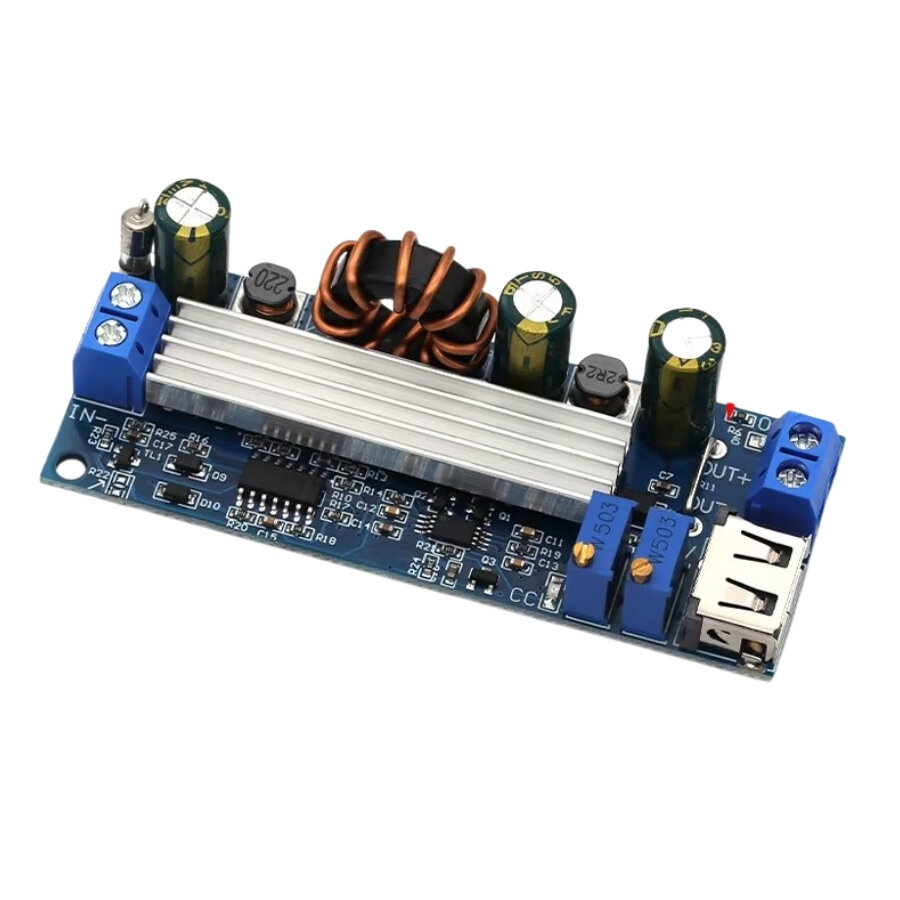

ZK-S4 80W DC-DC Voltage Boost Module

ZK-S4 80W DC-DC Voltage Boost Module

The ZK-S4 80W DC-DC Voltage Boost Module is a DC adjustable constant voltage constant current step-down power supply module. Adjust the output current to meet demand. It can be used as a regular buck power supply module, charger, and LED constant current driver.

Features

• Ultra-low input voltage
• Backflow protection support
• Overcurrent protection support
• Undervoltage protection support
• Backflow protection support
• Charging mode support
• Two-stage low ripple filtering

Technical Specifications

• Model: ZK-S4
• Working Voltage: 2-24VDC
• Output Voltage: 3-30VDC
• Input Current: 15A (max)
• Output Current: 4A (You must use a heatsink for 4A output)
• Output Power: 80W (Max 45W @ 3.7V / 80W @ 12V)
• Conversion Efficiency: 93%
• Operating Temperature Range: -20 ~ 85°C
• Dimensions: 80x31.5x23mm

Important Notes

• This is a power supply module, so the output voltage must be higher than the input voltage. Otherwise, it will not work normally.
• The USB output is not fixed at 5V, it is 1V~24V. Therefore, please be careful when using USB.
• If there is no output voltage, turn the CV potentiometer counterclockwise more than 20 turns.
• This is a DC power module, so it cannot be connected to AC power.
• 'IN-' and 'OUT-' cannot be connected together, otherwise the module cannot support constant current output.
• Please ensure that the input power is greater than the load power.
• If the module is hot, please reduce the output power.
