DO-02 Portable Spot Welding Module

DO-02 Portable Spot Welding Module

DO-02 Portable Spot Welding Module can be used for 0.15~0.4MM Nickel-Plated stainless steel sheets.

The spot welder uses four MOSFETs and two 3000F super capacitors. With high power, it can provide stable performances for long-term operation. With 120-speed adjustable power, the welding process is more accurate and the welding effect is more excellent.

Features

• 3000F super capacitors make it a useful spot welding tool for welding nickel sheets.
• Four super current MOSFETs with high power ensure stable performances during long-term work.
• With 120-speed adjustable power, the welding process is more accurate and the welding effect is more excellent.

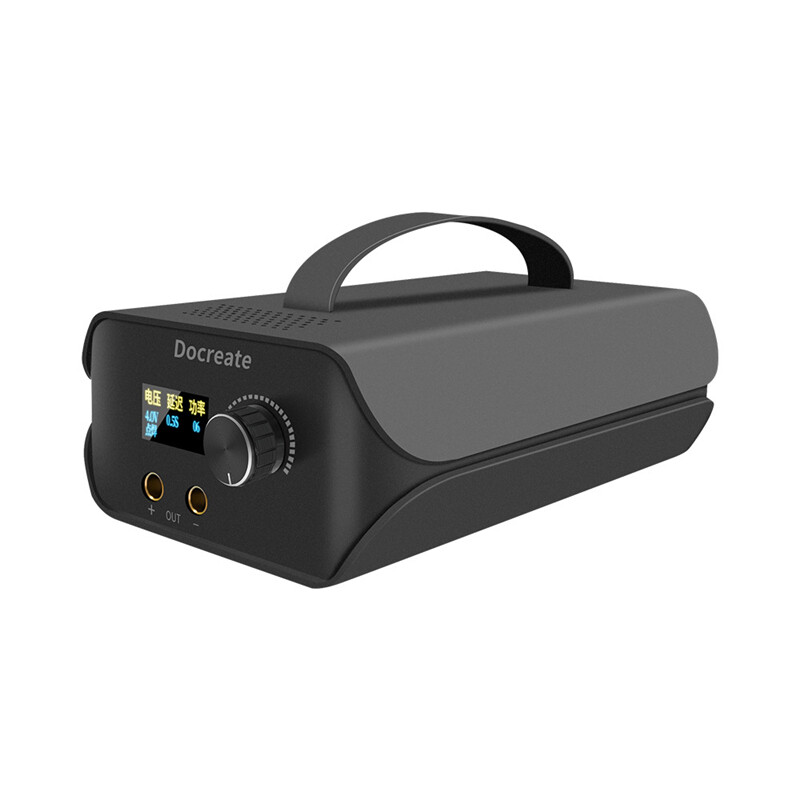

• Equipped with LCD display, the delay, power and voltage can be displayed clearly and you can read it at a glance.
• Removable spot welding pin: easy to replace the welding pen at any time.
• Perfect for welding 0.2mm pure nickel sheets, 0.15~0.4mm stainless steel sheet.

Technical Features

• Input Power Supply Voltage: DC12V
• Power Supply Current: 4A
• Working temperature range: 0°C to 75°C
• Super capacitor capacity: 2.7V 3000F for one piece
• Body material: ABS
• Welding thickness: 0.2mm pure nickel, 0.3mm nickel plating and 0.4mm stainless steel sheets

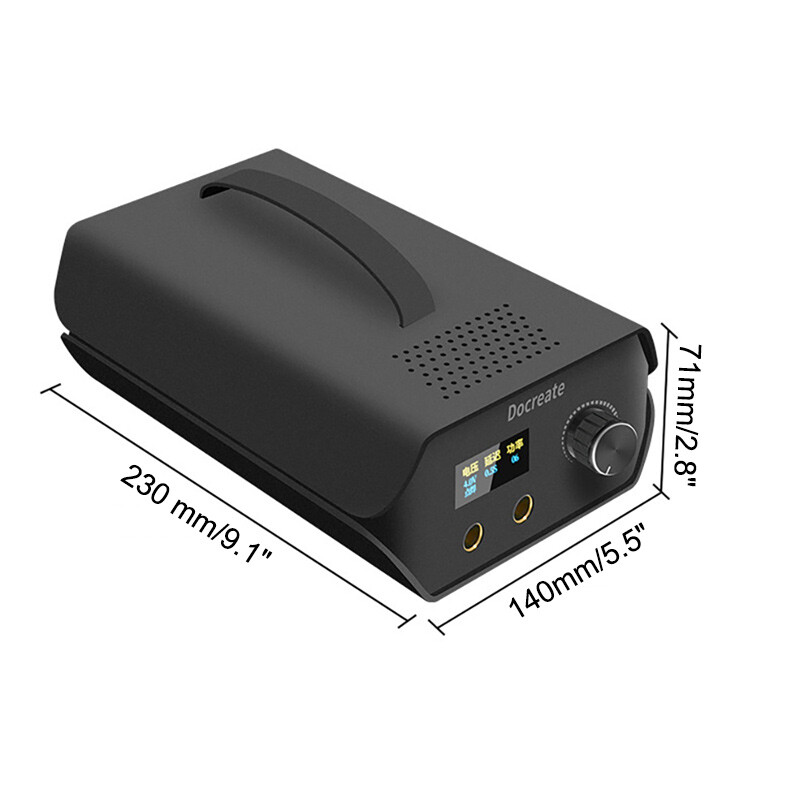

• Dimensions: 230 x 140 x 71mm

Package Contents

• 1 x Main Unit
• 4 x Spot Welder Pin
• 1 x Nickel Strip Roll
• 2 x Welding Pen
• 1 x Power Adapter
