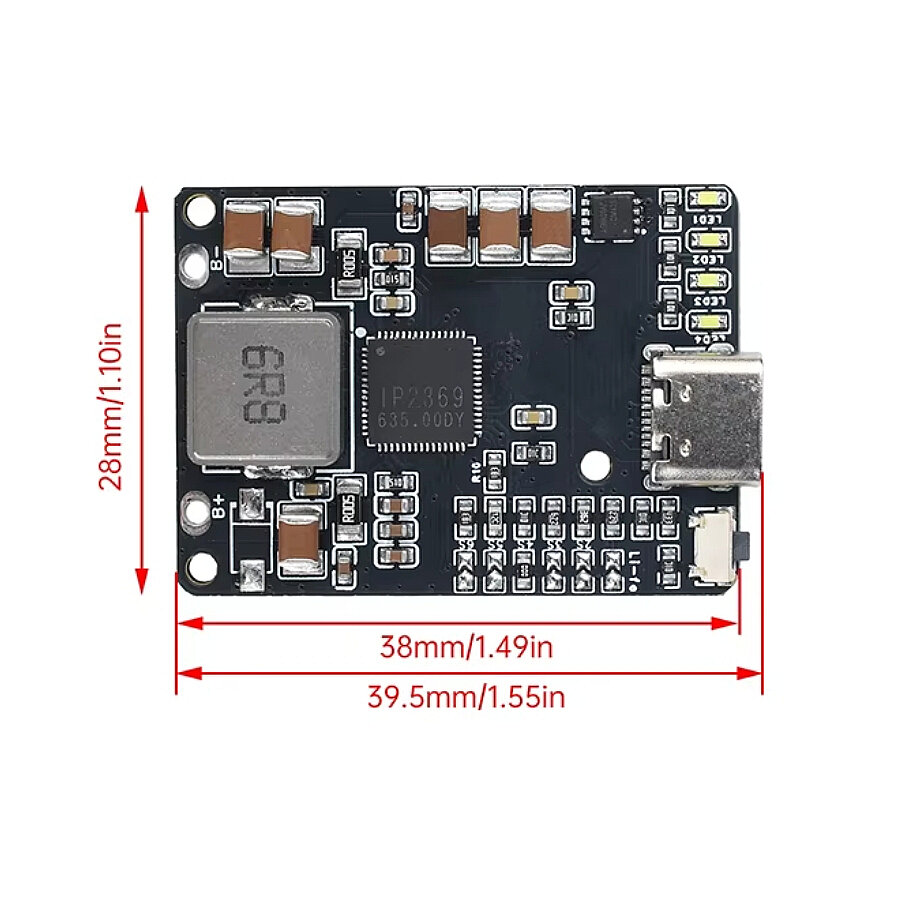

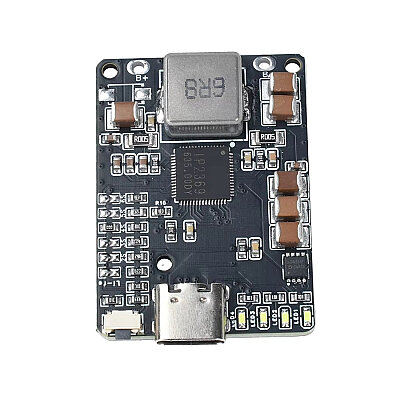

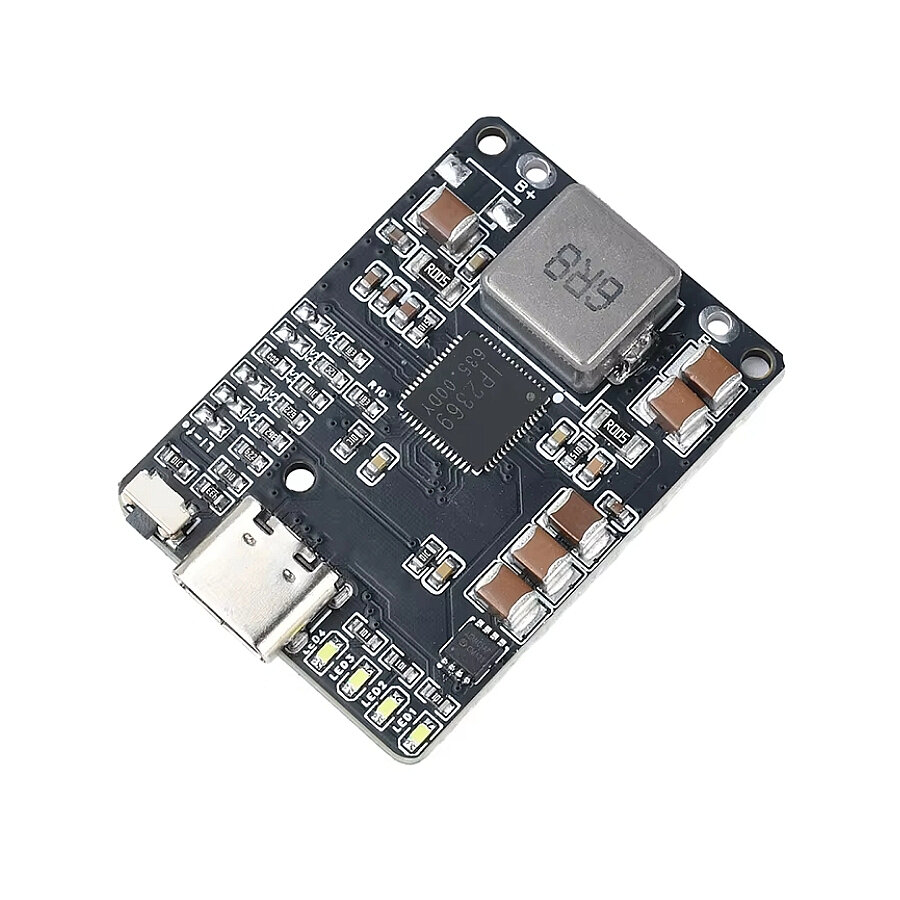

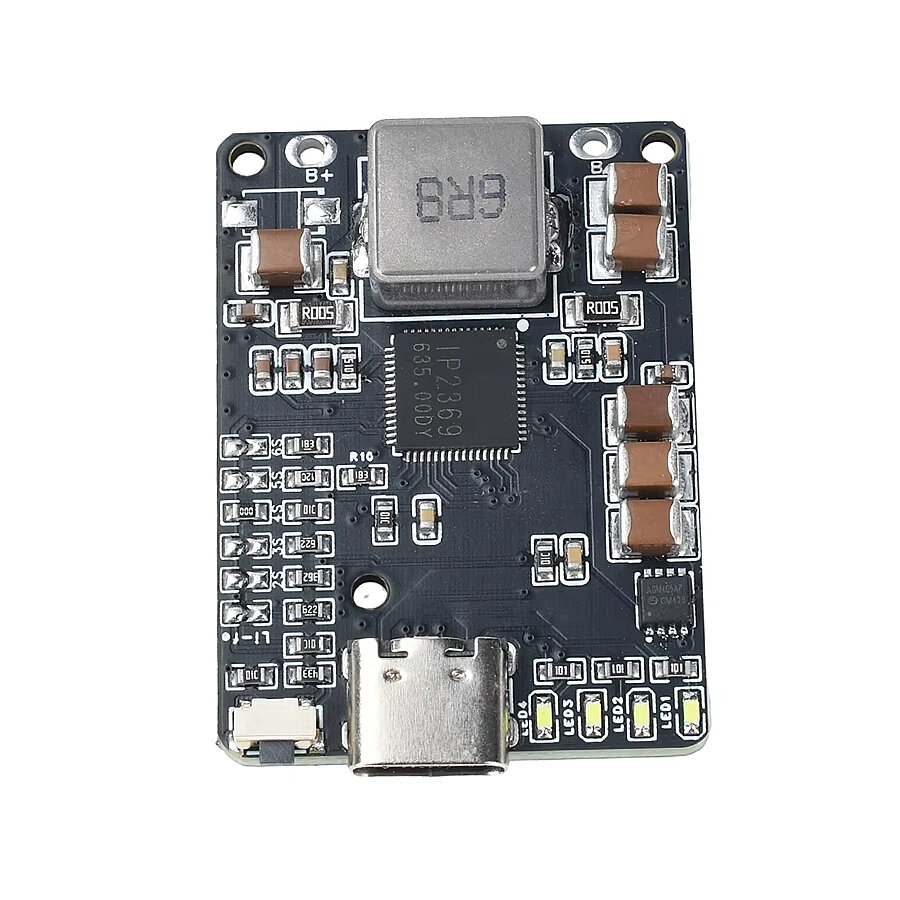

IP2369 2-6S 45W LiPo Battery Fast Charging Module

IP2369 2-6S 45W LiPo Battery Fast Charging Module

The IP2369 2-6S 45W LiPo Battery Fast Charging Module is a 45W bidirectional buck-boost charge/discharge module designed for the fast charging of multi-cell lithium battery packs and for using the same battery pack as a power source via USB Type-C.

The module supports 2S, 3S, 4S, 5S, and 6S series-connected battery packs. It is compatible with Li-ion and LiFePO4 cells, and the full-charge voltage can be adjusted according to the battery configuration. The maximum input and output power is 45W. The maximum input specification is 20V / 2.25A.

Conversion efficiency can reach up to 96% under optimal operating conditions.

Specifications

• Integrated Circuit: IP2369
• Product Type: Bidirectional lithium battery charge/discharge module
• Converter Topology: Bidirectional Buck-Boost
• Maximum Power: 45W
• Maximum Charging Input Power: 45W
• Maximum USB Output Power: 45W
• Maximum Input Rating: 20V / 2.25A
• Maximum Efficiency: Up to 96%
• USB Interface: USB Type-C
• USB-C Operation: Bidirectional input/output

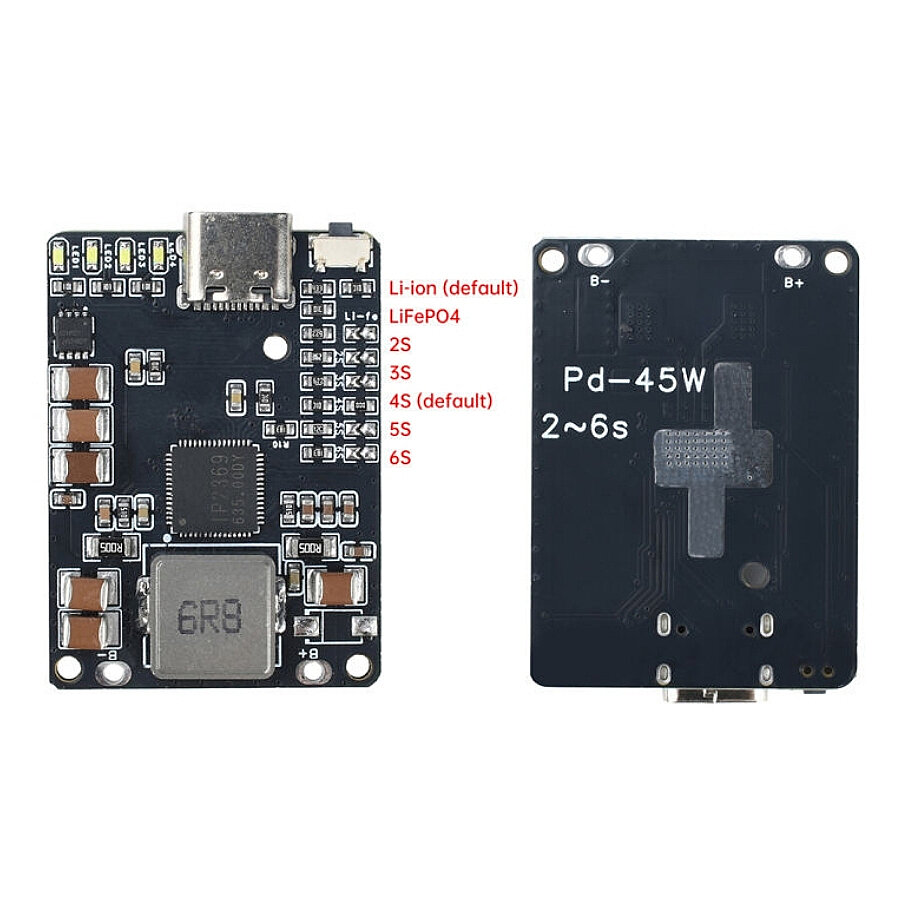

• Battery Cell Count: 2S / 3S / 4S / 5S / 6S
• Compatible Battery Types: Li-ion / LiFePO4

Supported Fast Charging Protocols

• USB PD 2.0
• USB PD 3.0
• USB PD 3.1
• Qualcomm QC 2.0
• Qualcomm QC 3.0
• QC 3.0+
• Huawei FCP
• Samsung AFC
• USB-C DRP / Try.SRC
