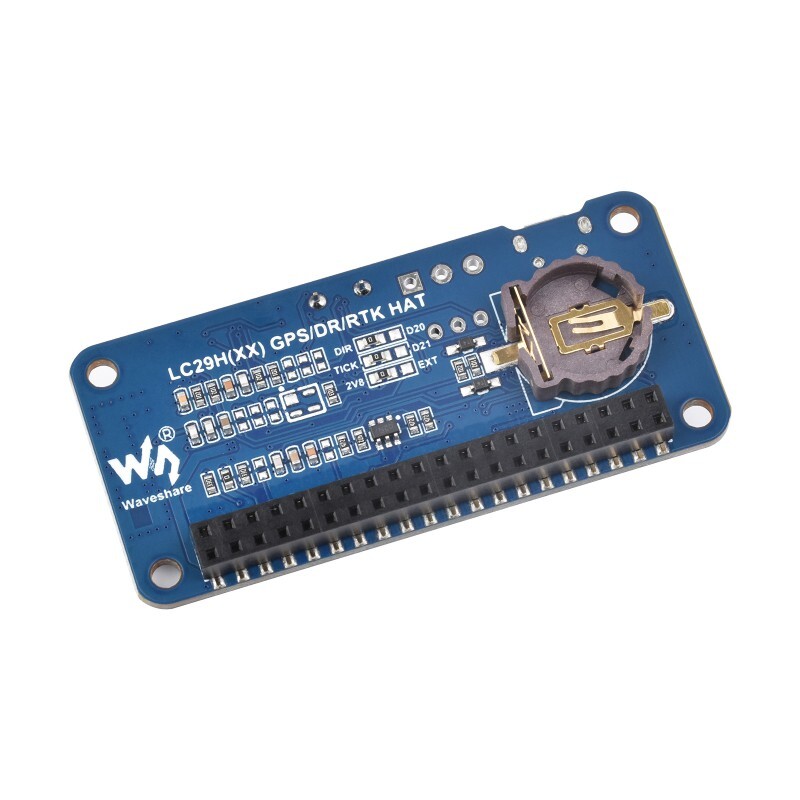

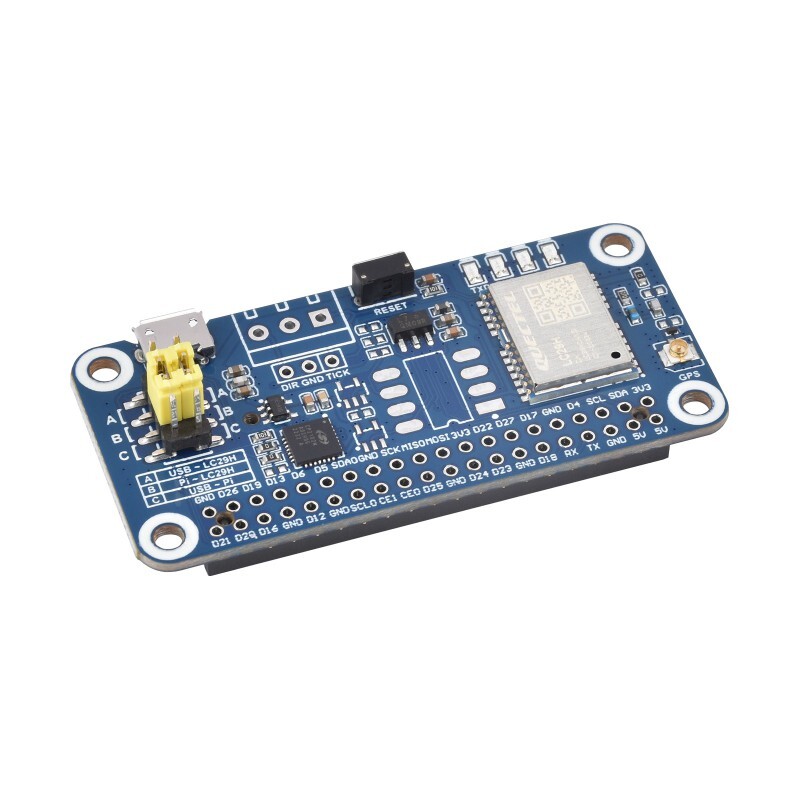

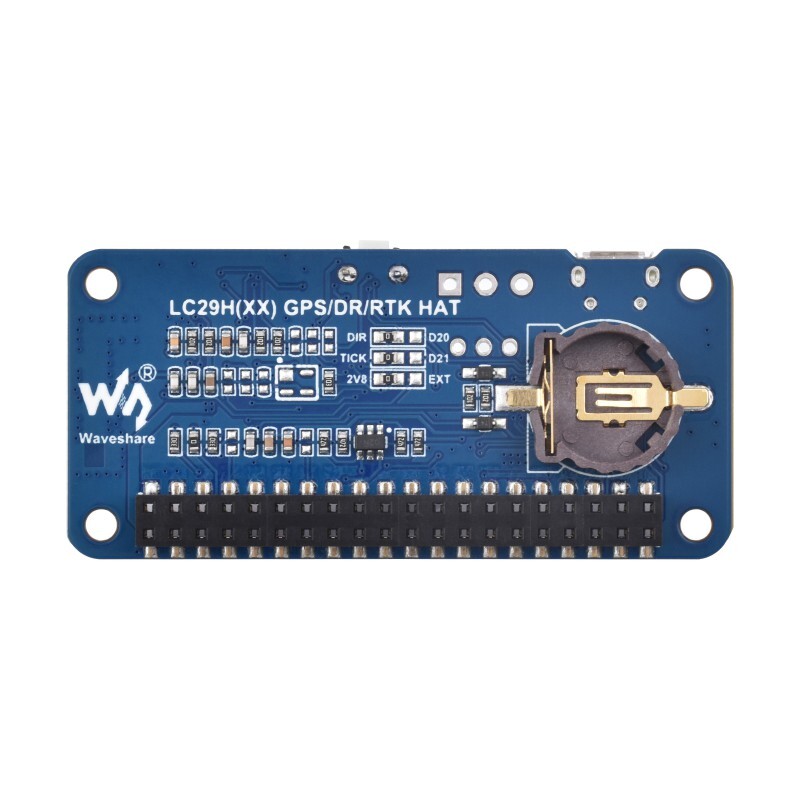

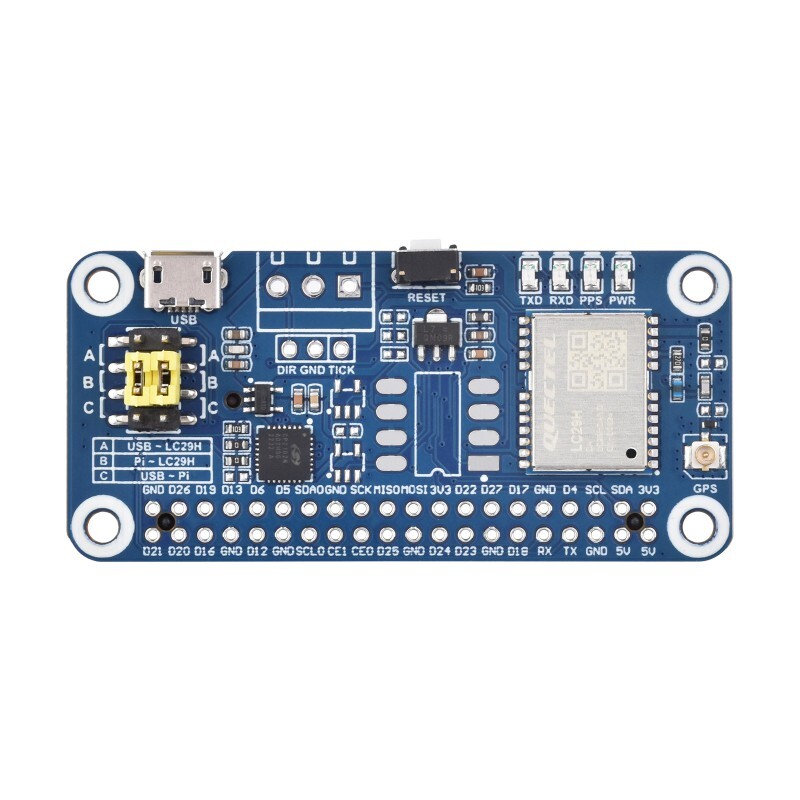

LC29H(DA) GPS / RTK Raspberry Pi HAT

LC29H(DA) GPS / RTK Raspberry Pi HAT

LC29H(DA) GPS/RTK Raspberry Pi HAT, LC29H series, L1+L5 can monitor dual frequency and multiple GNSS signals, reduce multi-path effects in urban canyons, and improve positioning accuracy while maintaining low power consumption. It uses the built-in LNA and SAW filter to achieve high sensitivity and strong anti-interference ability. It adopts dual-band positioning and RTK technology to meet the need for high-precision positioning at the centimeter level. Ideal for real-time monitoring systems and sharing economy applications, it helps in the development of applications such as intelligent agricultural machinery and shared two-wheeled vehicles.

User Manual

Features

• SKU: 25279
• Standard Raspberry Pi 40PIN GPIO extension header, Raspberry Pi series cards, Jetson
• Supports Nano
• Supports simultaneous monitoring of L1+L5 dual-band satellite signals, reducing multi-path effects and increasing positioning accuracy in urban canyons
• Supports simultaneous reception of multiple GNSS systems (GPS, BDS, GLONASS, Galileo and QZSS) while maintaining low power consumption
• Built-in low noise amplifier and acoustic surface filter - 165dBm
• Supports multi-frequency active noise cancellation, narrowband signal (WiFi/2/3/4/ 5G) effectively suppresses or eliminates interference and ensures navigation accuracy
• A-GNSS (Auxiliary GNSS) support reduces the initial correction time (TTFF) to 5 seconds with cold startup when turned on
• Supports QGNSS software, easy to set various module functions
• The built-in battery holder supports ML1220 rechargeable cell to protect ephemeris information and hot starts
• Built-in 4 LED indicators for module working status

Technical Specifications
