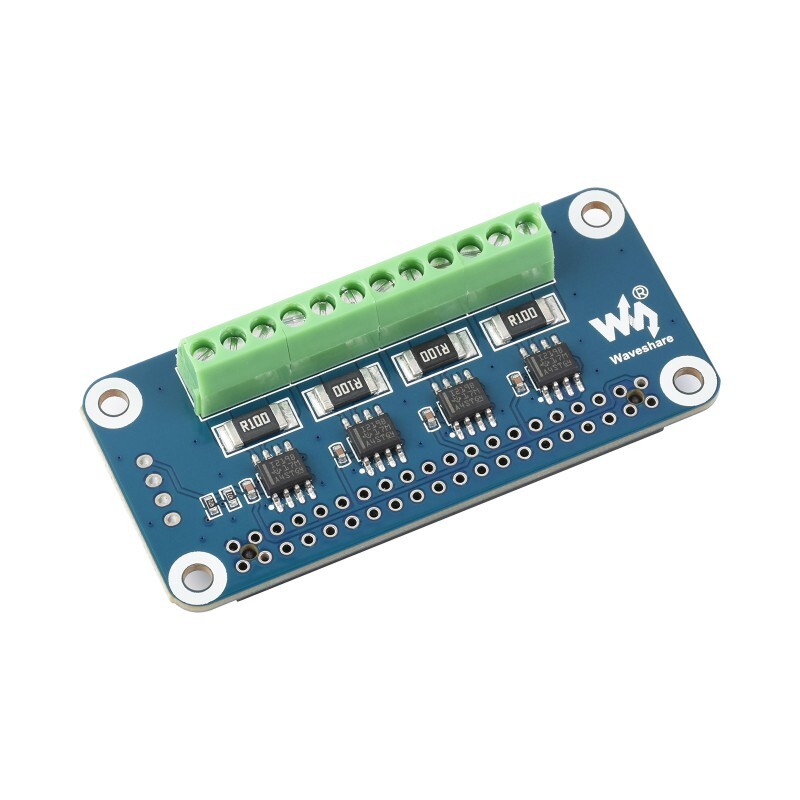

4 Channel Current/Voltage/Power Monitor Raspberry Pi HAT

4 Channel Current/Voltage/Power Monitor Raspberry Pi HAT

4 Channel Current/Voltage/Power Monitor Raspberry Pi HAT is a 4 channel current and power monitoring HAT designed for Raspberry Pi. Via I2C or SMBus interface, it is easy to monitor the current, voltage and power consumption of each channel, as well as the voltage between both sides of the sampling resistor.

User Manual

Features

• SKU: 17539

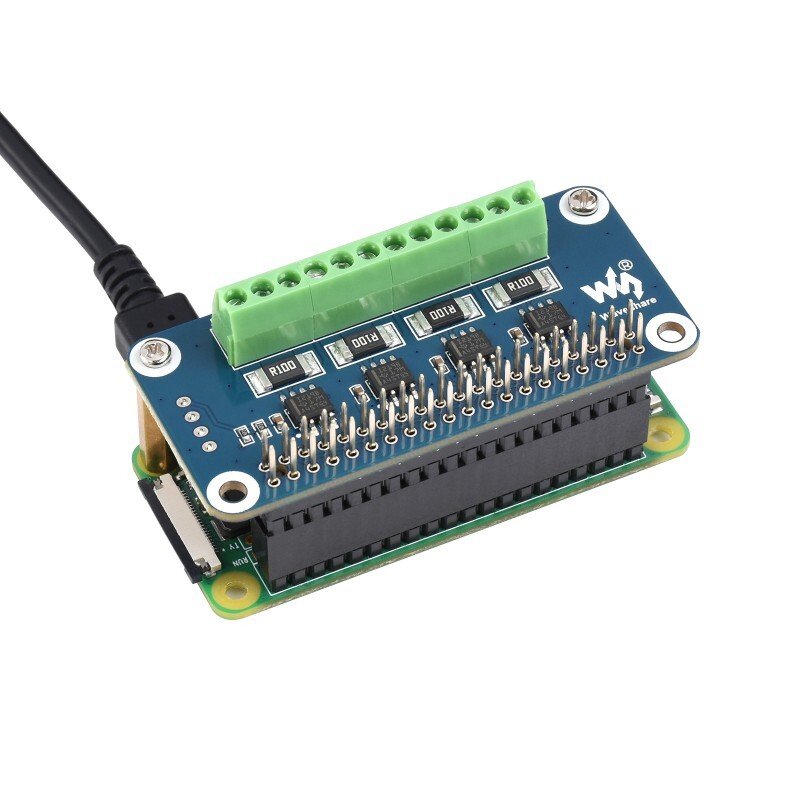

• Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards.
• 4-channel monitoring via I2C/SMBus interface.

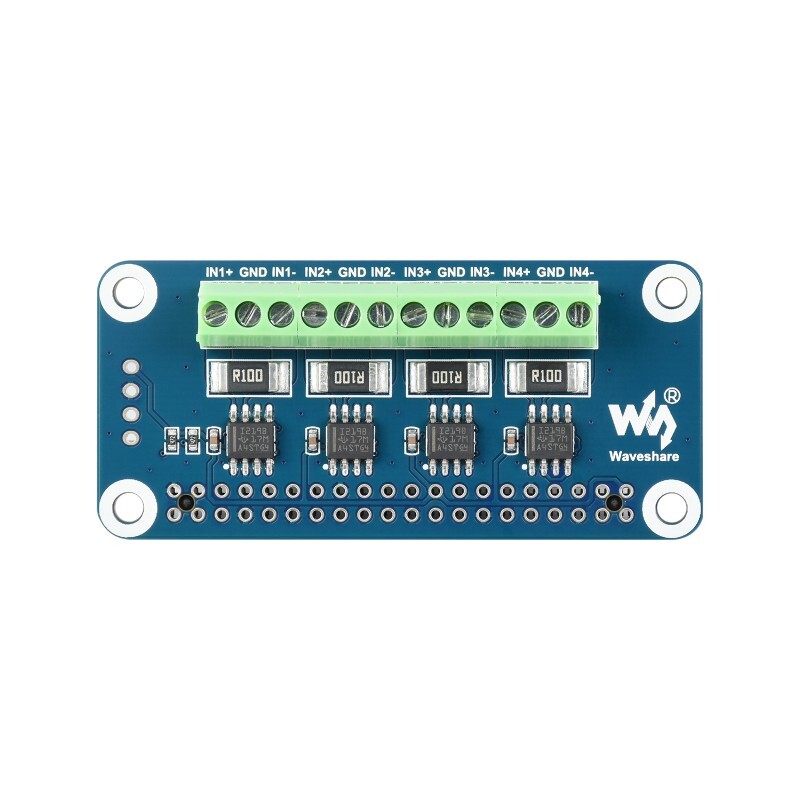

• Built-in 0.1Ω 1％ sampling resistor allows measurement of bidirectional current up to 3.2A
• Embedded 12-bit ADC, supports multiple consecutive conversions, voltage measurement range 0~26V.
• Directly calculate and output the measured power value through additional multiplication register.

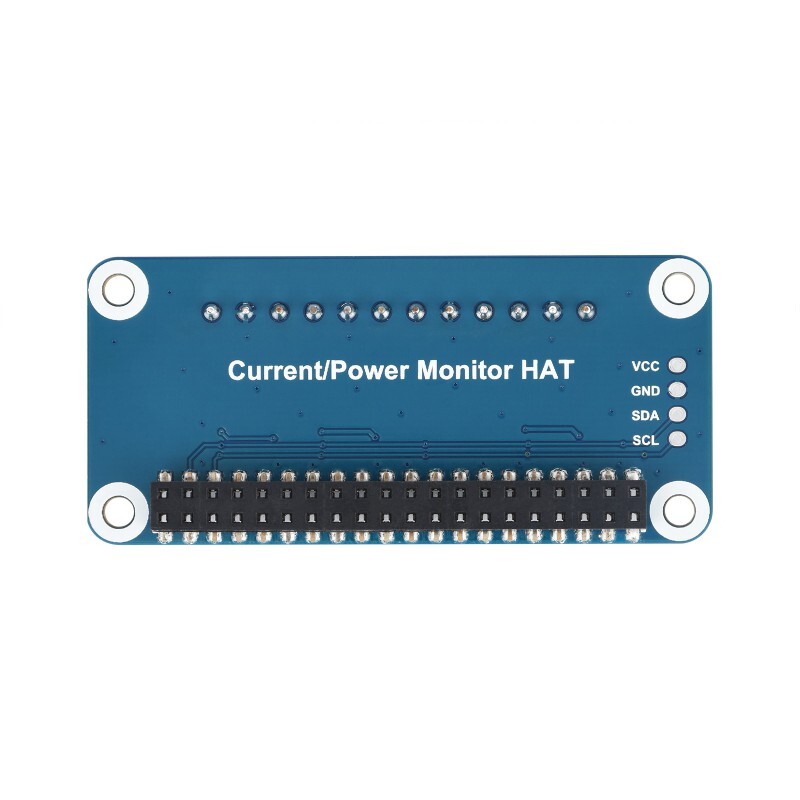

• I2C control pins for connecting to other motherboards.

Technical Specifications

• Working voltage: 3.3 V/5 V
• Control interface: I2C/SMBus
• Sampling resistance: 0.1 Ω 1%
• Voltage range: 0~26 V
• Current range: ±3.2 A
• Resolution: 0.8 mA (±3.2 A range) OR 0.1 mA (±400 mA range)
• Dimensions: 65 mm × 30 mm
• Mounting hole size: 3.0 mm
