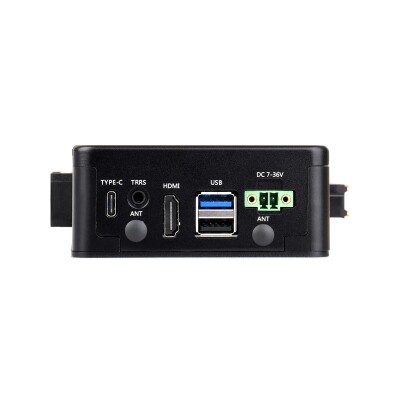

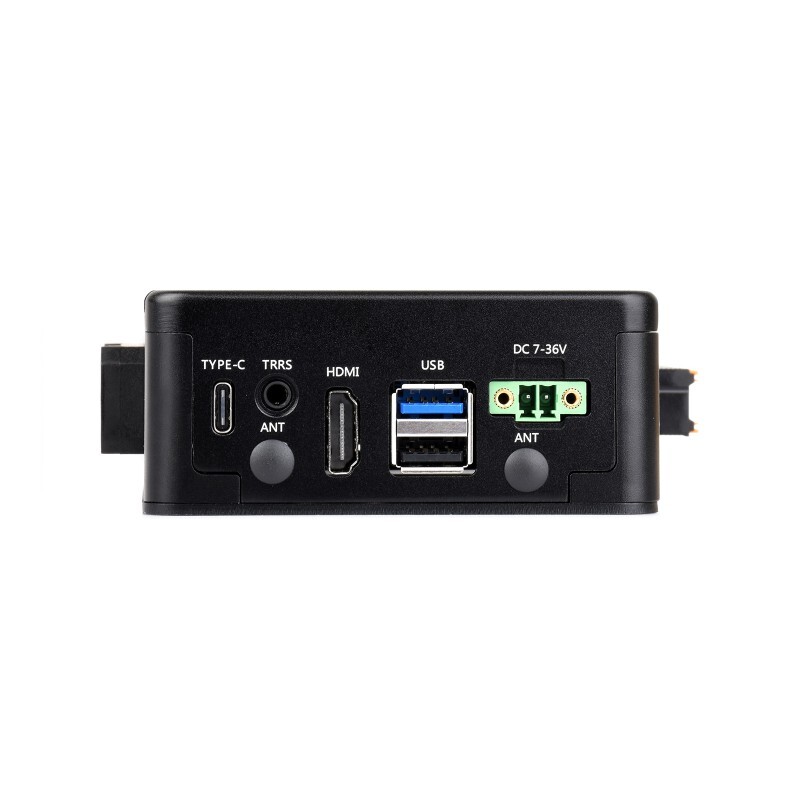

IPCBOX-CM5-B Raspberry Pi CM5-Based Industrial Computer with Dual Gigabit/2.5G Ethernet

IPCBOX-CM5-B Raspberry Pi CM5-Based Industrial Computer with Dual Gigabit/2.5G Ethernet

The IPCBOX-CM5-A Raspberry Pi CM5-based industrial computer with dual Gigabit/2.5G Ethernet is a carrier board designed for use with the Raspberry Pi Compute Module 5. The board offers powerful features such as onboard USB 3.2 Gen1 (1x) and USB 2.0 (3x) ports, M.2 M-Key and B-Key slots (the latter for 4G/5G modules), an audio output interface, and dual Ethernet ports.

Additionally, it offers RS485/RS232, CAN, digital inputs, and digital outputs via GPIO expansion for user convenience.

Note: Raspberry Pi CM5 is not included.

User Manual

Specifications

SKU	34124
CM5 socket	Suitable for all variants of Compute Module 5
Networking	1000M Ethernet RJ45 port × 1 2500M Ethernet RJ45 port × 1
USB	USB 3.2 Gen1 port × 1
	USB 2.0 port × 3
Video	HDMI interface × 1, supports 4K display output
M.2	M.2 M KEY (PCIe Gen2/3 × 1, 2230 / 2242)
	M.2 B KEY, supports connecting 4G / 5G communication module
Storage	TF card socket for Compute Module 5 Lite (without eMMC) variants
Serial Interface	2 × RS485 + 2 × RS232 version
	1 × CAN with up to 1Mbps communication rate
Digital Input/Output	2 × digital outputs + 2 × digital inputs
Audio	3.5mm audio jack (microphone support), PH2.0 speaker header
Fan header	5V, 4PIN JST-SH PWM fan header
Buzzer	1-ch controllable buzzer
Other	Onboard EEPROM and encryption chip
Power Input	7V ~ 36V wide voltage range screw terminal, 5V 5A Type-C port
Dimensions	136.00 × 92.00 × 39.50 (mm)

Package Content

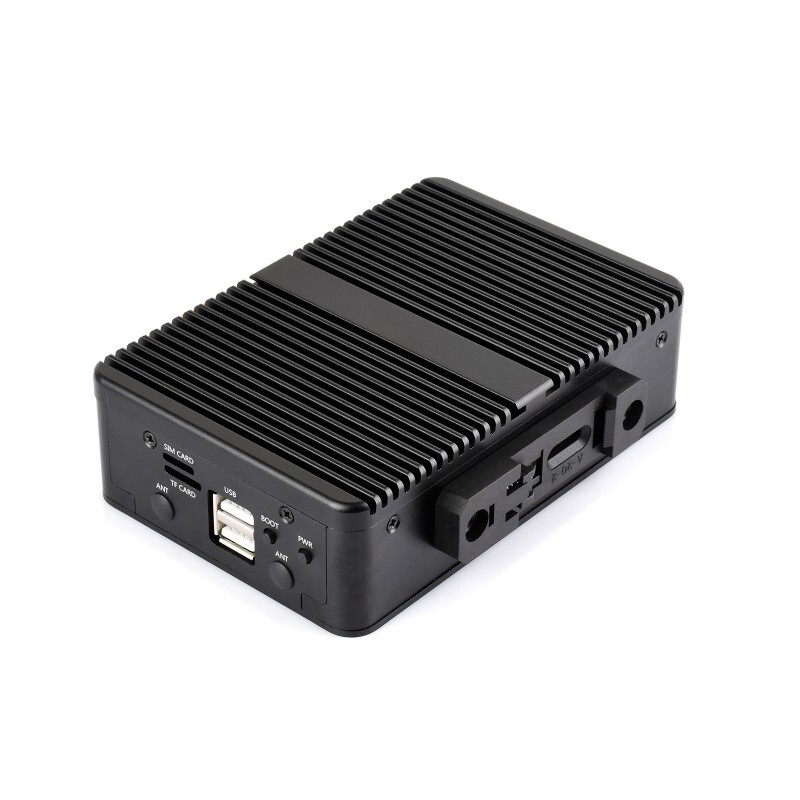

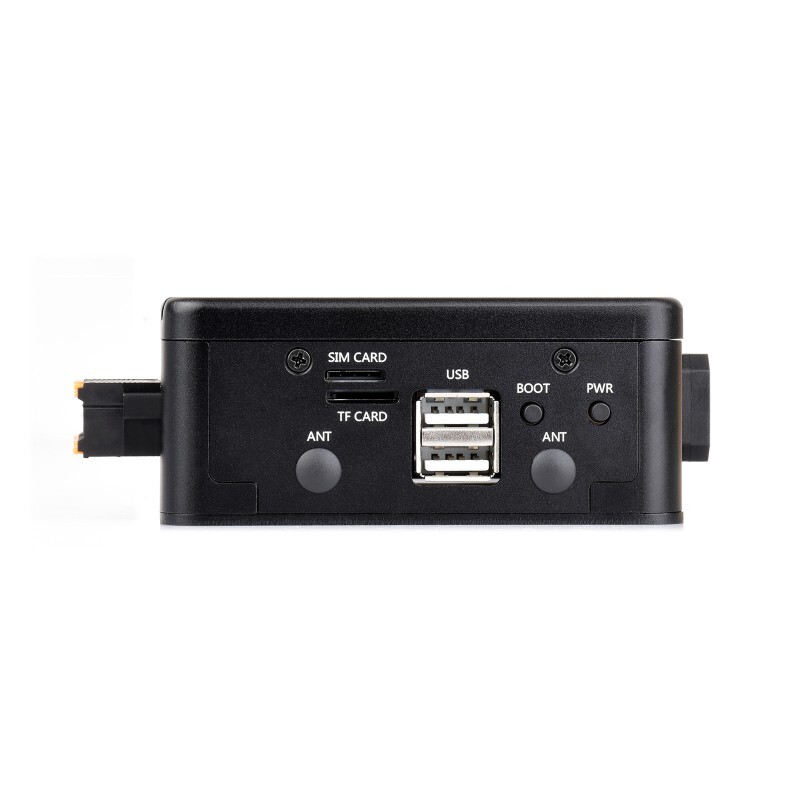

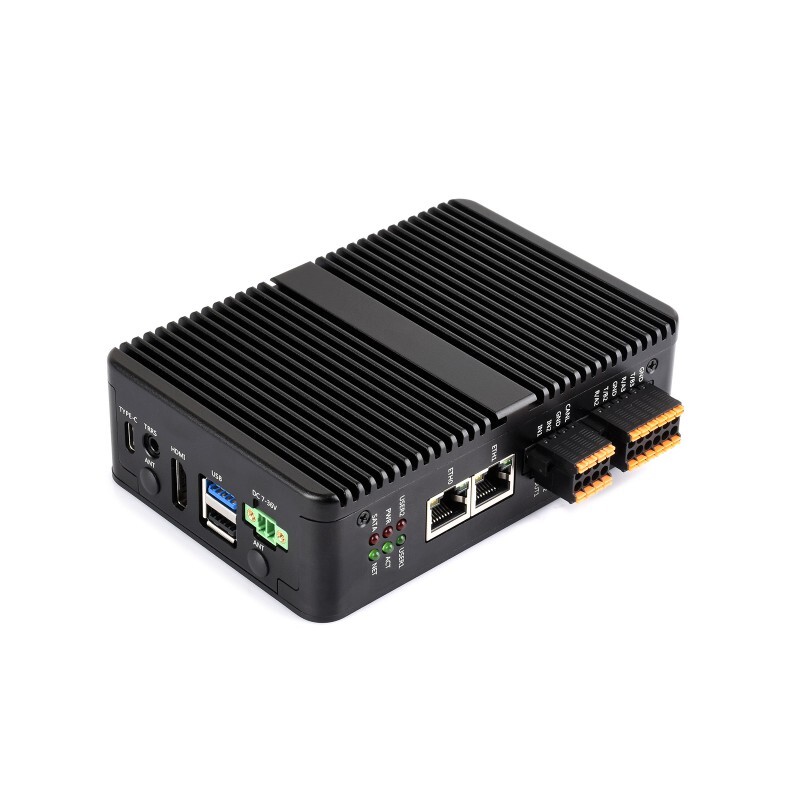

• IPCBOX-CM5-B metal case x1

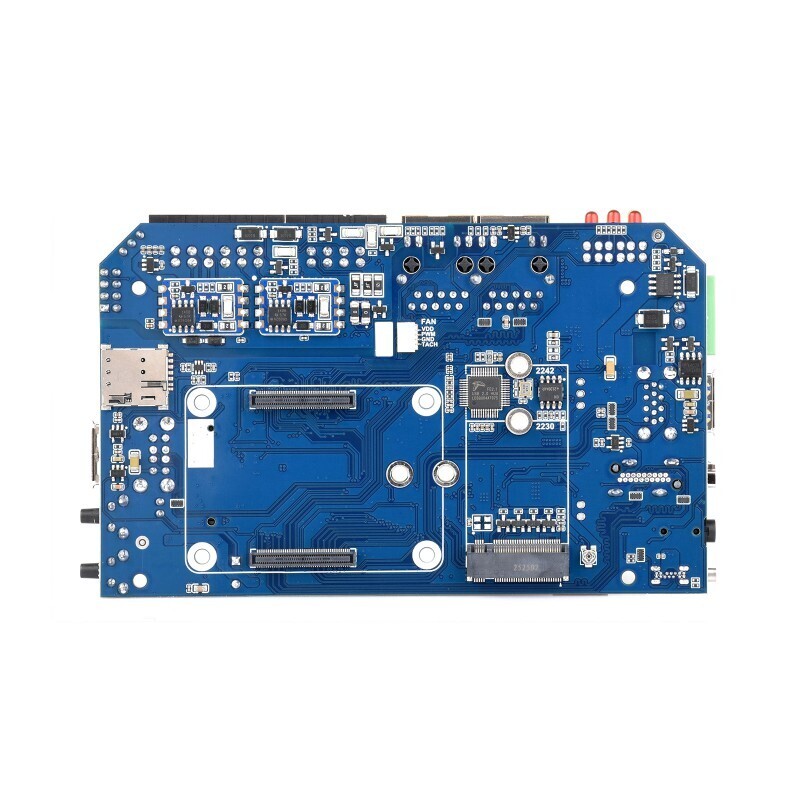

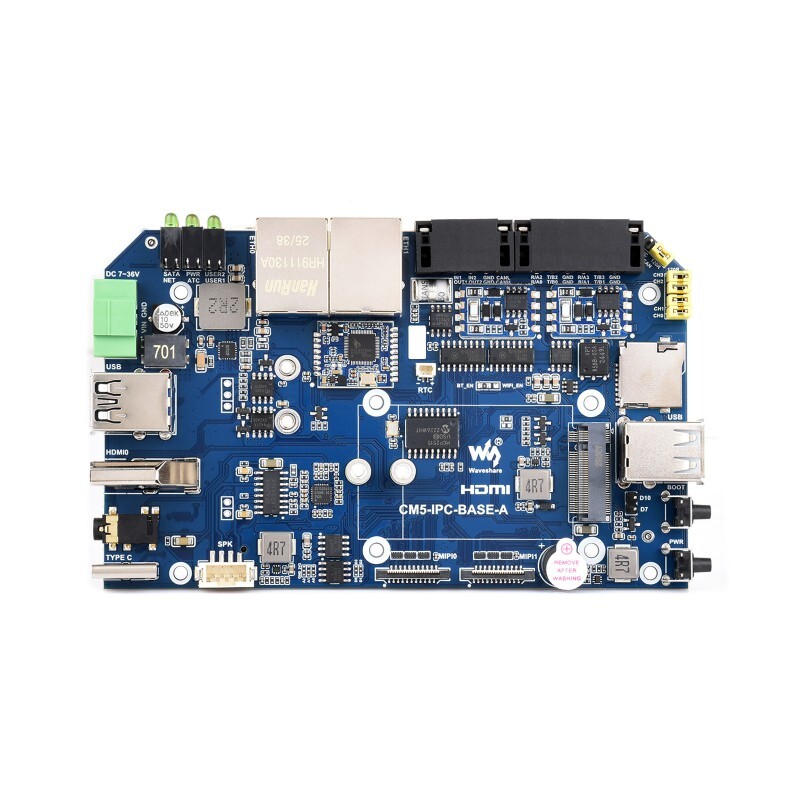

• CM5-IPC-BASE-A-2RS485 motherboard x1
• 12V 4A power supply x1
• Power adapter cable (15cm) x1
• Black nylon spacer x4
• Screw set x1
• Screwdriver x1
• 6-pin, 3.5 mm pitch, double-level terminal block x1
• 4-pin, 3.5 mm pitch, double-level terminal block x1
• Rail mounting clip x1
• Pink thermal tape x1

Interface

Setup

Size
