PCIe to M.2 4G/5G and USB 3.2 Raspberry Pi HAT
PCIe to M.2 4G/5G and USB 3.2 Raspberry Pi HAT

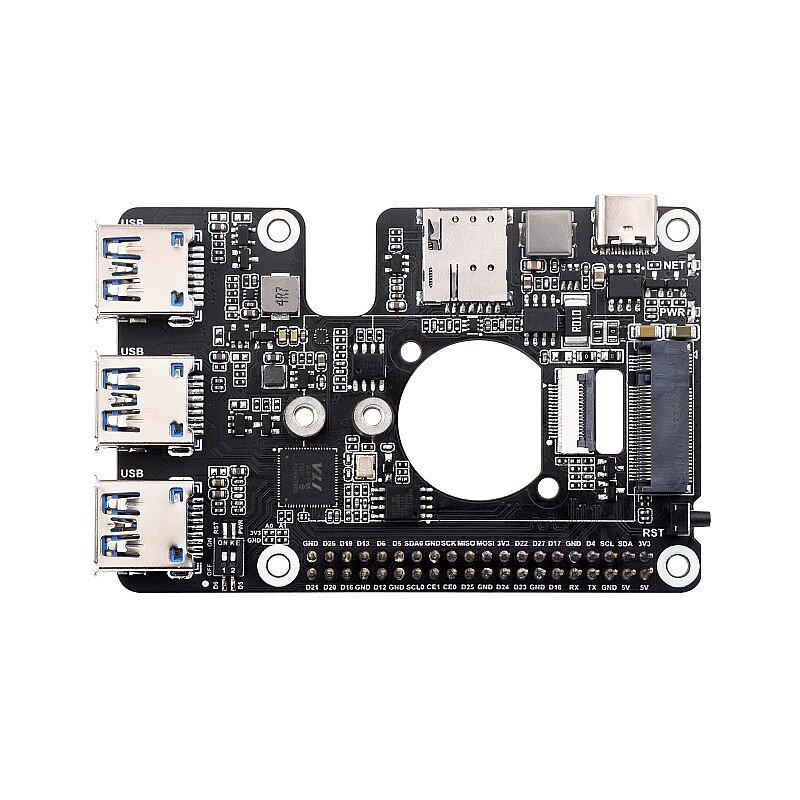

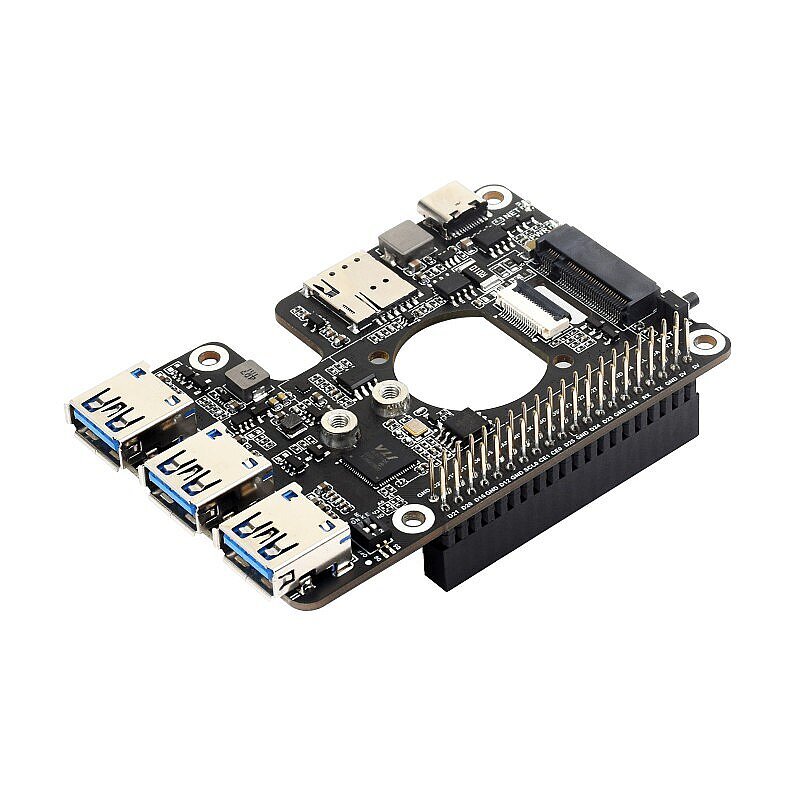

The PCIe to M.2 4G/5G and USB 3.2 Raspberry Pi HAT is a HAT+ format expansion board designed to provide high-speed mobile communication and additional USB connectivity for the Raspberry Pi 5. It utilizes the Raspberry Pi 5's 16-pin PCIe interface and connects to the onboard VL805 controller via a PCIe x1 Gen2 link. This enables the simultaneous use of an M.2 4G/5G modem and multiple USB 3.2 Gen1 ports on a single board.
The board features an M.2 NGFF Key-B slot and is compatible with SIMCom and Quectel-based 4G/5G modems in 3042/3052 form factors. The onboard USB Type-C port serves multiple functions beyond just power input; when a compatible modem is installed, it allows for a direct USB modem connection to a PC or Raspberry Pi, facilitates firmware updates and debugging, or enables the supply of external 5V DC power to the board.
Features
- SKU: 27698

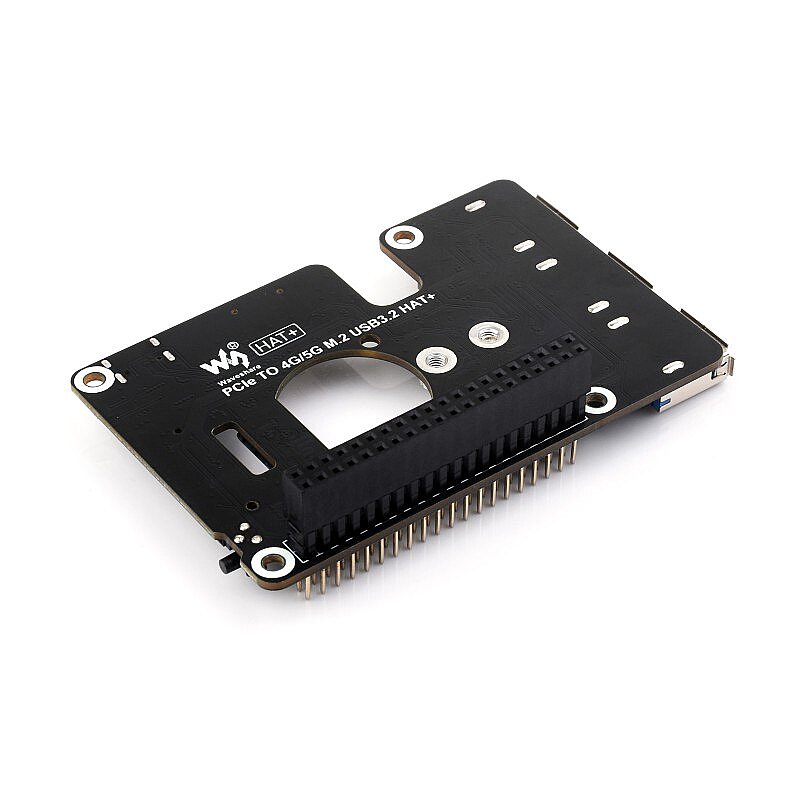

- HAT+ standard design for Raspberry Pi 5, featuring an onboard I2C EEPROM; Supports stackable expansion via the Raspberry Pi 40-pin GPIO
- Features 3 high-speed USB 3.2 Gen1 ports for connecting additional peripherals

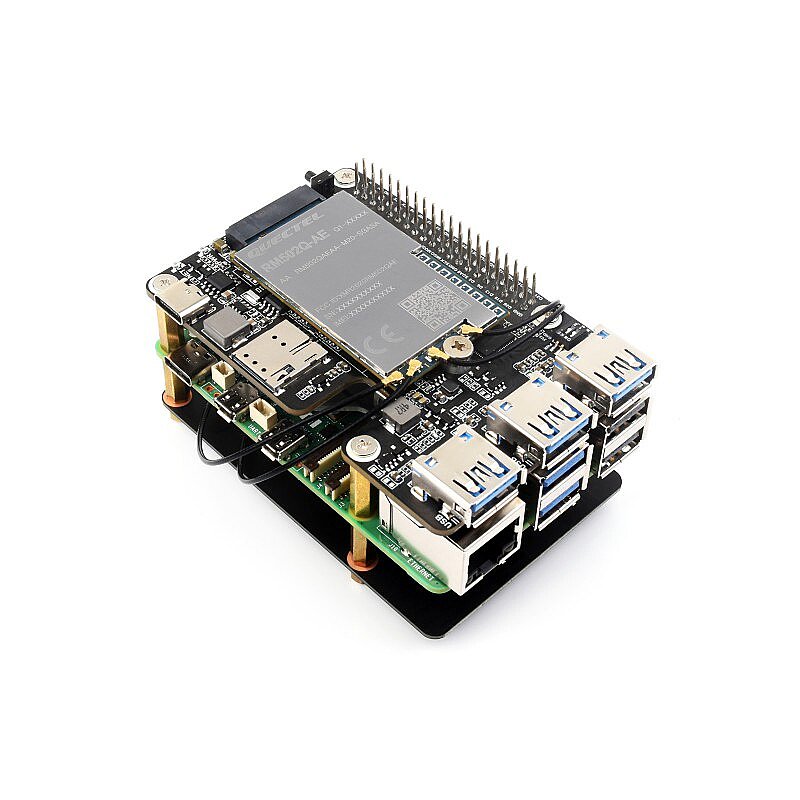

- Onboard M.2 (NGFF) Key B slot; Supports SIM7600XX-M.2, SIM82XX, and RM5XX series 4G/5G modules; compatible with 3042/3052 form factors
- Onboard Type-C port for connecting to a PC or providing external power for 4G/5G network connectivity, debugging, and firmware updates
- Onboard power monitoring chip for real-time measurement of voltage, current, and power
- Onboard SIM card slot for Nano-SIM cards
- Onboard Reset button, as well as Power and Network indicators, for easy debugging and status monitoring

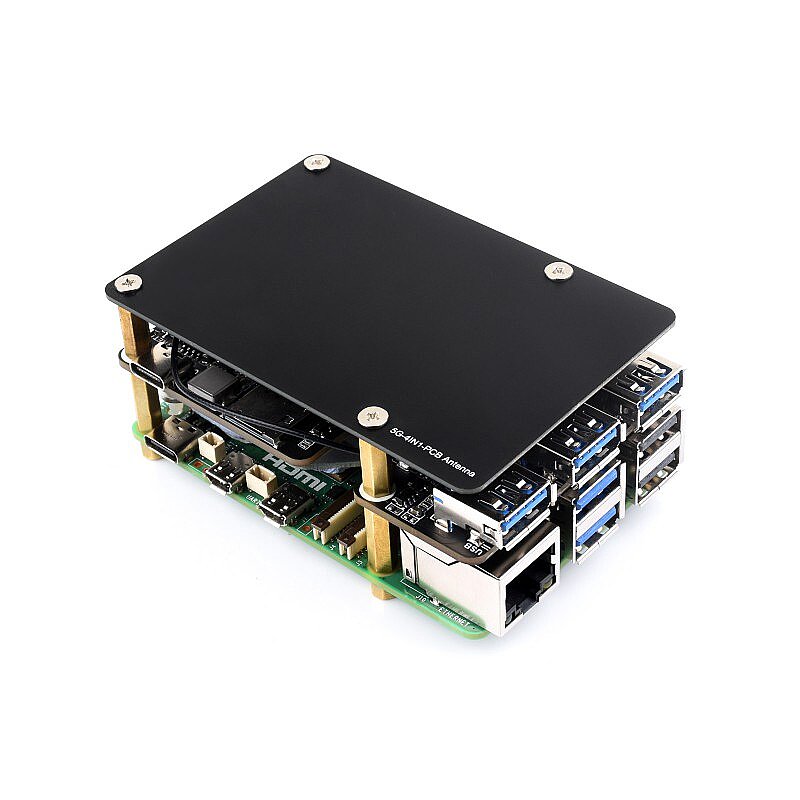

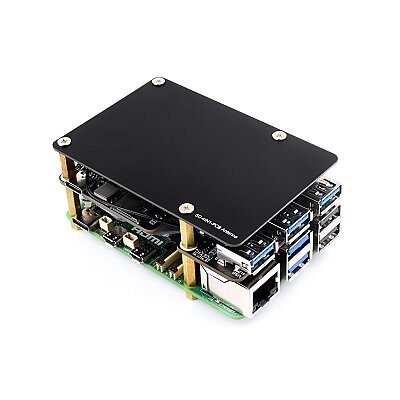

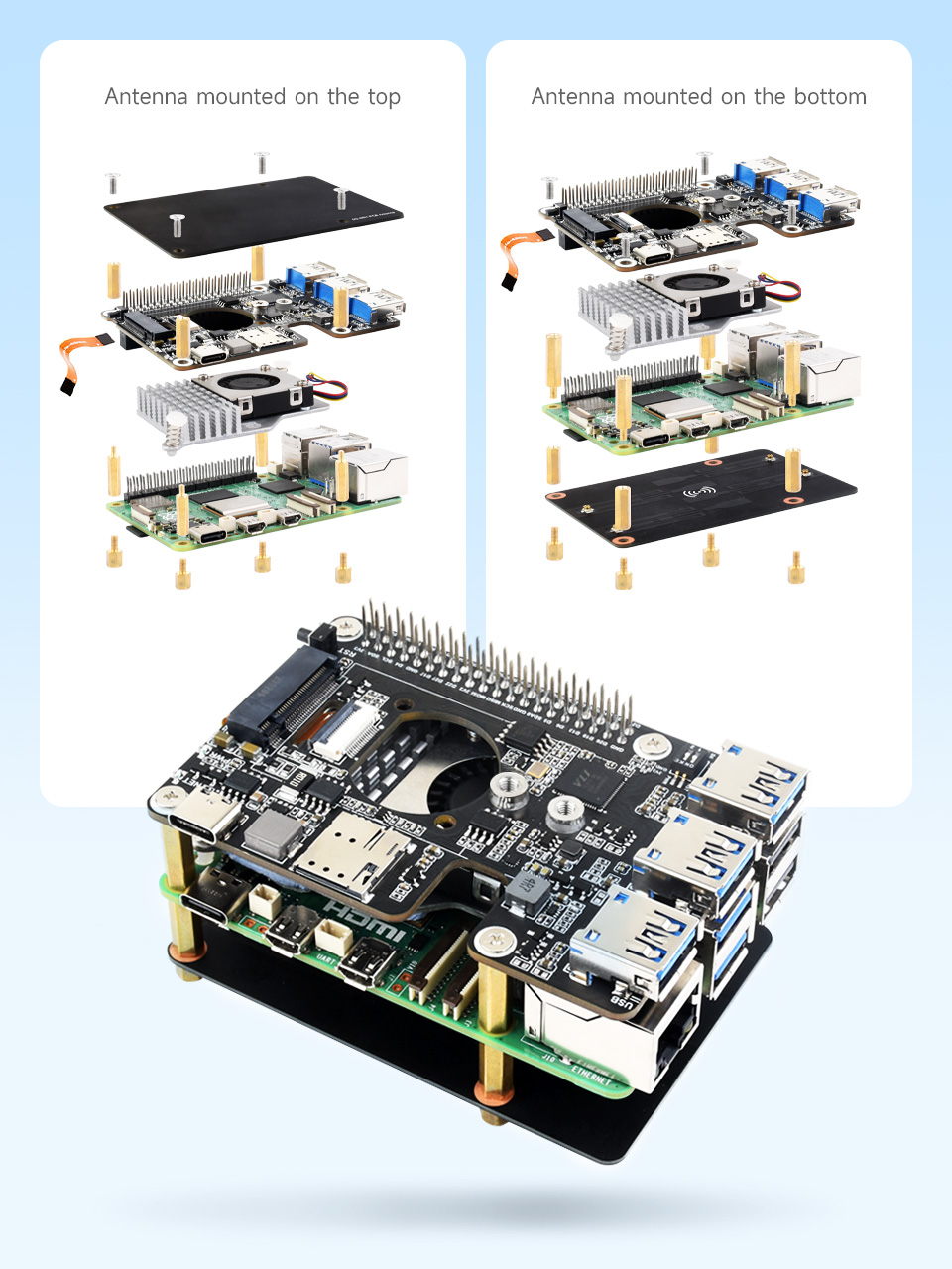

- Comes with a custom-designed 5G-4IN1-PCB antenna that ensures neat cable management and supports top or bottom mounting
- Dedicated ventilation channel and mounting holes for a cooling fan to increase airflow and improve heat dissipation
Package Contents
- PCIe to 4G/5G M.2 USB3.2 HAT+ x1
- 5G-4IN1-PCB Antenna x1
- 16P Cable (40mm) x1
- IPEX1 to IPEX4 Cable (~13cm, 4 pieces) x1
- Screw Pack x1

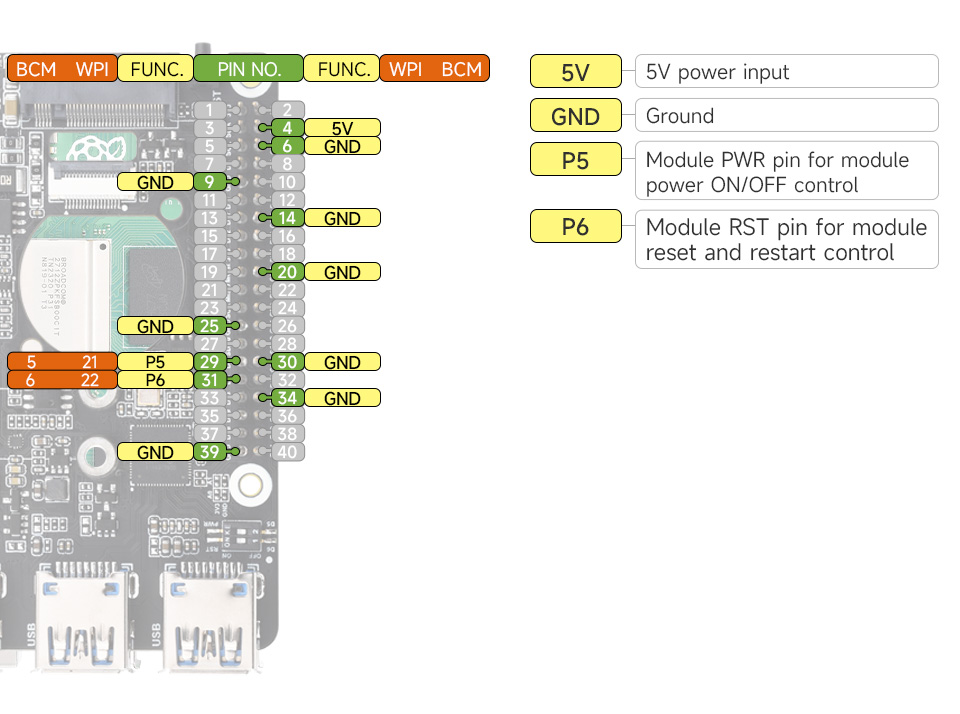

Pinout

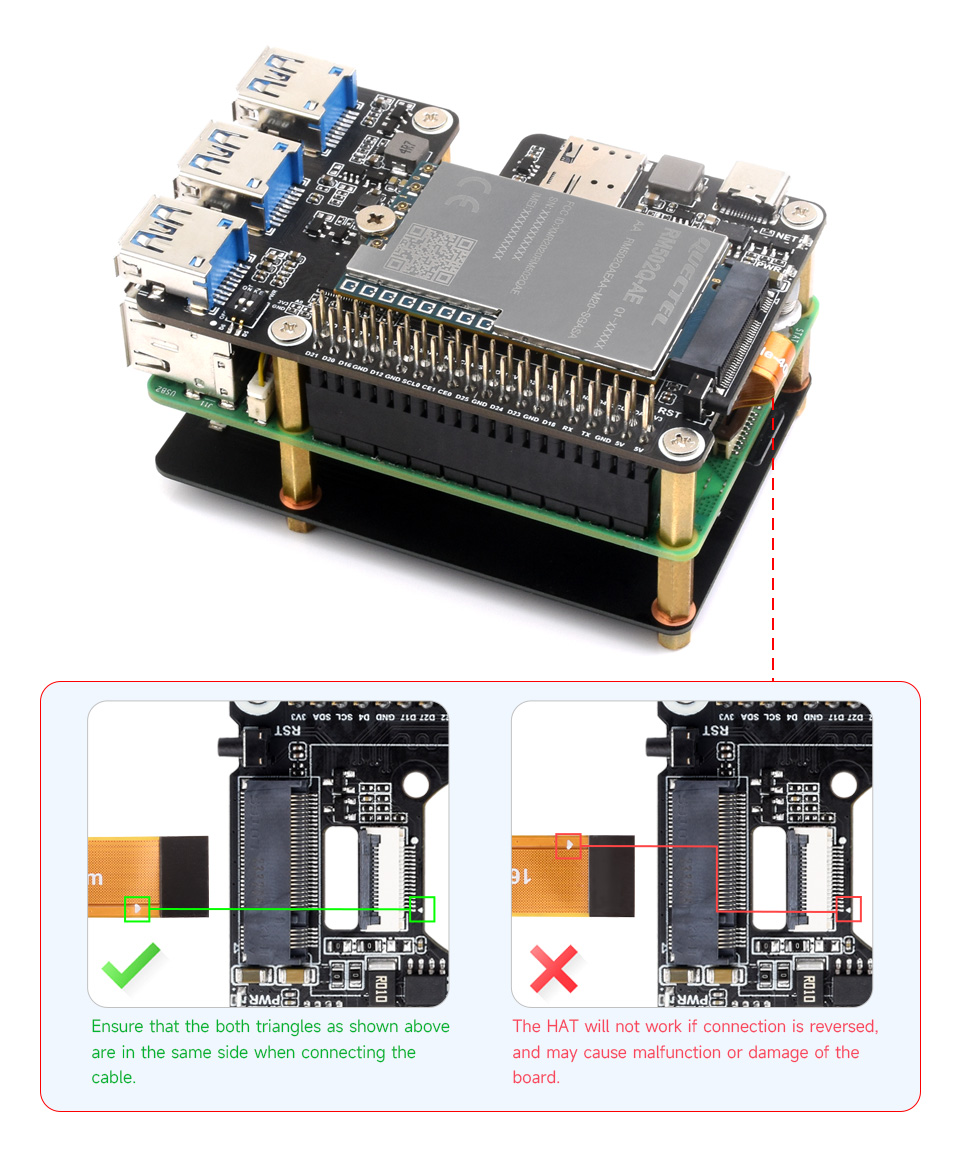

Setup

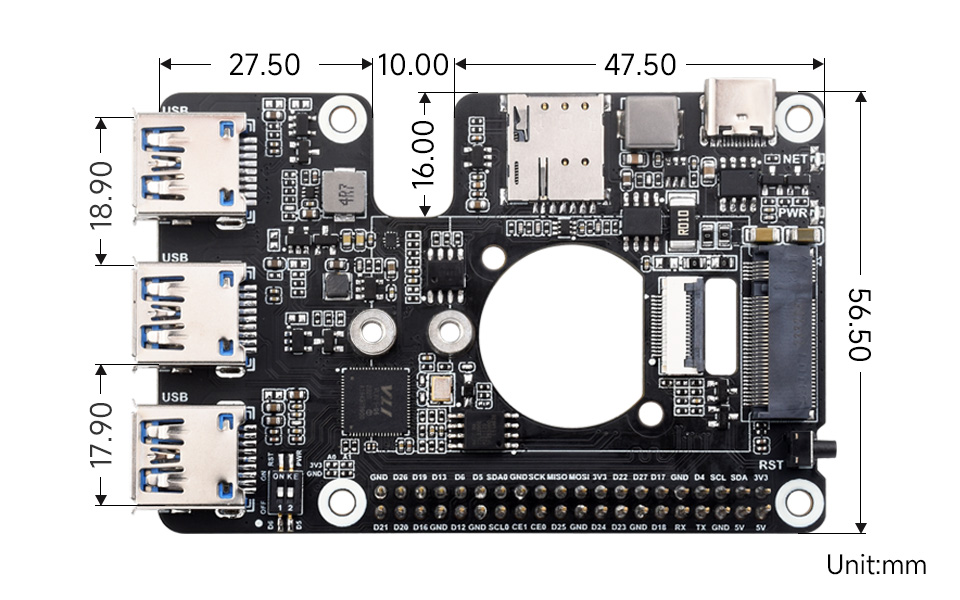

Size
