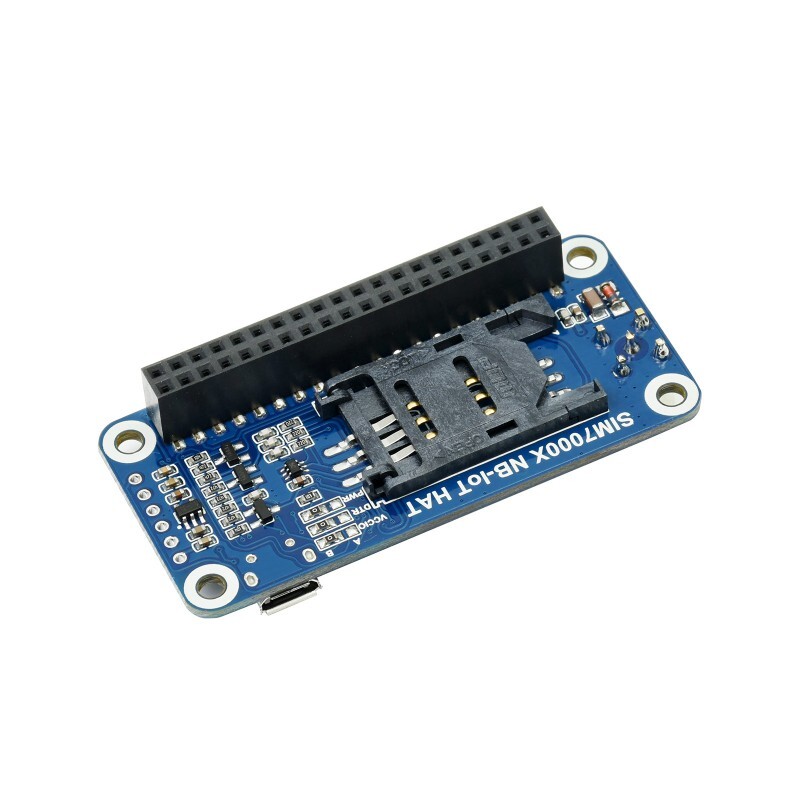

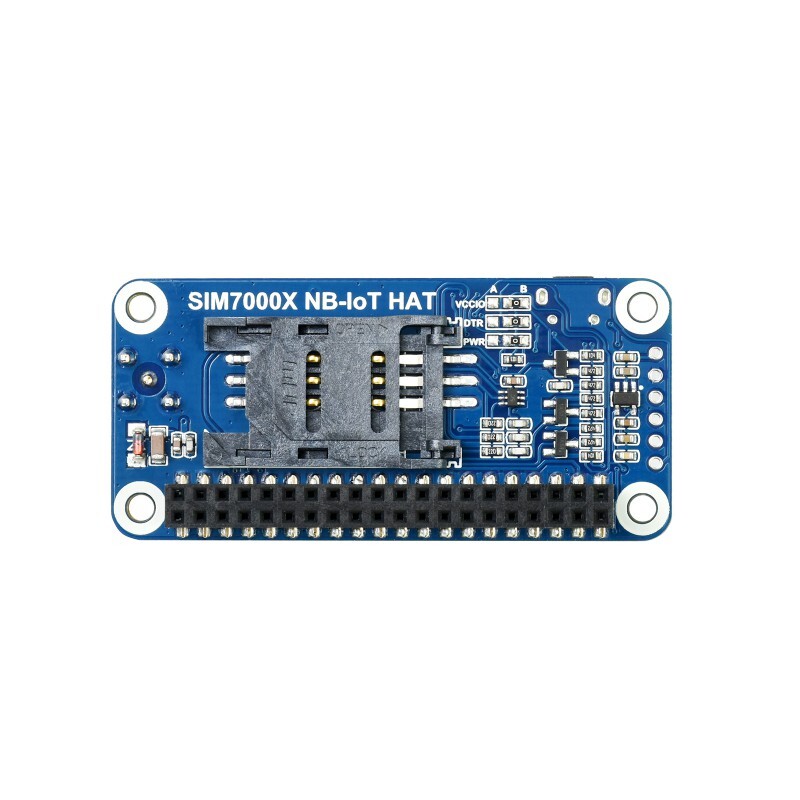

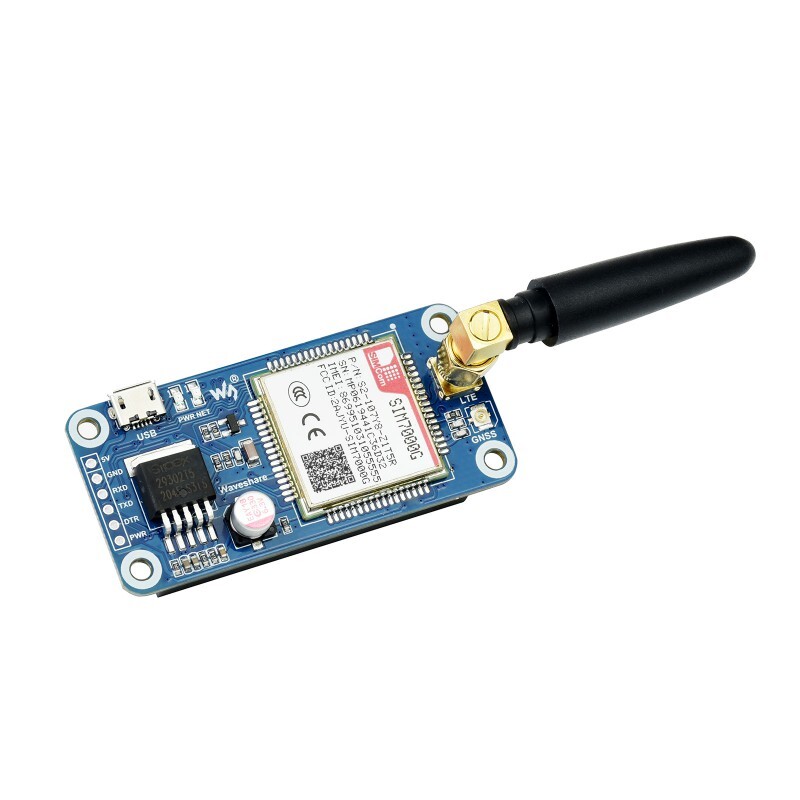

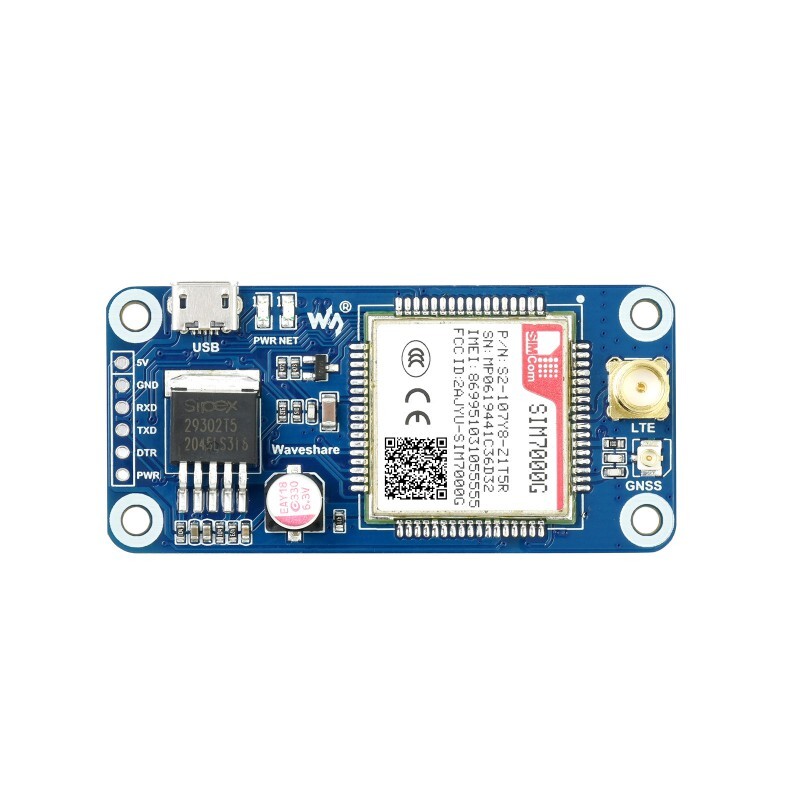

SIM7000G NB-IoT / Cat-M / EDGE / GPRS Raspberry Pi HAT
The SIM7000G NB-IoT / Cat-M / EDGE / GPRS Raspberry Pi HAT is a telecommunications HAT for Raspberry Pi that supports the global bands of NB-IoT, Cat-M, and GPRS, as well as GNSS positioning functionality. Thanks to its advantages such as small size, low latency, and wide coverage, it is suitable for smart devices, asset tracking, remote monitoring, e-health, etc. It is an ideal choice for IoT applications such as [list of applications].
Features
- SKU: 20681
- Standard Raspberry Pi 40PIN GPIO expansion header, supports Raspberry Pi series boards
- Supports TCP, UDP, PPP, HTTP, FTP, MQTT, SMS, Email, etc.
- Supports GNSS positioning (GPS, BeiDou, GLONASS)
- Testing AT Commands, retrieving GPS positioning data, etc.
- Built-in USB interface
- UART control pins for connecting to motherboards such as Arduino/STM32
- Built-in voltage converter, default 3.3V, allows switching to 5V with 0Ω resistor
- SIM card slot, compatible with both normal SIM cards and NB-IoT dedicated cards
- 2 LED indicators, easy to monitor operating status
- Baud rate: 300bps~3686400bps (default 115200bps)
- Control via AT commands (3GPP TS 27.007, 27.005 and SIMCOM advanced AT)
- Supports SIM application toolkit: SAT Class 3, GSM 11.14 Version 98, USAT
| NB-IoT / Cat-M / 2G | |
|---|---|
| Frequency bands | NB-IoT: B1, B2, B3, B4, B5, B8, B12, B13, B17, B18, B19, B20, B25, B26, B28 |
| Cat-M: B1, B2, B3, B4, B5, B8, B12, B13, B17, B18, B19, B20, B25, B26, B28, B39 | |
| GPRS/EDGE: 850, 900, 1800, 1900MHz | |
| Data rate | NB-IoT: 34(DL)/66(UL) |
| Cat-M: 300(DL)/375(UL) | |
| EDGE: 236.8(DL)/236.8(UL) | |
| GPRS: 85.6(DL)/85.6(UL) | |
| SIM card support | NB-IoT: NB Specific (Not Included) |
| Cat-M/GPRS/EDGE: Normal SIM (Not Included) | |
| Applicable region | Global |
| GNSS | |
| Satellite systems | GPS, BeiDou, GLONASS |
| Receiver type | 16-channel |
| C/A Code | |
| Sensitivity | Tracking: -162 dBm (GPS) / -157 dBm (GLONASS) / TBD (BD) |
| Cold starts: -148 dBm | |
| Time-To-First-Fix | Cold starts: <35s |
| Hot starts: <1s | |
| Accuracy | Position: <2.5m POCKET |
| Other | |
| Power supply | 5V |
| Operating voltage | 5V / 3.3V (3.3V by default) |
| Sleep Mode current | 1.2mA (@DRX=2.56s) |
| Power Save Mode current | 9uA |
| Operating temperature | -40°C ~ 85°C |
| Storage temperature | -45°C ~ 90°C |

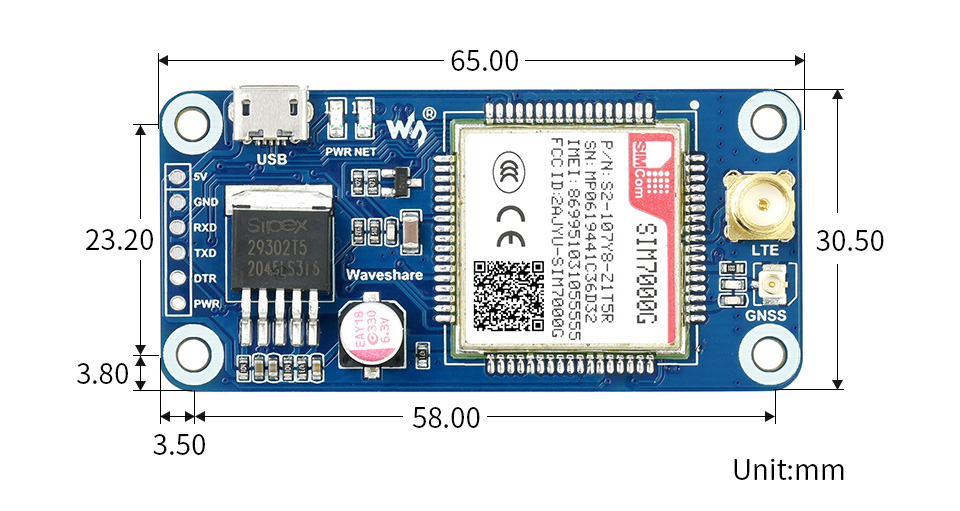

| Dimensions | 30.2mm x 65mm |

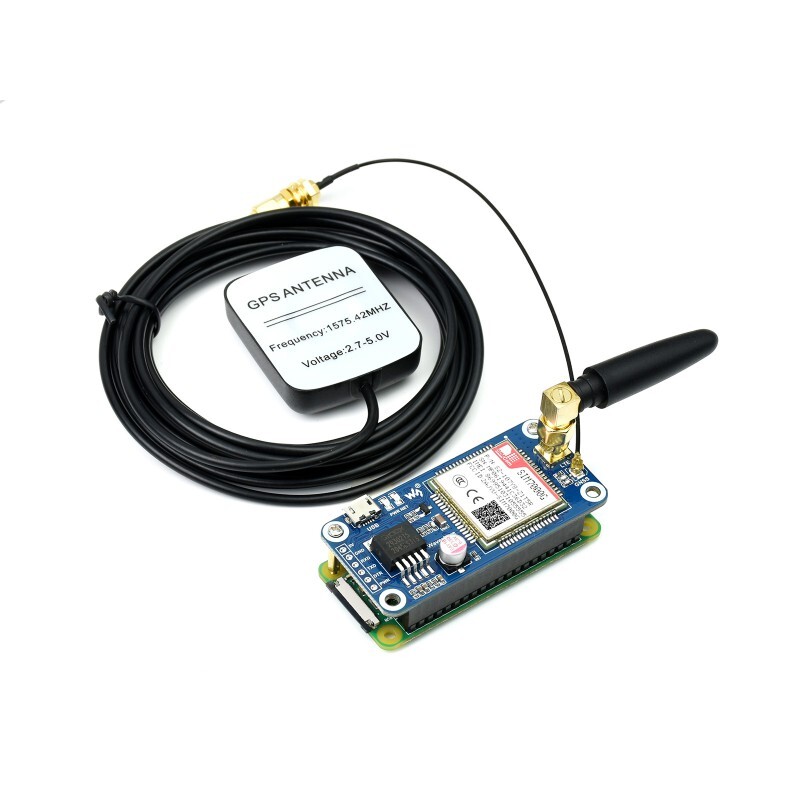

Package Contents
- SIM7000G NB-IoT HAT x1
- GSM Antenna x1
- GPS External Antenna (B) x1
- USB-A to Micro-B cable x1
- Stand mounting parts package x1
