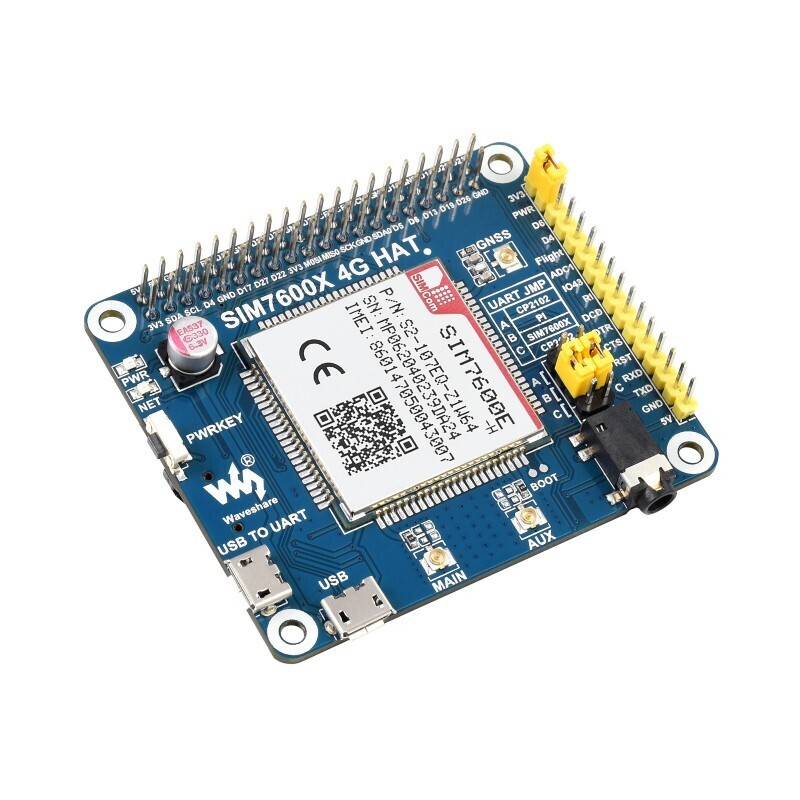

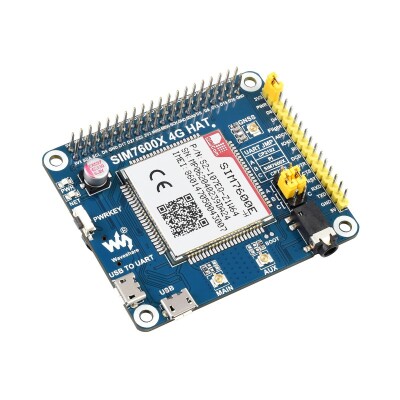

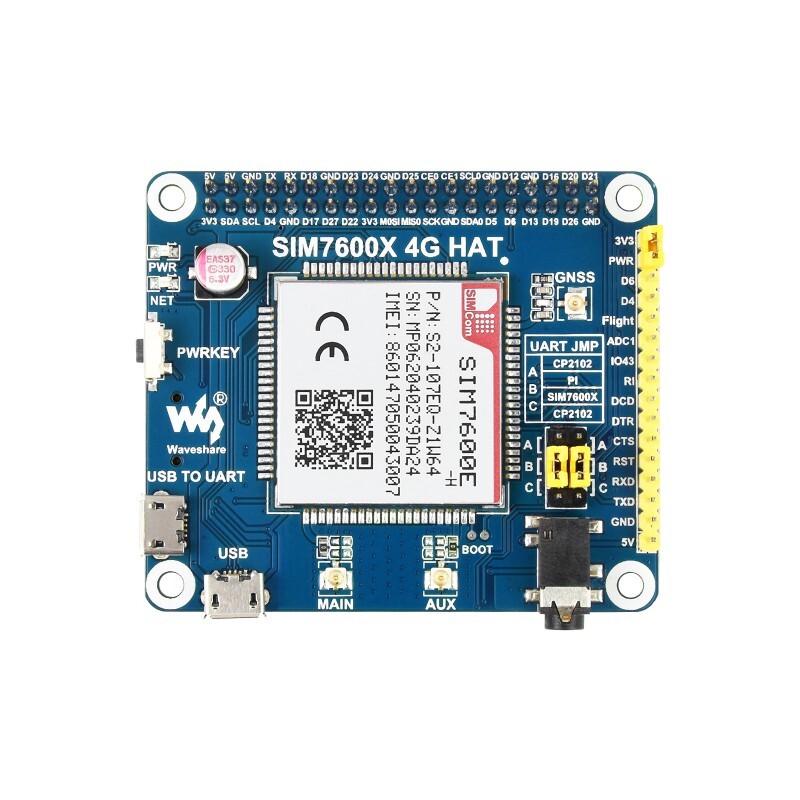

SIM7600E-H 4G Raspberry Pi HAT

SIM7600E-H 4G Raspberry Pi HAT

The Waveshare SIM7600E-H 4G HAT is an industrial-grade cellular communications module designed to take your Raspberry Pi projects beyond the wireless world, enabling internet access from anywhere without being tied to fixed Wi-Fi or Ethernet lines.

Fully supporting LTE-FDD/LTE-TDD frequencies (compatible with Europe and Turkey), this module offers 4G internet connectivity with download speeds up to 150 Mbps and upload speeds up to 50 Mbps.

It is also an excellent solution for precise location-based projects thanks to its integrated GNSS/GPS receiver.

User Manual

Features

• SKU: 14952
• 40-pin GPIO expansion header for connecting Jetson Nano.
• Dial-up connection, phone calls, SMS, email, TCP, UDP, DTMF, HTTP, FTP, etc. Supports.
• Supports GPS, BeiDou, Glonass and LBS base station positioning.
  Testing AT commands, retrieving GPS positioning data, etc. Built-in USB interface.
• UART control pins for connecting to motherboards such as Arduino/STM32.
• Built-in CP2102 USB-UART converter for serial debugging.

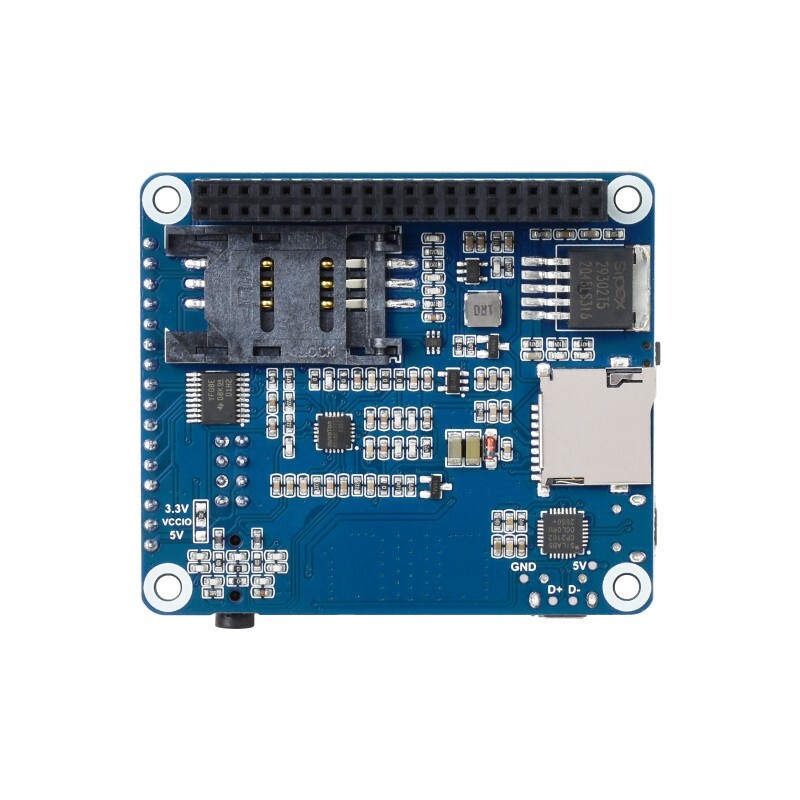

• SIM card slot supporting 1.8V/3V SIM cards.

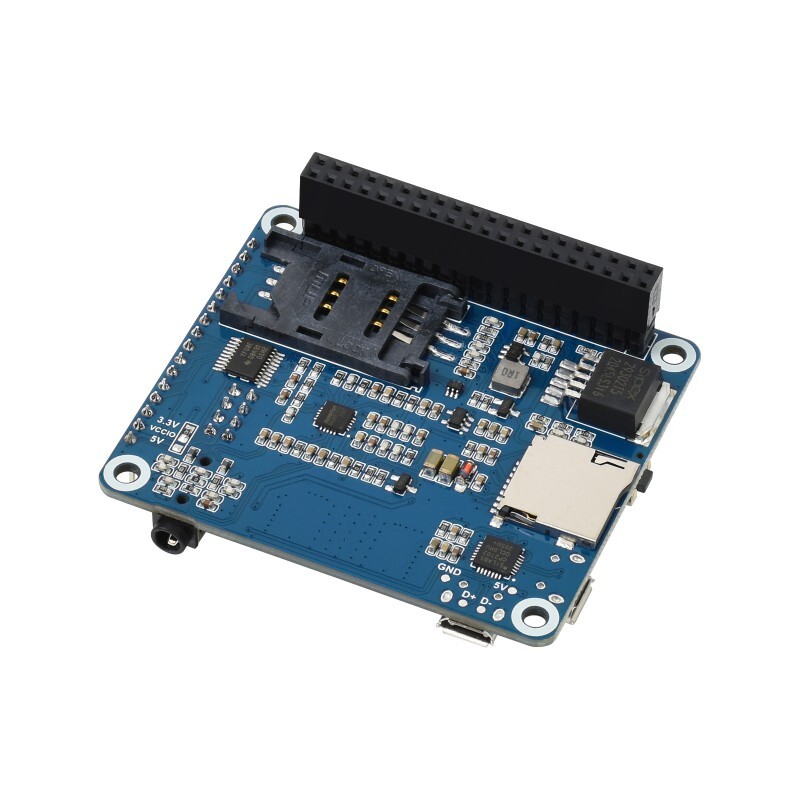

• Built-in TF card slot that can be used to store files, text messages and other data.
• Built-in audio jack and audio decoder chip for making phone calls.
• 2 LED indicators for easy monitoring of operating status.
• Built-in voltage converter, operating voltage can be configured as 3.3V or 5V via jumper.
• Baud rate: 300 bps ~ 4 Mbps (default: 115200 bps)
• Automatic baud rate adjustment: 9600 bps ~ 115200 bps.

Frequency band
LTE Cat-4	LTE-FDD: B1/B3/B5/B7/B8/B20 LTE-TDD: B38/B40/B41
3G	UMTS/HSPA+: B1/B5/B8
2G	GSM/GPRS/EDGE: 900/1800MHz
GNSS
Satellite systems	GPS/Beidou/GLONASS/GALILEO/QZSS
Receiver type	16-channel
	C/A Code
Sensitivity	-159 dBm (GPS) / -158 dBm (GLONASS) / TBD (BeiDou)
	Cold starts: -148 dBm
Time-To-First-Fix (open air)	Cold starts: <35s
	Hot starts: <1s
SMS and Audio
SMS	Supported types: MT, MO, CB, Text, PDU
	Storage: USIM card and ME (default)
Audio feature	Supports echo cancellation
	Supports noise reduction
Other
Power supply	5V
Operating voltage	5V / 3.3V (configured via jumper)
Operating temperature	-30°C ~ 80°C
Storage temperature	-45°C ~ 90°C

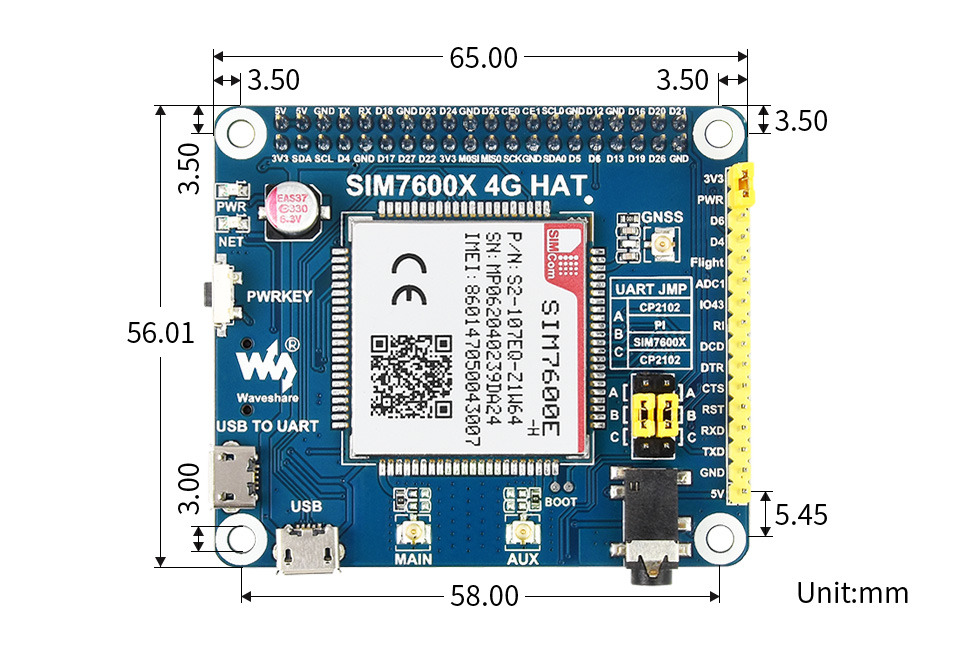

Dimensions	56.21mm ×65.15mm

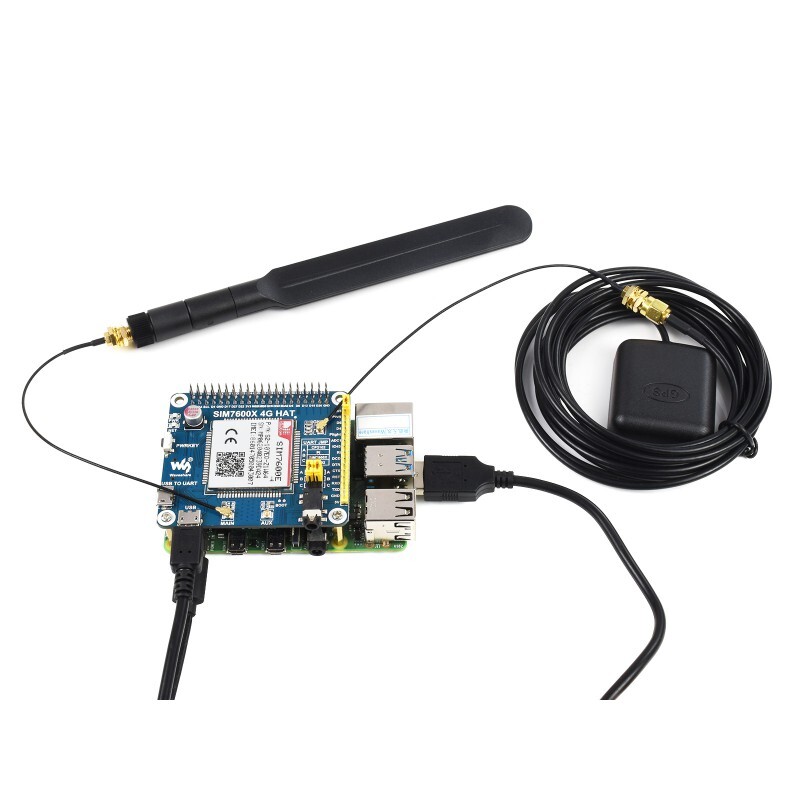

Package Content

• SIM7600E-H 4G LINE x1
• LTE Antenna x1
• GPS External Antenna (B) x1
• USB type A plug to micro plug cable x2
• RPi screw pack (2 pieces) x1
