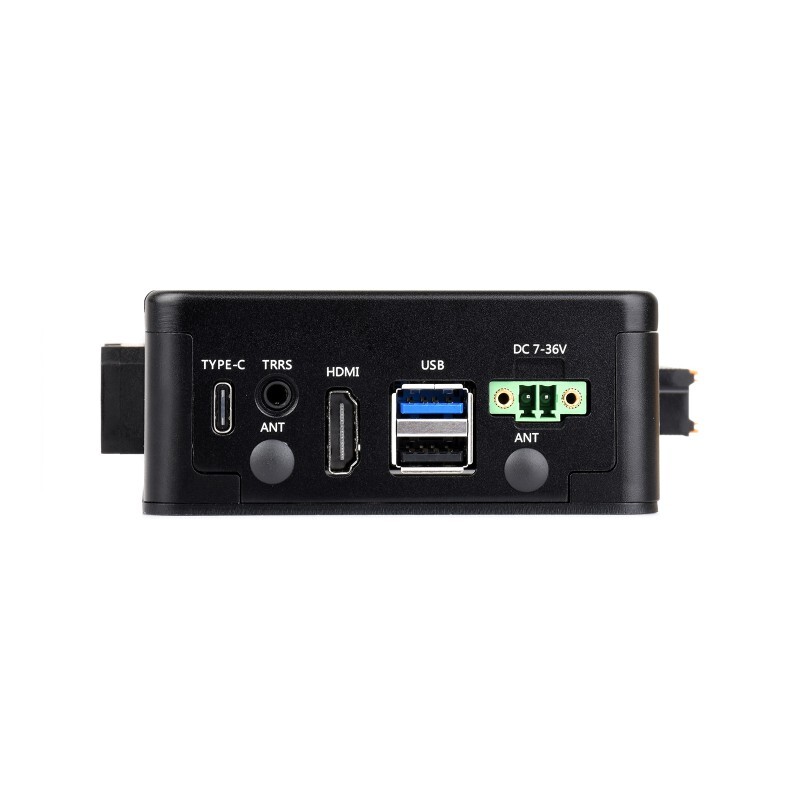

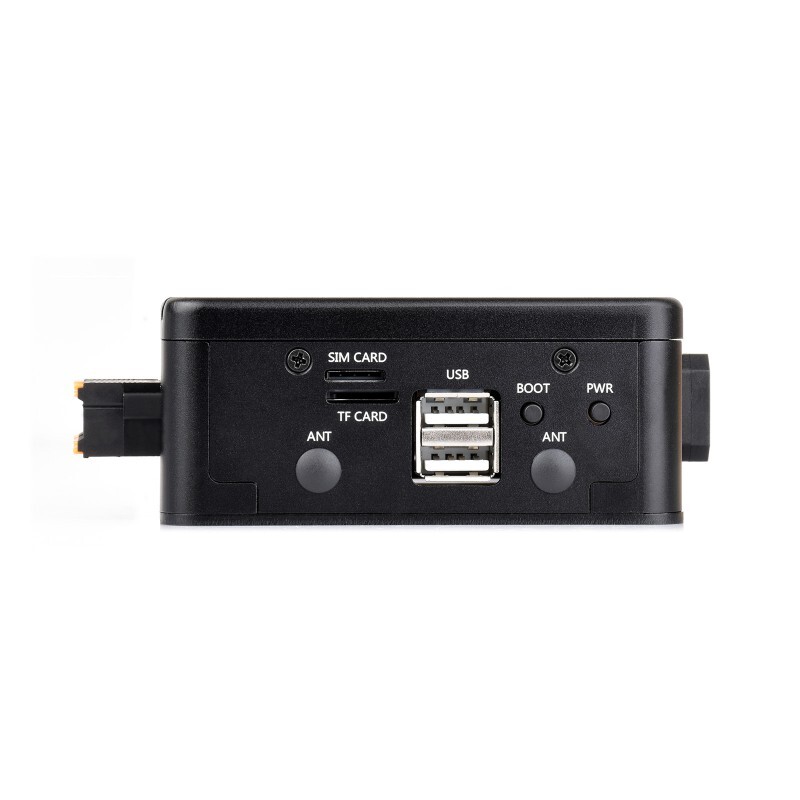

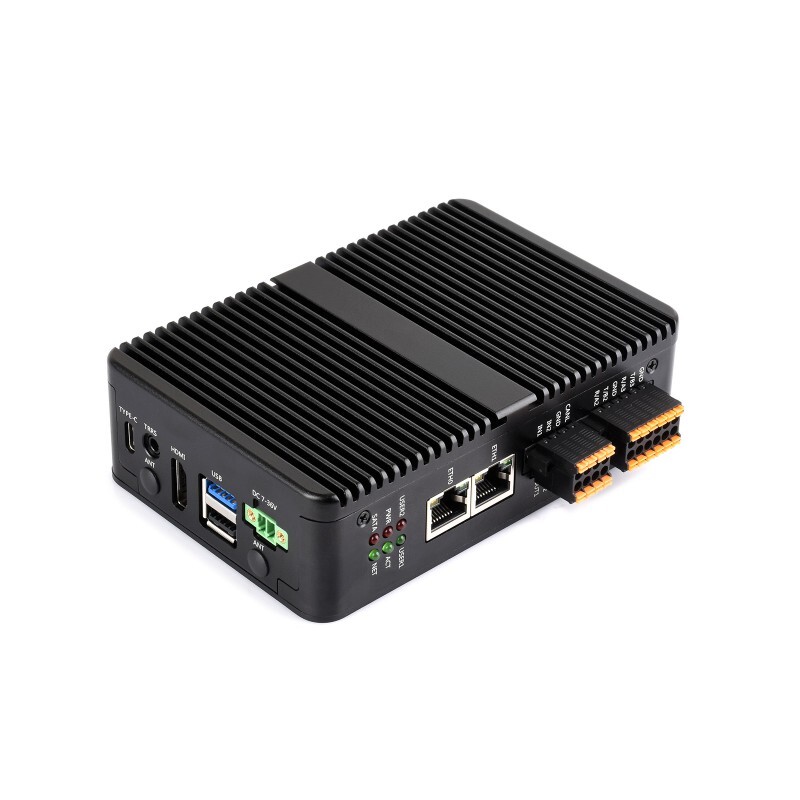

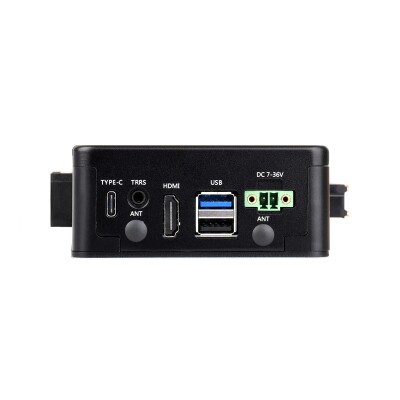

IPCBOX-CM5-A Raspberry Pi CM5-Based Industrial Computer with Dual Gigabit/2.5G Ethernet
9.999,00
TL
+
VAT
11.998,80
TL
Notify Me When It Arrives
9.999,00
TL
+
VAT
11.998,80
TL
Add to Favorite
RecommendCommentAlarm Price
IPCBOX-CM5-A Raspberry Pi CM5-Based Industrial Computer with Dual Gigabit/2.5G Ethernet

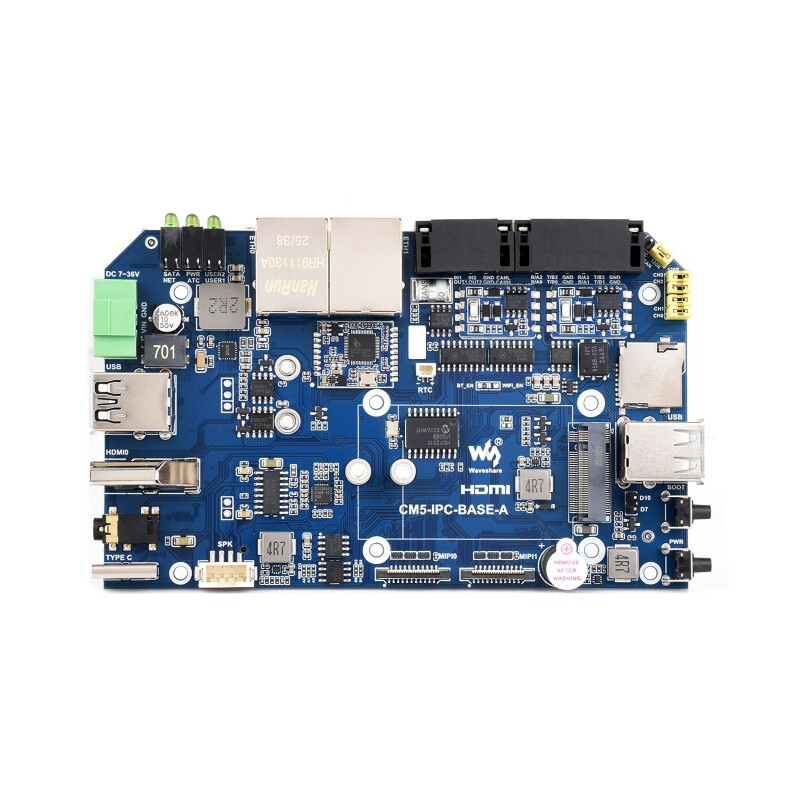

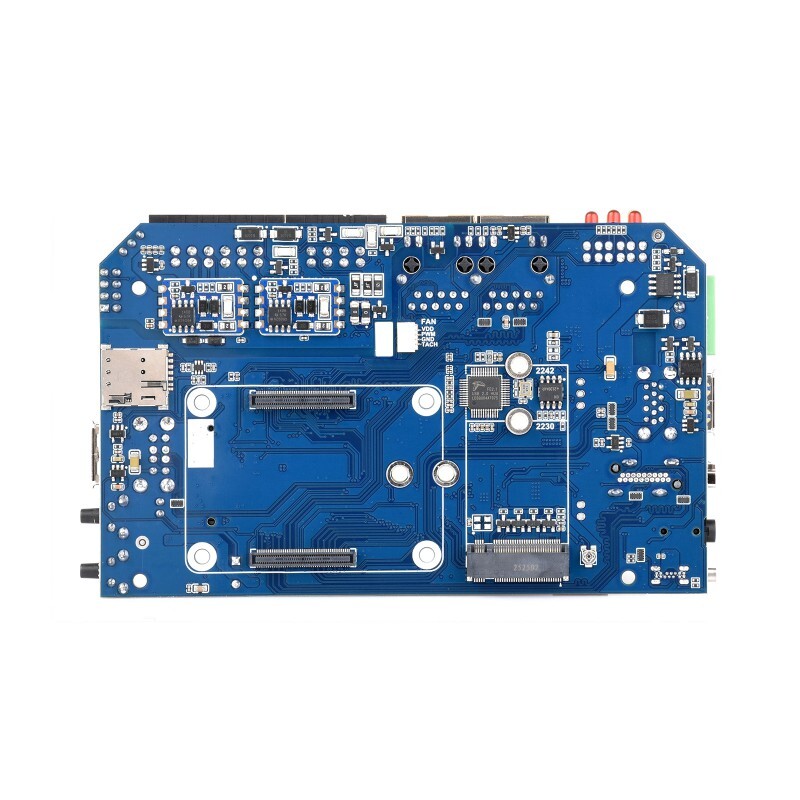

The IPCBOX-CM5-A is an industrial computer based on the Raspberry Pi Compute Module 5, featuring a carrier board designed for use with the module. The board offers robust features such as onboard USB 3.2 Gen1 (1x) and USB 2.0 (3x) ports, M.2 M-Key and B-Key slots (the latter supporting 4G/5G modules), an audio output interface, and dual Ethernet ports. Additionally, it offers RS485/RS232, CAN, digital inputs, and digital outputs via GPIO expansion for user convenience.
Note: Raspberry Pi CM5 is not included.
Specifications
| SKU | 34121 |
|---|---|
| CM5 socket | Suitable for all variants of Compute Module 5 |
| Networking | 1000M Ethernet RJ45 port × 1 2500M Ethernet RJ45 port × 1 |
| USB | USB 3.2 Gen1 port × 1 |
| USB 2.0 port × 3 | |
| Video | HDMI interface × 1, supports 4K display output |
| M.2 | M.2 M KEY (PCIe Gen2/3 × 1, 2230 / 2242) |
| M.2 B KEY, supports connecting 4G / 5G communication module | |
| Storage | TF card socket for Compute Module 5 Lite (without eMMC) variants |
| Serial Interface | 4 × RS485 version |
| 1 × CAN with up to 1Mbps communication rate | |
| Digital Input/Output | 2 × digital outputs + 2 × digital inputs |
| Audio | 3.5mm audio jack (microphone support), PH2.0 speaker header |
| Fan header | 5V, 4PIN JST-SH PWM fan header |
| Buzzer | 1-ch controllable buzzer |
| Other | Onboard EEPROM and encryption chip |
| Power Input | 7V ~ 36V wide voltage range screw terminal, 5V 5A Type-C port |
| Dimensions | 136.00 × 92.00 × 39.50 (mm) |
Package Content
- IPCBOX-CM5-A metal case x1
- CM5-IPC-BASE-A-4RS485 motherboard x1
- 12V 4A power supply x1
- Power adapter cable (15cm) x1
- Black nylon spacer x4
- Screw set x1
- Screwdriver x1
- 6-pin, 3.5 mm pitch, double-layer terminal block x1
- 4-pin, 3.5 mm pitch, double-layer terminal block x1
- Rail mounting clip x1
- Pink thermal tape x1

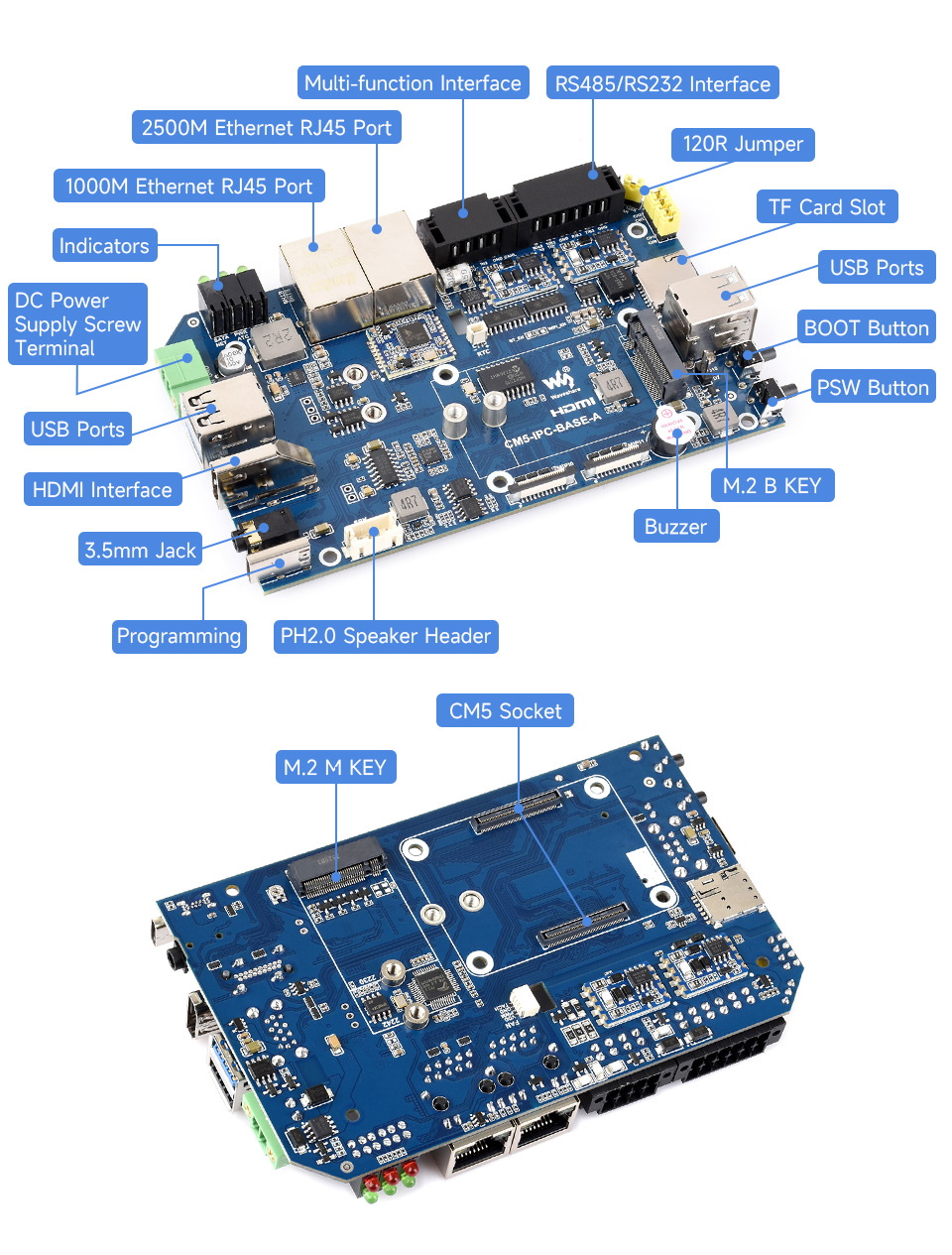

Interface

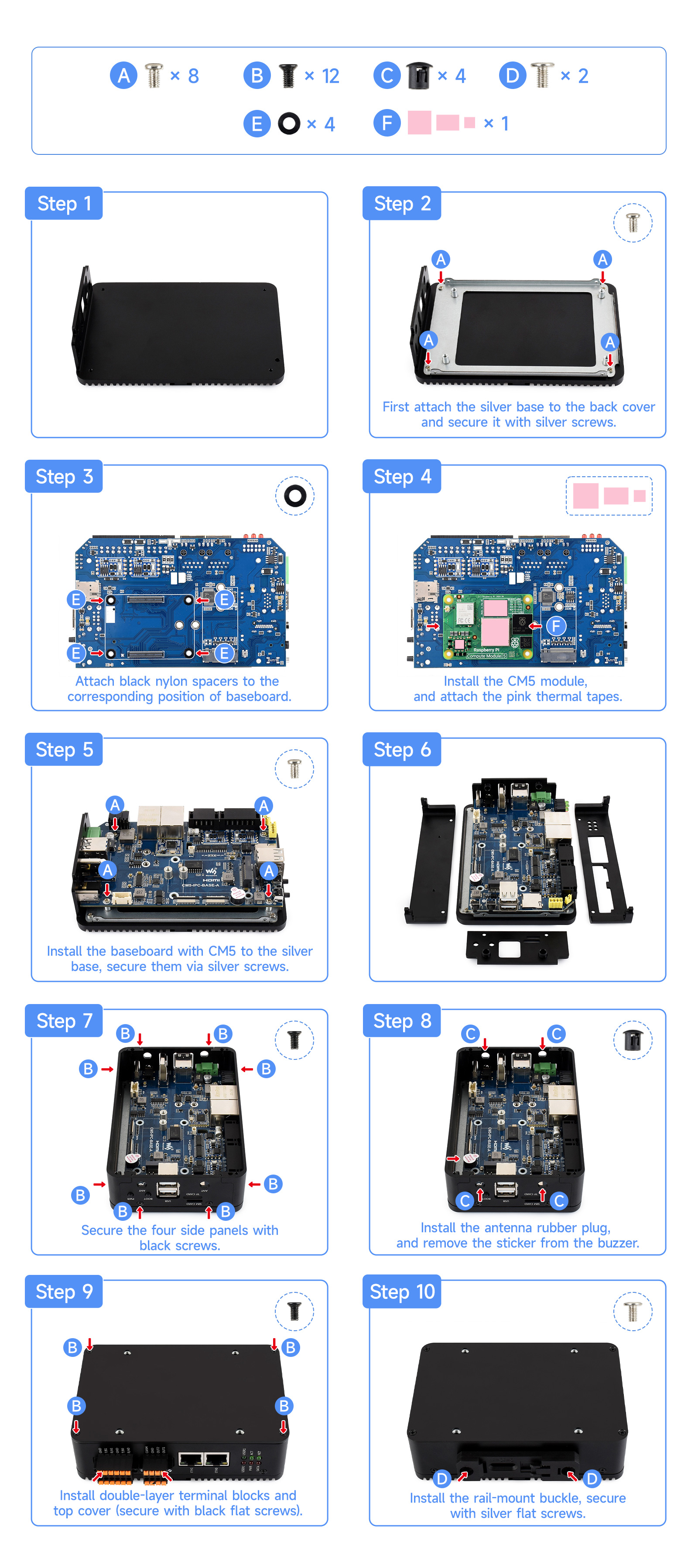

Setup

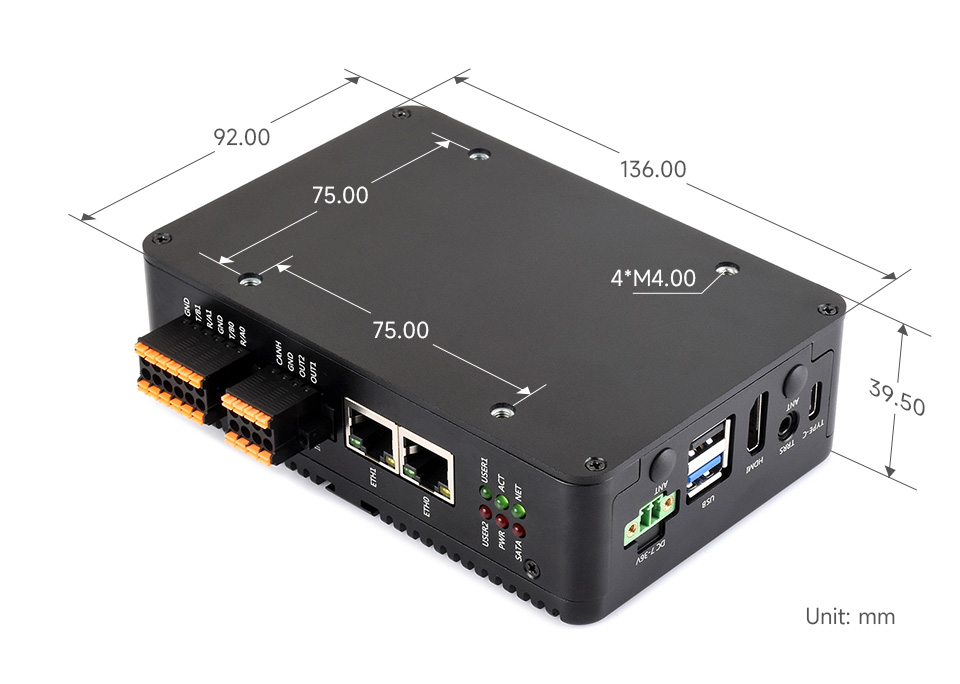

Size
