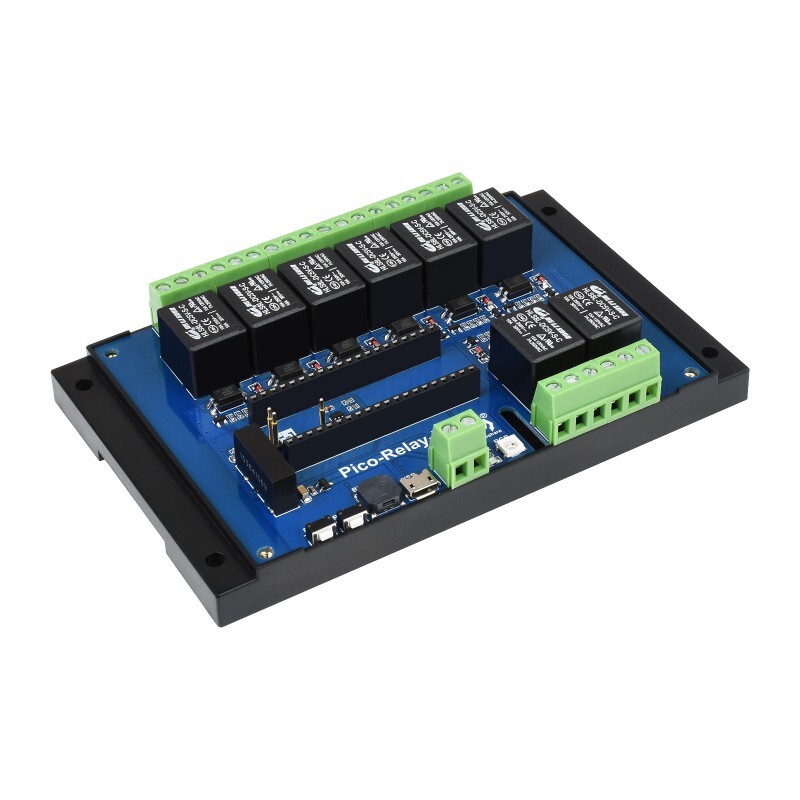

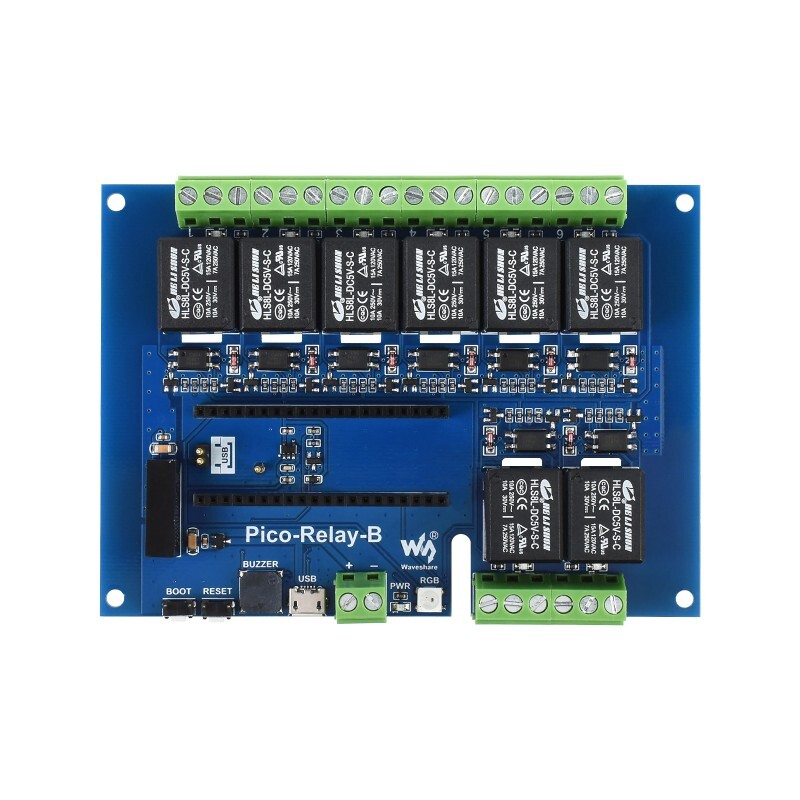

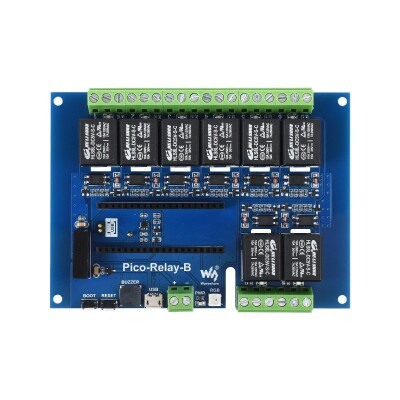

Raspberry Pi Pico Industrial 8-Channel Relay Module

Raspberry Pi Pico Industrial 8-Channel Relay Module

The Raspberry Pi Pico Industrial 8-Channel Relay Module is an 8-channel relay module used for power supply isolation and photocoupler isolation.

User Manual

Raspberry Pi Pico Not Included.

Features

• SKU: 20218
• Built-in one-piece power supply isolation provides a constant isolated voltage, eliminating the need for an additional power supply for the isolated terminal.
• Built-in photocoupler isolation prevents interference from external high-voltage circuits connected to the relay.
• High-quality relay, contact rating: 10A 250V AC or ≤10A 30V DC.

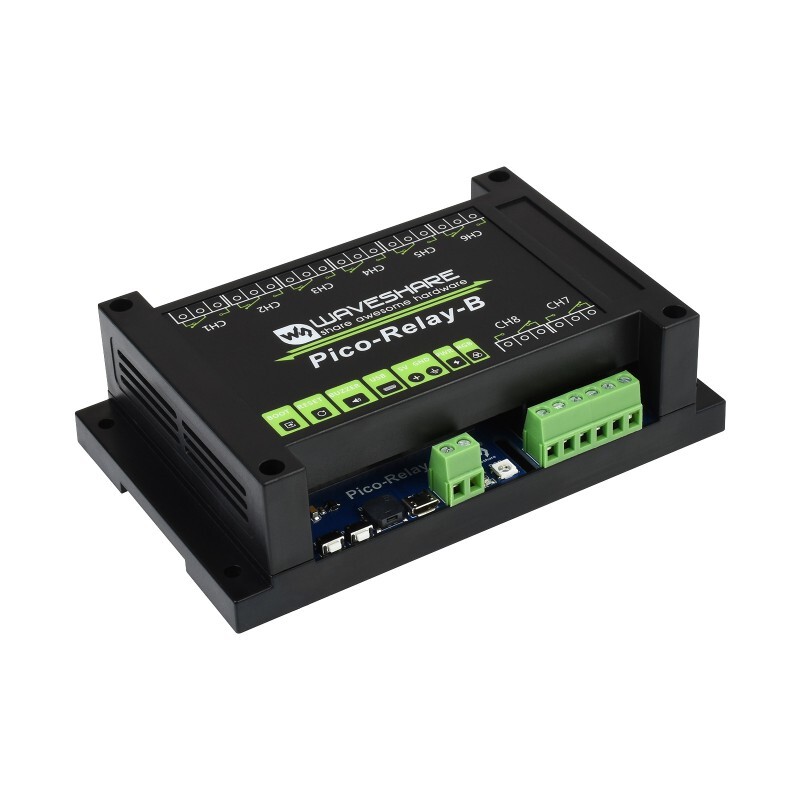

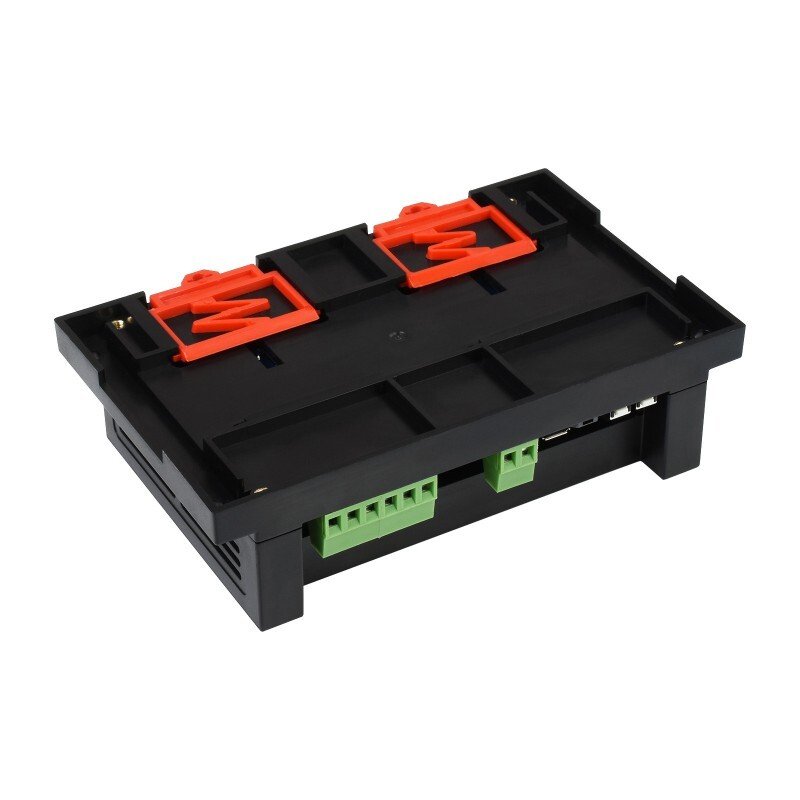

• ABS protective enclosure with rail mounting bracket, easy to install and safe to use.
• Breakout USB port and BOOT pin facilitate debugging without removing the enclosure.
• PWR indicator, RGB LED, and passive buzzer on the outside of the enclosure.

Technical Specifications

• Operating voltage: 5V
• Communication Protocol: USB
• Communication interface: Micro USB
• Relay channel: 8 channels
• Communication form: 1NO 1NC
• Dimensions: 88(H) x 122(D) mm
