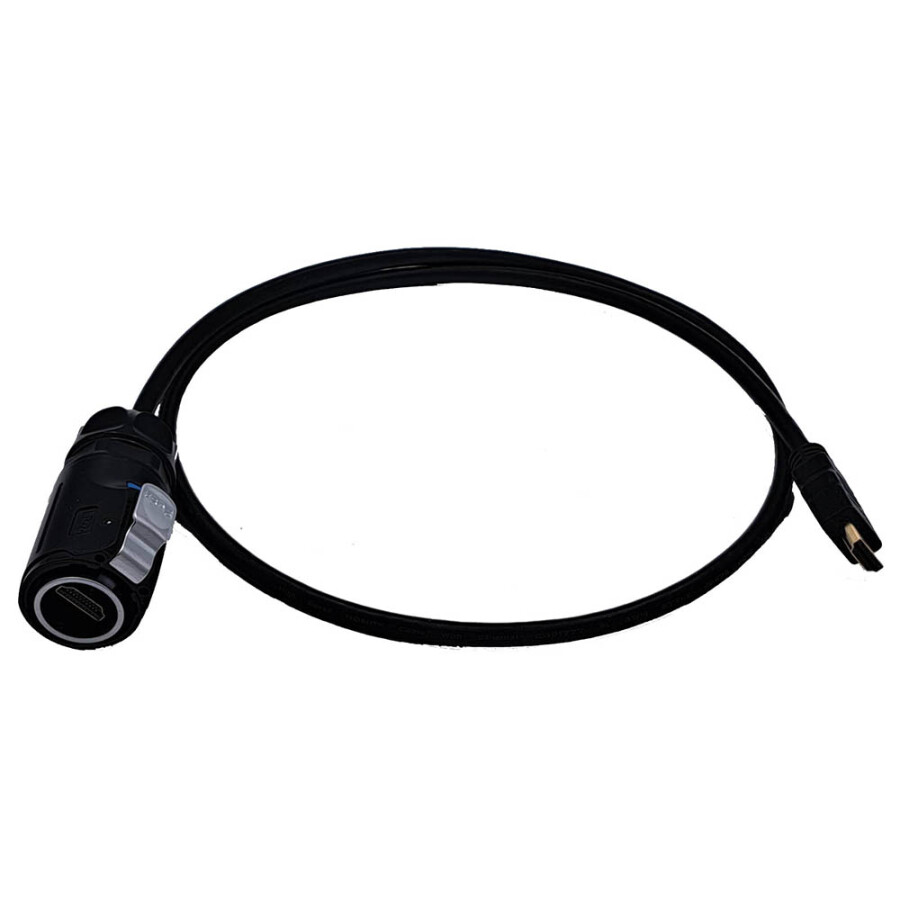

LP-24-HDMI-MP-MP-1M-001 Waterproof HDMI Male Connector - 1M Cable

LP-24-HDMI-MP-MP-1M-001 Waterproof HDMI Male Connector - 1M Cable

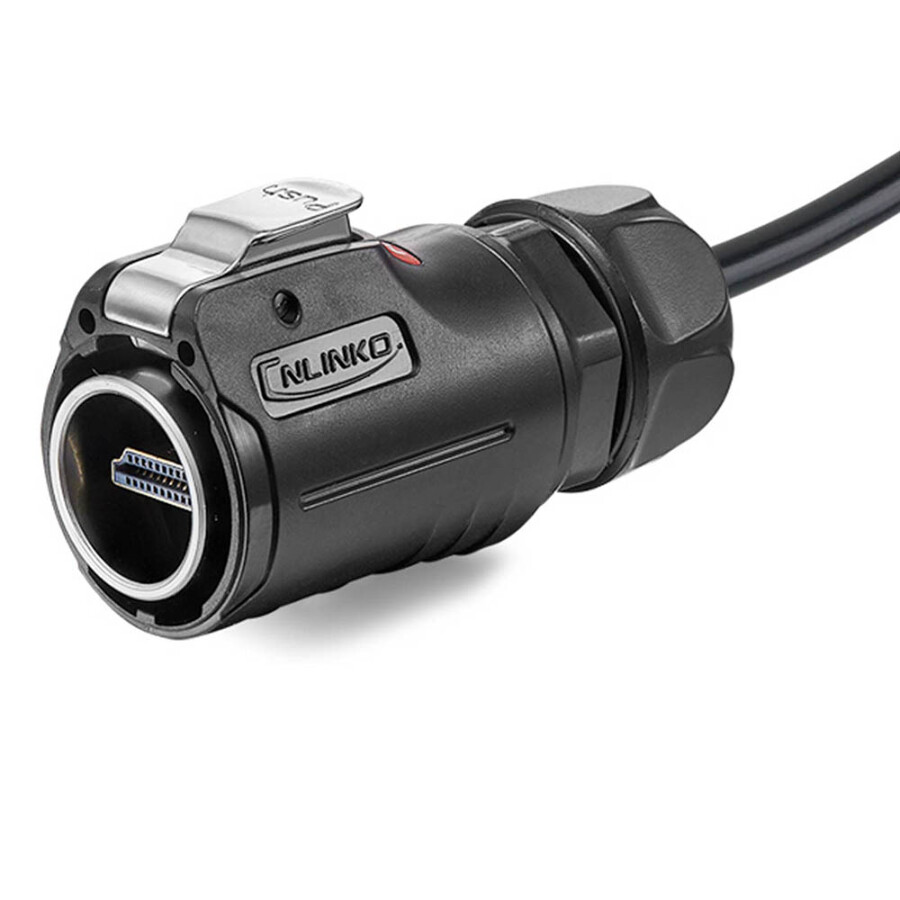

LP-24 HDMI high performance HDMI connector with quick lock for secure signal and data transmission. Black plastic construction with gold-plated contacts ensures a long service life. The HDMI connector is water and dust resistant in accordance with protection class IP67. The metal lock ensures a secure connection and protects against data and power interruptions. The maximum rated power for the data connector is 0.5 amps. The plug has a quick plug connection. Quick connection design allows it to be connected and removed with one hand.

You can use it with LP-24-J-HDMI2-213-SX-43-401 Waterproof HDMI Connector - Female.

Technical Specifications

• Type: HDMI 2.0
• Input current: 0.5A
• Voltage: 30V
• Cable spacing: Φ5.0 - Φ6.5mm
• Connection mode: Lock
• Contact parts: 10
• Endurance: ≥1700 splicing and unplugging cycle
• Screw torque: 42- 53 (N.m)
• Operating temperature: -40°C ~ 80°C
• Anti-vibration: Frequency 5-200Hz, Amplitude - 5mm, speed 10m/s, 0.10us no momentary circuit interruption
• Burn level prevention: UL94-V0
• Impact resistance: 294 m/s²
• Test results with anti-corrosion salt spray: PH 6.5-7.2, NaCL, 5% 48H
• Degree of protection: IP67
• Insulated parts: High-performance engineering plastic
• Metal part: zinc alloy (pearl hard chrome)
• Contact pin: Copper alloy
• Waterproof ring: Silicone gel
• Uses: Data box, Monitors, Device design, Audio and video servers, Industrial cameras, Display, HD TV, Projectors, IPC, Multimedia installation, System integrator, Medical technology, Mechanical engineering and Other industrial fields.
