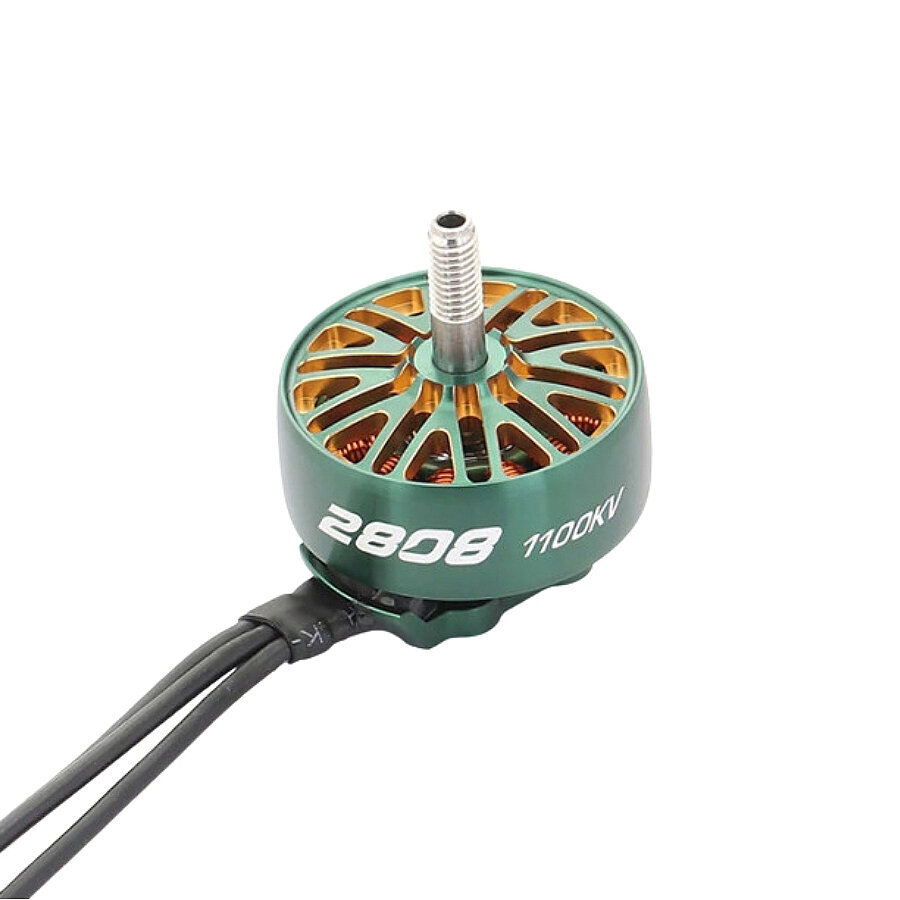

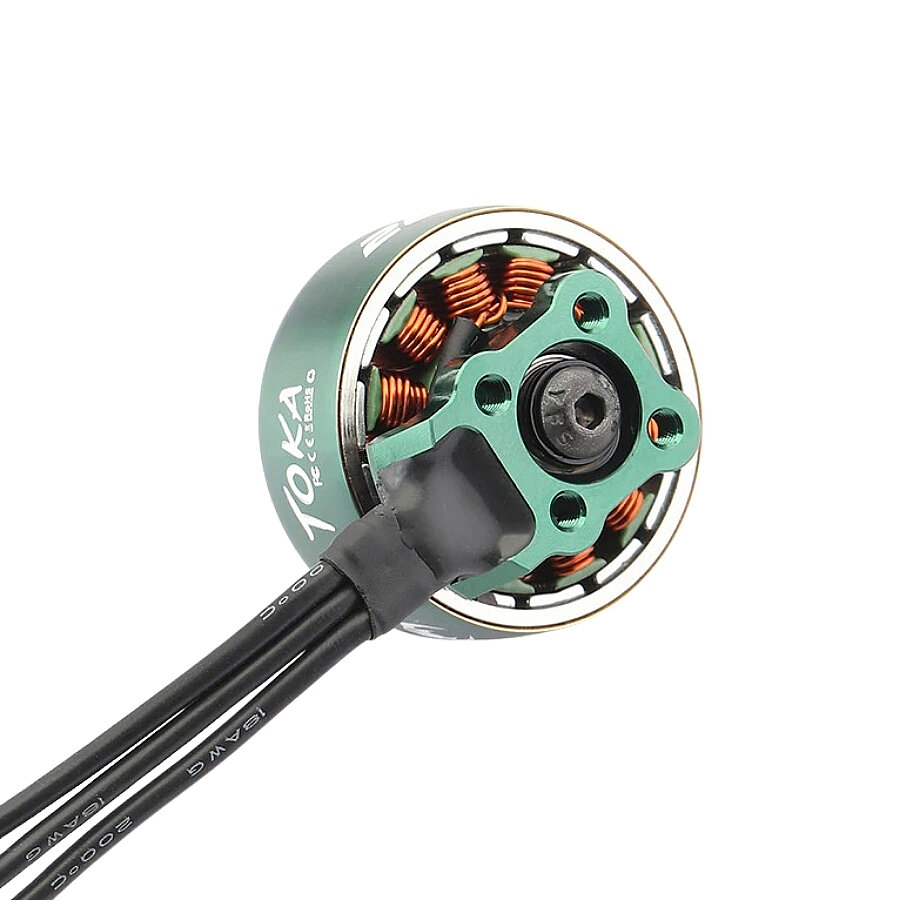

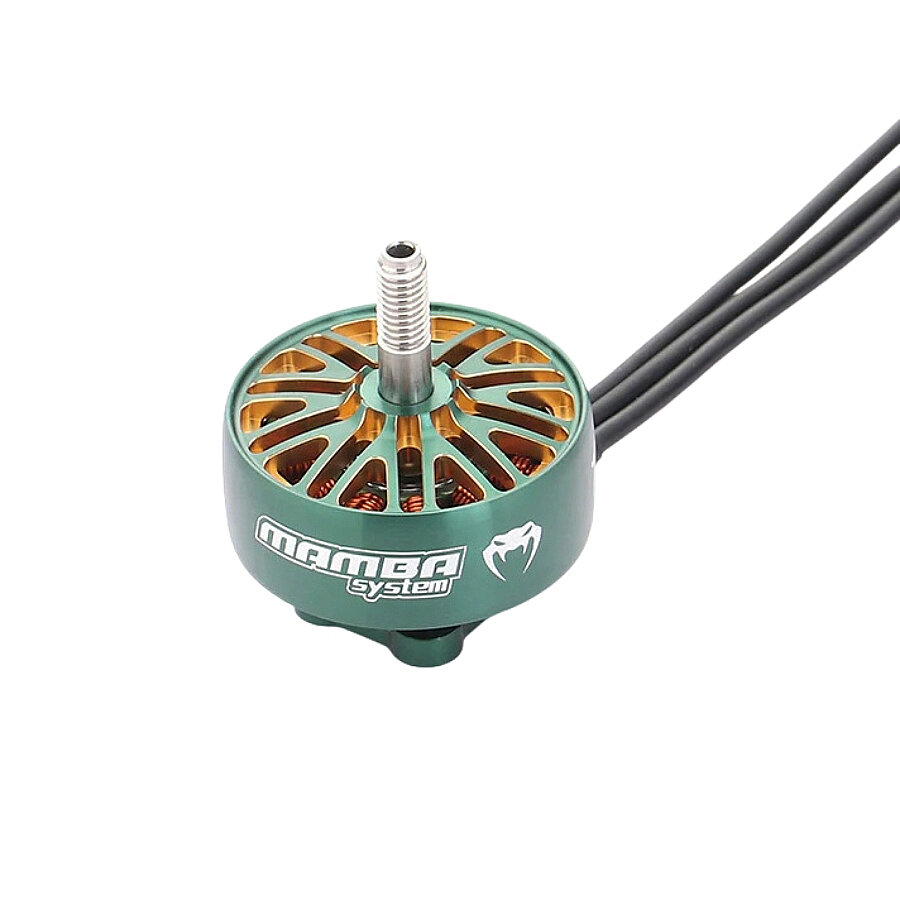

Mamba TOKA 2808 1100KV Brushless Drone Motor

Mamba TOKA 2808 1100KV Brushless Drone Motor

The Mamba TOKA 2808 1100KV Brushless Drone Motor is a powerful motor designed for 7-8 inch propellers and 6S battery combinations. The TOKA 2808 is suitable for long-range quadcopters and cinematic lift systems. TOKA 2808 features a 16mm mounting hole spacing, a robust shaft, and windings resistant up to 240°C.

The product comes without a box and no additional accessories are included.

Key Features

• Massive 2808 Stator: Provides immense torque to control and skillfully spin 7-inch propellers.
• Optimized 1100KV for 6S: Perfectly tuned for efficiency and smooth power delivery on 6S LiPo batteries.
• Ideal for 7-Inch Drones: The best choice for long-range, cinematic, and heavy-duty FPV platforms.
• Robust Construction: Features a thick 6mm steel shaft and large, durable bearings for maximum reliability.
• High Power Output: Over 860W peak power for carrying heavy loads.
can produce.

Technical Specifications

• KV: 1100
• Stator Size: 28mm x 8mm
• Color: Green
• Nominal Voltage: 4-6S (16.8V – 25.2V)
• Bearing (Top): 10x6x4mm
• Bearing (Bottom): 13x6x5mm
• Shaft Diameter: 6.0mm
• Propeller Mounting Shaft: 5mm
• Mounting Pattern: 16x16mm, M3
• Peak Current: 38.7A
• Maximum Power: 862.5W
• Dimensions: Φ35.1×40.3mm
• Configuration: 12N14P
• Internal resistance: 68mΩ
• Weight: 63.5g
