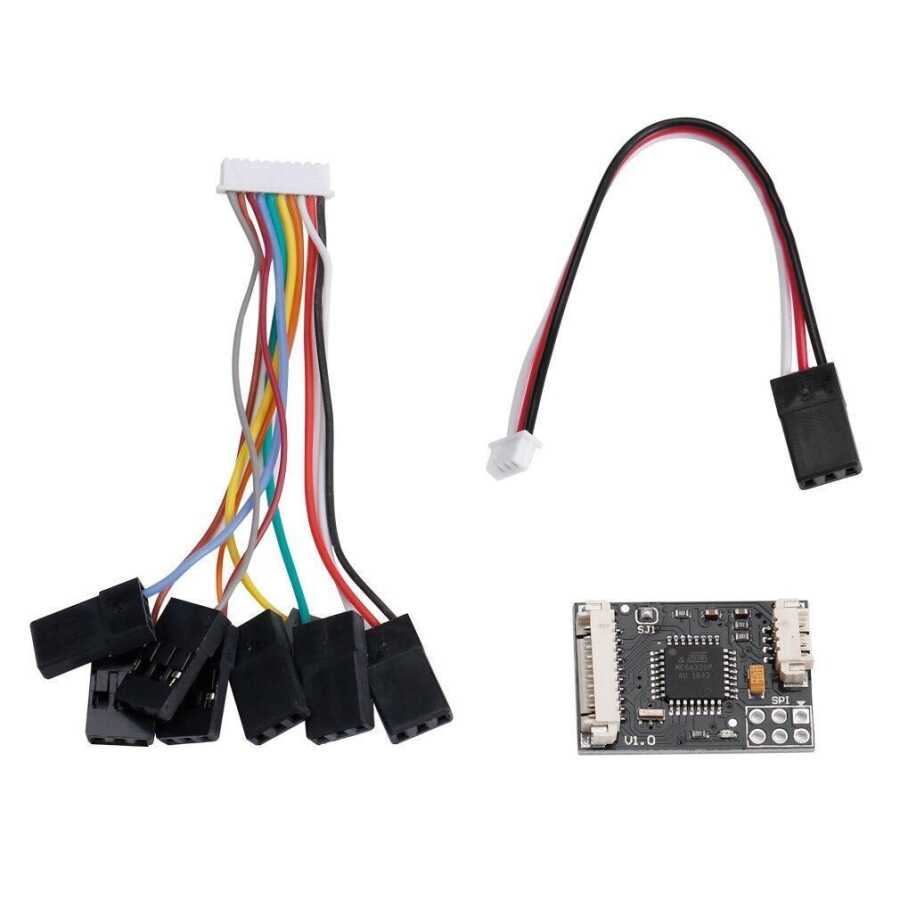

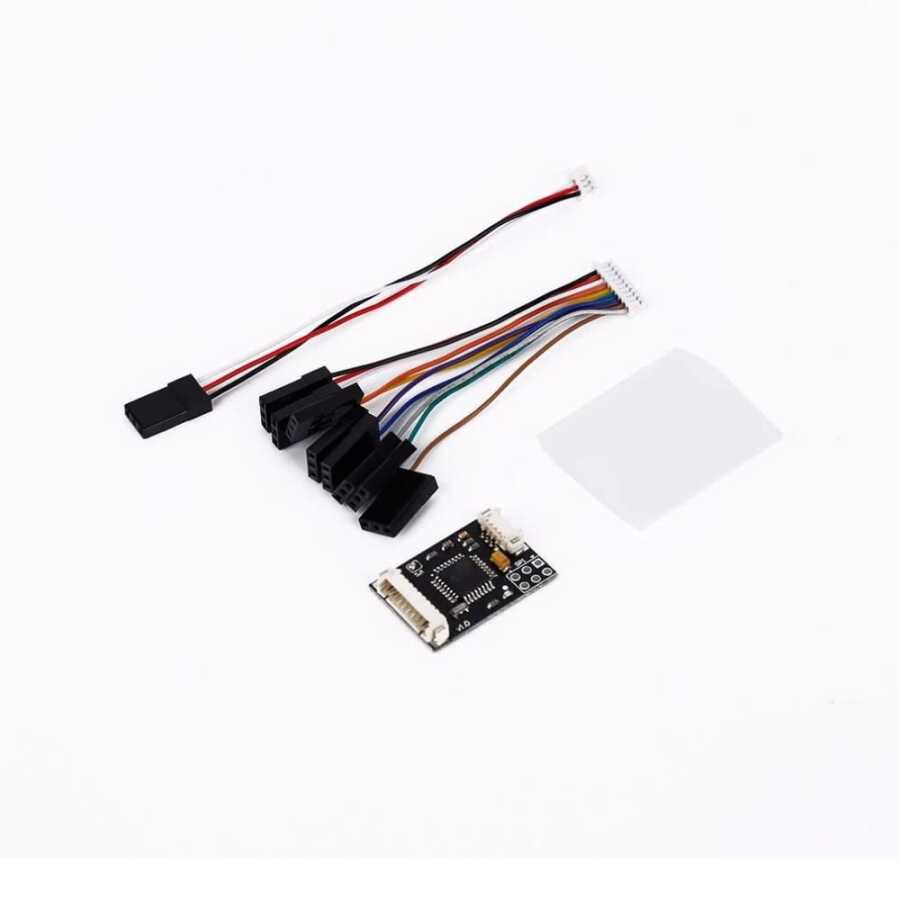

Pixhawk PPM Encoder Module + Encoder Cable Set

The PPM Encoder plugs into the PWM servo output ports of any R/C receiver and can be used for many autopilots. encodes to an appropriate PPM pulse (e.g. Pixhawk). No modifications to the remote control receiver are required.

The entire project is based on the ATMEL ATMEGA328p AVR processor and all timing is done within interrupts, thus optimizing accuracy and stability.

The firmware is free and created by John Arne and Olivier Adler.

The design of the PPM Encoder is based on the Paperazzi PPM Encoder.

Important Note: The firmware comes pre-configured to read 8 Channels. If you want to change the settings of the PPM encoder to invert the PPM signal and change the fail-safe predefined values, you will need an AVR ISP programmer for reprogramming.

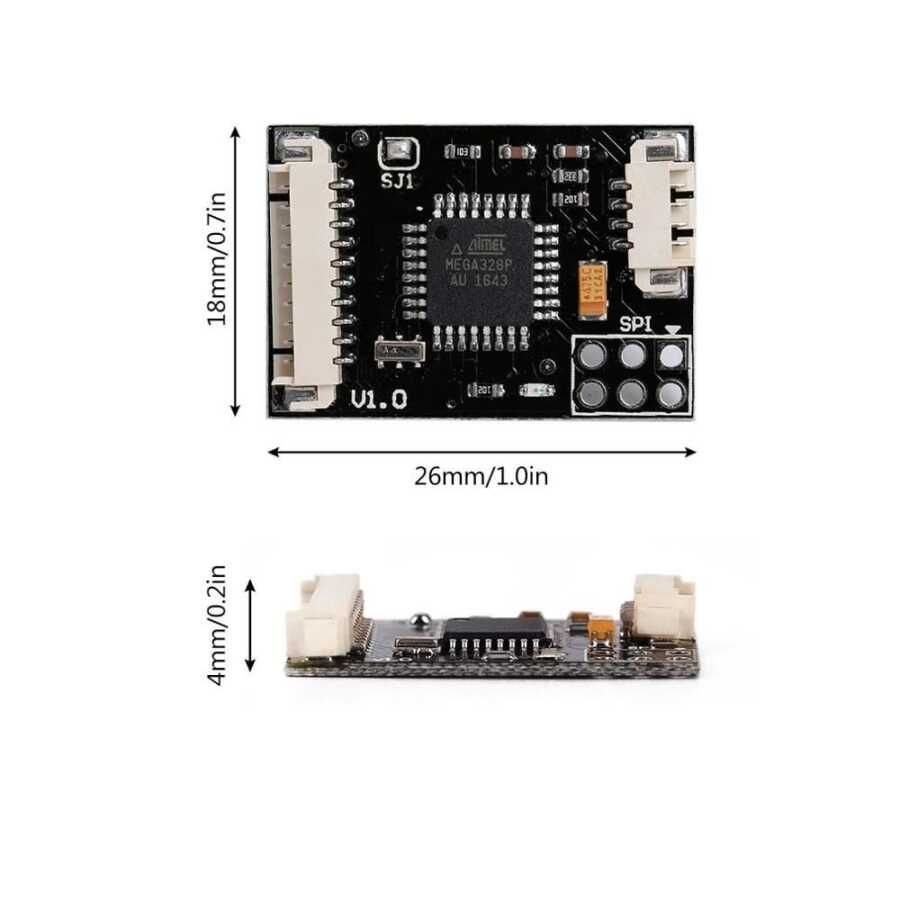

Dimension (mm ): 28 x 19 x 5

Weight (g): 9
