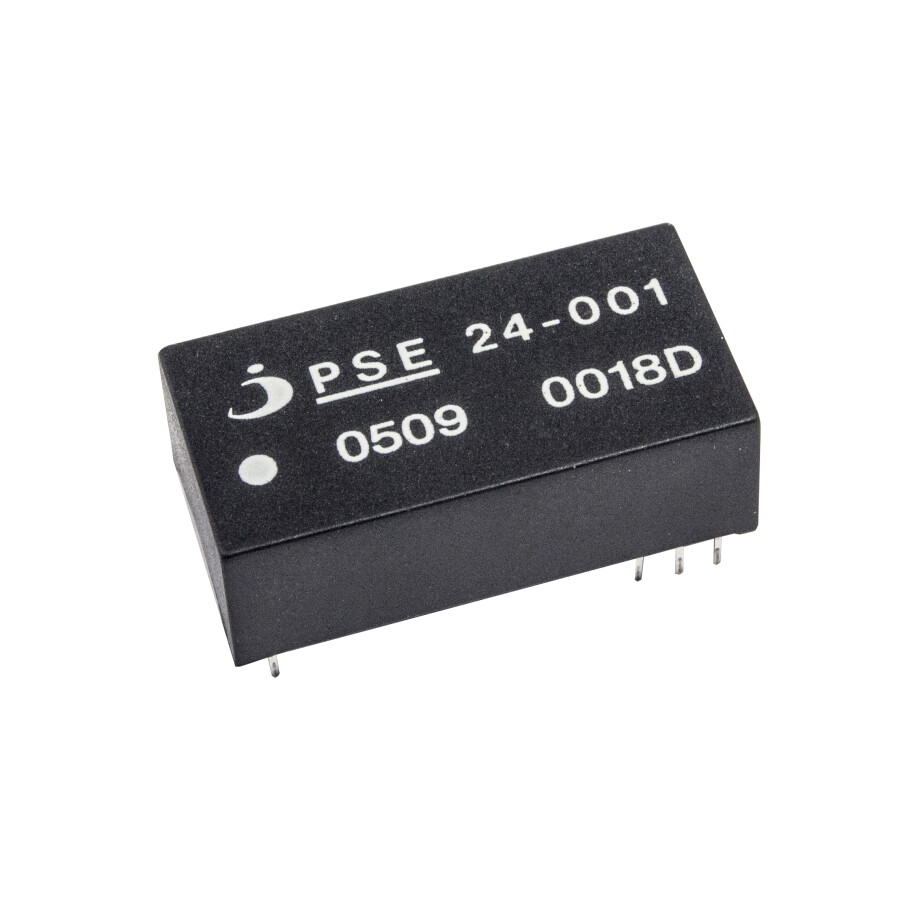

PSE 24-001 Isolated DC-DC Converter – 24V / 30Ma

PSE 24-001 Isolated DC-DC Converter – 24V / 30Ma

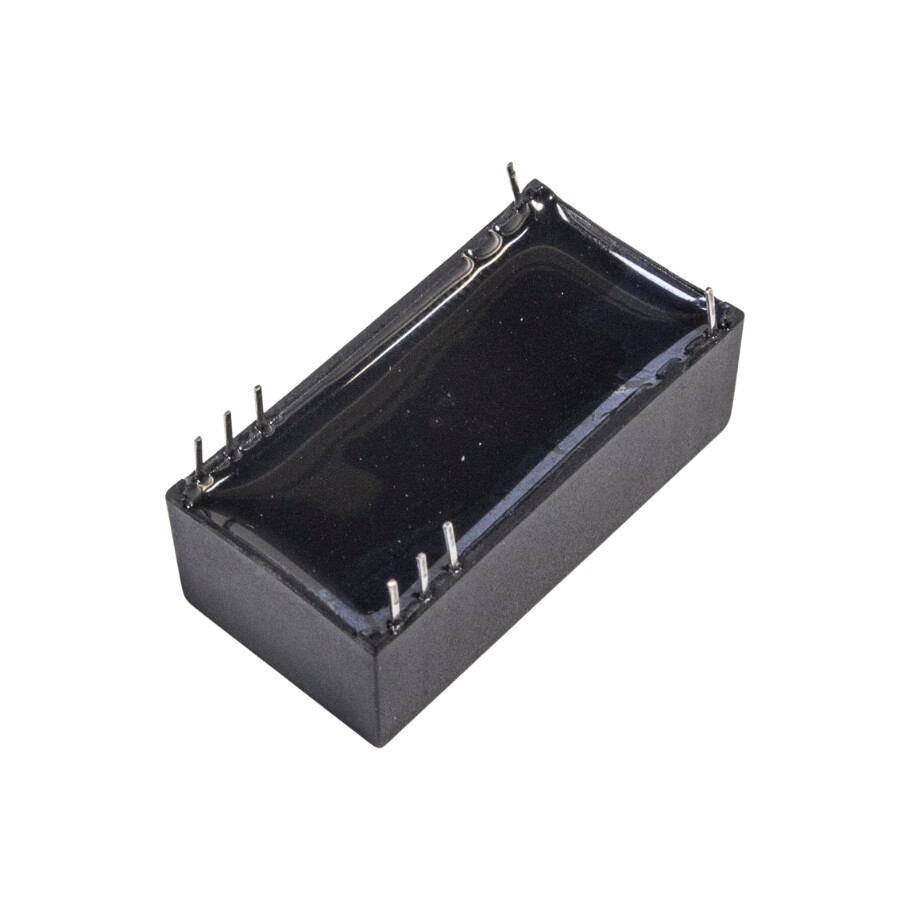

This circuit is designed to provide an isolated 24V output from a 24V input. The maximum output current is 30mA. The 2SC3203 transistor is used. The circuit is suitable for continuous operation at 50°C ambient temperature by being coated with epoxy.

Datasheet

Features

• Input Voltage 24V DC

• Output Voltage 24V DC (Isolated)

• Maximum Output Current 30 – 50 mA

• Nominal Power 0.72 Watt

• Isolation Type Flyback

• Transformer Operating Temperature -40°C , +85°C

• Humidity Up to 95% relative humidity without condensation

Application Areas

• Isolation in control systems

• Isolated sensor feeds

• Industrial and embedded systems
