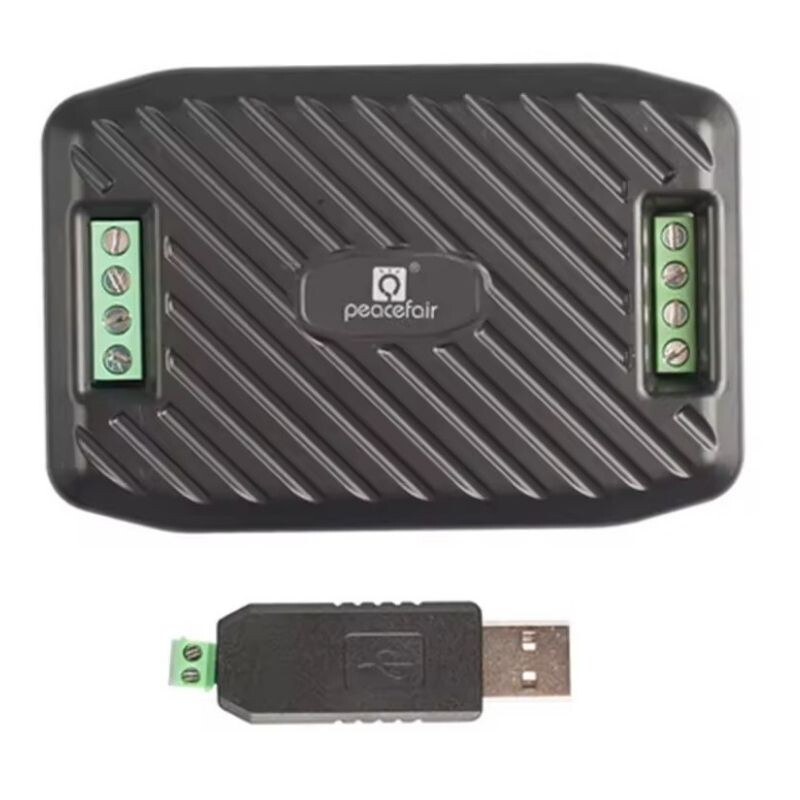

PZEM-014 AC RS485 Modbus Power Consumption Meter + USB

PZEM-014 AC RS485 Modbus Power Consumption Meter + USB

PZEM-014 AC RS485 Modbus Power Consumption Meter + USB, The module is mainly used to measure AC voltage, current, active power, frequency, power factor and active energy, the module has no display function, the data is read via the RS485 interface.

For detailed user manual and software of the product here you can click.

Features

• Power Measurement Range: 0～2.3 kW
• Resolution: 0.1 W
• Current Measurement Range: 0～10 A
• Resolution: 0.001A
• Measurement Accuracy: 0.5%
• Voltage Measurement Range: 80～260VAC
• Resolution: 0.1V
• Energy Measurement Range: 0～9999.99kWh
• Resolution: 1Wh
• Frequency Measurement Range: 45Hz～65Hz
• Resolution: 0.1 Hz
• Dimensions: 90x60.5x23mm
