SunnySky X2216 V3 1100KV Brushless Drone Motor - Short Shaft

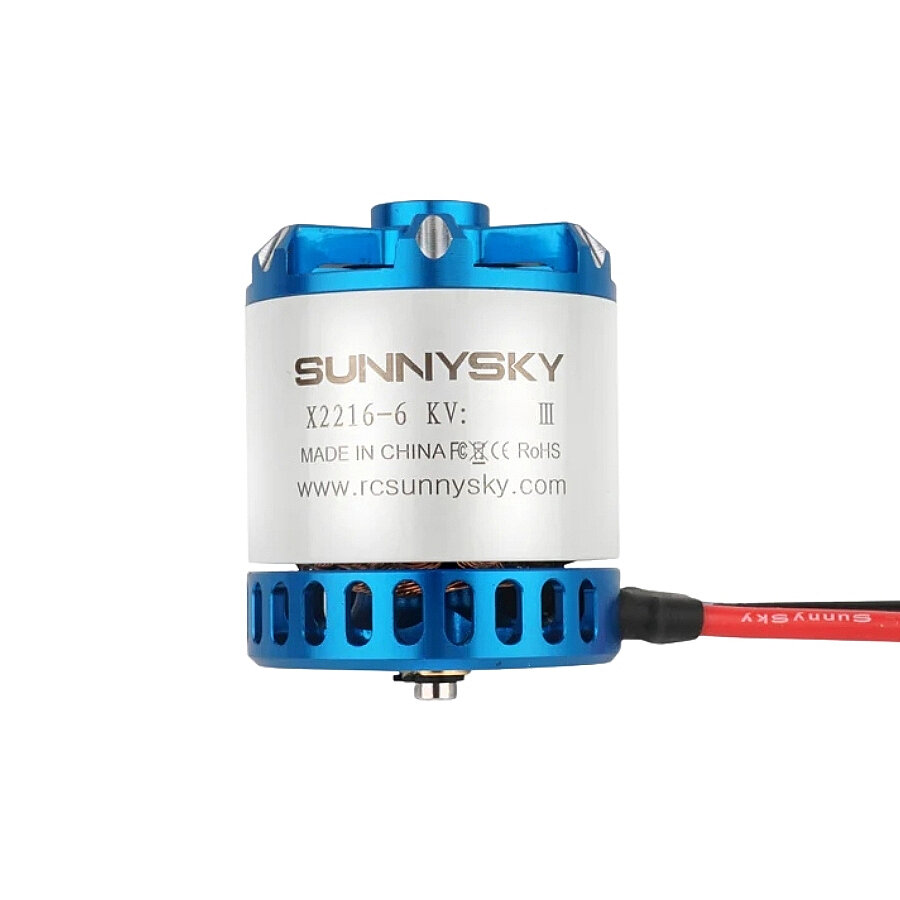

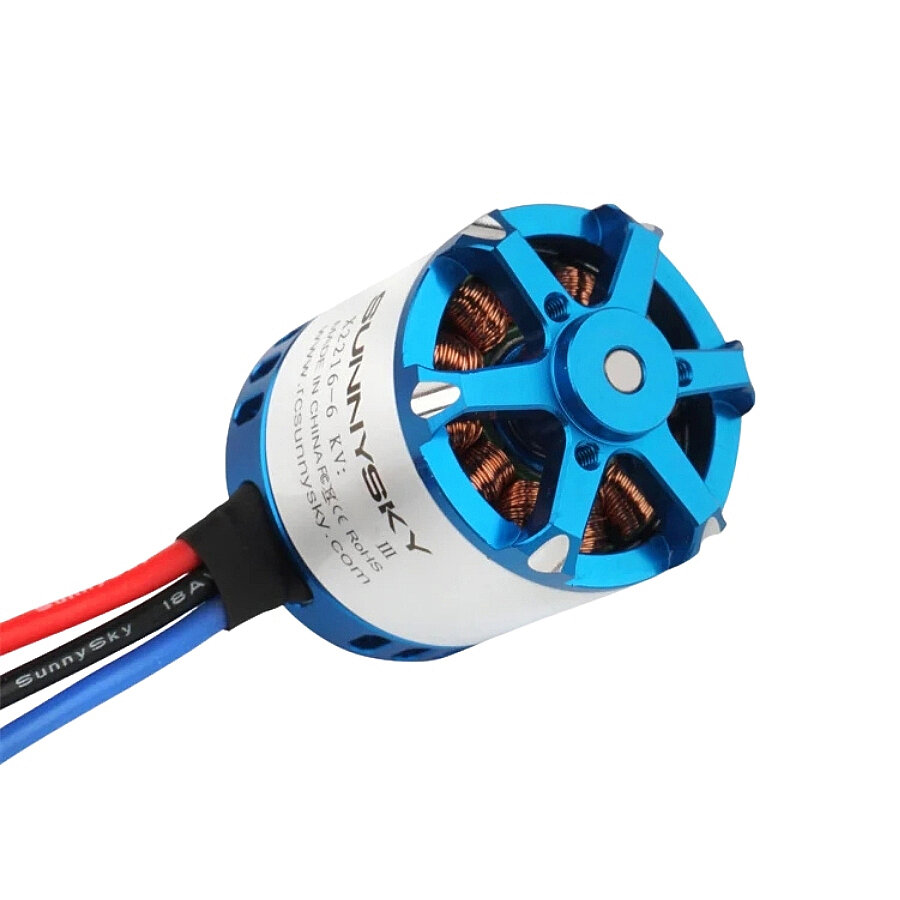

The SunnySky X2216 V3 1100KV Brushless Drone Motor (Short Shaft) is a high-efficiency brushless outrunner motor designed for RC aircraft and multirotor systems. Part of the X Series V3 family, this motor is engineered to deliver high power in a compact form factor, featuring a 22 × 16 mm stator structure, 12 stator slots, and a 14-pole rotor design.

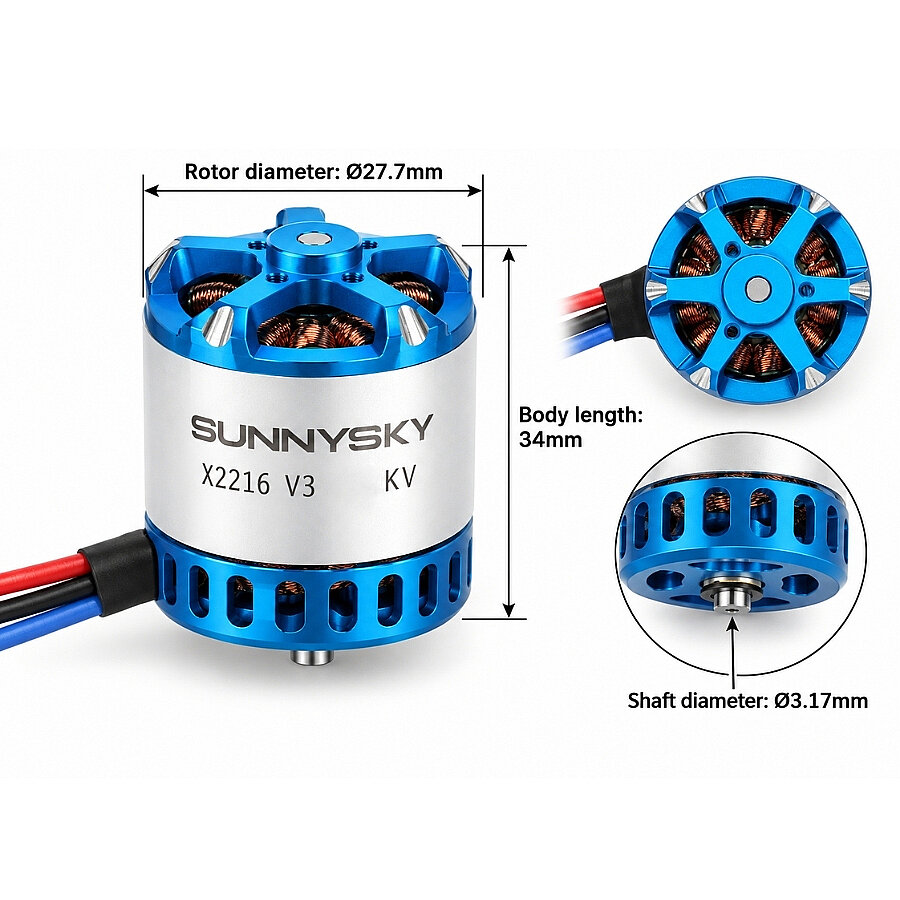

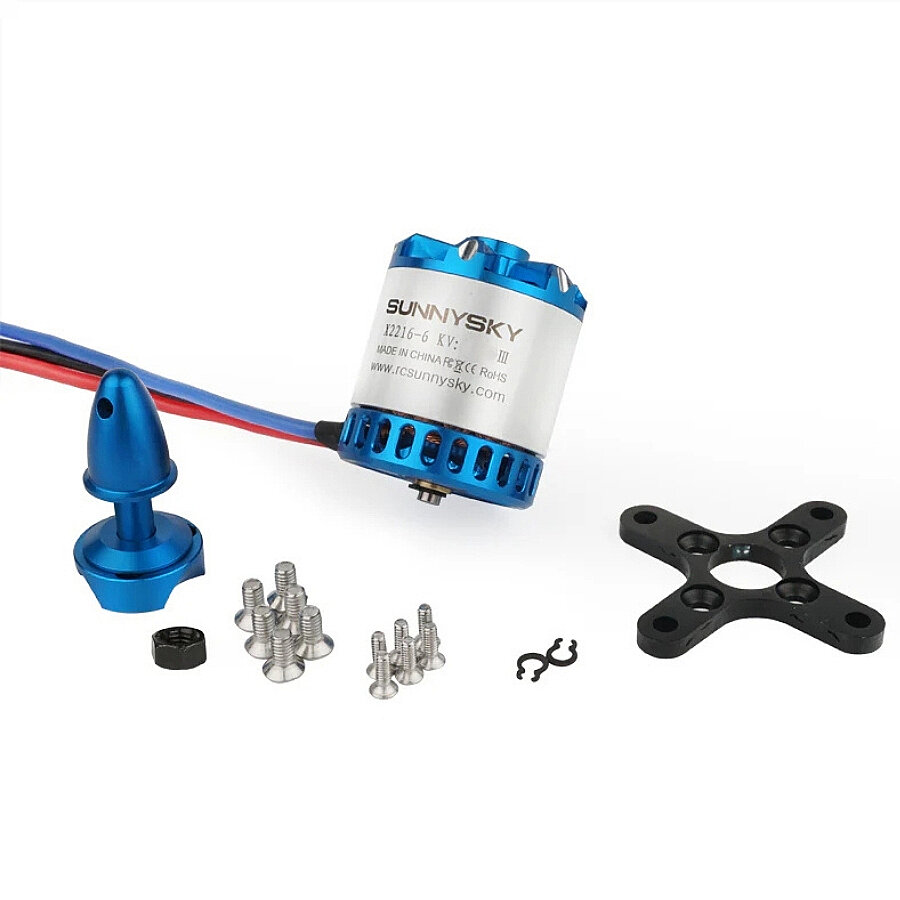

The motor weighs approximately 67.5 grams. It has a rotor outer diameter of 27.7 mm and a motor body length of approximately 34 mm. This short-shaft version of the X2216 V3 is designed by SunnySky for use with appropriate propeller adapters and motor mounts.

Specifications

Stator Diameter	22mm	Rotor Diameter	27.7mm
Stator Thickness	16mm	Body Length	34mm
No.of Stator Slots	12	Max Lipo Cell	3-4S
No.of Rotor Poles	14	ESC	30-40A
Engine Kv	1100	Recommended Prop(inch)	APC8060 /APC1047 /APC9047/APC9045
No-load current	0.8A/10V	Weight for training airplane	900g(3S 10471050)
Motor Resistance	54mΩ	Weight for 3D airplane	750g(3S 10501047)
Max Continuous Current	34A/30s
Max Continuous Power	480W
Weight	69g

Power Table

Prop(inch)	Voltage(V)	Amps(A)	Thrust(gf)	Watts(W)	Efficiency(g/W)	RPM	Load temperature in 100% throttle
APC10*4.7	11.1	0.7	100	7.77	12.87	2563	82℃ 3min
		1.7	200	18.87	10.60	3493
		3.1	300	34.41	8.72	4246
		4.6	400	51.06	7.83	4753
		6.5	500	72.15	6.93	5310
		7.9	600	87.69	6.84	5817
		10	700	111	6.31	6164
		12	800	133.2	6.01	6584
		14.3	900	158.73	5.67	6896
		16.9	1000	187.59	5.33	7320
		19.8	1100	219.78	5.01	7630
		22.4	1200	248.64	4.83	7943
		26.4	1300	293.04	4.44	8249
		28.8	1400	319.68	4.38	8907
APC9045	11.1	0.9	100	9.99	10.01	3424	80℃ 3min
		2.1	200	23.31	8.58	4761
		3.4	300	37.74	7.95	5725
		5	400	55.5	7.21	6631
		6.5	500	72.15	6.93	7365
		8.4	600	93.24	6.44	8049
		10.3	700	114.33	6.12	8643
		12.7	800	140.97	5.67	9206
		14.9	900	165.39	5.44	9610
		18.5	1065	205.35	5.19	10463
	14.8	0.7	100	10.36	9.65	3365
		1.7	200	25.16	7.95	4630
		2.6	300	38.48	7.80	5731
		3.9	400	57.72	6.93	6589
		5	500	74	6.76	7379
		6.5	600	96.2	6.24	7956
		8.2	700	121.36	5.77	8618
		9.9	800	146.52	5.46	9248
		11.5	900	170.2	5.29	9591
		14	1000	207.2	4.83	10149
		15.9	1100	235.32	4.67	10554
		18	1200	266.4	4.50	10935
		20	1300	296	4.39	11427
		22.6	1400	334.48	4.19	11922
		27	1500	399.6	3.75	12192
		29	1600	429.2	3.73	12833
APC9060	11.1	1	100	11.1	9.01	3151	90℃ 30s
		2.2	200	24.42	8.19	4390
		3.4	300	37.74	7.95	4301
		5.3	400	58.83	6.80	6155
		7	500	77.7	6.44	6679
		8.6	600	95.46	6.29	7327
		10.9	700	120.99	5.79	7869
		13.2	800	146.52	5.46	8507
		15.6	900	173.16	5.20	8862
		18.6	1000	206.46	4.84	9325
		21.3	1100	236.43	4.65	9883
	14.8	0.8	100	11.84	8.45	3139
		1.6	200	23.68	8.45	4396
		2.7	300	39.96	7.51	5351
		4.1	400	60.68	6.59	6117
		5.6	500	82.88	6.03	6728
		7.1	600	105.08	5.71	7342
		8.5	700	125.8	5.56	7860
		10.4	800	153.92	5.20	8535
		12.5	900	185	4.86	8830
		14.9	1000	220.52	4.53	9279
		16.6	1100	245.68	4.48	9765
		19.9	1200	294.52	4.07	10181
		22.1	1300	327.08	3.97	10518
		25.3	1400	374.44	3.74	10923
		27.9	1500	412.92	3.63	11237
		32.8	1640	485.44	3.38	12033
APC9047	11.1	0.8	100	8.88	11.26	3253	76℃ 3min
		2	200	22.2	9.01	4621
		3.3	300	36.63	8.19	5608
		4.9	400	54.39	7.35	6529
		6.3	500	69.93	7.15	7250
		8.2	600	91.02	6.59	7966
		10.2	700	113.22	6.18	8699
		12.1	800	134.31	5.96	9324
		14.2	900	157.62	5.71	9970
		16.9	1000	187.59	5.33	10551
		18.5	1080	205.35	5.26	11120
	14.8	0.7	100	10.36	9.65	3176
		1.5	200	22.2	9.01	4513
		2.6	300	38.48	7.80	5553
		3.7	400	54.76	7.30	6517
		5.1	500	75.48	6.62	7357
		6.4	600	94.72	6.33	8096
		8	700	118.4	5.91	8753
		9.5	800	140.6	5.69	9355
		11.4	900	168.72	5.33	10054
		13.3	1000	196.84	5.08	10665
		15.35	1100	227.18	4.84	11204
		17.5	1200	259	4.63	11708
		19.3	1300	285.64	4.55	12237
		21.6	1400	319.68	4.38	12837
		25.7	1600	380.36	4.21	13315
APC8060	14.8	0.9	100	13.32	7.51	3863	63℃ 10min
		2.2	200	32.56	6.14	5408
		3.7	300	54.76	5.48	6557
		5.2	400	76.96	5.20	7485
		7.1	500	105.08	4.76	8268
		9	600	133.2	4.50	9014
		11.5	700	170.2	4.11	9683
		15.15	800	224.22	3.57	10376
		17.45	900	258.26	3.48	10948
		20.1	1000	297.48	3.36	11453
		23.7	1100	350.76	3.14	11970
		28	1200	414.4	2.90	13058
