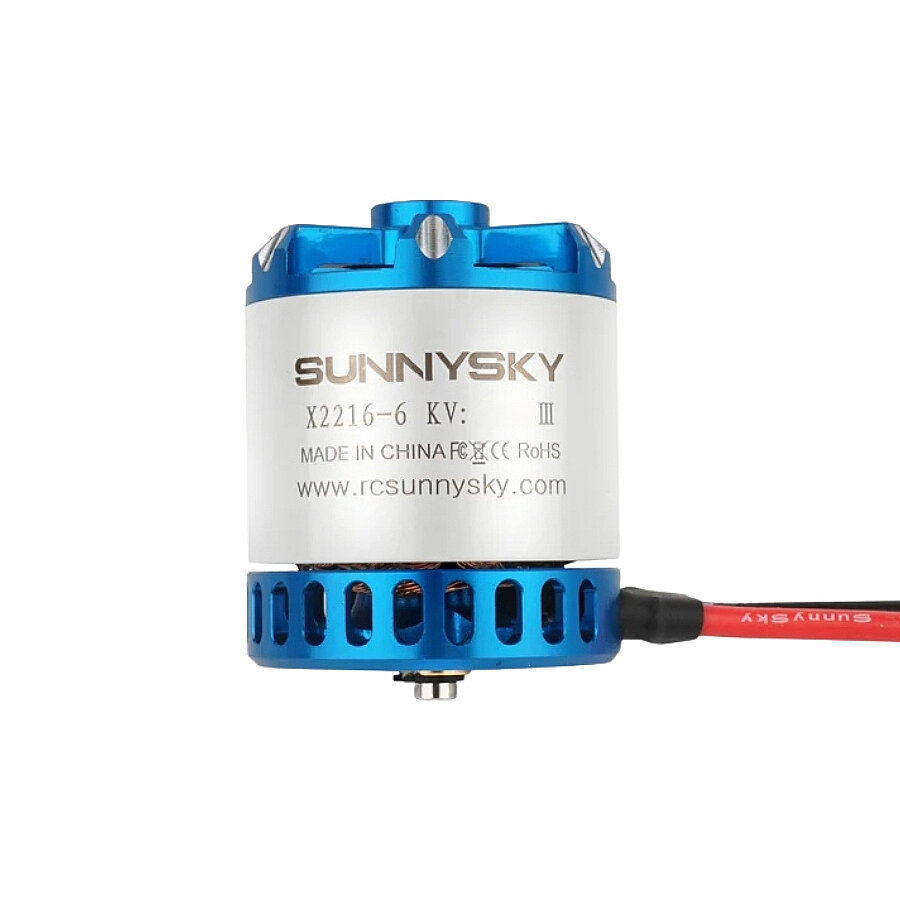

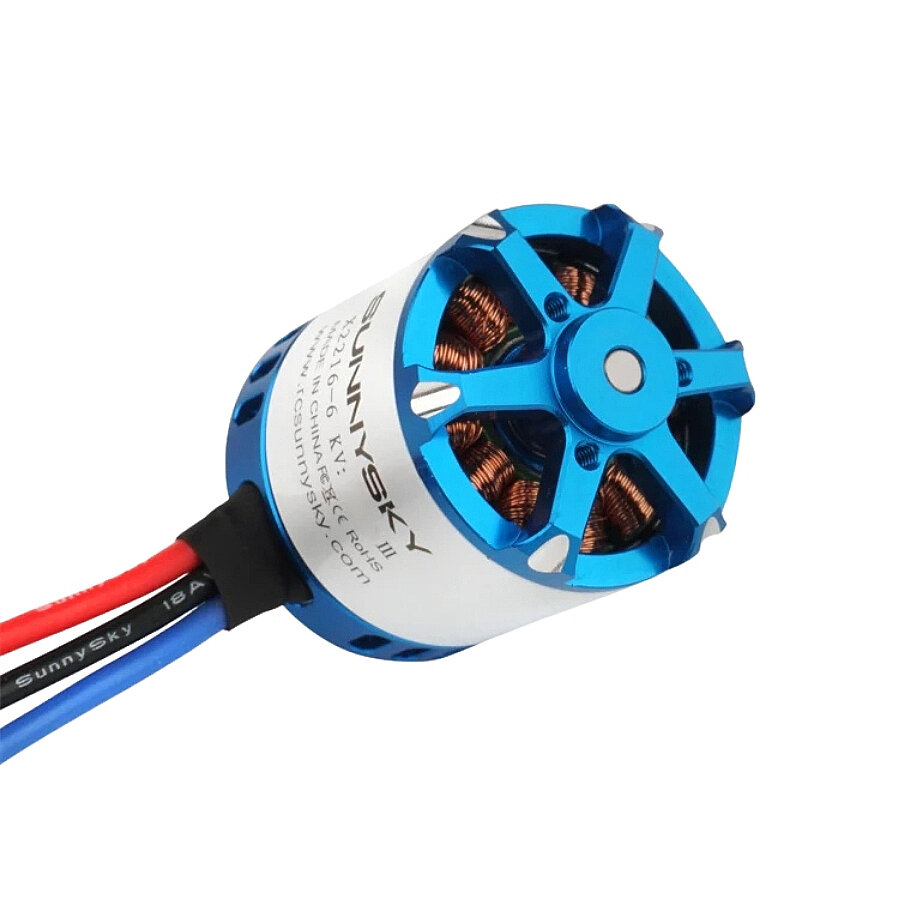

SunnySky X2216 V3 1250KV Brushless Drone Motor - Short Shaft

Name: SunnySky X2216 V3 1250KV Brushless Drone Motor - Short Shaft
Brand: SunnySky
SKU: DRN.DRM.01.000082
Price: 2600.00 TRY
Availability: InStock

Category: Drone Motors Brand: SunnySkyProduct code : DRN.DRM.01.000082

2.600,00 TL + VAT

3.120,00 TL

2.600,00 TL + VAT

3.120,00 TL

10+ Product

RecommendCommentAlarm Price

SunnySky X2216 V3 1250KV Brushless Drone Motor - Short Shaft

The SunnySky X2216 V3 1250KV Brushless Drone Motor (Short Shaft) is a high-efficiency brushless outrunner motor developed for RC aircraft and multirotor systems. Part of the X Series V3 family, this motor is designed to deliver high power in a compact form factor, featuring a 22 × 16 mm stator structure, 12 stator slots, and a 14-pole rotor design.

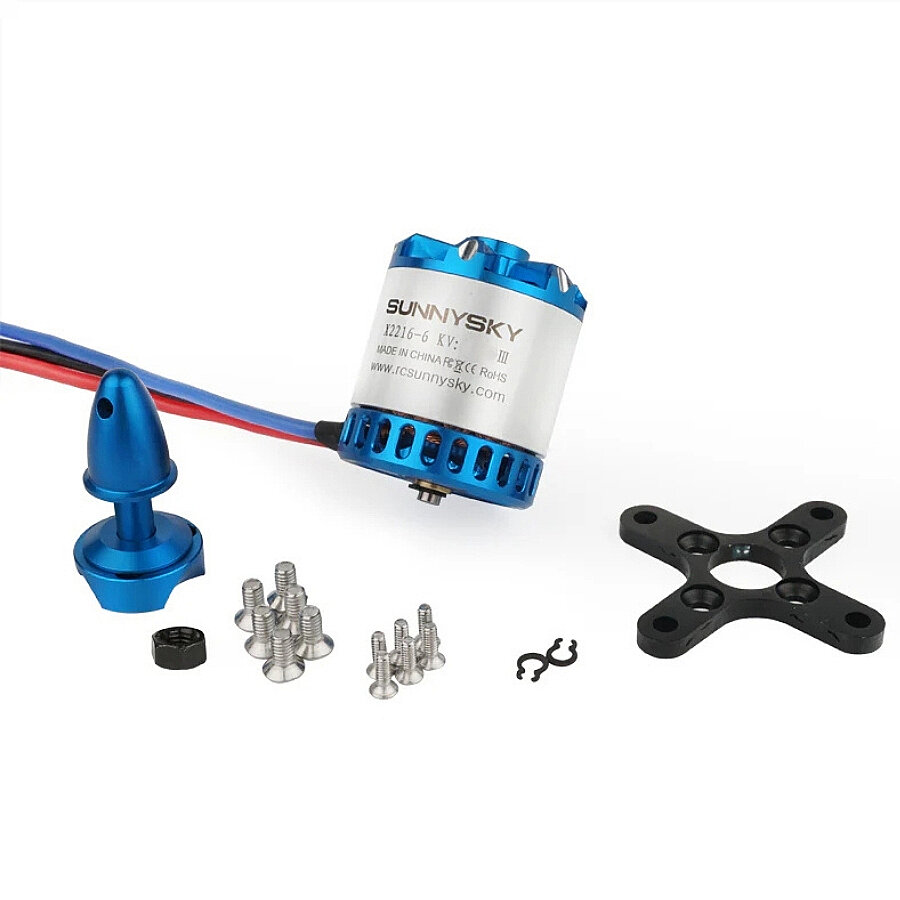

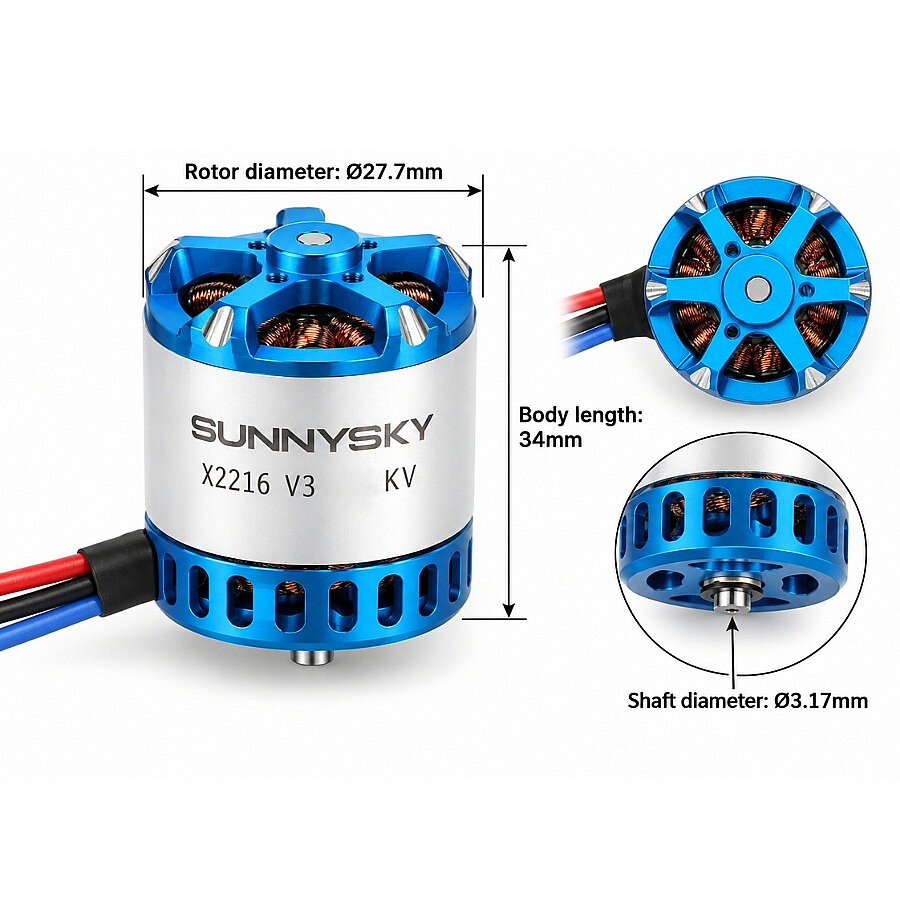

The motor weighs approximately 67.5 grams. It has a rotor outer diameter of 27.7 mm and a motor body length of approximately 34 mm. This short-shaft version of the X2216 V3 is designed by SunnySky for use with a suitable propeller adapter and motor mounting bracket.

Specifications

Stator Diameter	22mm	Rotor Diameter	27.7mm
Stator Thickness	16mm	Body Length	34mm
No.of Stator Slots	12	Max Lipo Cell	3-4S
No.of Rotor Poles	14	ESC	40A
Engine Kv	1250	Recommended Prop(inch)	APC8060/APC1047/APC9047/APC9045
No-load current	1A/10V	Weight for aerobatic airplane	850g(3S 906090479045)(4S 8060)
Motor Resistance	45mΩ	Weight for 3D airplane	800g(3S 90471047)
Max Continuous Current	40A/30s
Max Continuous Power	600W
Weight	69g

Power Table

Prop(inch)	Voltage(V)	Amps(A)	Thrust(gf)	Watts(W)	Efficiency(g/W)	RPM	Load temperature in 100% throttle
APC10*4.7	11.1	0.8	100	8.88	11.26	2570	87℃ 1min40s
		1.8	200	19.98	10.01	3568
		3.1	300	34.41	8.72	4230
		4.8	400	53.28	7.51	4842
		6.5	500	72.15	6.93	5364
		8.5	600	94.35	6.36	5781
		10.9	700	120.99	5.79	6251
		13	800	144.3	5.54	6616
		15.8	900	175.38	5.13	6962
		18.5	1000	205.35	4.87	7227
		21.8	1100	241.98	4.55	7629
		24.8	1200	275.28	4.36	7924
		27.6	1300	306.36	4.24	8244
		32.3	1400	358.53	3.90	8542
		36.3	1500	402.93	3.72	8789
		42.7	1750	473.97	3.69	9332
APC9060	11.1	1	100	11.1	9.01	3115	60℃ 10min
		2.3	200	25.53	7.83	4358
		4	300	44.4	6.76	5238
		5.5	400	61.05	6.55	5991
		7.2	500	79.92	6.26	6778
		9.2	600	102.12	5.88	7305
		11.7	700	129.87	5.39	7876
		14.1	800	156.51	5.11	8360
		17.6	900	195.36	4.61	8877
		19.9	1000	220.89	4.53	9377
		23.6	1100	261.96	4.20	9845
		26.4	1200	293.04	4.10	10250
		29.5	1333	327.45	4.07	10589
APC9045	11.1	1	100	11.1	9.01	3365	63℃ 10min
		2.2	200	24.42	8.19	4732
		3.7	300	41.07	7.30	5730
		5.3	400	58.83	6.80	6539
		6.9	500	76.59	6.53	7371
		8.8	600	97.68	6.14	7983
		11	700	122.1	5.73	8544
		13.1	800	145.41	5.50	9094
		15.6	900	173.16	5.20	9613
		18.25	1000	202.575	4.94	10134
		20.9	1100	231.99	4.74	10655
		25	1264	277.5	4.55	11186
APC9047	11.1	0.9	100	9.99	10.01	3240	52℃ 10min
		2.1	200	23.31	8.58	4596
		3.6	300	39.96	7.51	5603
		5.3	400	58.83	6.80	6431
		6.7	500	74.37	6.72	7226
		8.4	600	93.24	6.44	7916
		10.5	700	116.55	6.01	8532
		13	800	144.3	5.54	9259
		15.6	900	173.16	5.20	9791
		17.8	1000	197.58	5.06	10352
		20.4	1100	226.44	4.86	10982
		24.2	1269	268.62	4.72	11395
APC8060	11.1	1.4	100	15.54	6.44	3811	76℃ 10min10s
		3.1	200	34.41	5.81	5370
		5	300	55.5	5.41	6548
		7.05	400	78.255	5.11	7532
		9.2	500	102.12	4.90	8319
		11.5	600	127.65	4.70	9151
		14.3	700	158.73	4.41	9723
		17.7	800	196.47	4.07	10511
		24.3	966	269.73	3.58	11303
	14.8	1	100	14.8	6.76	3854
		2.4	200	35.52	5.63	5420
		3.9	300	57.72	5.20	6498
		5.5	400	81.4	4.91	7527
		7.4	500	109.52	4.57	8352
		9.45	600	139.86	4.29	9123
		11.7	700	173.16	4.04	9890
		14.1	800	208.68	3.83	10536
		17	900	251.6	3.58	11011
		20.6	1000	304.88	3.28	11640
		24.6	1100	364.08	3.02	12107
		28	1200	414.4	2.90	12705
		36.2	1371	535.76	2.56	13576
