SunnySky X2216 V3 2600KV Brushless Drone Motor - Short Shaft
The SunnySky X2216 V3 2600KV Brushless Drone Motor (Short Shaft) is a high-efficiency brushless outrunner motor designed for RC aircraft and multirotor systems. Part of the X Series V3 family, this motor is engineered to deliver high power in a compact form factor, featuring a 22 × 16 mm stator structure, 12 stator slots, and a 14-pole rotor design.

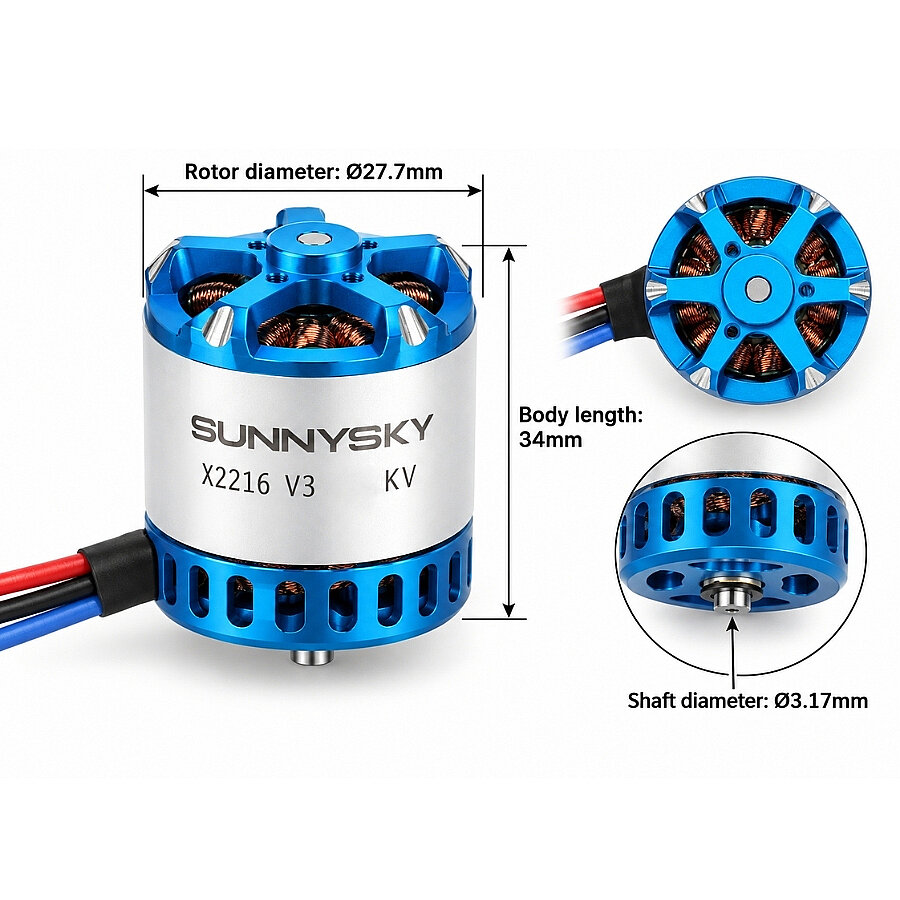

The motor weighs approximately 67.5 grams. It has a rotor outer diameter of 27.7 mm and a motor body length of approximately 34 mm. This short-shaft version of the X2216 V3 is designed by SunnySky for use with a compatible propeller adapter and motor mount.
Specifications
| Stator Diameter | 22mm | Rotor Diameter | 27.7mm |
|---|---|---|---|
| Stator Thickness | 16mm | Body Length | 34mm |
| No.of Stator Slots | 12 | Max Lipo Cell | 3-4S |
| No.of Rotor Poles | 14 | ESC | 40A-60A |
| Engine Kv | 2600 | Recommended Prop(inch) | APC8060/APC1047/APC9047/APC9045 |
| Max Continuous Power | 740W | ||
| Weight | 71g |
