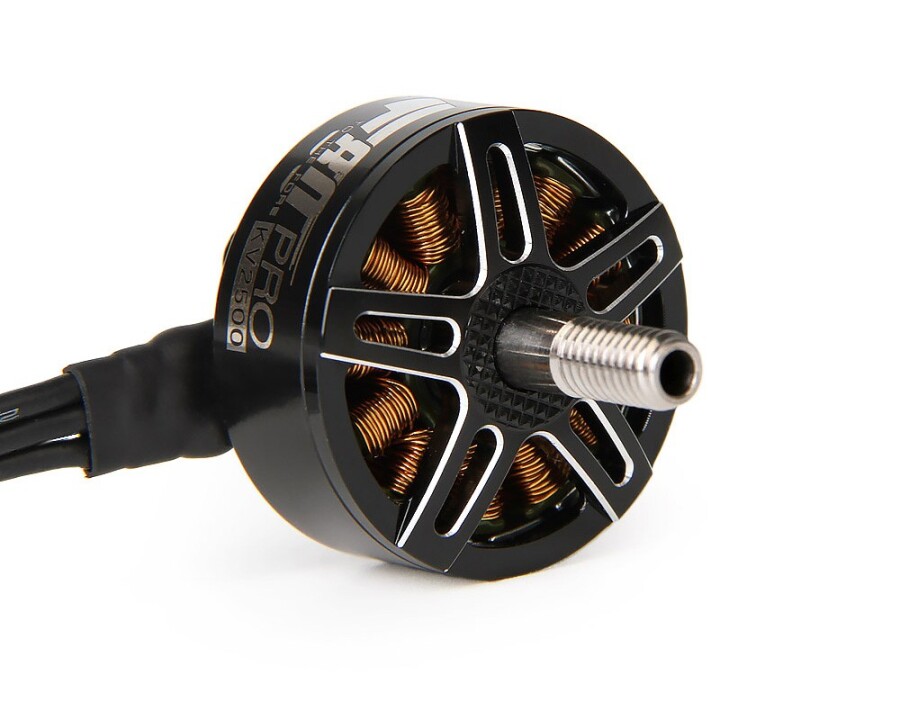

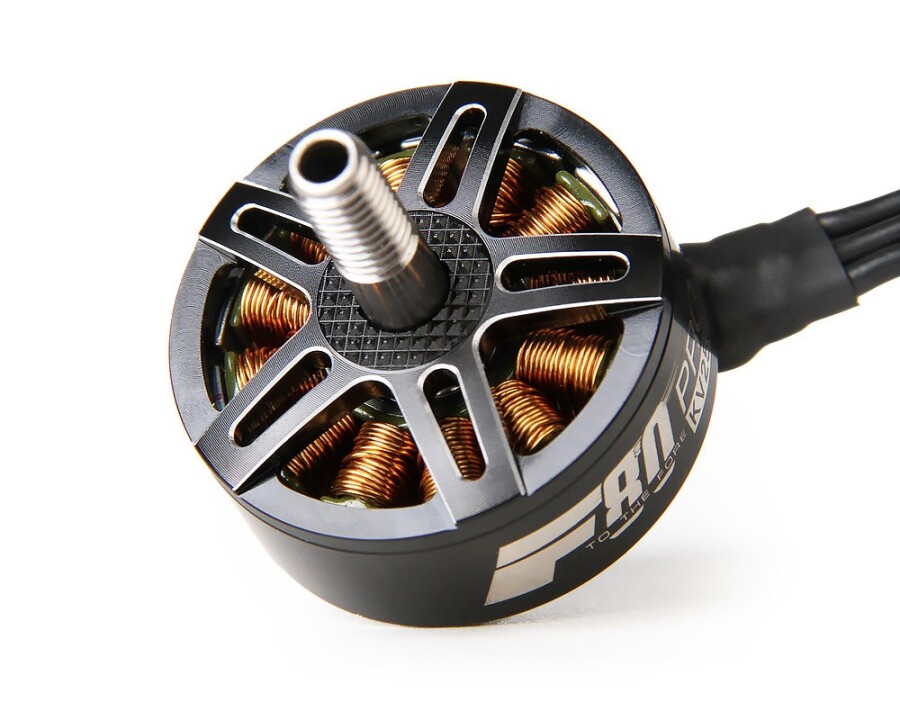

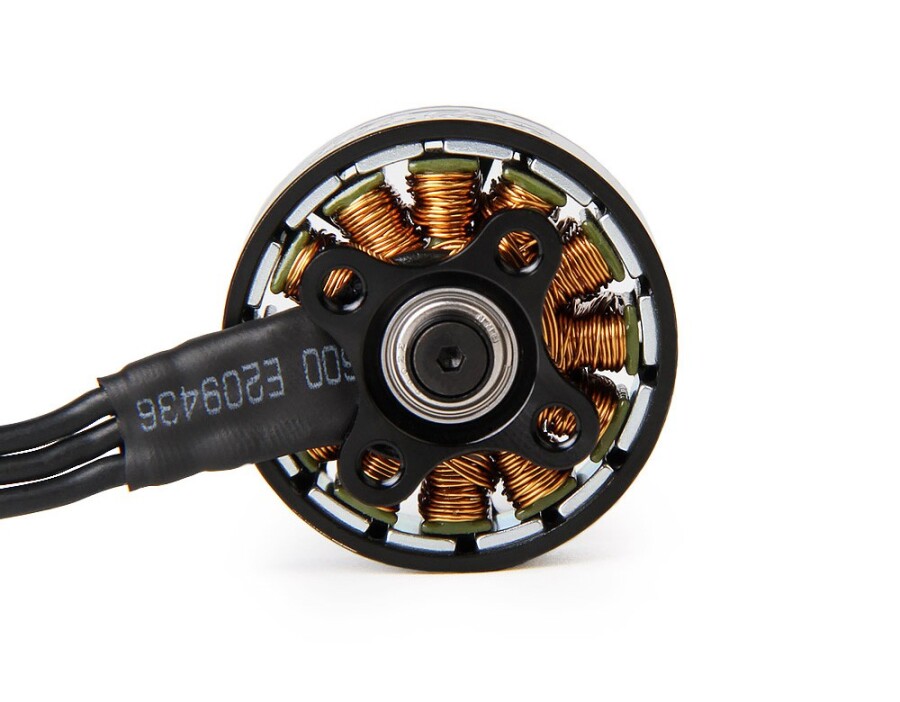

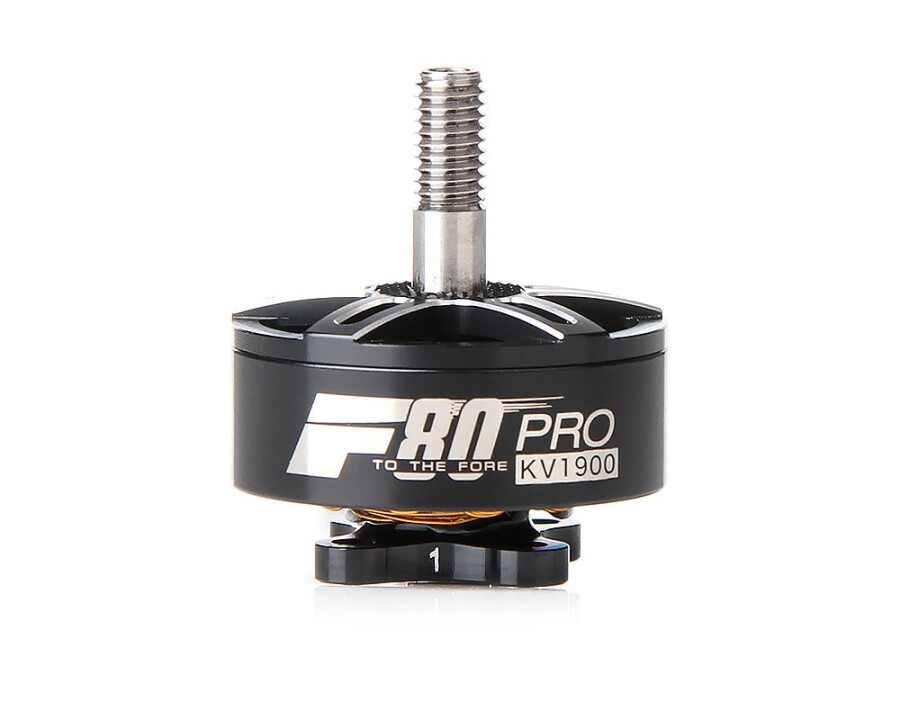

T-Motor F80 PRO 1900KV 2408 FPV Drone Motor

T-Motor F80 PRO 1900KV 2408 FPV Drone Motor

The T-Motor F80 PRO 1900KV 2408 FPV Drone Motor is designed with a steel shaft and a unique structural design to prevent warping and deformation in collisions. These motors are built to withstand impact. They are very fast and responsive. They also utilize an innovative heat dissipation method that provides a 15% greater heat reduction compared to other motors. Tiger Motors' F Series FPV motors are some of the best FPV racing motors on the market.

The T-Motor F80 is also an excellent motor for fixed-wing pilots and can be used with 5-inch, 6-inch, or 7-inch propellers.

Specifications

• KV: 1900KV
• Configuration: 12N14P
• Shaft Diameter: 4 mm
• Maximum Power: 1122W
• Dimensions: 2408W
• Internal Resistance: 42mΩ
• Peak Current (180s): 49.2A
• Motor Dimensions (D*L): Φ29×33.6 mm
• Weight with Cables (g): 39.7 g
• Idle Current at 10V (A): 1.7 A
• Number of Cells (LiPo): 3-6S
• Cable Length: 150 mm

Power Table

Dimensions
