T-Watch Ultra ESP32-S3 915MHz LoRa 2.06" AMOLED & GNSS Smartwatch
7.728,00
TL
+
VAT
9.273,60
TL
Notify Me When It Arrives
Notify Me When It Arrives
T-Watch Ultra ESP32-S3 915MHz LoRa 2.06" AMOLED & GNSS Smartwatch
The T-Watch Ultra ESP32-S3 915MHz LoRa 2.06" AMOLED & GNSS Smartwatch is a robust, all-in-one wearable IoT development platform designed for outdoor adventures, remote monitoring, and smart connectivity. It features an ESP32-S3 dual-core microprocessor. Integrated with LoRa long-range communication, multi-system GNSS, and an AI-powered sensor package, this device combines durability, versatility, and low-power performance for professional developers and outdoor enthusiasts.
You can find other T-Watch Ultra models here.
You can find sample code and the user manual here.
T-Watch Ultra Technical Specifications
| SKU | K253-02 |
| MCU | ESP32-S3 |
| FLASH | 16MB |
| PS RAM | 8MB |
| Platform | Arduino-IDE, ESP-IDF, VS Code, Micropython |
| Wireless | Wi-Fi: 802.11 b/g/n; BLE V5.0 |
| Onboard Functions | PMu Microphone, MAX98357A RTC, NFC,Vibration Motor, SD Card, GNsS, Self-learning Al |
| LoRa Transceiver | SX1262 |
| DRV2605 | Haptic Driver Engine for ERM and LRA |
| AXP2101 | Highly Integrated Power Management Unit |

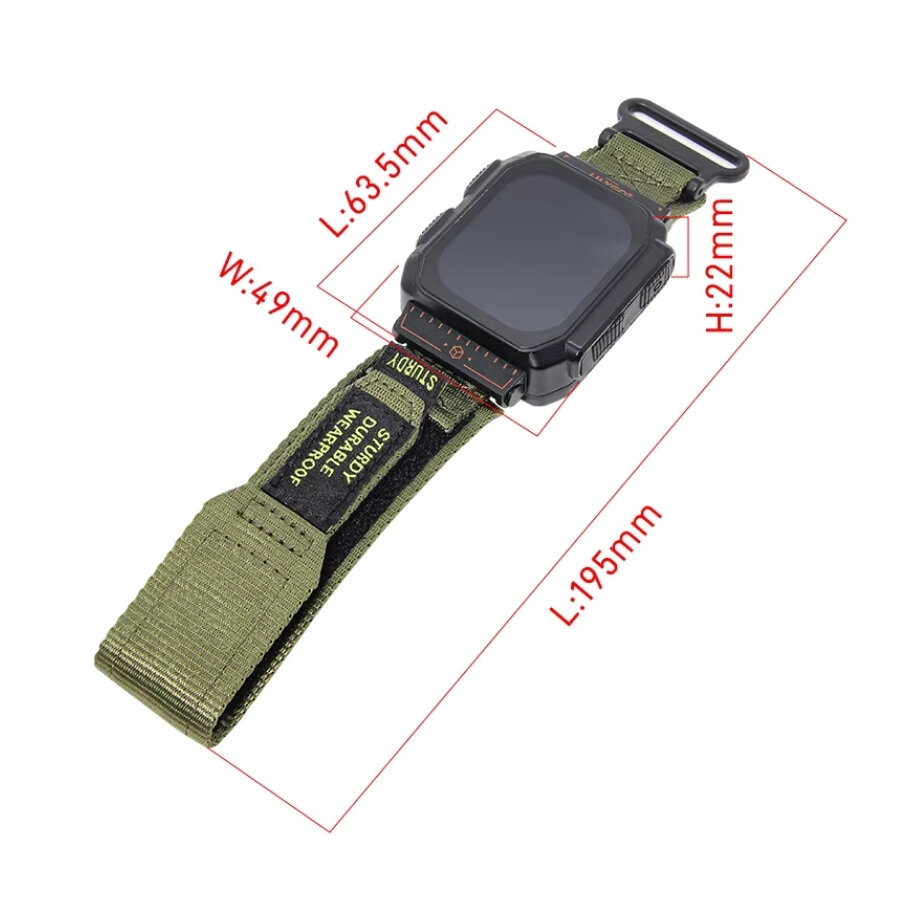

| Dimension | 49 x 63.5 x 22 mm |
| Battery | 1100mA (4.07 Wh) |
| 2.06 inch CO5300 (OSPI) AMOLED | With Capacitive touch CST9217 function |
| Resolution | 410 x 502 |
| Display Colors | 16.7M |

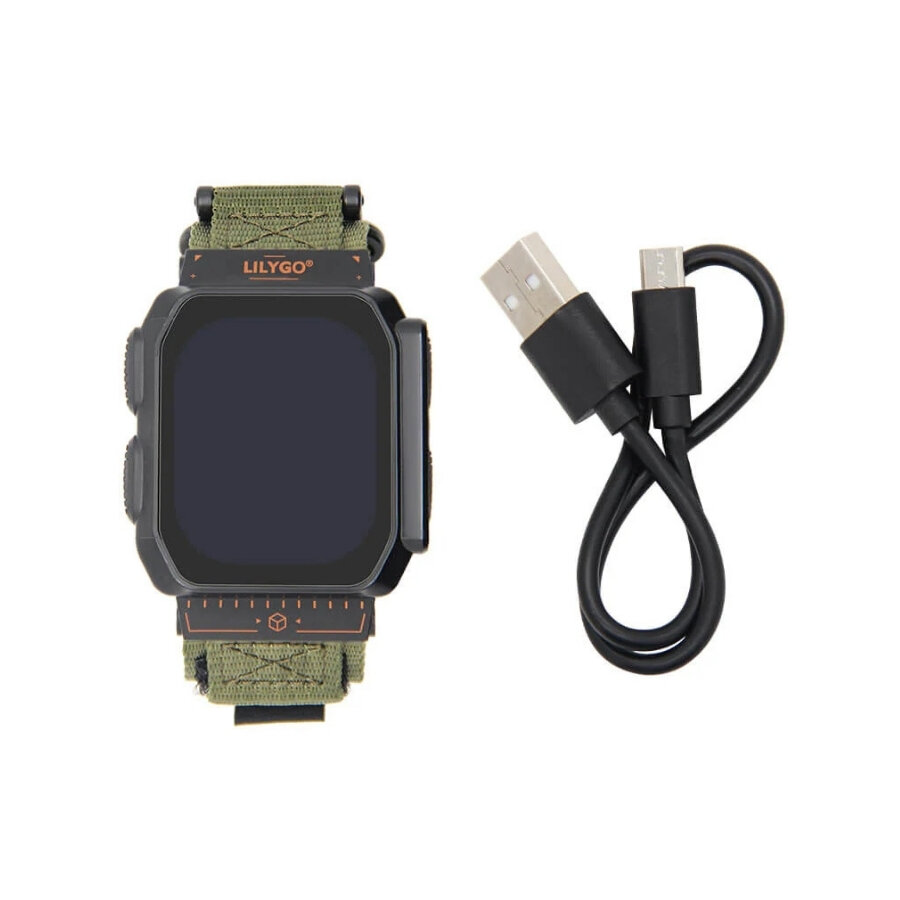

Package Content
- 1x T-Watch Ultra
- 1x Charging Cable
Pinout
