TB6600 4.5A Stepper Motor Driver v1.2

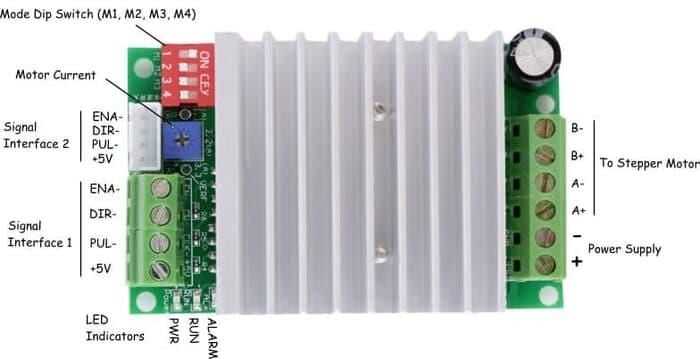

TB6600 stepper motor Driver Controller 4.5A 8 ~ 50V working, TTL 16 Micro-Step supported CNC Single Axis is a stepper motor driver based on the TB6600HG chip.

This driver controller is suitable not only for amateur CNC systems, but also for professional systems based on high-power motors. Compared to the previous generation of TB6560AHG, the output of TB6600HG has increased to 200W (as we have a practical doubling in the power value), the operating voltage has been increased from 35V (TB6560AHG) to 50V, the operating current has been increased to 4.5. A (5A peak value).

The main aspects of this driver include the use of intelligent current control and PWM modulation, which enables stepper motors at any supply voltage and current to provide a constant makes it possible to connect at the level; the chip itself will limit the maximum current.

Technical Specifications:

Current: 4.5A Max.
Supply Voltage: 12-32V
Short circuit protection for output
Automatic half and full automatic flow control
6N137 optical synchronizer to prevent step loss at high speeds
Aluminum heat sink for heat dissipation

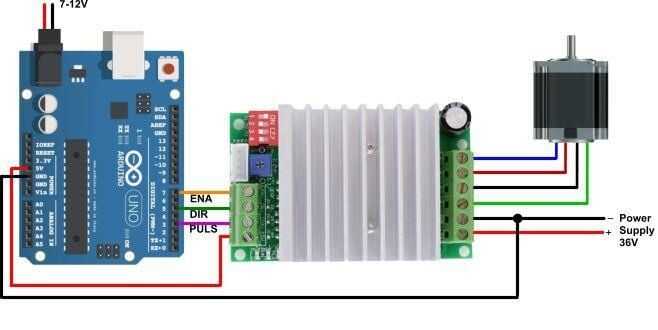

2 phase - 4 phase - 4 wires - 6 wires stepper There is a common anode input and 2 terminal inputs for motors
Automatic half current function.
High temperature, high current protection
Dimensions: 8 x 5 x 3.5 cm
Net Weight: 118.3g
