A3967 Stepper Motor Driver

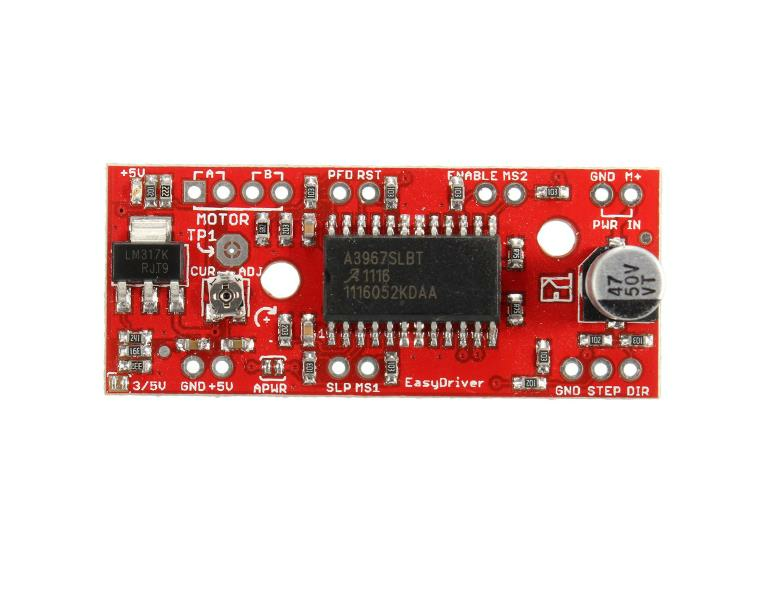

One of the newest versions of the series, EasyDrive stepper motor driver card V4.4 A3967 is suitable for all microcontrollers that can provide digital output between 0 and 5V, especially Arduino. It is a driver board that allows stepper motor control with and development cards.
With the driver that supports motor voltage between 7 and 20V, you can drive 4-wire stepper motors of any voltage you want. You can limit the current with the potentiometer on the card. In this way, you can control your stepper motors with higher voltages other than nominal voltage values. EasyDrive stepper motor driver card can output from 150mA to 750mA per phase.

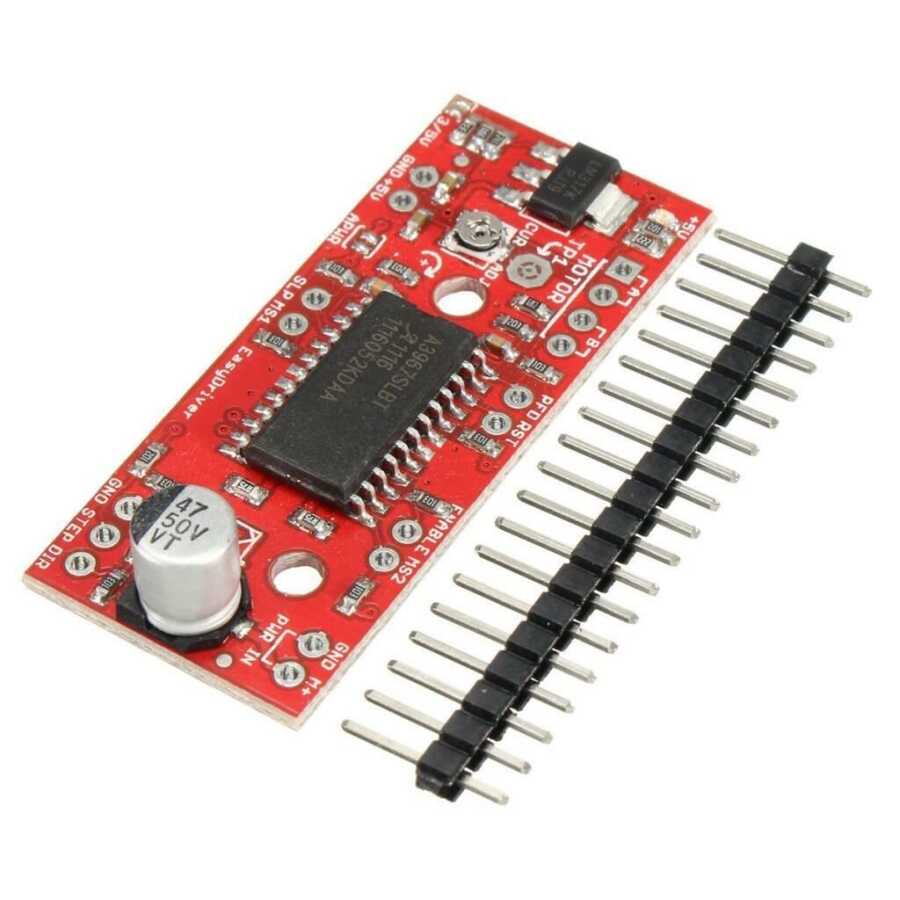

Do not remove or replace the stepper motor or change the location of its cables while voltage is applied to the board. There is a male header in the product package, but it is not soldered.
Technical Specifications
- A3967 microstep driver integrated
- 4 Compatibility with 6 and 8-wire stepper motors
- Output current 150 mA - 750 mA
- Supply voltage 7V - 20V
