TMC2208 Stepper Motor Driver - 1
1 Comment

TMC2208 Stepper Motor Driver

Category: Stepper Motor DriversBrand: MotorobitProduct code : MSK.STP.01.000011
233,20 TL + VAT
279,84 TL
233,20 TL + VAT
279,84 TL
100+ Product
Add to Favorite
RecommendCommentAlarm Price

TMC2208 Stepper Motor Driver


TMC2208 is an ultra-quiet two-phase stepper motor driver chip, continuous drive current 1.4A, peak current 2A, voltage range 4.75V-36V is subdivision 256. The flexible microPlyer interpolation unit provides up to 256 subdivisions, providing excellent sinusoidal control even in limited pulse frequency systems; These were also designed because stealthChop2 ultra-quiet technology is widely used in 3D printing. It is compatible with existing 3D printer electronics, eliminating expensive redesign costs. It is easy to use with a standard step/dir interface. It is a high quality and silent stepper motor driver generally used in 3D printers.

Technical Specifications

  • UART configuration interface (9600-500k Baud)
  • Current 1.4A, peak current 2A, voltage range 4.75V-36V
  • 256 local microsteps (without interpolation)
  • CoolStep current dynamic adjustment technology, energy Can protect 70%
  • stealthChop2 - faster engine acceleration/deceleration than stealthChop
  • dcStep™, stallGuard2™ stall detection technology
  • StepStick and Pololu A4988 Step Hardware compatible with driver
  • Automatic standby current reduction
  • Interface: Step / Dir
  • Configuration: CFG Pins or UART
  • Dimensions: 20 x 15 x 11 mm

WARNINGS!
  • Make sure not to connect the motor when measuring the voltage, otherwise the drive may burn.
  • Reprap 1.4 or MKS Gen' When used at, please remove the 3 jumpers at the bottom of the socket.
  • Pay attention to the direction, do not place it wrongly, otherwise it may burn the driver.
  • The motor direction is opposite to A4988 and DRV8825, please firmware or adjust the motor wiring if you want to replace A4988.

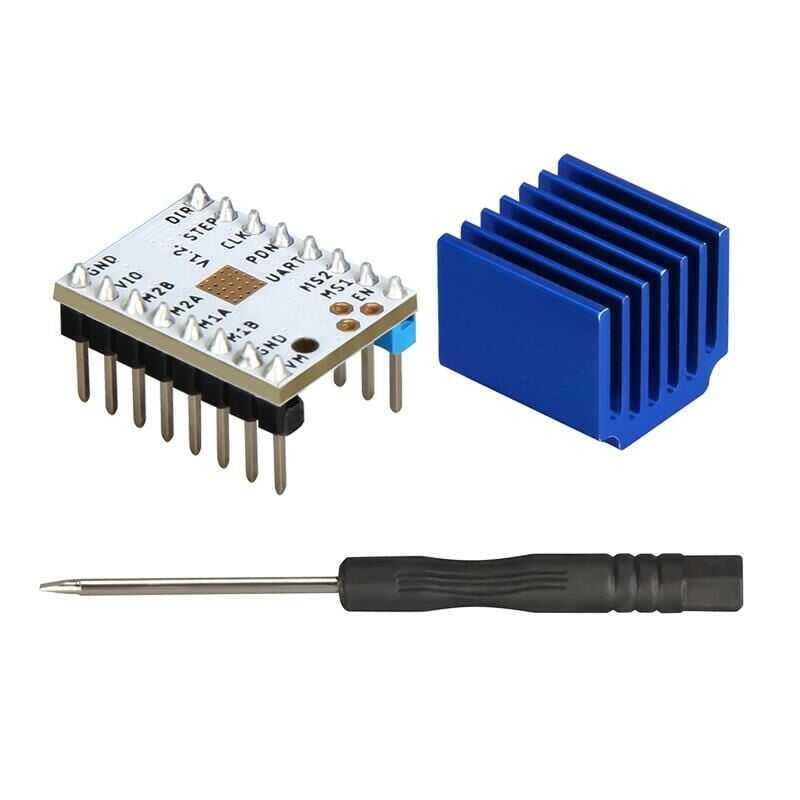

Package Content:
1 × TMC2208 Driver
1 × Heatsink
1 × Screwdriver
