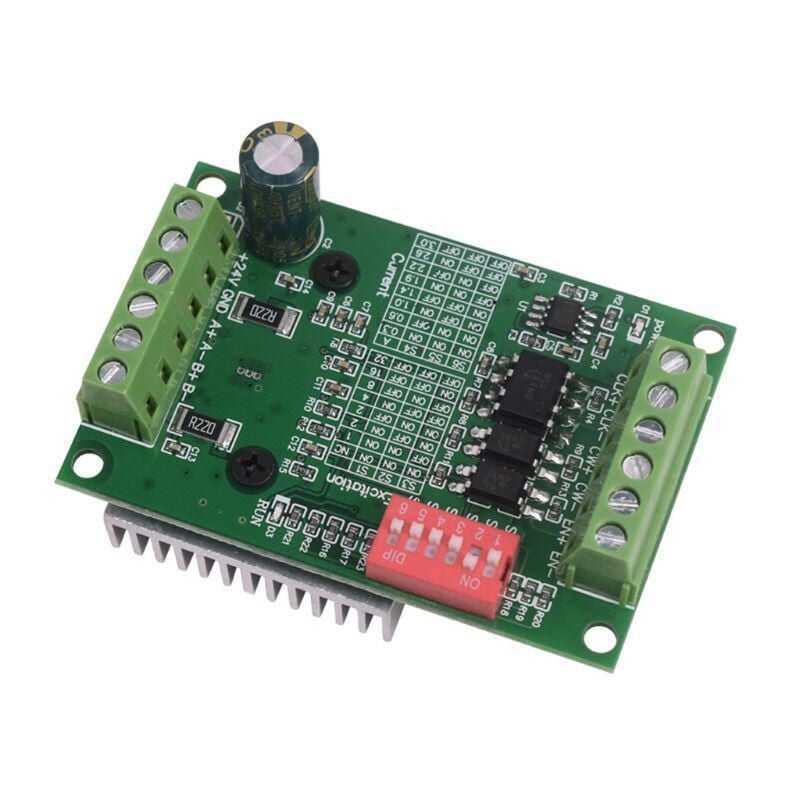

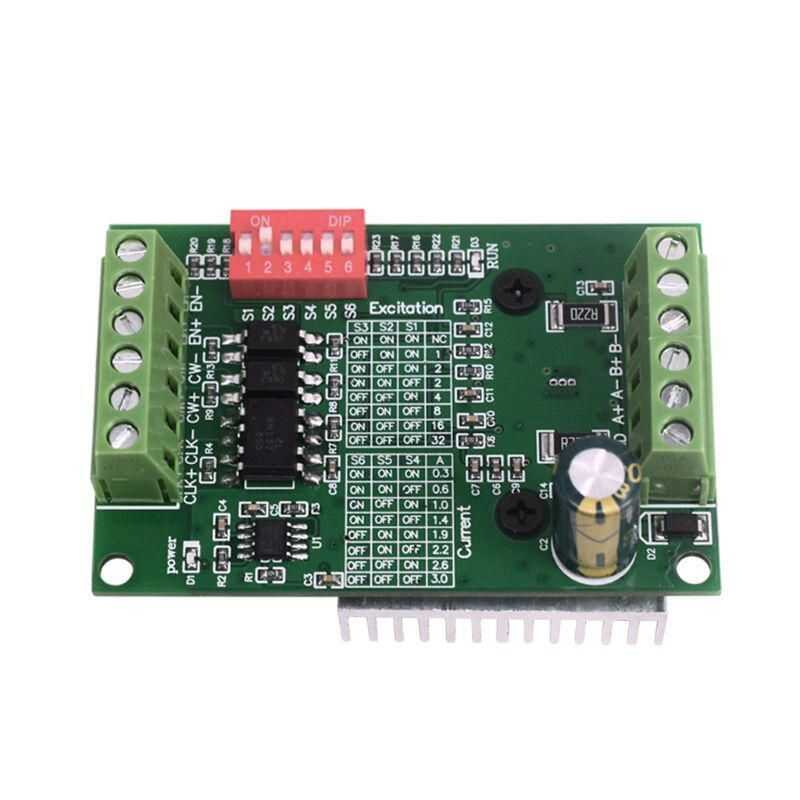

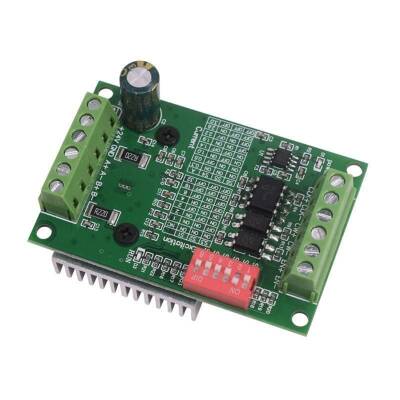

TB6560 3A Stepper Motor Driver

With this motor driver used as TB6560 3 axis CNC control card, you can drive high current and voltage stepper motors. You can drive. It has the capacity to drive 4 – 6 cable 4-phase stepper motors up to 35V/3A. Thanks to the large aluminum heatsink on the driver, the heat on the chip can be quickly dissipated. This prevents the system from shutting down due to heating.

You can use it in your projects such as 3D printers, CNC machines and sumo robots.

Technical Specifications

Operating voltage: 24V DC (recommended)
Control voltage: 5V
Motor current: 3A Max.
Stoll current: 20% or 50%
Step feed: Full, half, 1/8, 1/16
Step stop: 0%, 25%, 50%, 100%
At high speeds 6N137 optical matcher to avoid losing steps
Low voltage shutdown
High temperature protection

Documents:

TB6560 Datasheet
