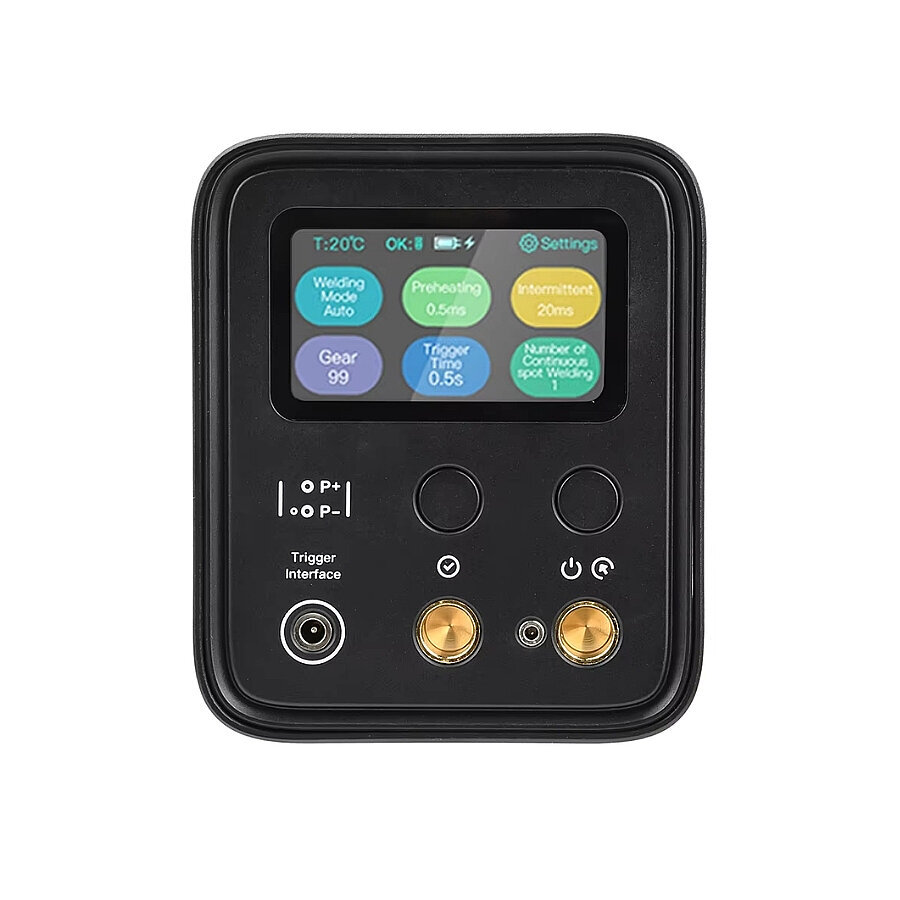

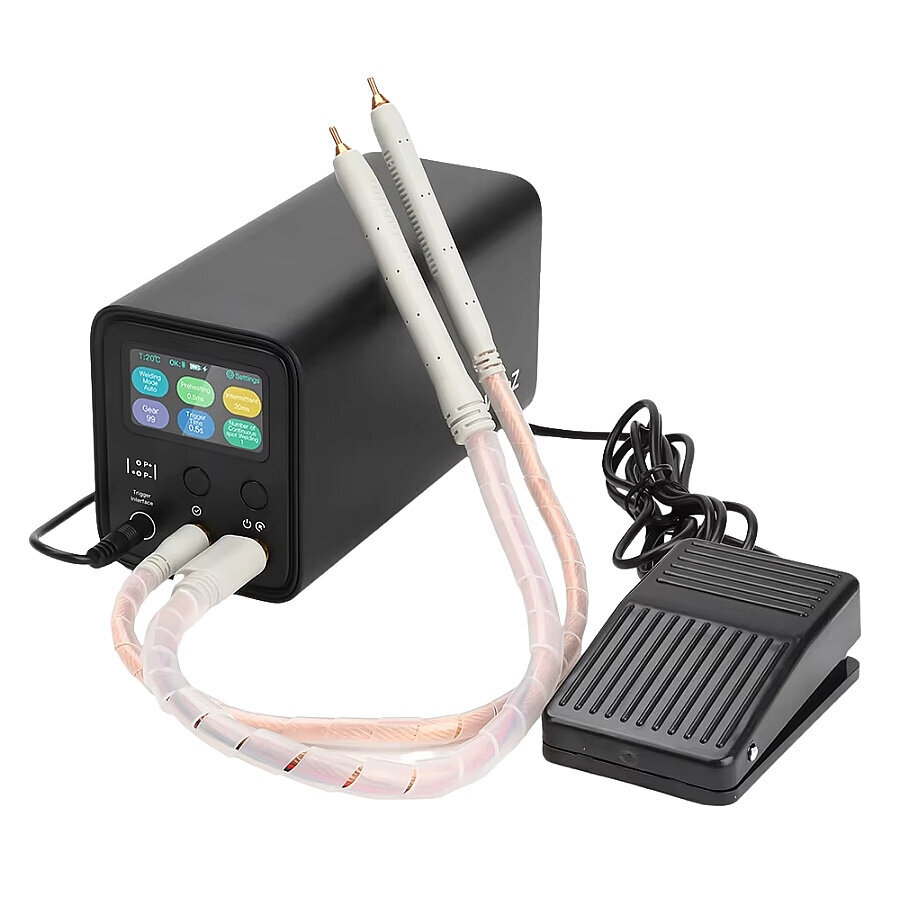

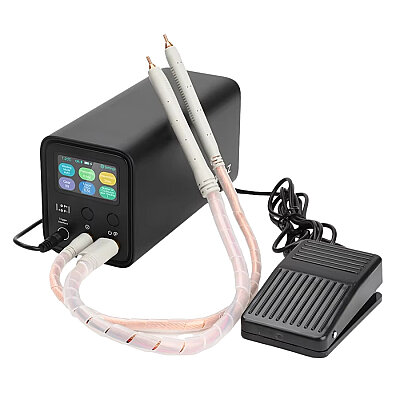

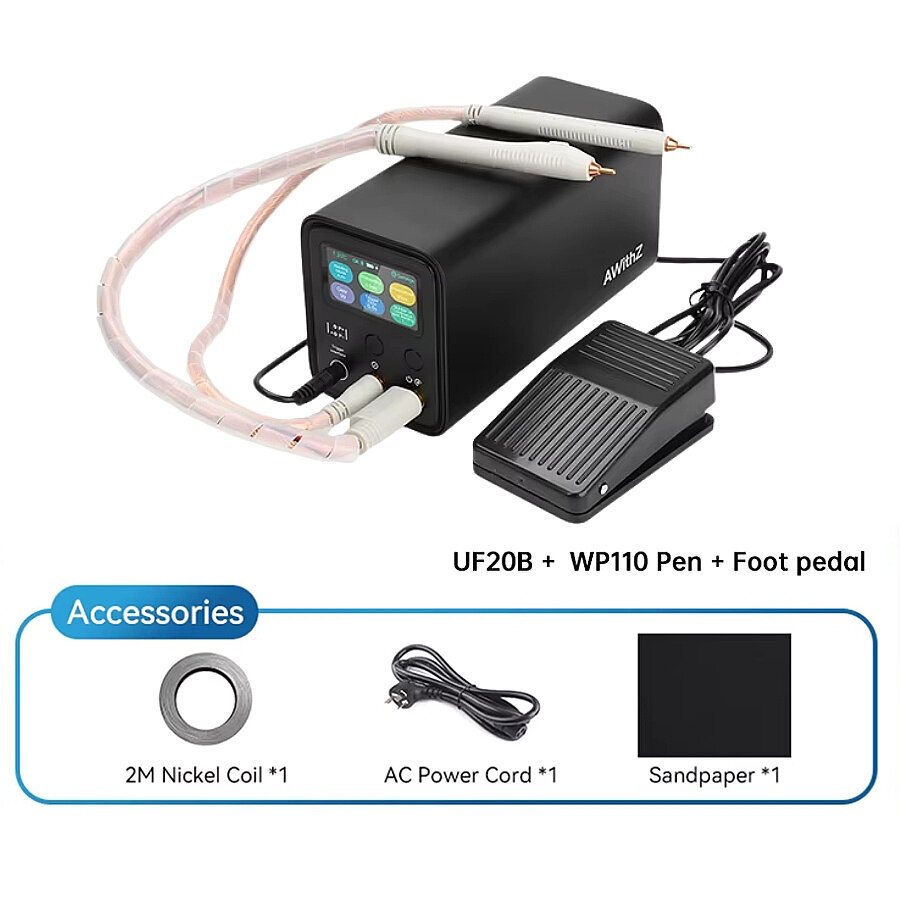

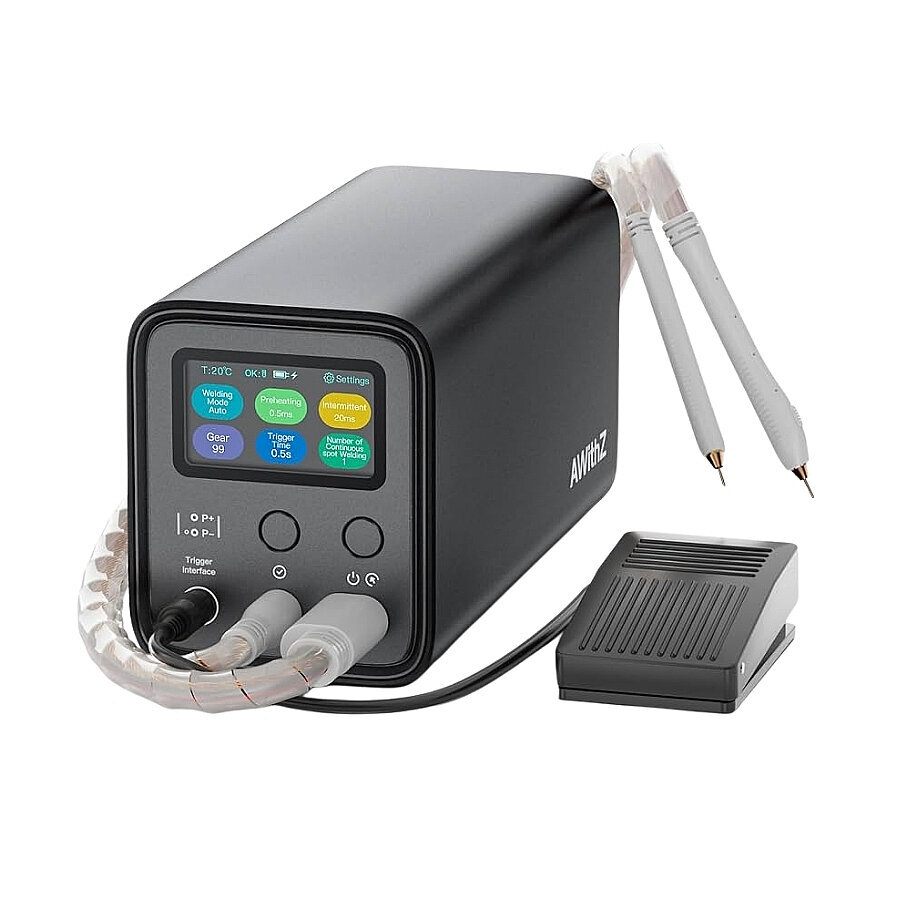

UF20B 10.5kW Spot Welder
The UF20B 10.5kW Spot Welder is a supercapacitor-based spot welding machine designed for joining 18650 and similar battery cells with nickel strips. The device stores welding energy in supercapacitors and delivers it as a high-current pulse over a very short duration during the welding process. This design enables fast and repeatable spot welds for applications such as battery pack assembly and nickel strip welding.
The UF20B features a maximum output power of 10.5kW, a maximum welding current of 1750A, and a maximum output voltage of 6V. The welding power is adjustable across 99 levels.
Specifications
- Model: UF20B
- Energy Storage Type: Super Farad / Supercapacitor
- AC Input Voltage: 100–240V AC
- Mains Frequency: 50–60Hz
- Maximum Welding Power: 10.5kW
- Maximum Output Current: 1750A
- Maximum Output Voltage: 6V
- Power Adjustment: 99 levels
- Rated Maximum Welding Thickness: 0.4 mm
- Welding Pen Cable Length: Approx. 40 cm
- Housing Material: Aluminum alloy + plastic
- Welding Tip: Replaceable electrode
- Manual Trigger: Yes
- Foot Pedal Support: Yes
