UKF10 10.2KW Spot Welder

UKF10 10.2KW Spot Welder

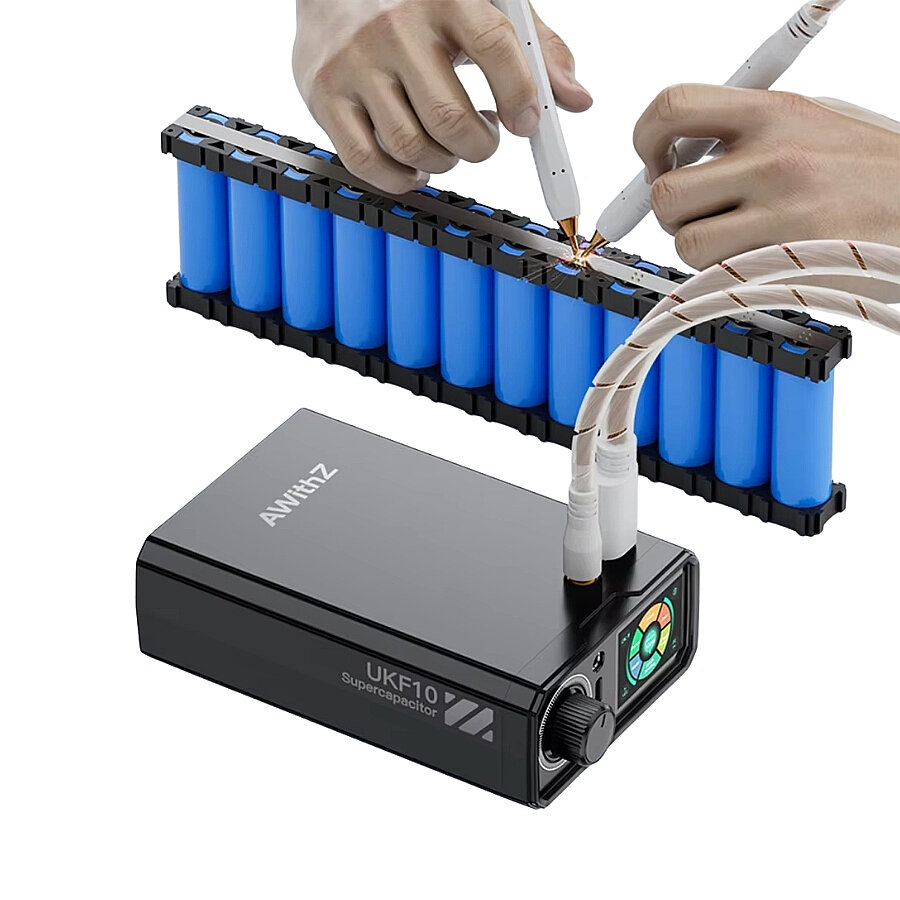

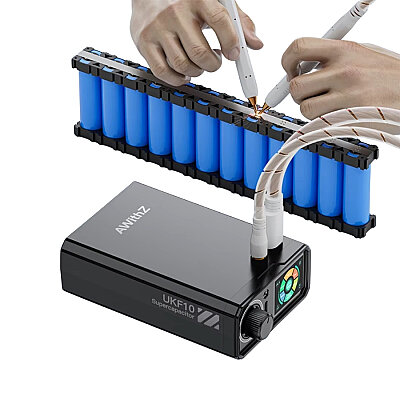

The UKF10 10.2KW Spot Welder is a compact, digital spot welder utilizing supercapacitors, designed for nickel strip welding and precision spot welding applications.

The device houses two 1000F supercapacitors. These capacitors store welding energy to generate a high-current, short-duration pulse during the welding process. It features a maximum output power of 10.2kW, a maximum output current of 1725A, and an output voltage of 6V. A 2.0-inch color TFT display allows for easy monitoring of welding power and other parameters. The system supports multiple languages, and charging is performed via USB Type-C.

The charging system utilizes a 5–20V / 2A input, supporting a maximum of 40W PD.

Specifications

• Output Voltage: 6V
• Capacitor Configuration: 2 × 1000F Super Farad capacitors
• Maximum Output Power: 10.2kW
• Maximum Output Current: 1725A
• Welding Power Adjustment: 99 levels
• Charging Input: USB Type-C
• Charging Voltage: 5–20V
• Charging Current: 2A
• Maximum Charging Power: 40W
• Display: 2.0-inch color TFT

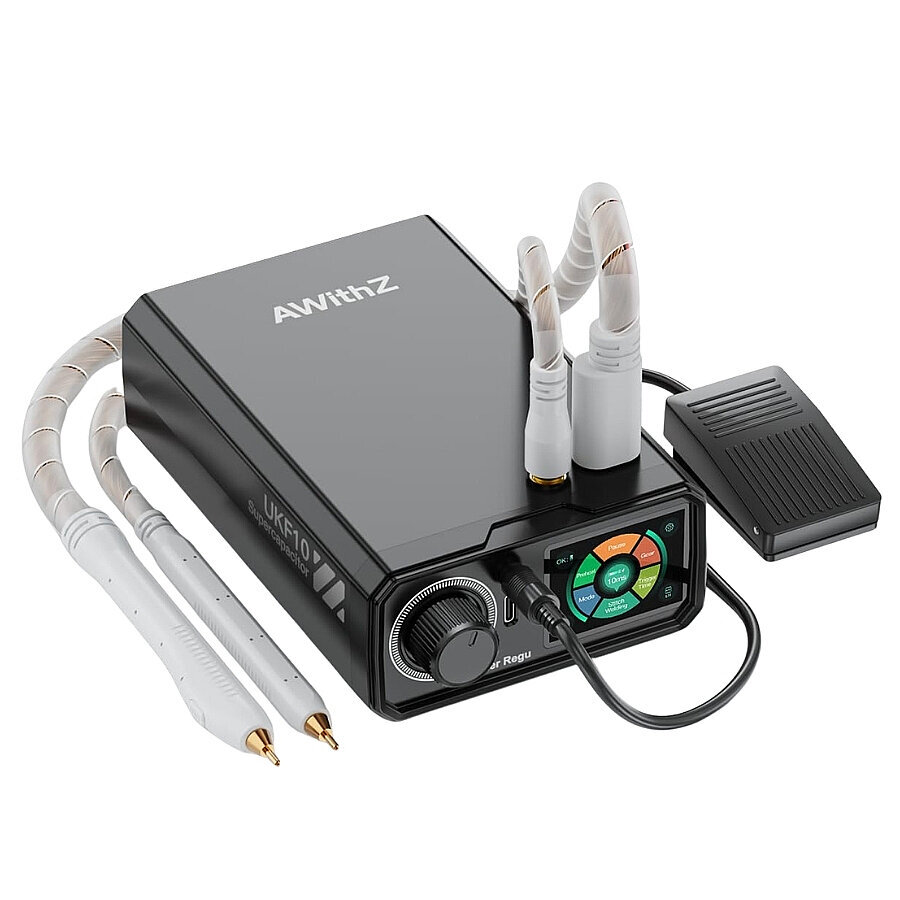

• Welding Modes: Automatic / manual / foot pedal
• Adjustable Parameters: Pre-heat, interval, power level, trigger time, continuous welding
• Pure Nickel Welding Capacity: Up to 0.20 mm
• Nickel-Plated Strip: Up to 0.35 mm
• Steel: Up to approx. 0.30 mm
• Iron: Up to approx. 0.30 mm
• Copper: Up to approx. 0.10 mm
• Supported Languages: Chinese, English, Japanese, German, French, Italian, Spanish, Dutch
