VA098 DC 10-55V 30A PWM Motor Speed and Direction Control Board with Remote Control

Name: VA098 DC 10-55V 30A PWM Motor Speed and Direction Control Board with Remote Control
Brand: Motorobit
SKU: MSK.DCM.01.000083
Price: 2525.00 TRY
Availability: InStock

Category: Dc Motor Drivers Brand: MotorobitProduct code : MSK.DCM.01.000083

2.525,00 TL + VAT

3.030,00 TL

2.525,00 TL + VAT

3.030,00 TL

10+ Product

RecommendCommentAlarm Price

VA098 DC 10-55V 30A PWM Motor Speed and Direction Control Board with Remote Control

The VA098 DC 10-55V 30A PWM Motor Speed and Direction Control Board with Remote Control is an advanced PWM motor driver module designed to electronically control the speed, direction, and operating status of high-current brushed DC motors. It operates within a wide input voltage range of DC 10–55V and supports a maximum motor current of up to 30A. It is compatible with brushed DC motor systems rated for 12V, 24V, 36V, and 48V. The motor's rated voltage must match the voltage of the power supply used.

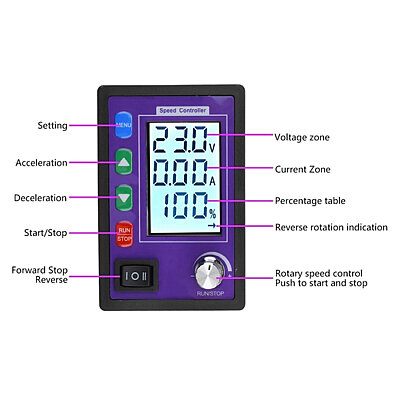

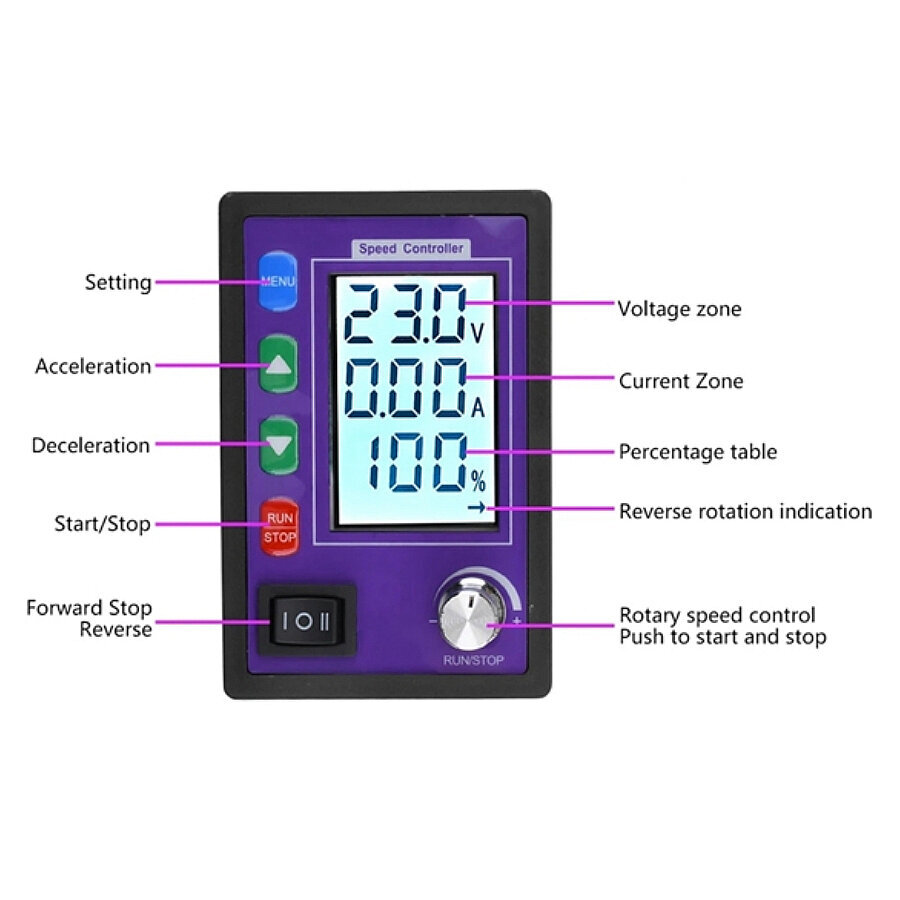

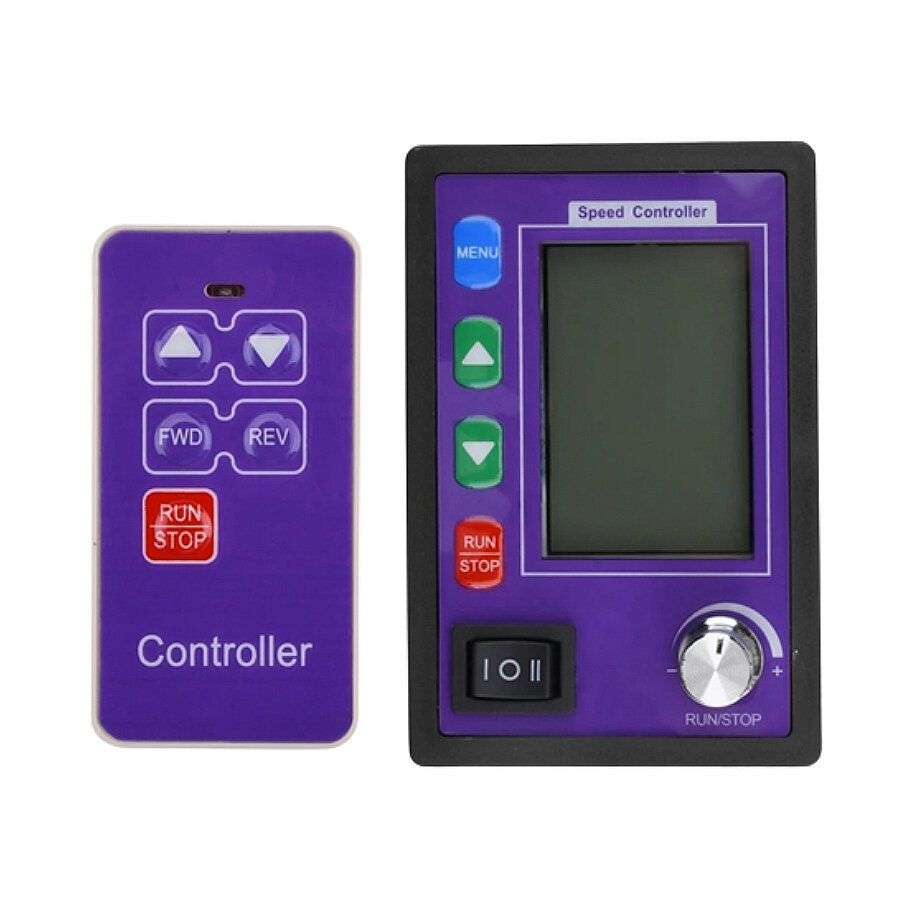

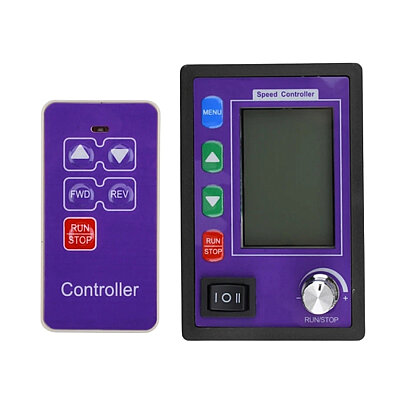

Operating parameters can be monitored via the LCD screen; supply voltage, motor current, and speed percentage are displayed. The speed value shown is not the actual RPM but rather the motor's set output level expressed as a percentage. Thanks to the wireless remote control, the motor can be started, stopped, and reversed, and its speed can be increased or decreased remotely.
