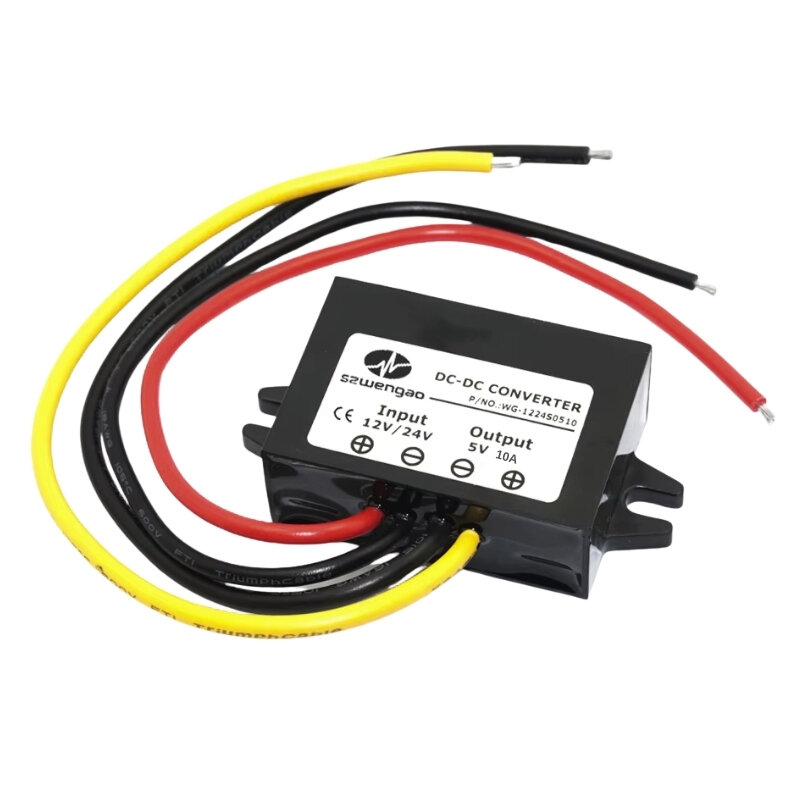

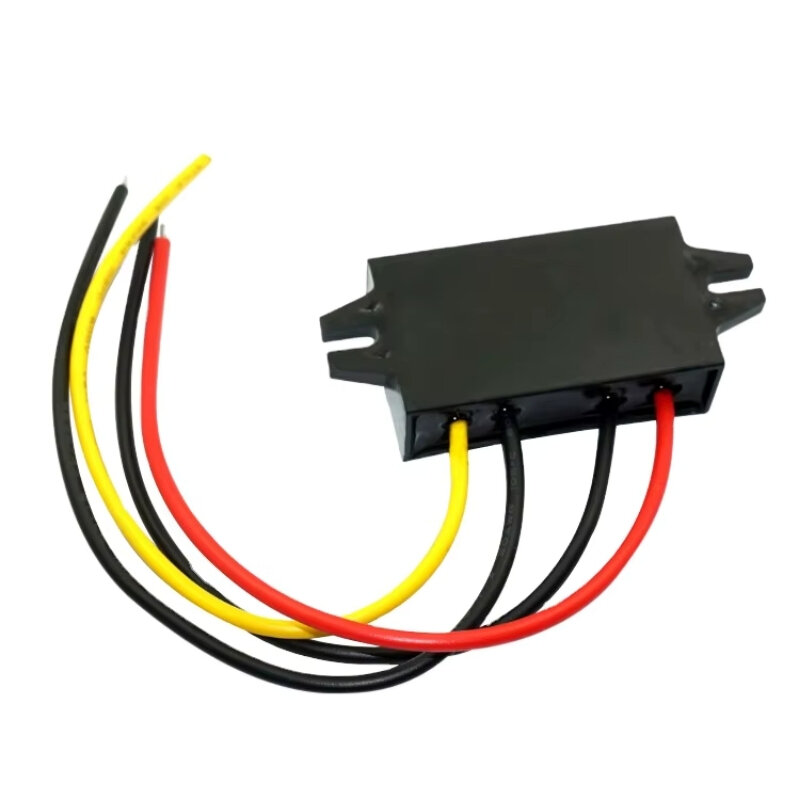

WG-1224S0510P DC-DC 12/24V to 5V 10A Voltage Reducer Module

WG-1224S0510P DC-DC 12/24V to 5V 10A Voltage Reducer Module

The WG-1224S0510P DC-DC 12/24V to 5V 10A Voltage Reducer Module is an industrial power converter designed to convert high DC input voltages to lower DC output voltages stably and safely.

WG series modules offer long-term and reliable operation in automotive, industrial, and energy systems with a wide input voltage range, high efficiency, and stable output performance.

Application Areas

• Automotive electronics (cars, forklifts, golf carts)
• Industrial automation systems
• Alternative energy and battery systems
• Telecommunications equipment
• Marine applications (boat, yacht)
• LED and low-voltage electronic systems
• Medical and field devices

Specifications

• Model: WG-1224S0510P
• Supply Voltage: 8-36V DC (recommended 12-24V DC)
• Conversion Efficiency: 93%
• Output Voltage: 5V DC
• Output Current: 10A maximum
• Output Power: 25W
• Error Tolerance: < %1
• IP Rating: IP68
• Short Circuit Protection
• Overcurrent Protection
• Cable Thickness: 16AWG
• Weight: approximately 65g

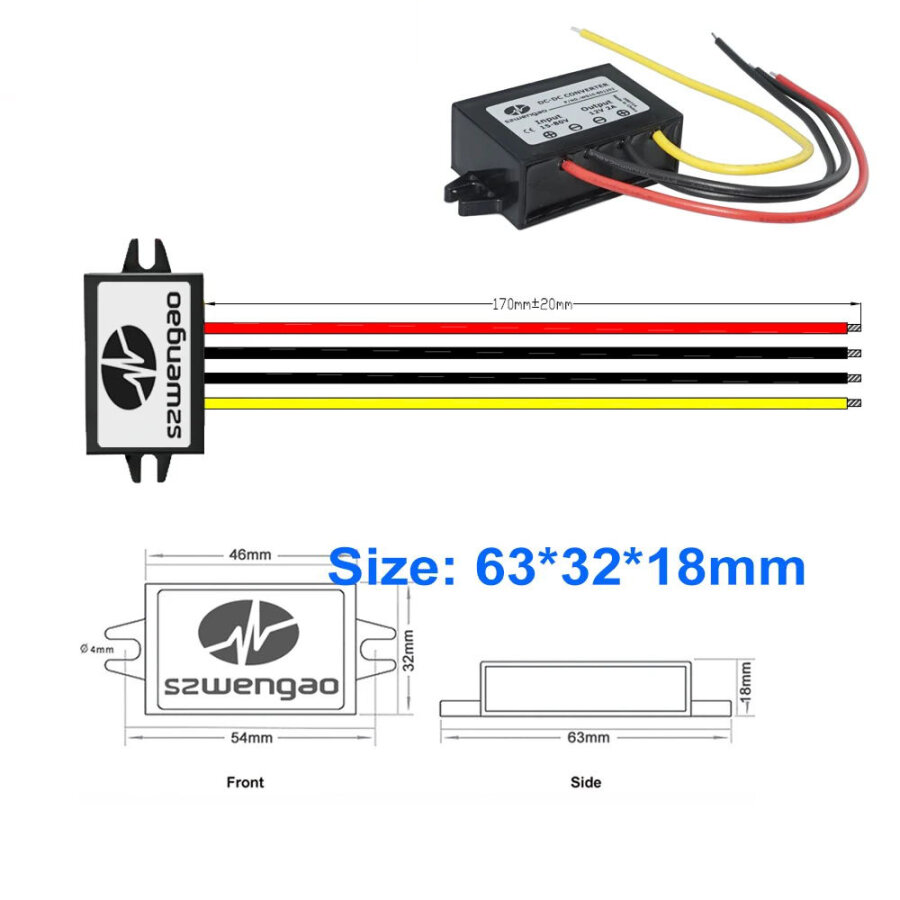

• Dimensions: 63x32x18mm
