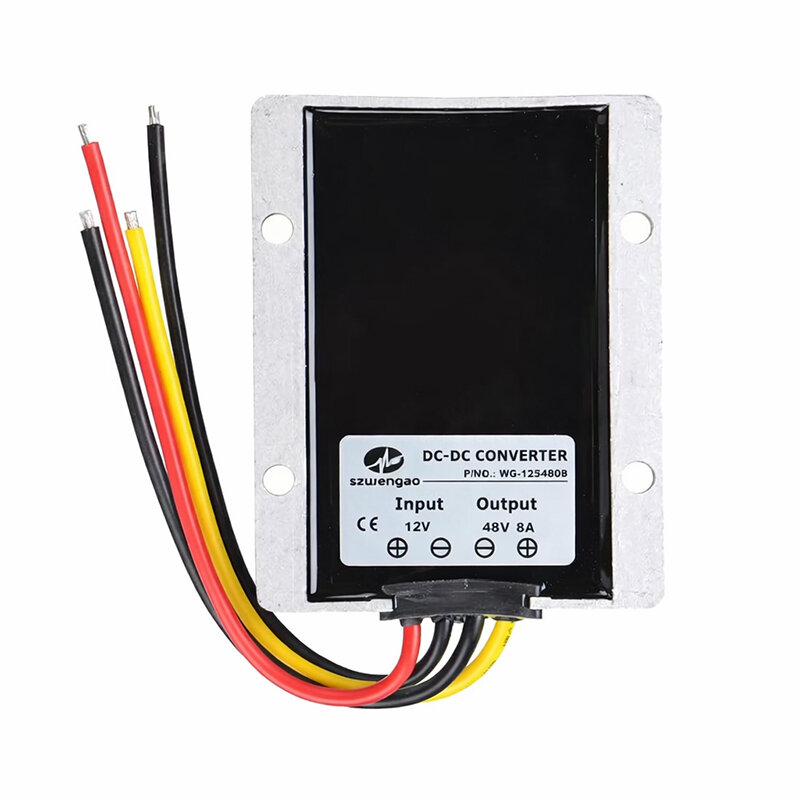

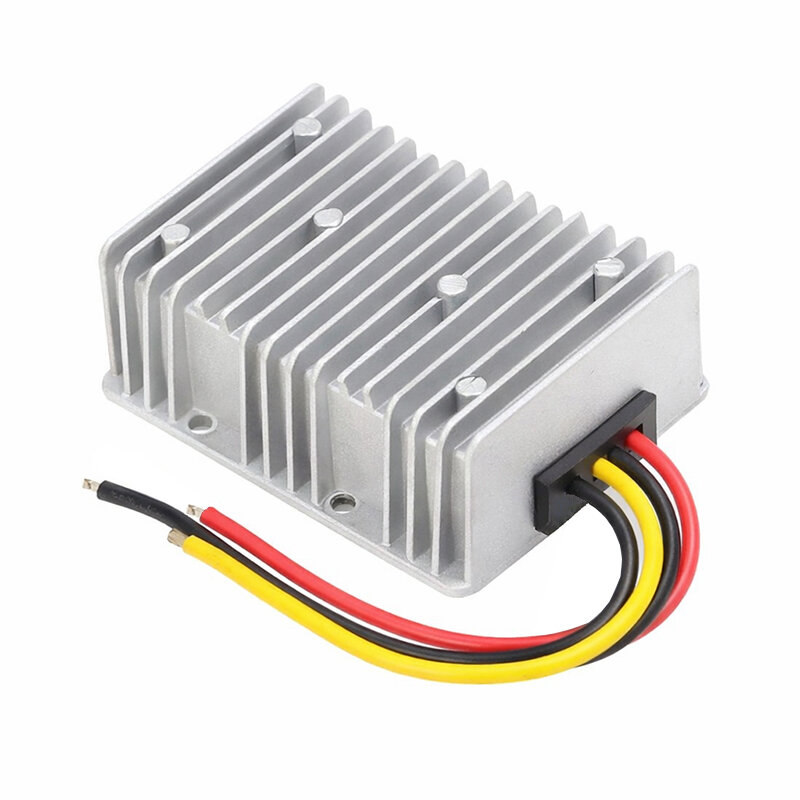

WG-12S4808 DC-DC 12V to 48V 8A Voltage Booster Module

WG-12S4808 DC-DC 12V to 48V 8A Voltage Booster Module

The WG-12S4808 DC-DC 12V to 48V 8A Voltage Booster Module is a non-isolated DC-DC voltage booster converter module that converts a low DC input voltage into a higher and stable DC output voltage.

WG series modules offer long-term and reliable operation in automotive, industrial, and energy systems with a wide input voltage range, high efficiency, and stable output performance.

Datasheet

Application Areas

• Vehicle electronics (car, forklift, golf cart)
• Industrial automation systems
• Alternative energy and battery systems
• Telecommunication equipment
• Marine applications (boat, yacht)
• Medical and field devices

Features

• Model: WG-12S4808
• Supply Voltage: 10-25V DC (recommended 12V DC)
• Conversion Efficiency: 95%
• Output Voltage: 48V DC
• Output Current: 8A maximum
• Output Power: 384W
• Error Tolerance: <1%
• IP Rating: IP68
• Short Circuit Protection
• Overcurrent Protection
• Cable Thickness: 14 AWG
