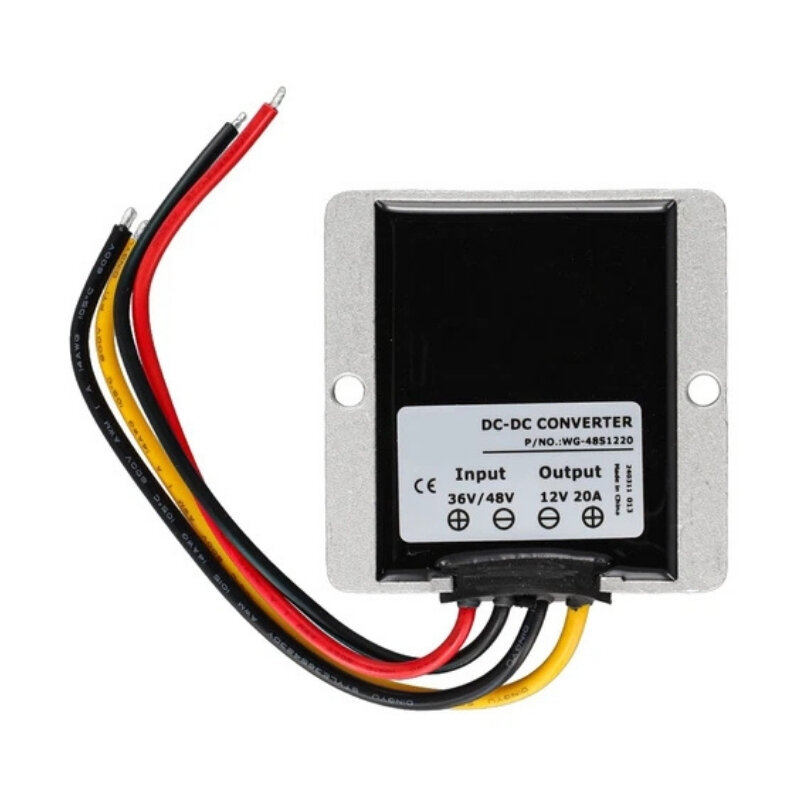

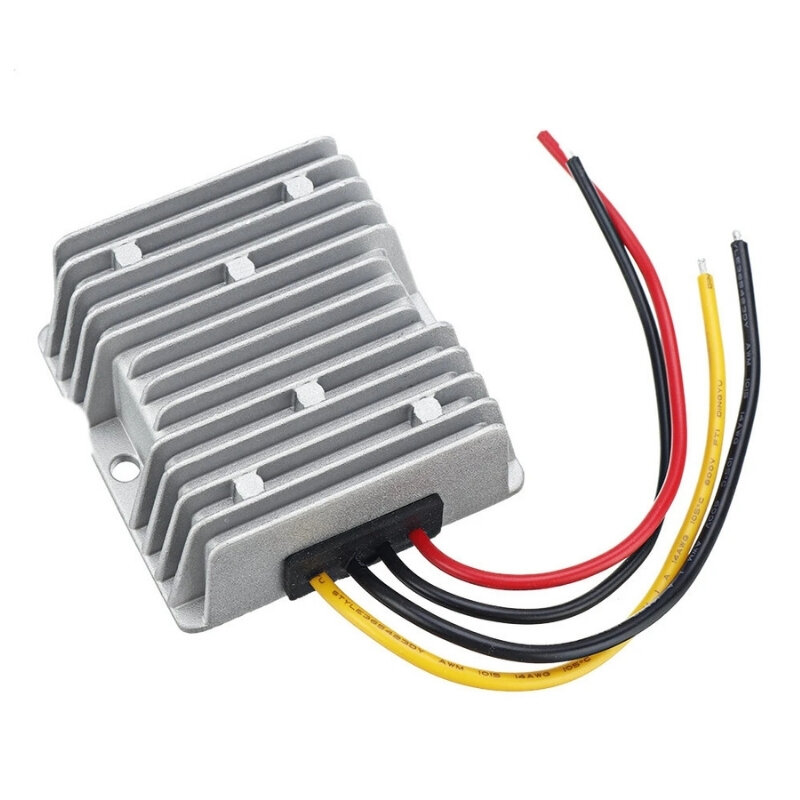

WG-48S1220 DC-DC 36/48V to 12V 20A Voltage Reducer Module

WG-48S1220 DC-DC 36/48V to 12V 20A Voltage Reducer Module

The WG-48S1220 DC-DC 36/48V to 12V 20A Voltage Reducer Module is an industrial power converter designed to convert high DC input voltages to lower DC output voltages stably and safely.

WG series modules offer long-term and reliable operation in automotive, industrial, and energy systems with a wide input voltage range, high efficiency, and stable output performance.

Datasheet

Application Areas

• Vehicle electronics (car, forklift, golf cart)
• Industrial automation systems
• Alternative energy and battery systems
• Telecommunication equipment
• Marine applications (boat, yacht)
• LED and low voltage electronic systems
• Medical and field devices

Features

• Model: WG-48S1210Z
• Supply Voltage: 35-60V DC (recommended 36-48V DC)
• Conversion Efficiency: 94%
• Output Voltage: 12V DC
• Output Current: 20A maximum
• Output Power: 240W
• Error Tolerance: <1%
• IP Rating: IP68
• Short Circuit Protection
• Overcurrent Protection
• Cable Thickness: 14AWG
