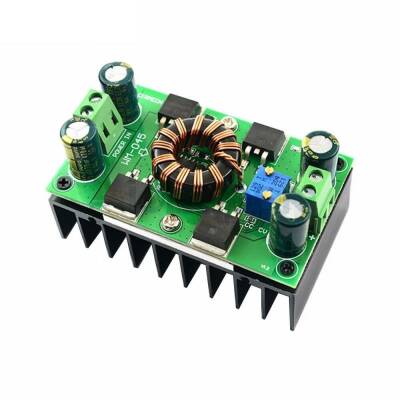

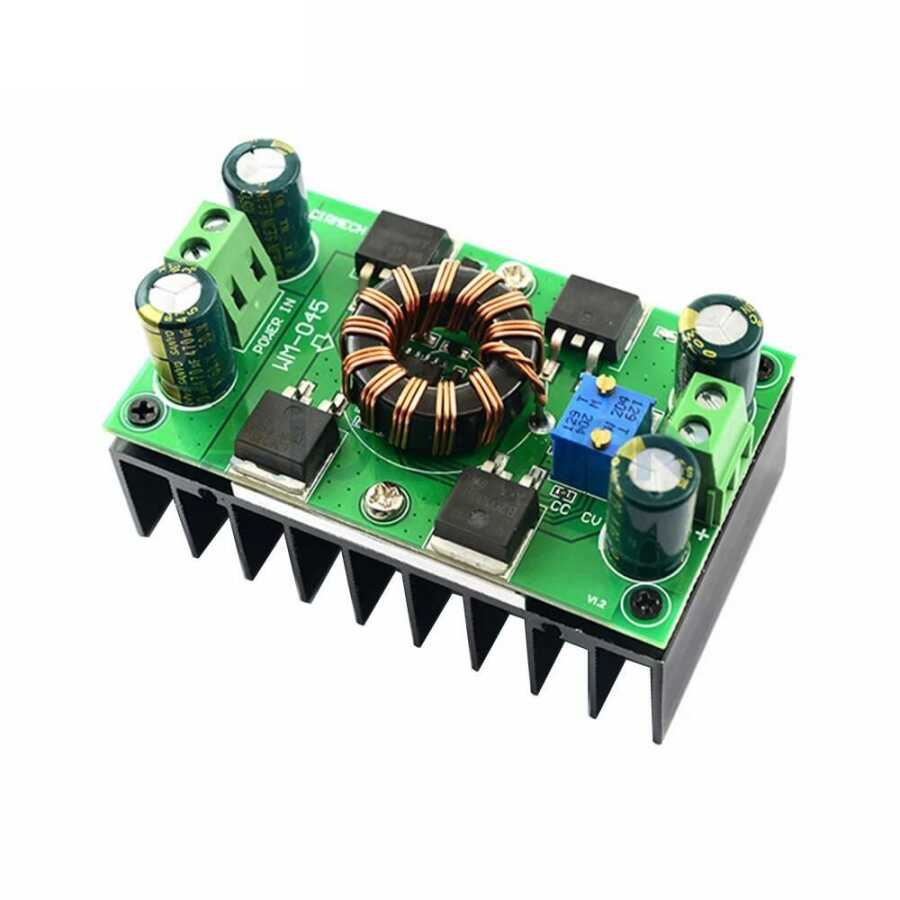

WM-045 DC-DC 150W Voltage Step Up and Step Down Regulator Module
WM-045 is a module with which you can both raise and lower the input voltage. It is suitable for use as step down and step up. This automatic step-up/step-down DC-DC converter can continuously provide up to 150W of power with over 90% efficiency.

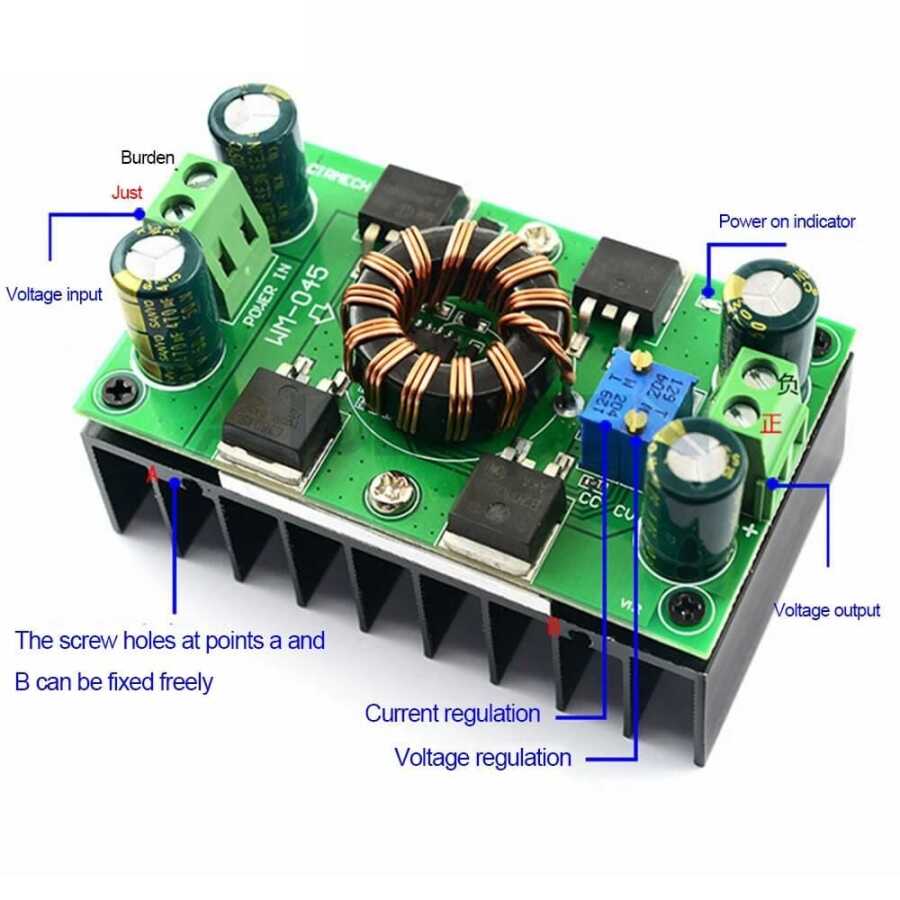

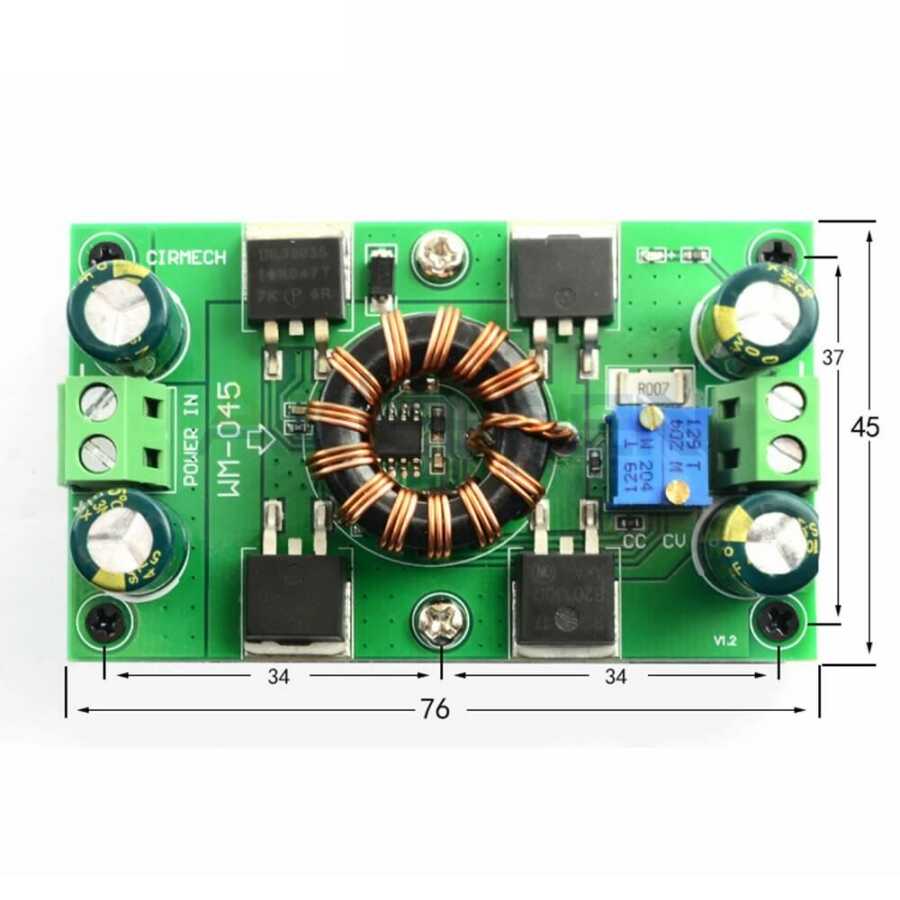

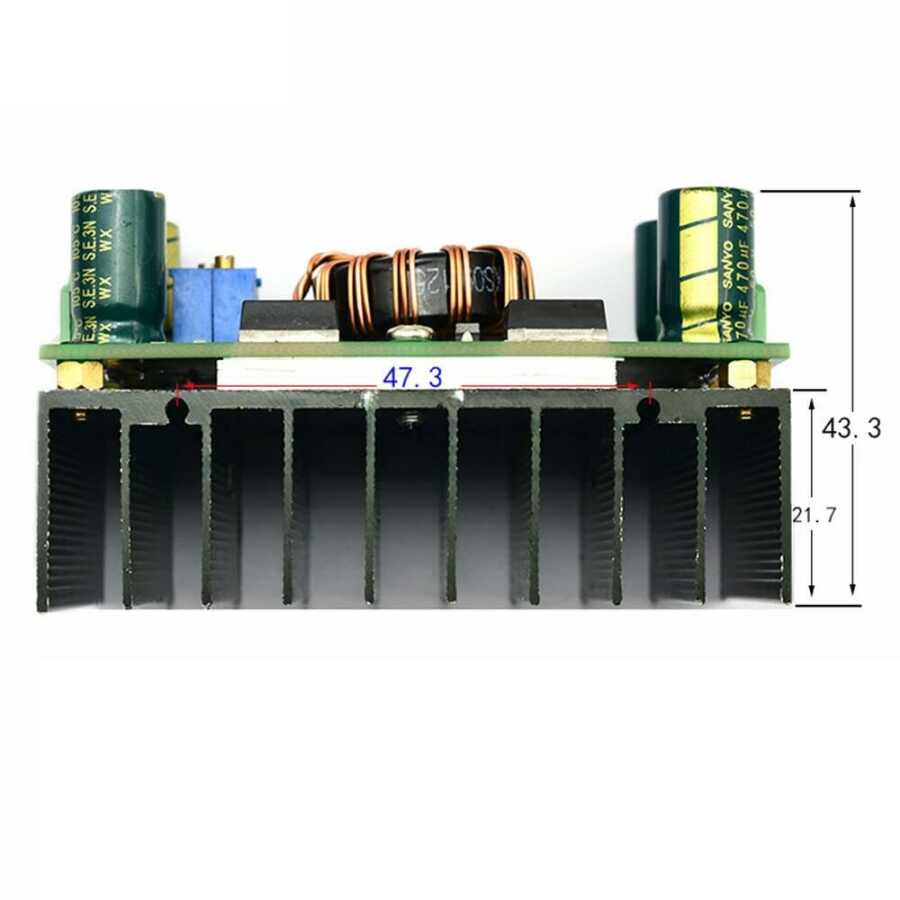

With the trimpots on it, both the output voltage and The output amperage can also be adjusted. You can find the product dimensions in the 2nd and 3rd images on the product page.
Features:
- Input voltage: 5Vdc ~ 30Vdc.
- Buck-Boost (automatic boost/lower).
- Output Voltage: 1.25~30Vdc (Adjustable).
- Output Current: 10A (MAX) .
- Output Power: 150W
- Conversion efficiency: 90% Max.
- Ripple and Noise: 200mVp-p .
- No-Load Current : 6mA typical.
- Voltage Regulation: ± 0.5%.
- Load Regulation: ± 0.5%.
- Dynamic Response Rate: 300uS.< /LI>
