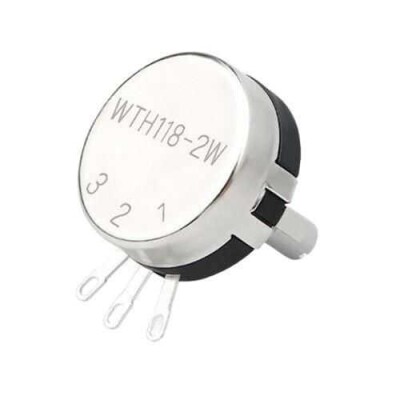

WTH118-2W 1K 2W Single Turn Potentiometer

It is a single turn 1K potentiometer that can withstand a maximum power of 2W. Its resistance changes as you turn the pot. It can be used when intermediate resistance values ​​are needed or in ADC operations.



Technical Specifications

• Model: WTH118
• Power: 2W (70°C)
• Maximum Operating Voltage: 500V
• Resistance Tolerance: ±% 10
• Rotation Angle: 260 ° ± 10 °
• Shaft Torque: 2 ~ 20mN.m

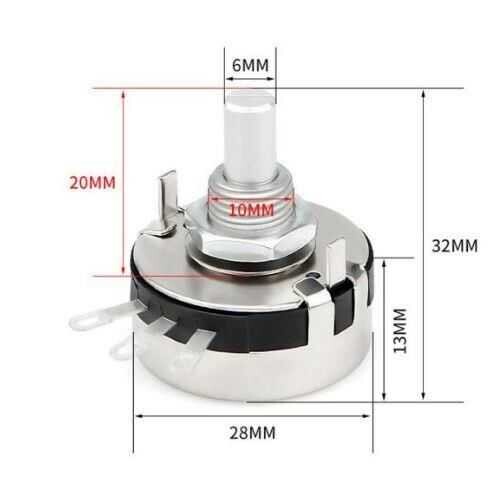

• Shaft Diameter: 6mm
• Shaft Length: 10mm
• Dimensions: 28x13mm (Excluding Shaft)
