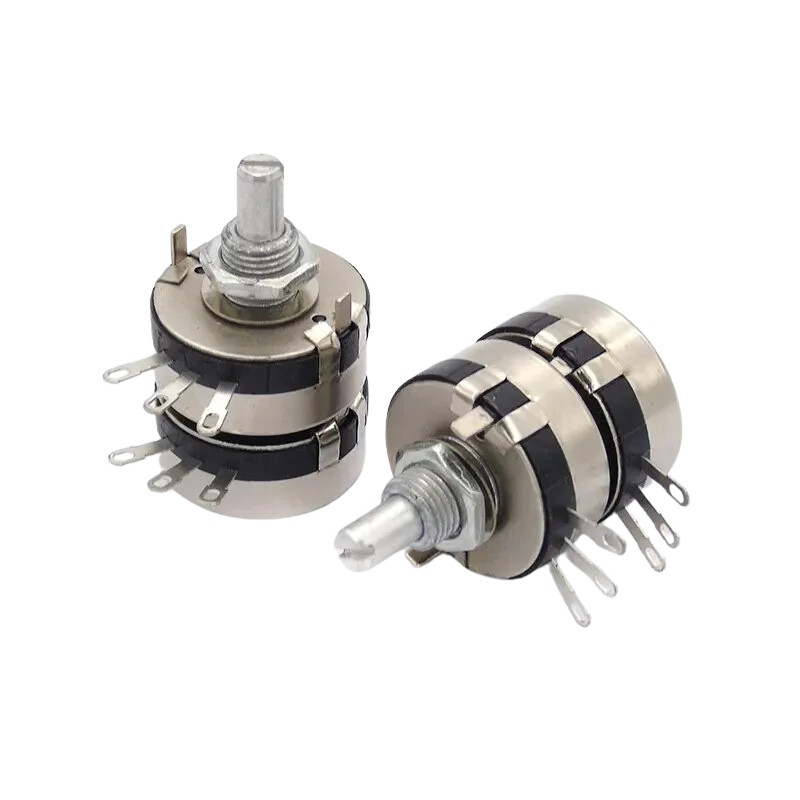

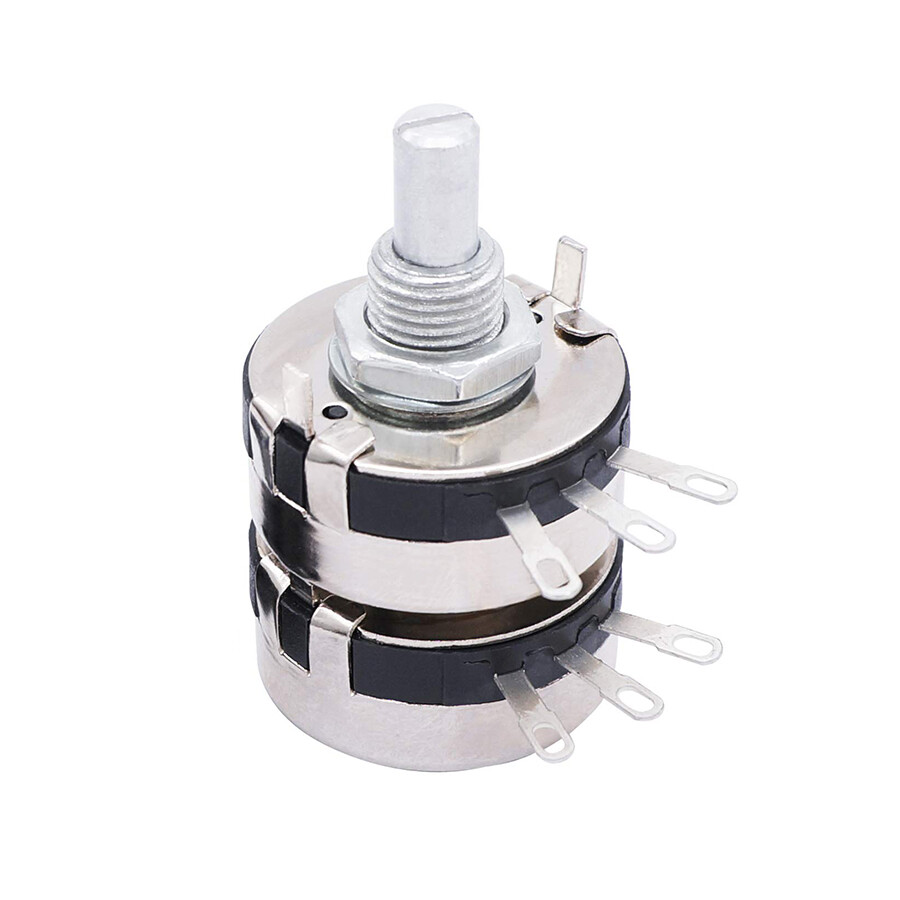

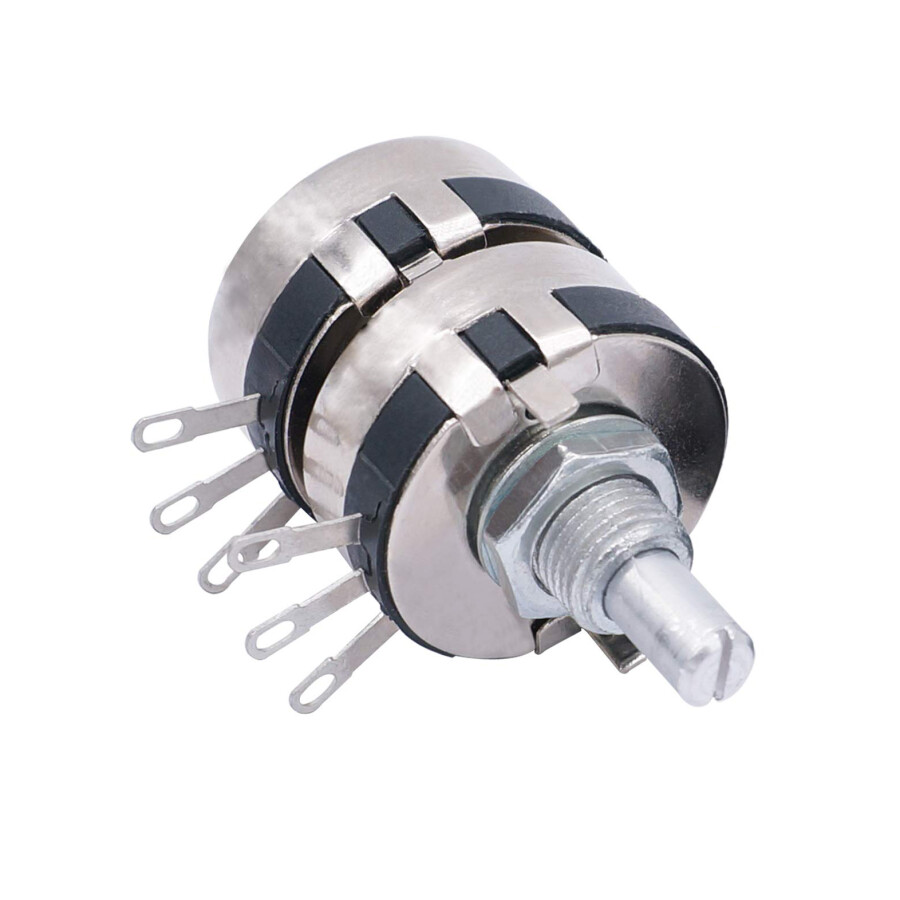

WTH118-2W Double 22K 2W Single Turn Potentiometer

It is a 22K analog potentiometer that can withstand a maximum power of 2W. Used to control two channels simultaneously in audio, signal and precision control applications.



Technical Specifications

• Model: WTH118
• Power: 2W (70°C)
• Maximum Operating Voltage: 500V
• Resistance Tolerance: ±% 10
• Rotation Angle: 260 ° ± 10 °
• Shaft Torque: 2 ~ 20mN.m
• Shaft Diameter: 6mm
• Shaft Length: 10mm

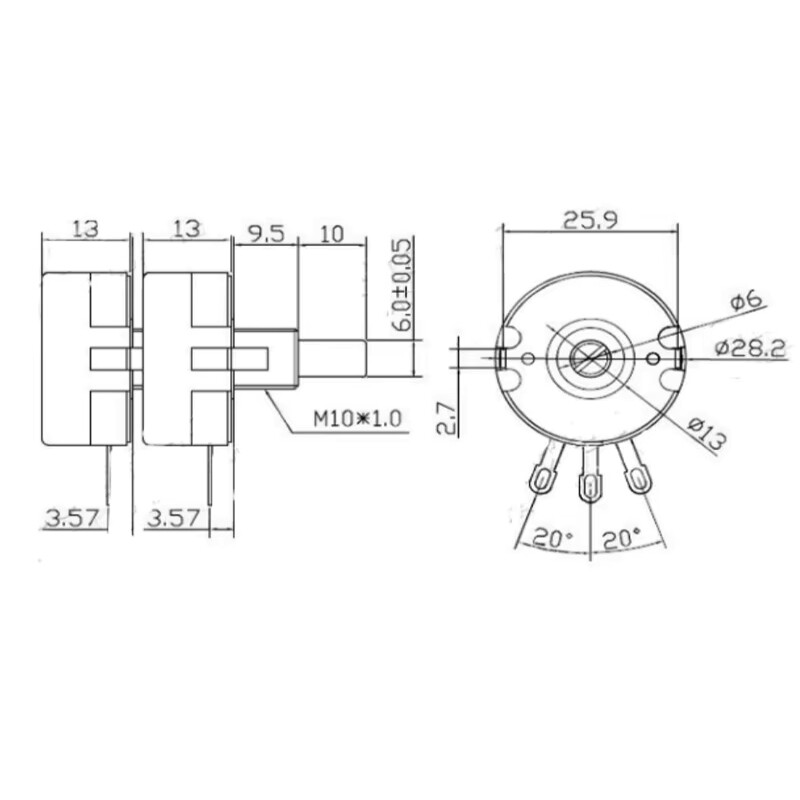

• Dimensions: 28x28mm (Excluding Shaft)
