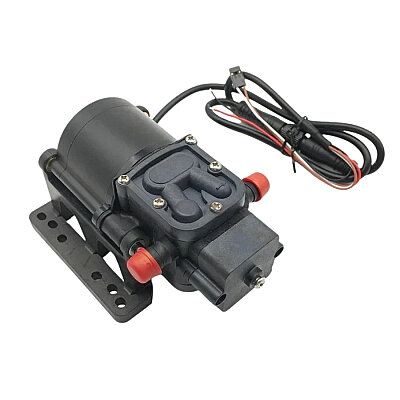

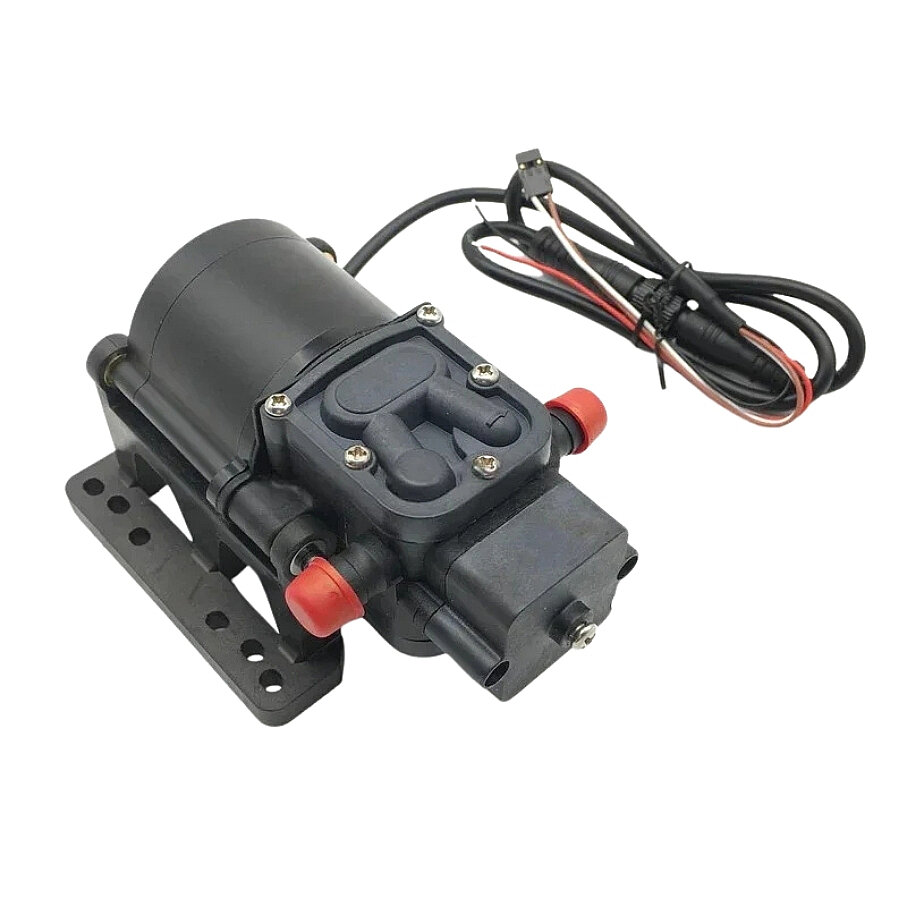

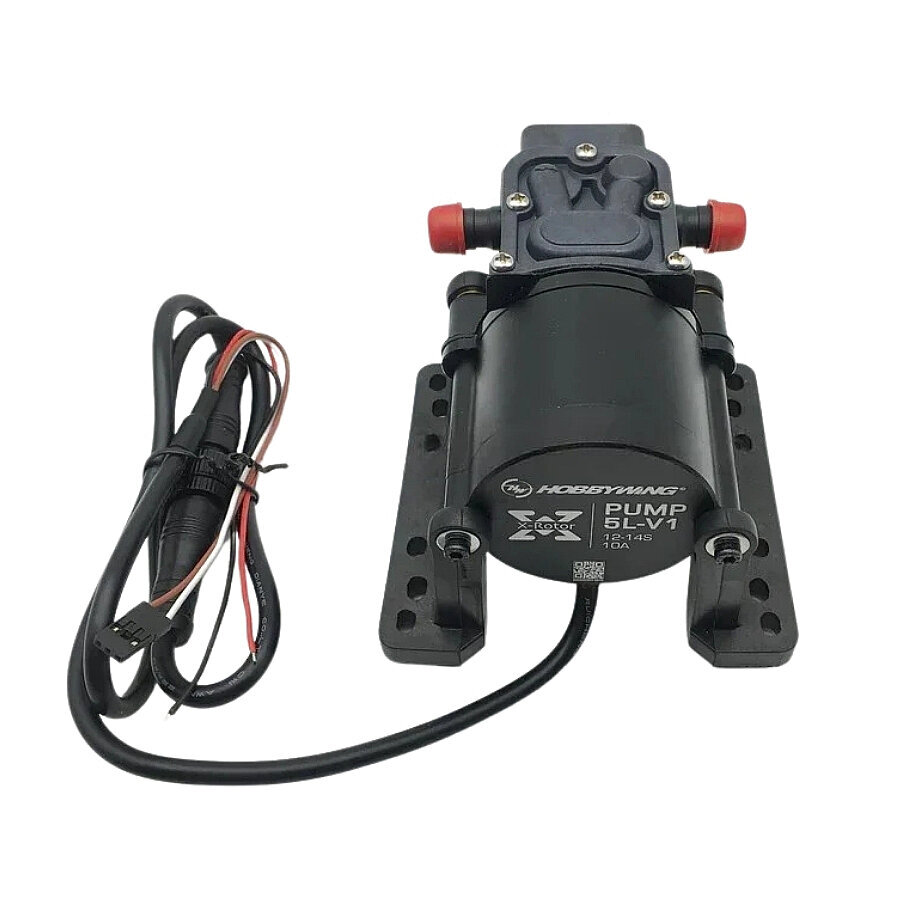

X-Rotor 5L-V1 10A Brushless Water Pump - For Agricultural Drones

X-Rotor 5L-V1 10A Brushless Water Pump - For Agricultural Drones

The X-Rotor 5L-V1 10A Brushless Water Pump for agricultural drones is a high-performance, electronically controlled water pump featuring a brushless motor, designed to facilitate fluid circulation in high-voltage electrical systems.

The pump is compatible with 12–14S LiPo systems, operating within a voltage range of approximately 44–60.9V DC. Thanks to this design, it is particularly suitable for high-voltage UAVs, agricultural drones, and cooling or specialized liquid circulation systems.

Specifications

• Operating Voltage: 12–14S LiPo / DC 44–60.9V
• Rated Power: 60W
• Operating Current: ≤2.5A
• Maximum Current: 10A
• Maximum Flow Rate: 5 L/min
• Operating Pressure: 0.35 MPa
• Motor Type: Brushless
• Control Type: PWM
• PWM Control Range: Approx. 1050–1950 µs
• Throttle Calibration: Not supported
• Protection Functions: Overcurrent, temperature, and startup voltage protection
• Protection Class: IP67
• Weight: Approx. 388 g
• Pump Dimensions: Approx. 118 × 76 × 52 mm
• Water Inlet Diameter: Approx. 10.5 mm
• Water Outlet Diameter: Approx. 6.5 mm
