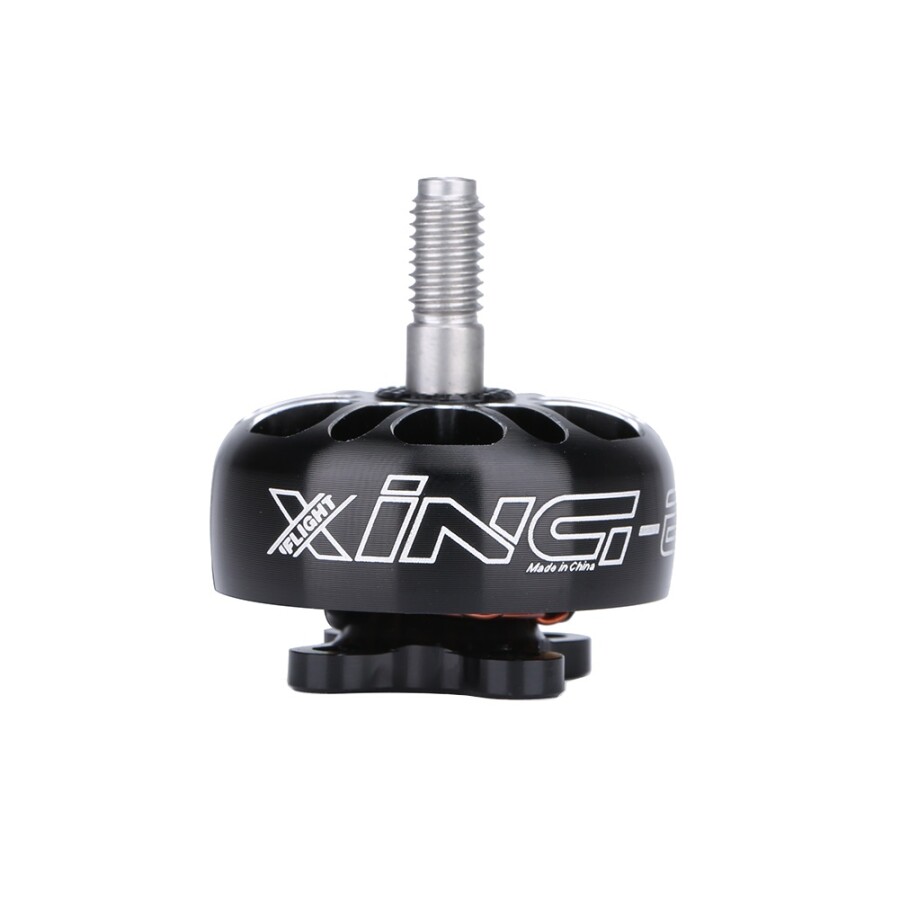

XING-E Pro 2306 2450KV 4-6S FPV Drone Motor

XING-E Pro 2306 2450KV 4-6S FPV Drone Motor

The XING-E Pro 2306 2450KV 4-6S FPV Drone Motor is an extremely powerful and powerful FPV motor for FPV racing. With its renowned XING performance, it's an excellent choice. Focusing on quality, the XING-E Pro series offers powerful, durable, and affordable motors. This 2306-size motor features a high-strength 5mm steel hollow shaft, single-wire windings for performance, an M3 shaft thread, and larger 9x4x4mm NSK bearings.

Features

• Model: XING-E Pro 2306 Motor
• KV: 2450KV
• Weight (including cable): 33.6g
• Dimensions: φ29.5*32.2mm
• Phase-to-Phase Resistance: 55.6mΩ
• Input Voltage: 16.8V
• Peak Current: 43.38A
• Maximum Wattage: 712.7W
• Mounting Holes: 16*16 φ3 mm
• Rotor Specifications: Unibell
• Shaft Diameter: 5 mm
• Shaft Length: 13.5 mm
• Lead: 160 mm / 20 AWG
• Magnet: N52H Curved
• Configuration: 12N14P
• Bearing Type: NSK
• Bearing Specifications: φ9*φ4*4
• Winding: Single-Wire Copper Winding
