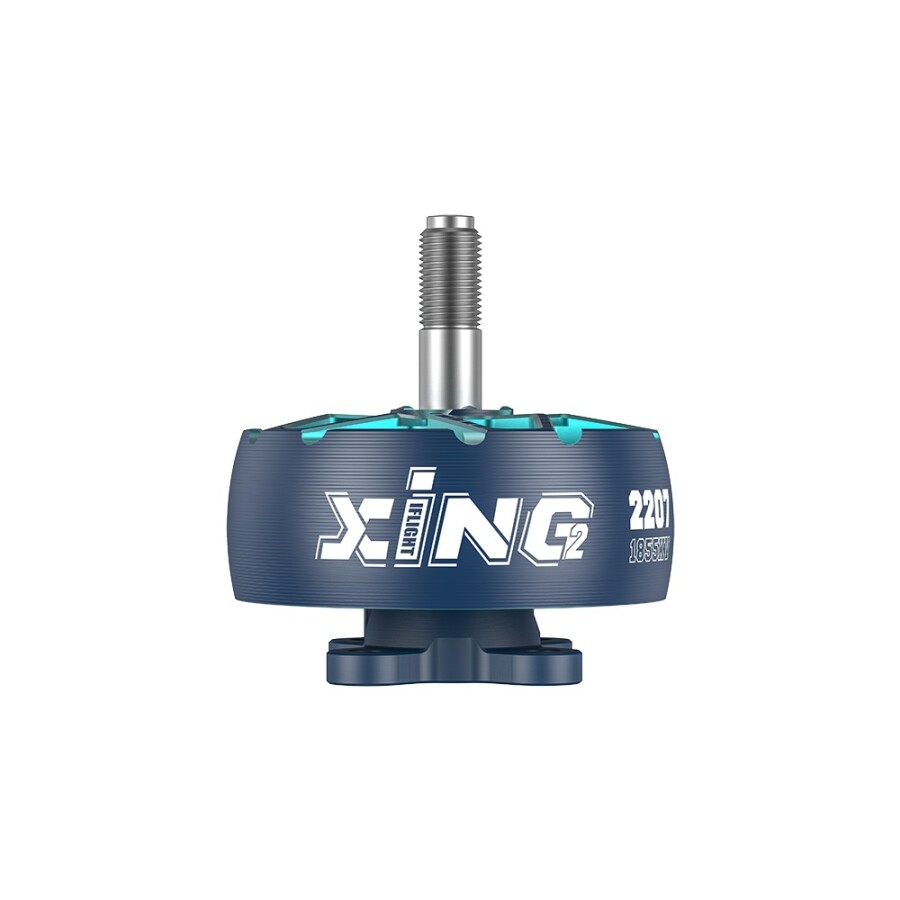

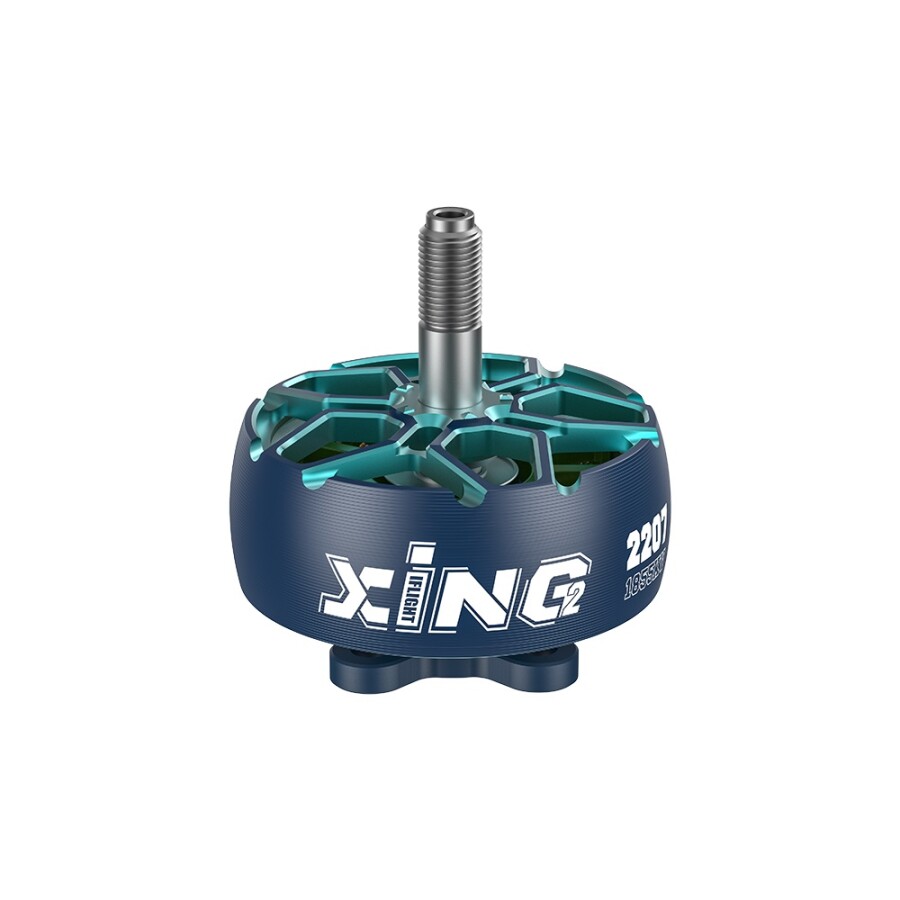

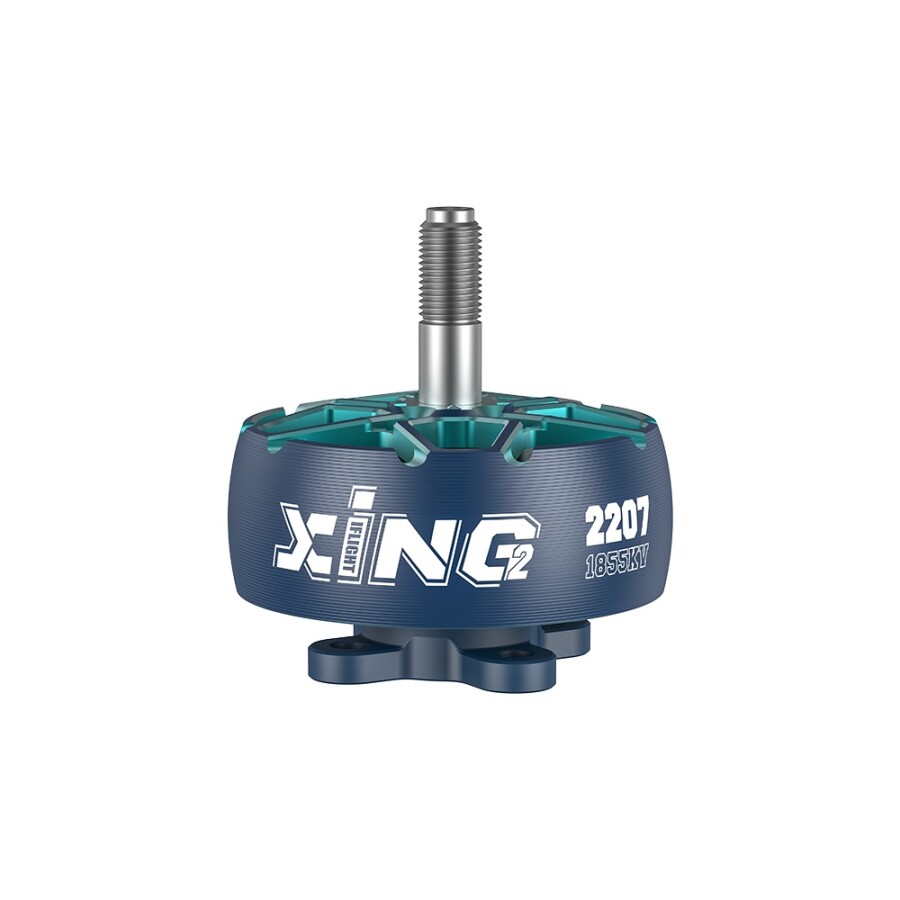

XING2 2207 2755KV 4-6S FPV Drone Motor
The The smaller the air gap, the lower the reluctance and the higher the magnetic flux (the magnetic analog of current); This provides greater efficiency and higher power.
Features
- KV: 2755KV
- Weight (including cable): 31.6 g
- Dimensions: φ29.08*32.6 mm
- Phase-to-Phase Resistance: 41.5mΩ
- Input Voltage: 16V
- Peak Current: 40.35A
- Maximum Wattage: 645.60W
- Mounting Holes: 16*16 φ3 mm
- Rotor Specifications: Unibell
- Shaft Diameter: 5 mm
- Shaft Length: 13.5 mm
- Lead: 160 mm/20 AWG
- Magnet: N52H Curved
- Configuration: 12N14P
- Bearing Type: NSK
- Bearing Specifications: φ9*φ4*4
- Winding: Single-Wire Copper Winding
